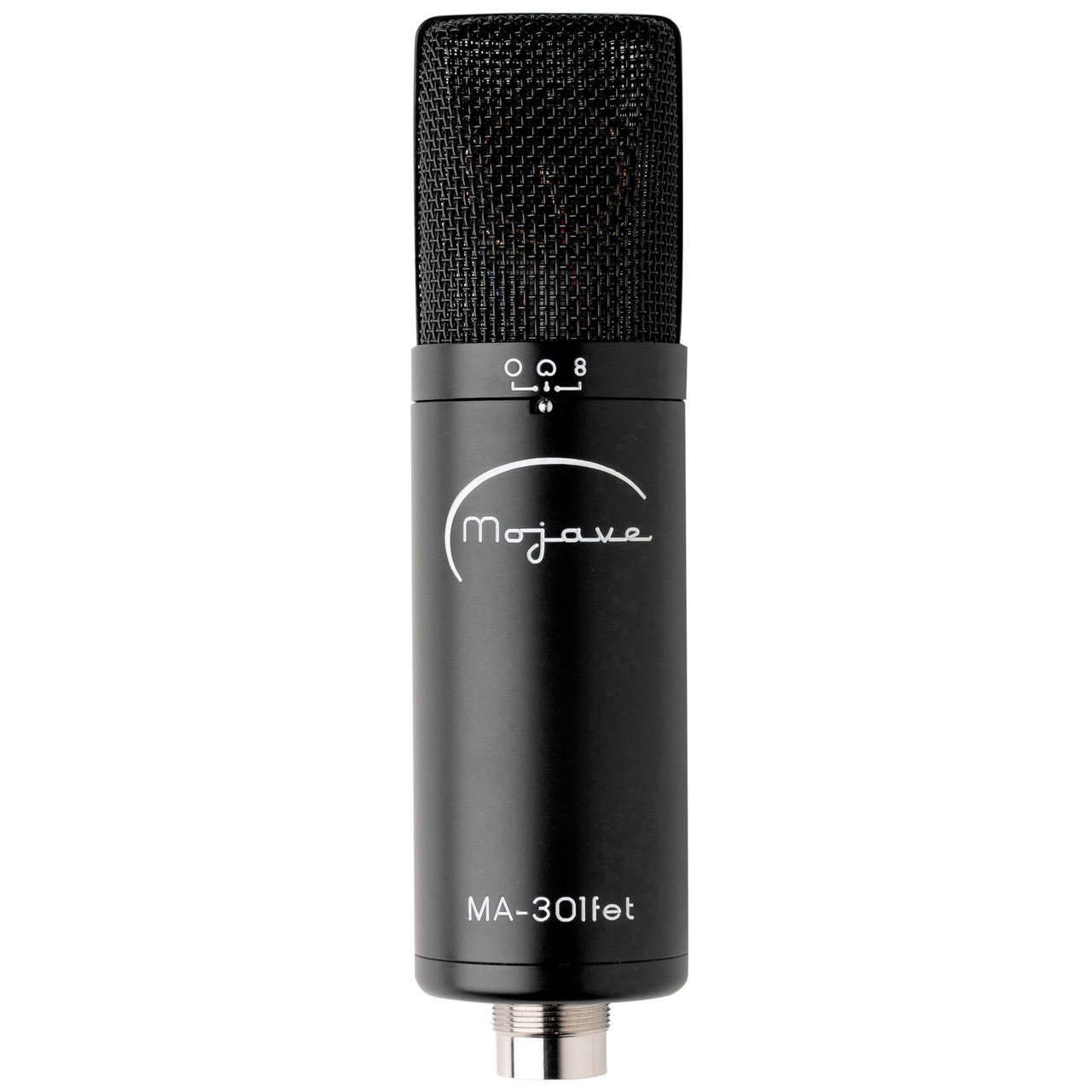

Mojave MA-301fet Condenser Microphone

The MA-301fet is based upon the popular MA-201fet design by David Royer but also includes a 3-position pattern selector, 15dB pad and switchable bass roll-off - great on higher SPL sources. Utilizing a 3-micron gold sputtered capsule, high-quality Jensen audio transformer, military-grade FET and custom designed low-noise resistors, the MA-301fet performs at a level reminiscent of some of the best-loved classic condenser microphones.

    • Mojave MA-301fet PRODUCT FEATURES:

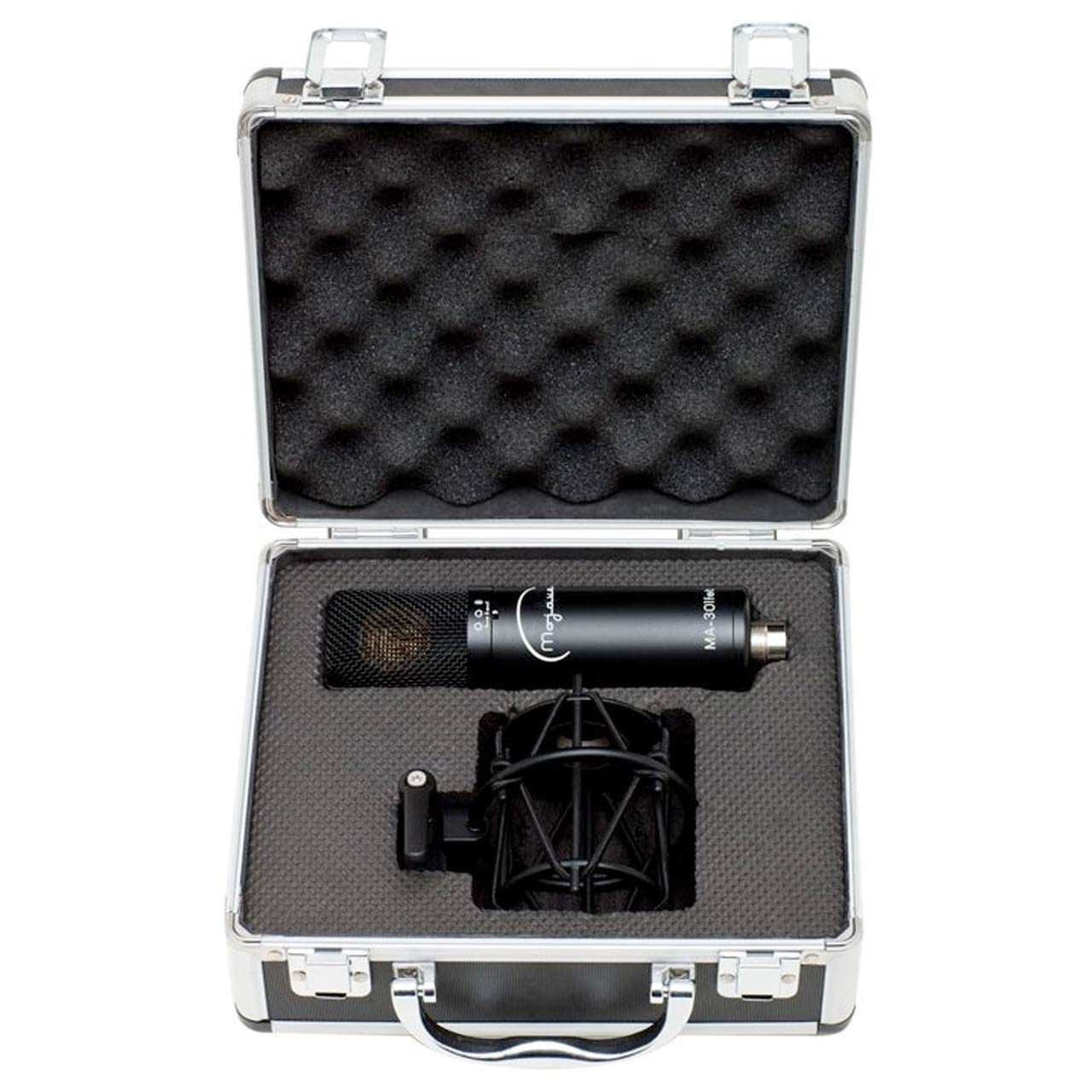

      Each MA-301fet microphone is carefully tested and evaluated, then packaged in its protective case with a professional grade shockmount.


      • Multi-pattern: Cardioid, Omnidiectional, Figure-eight (Bi-directional)
      • Switchable 15dB pad
      • Switchable Bass Roll-off
      • Hand-selected 3-micron 1" capsule
      • Jensen audio transformer
      • Military-grade FET
      • Custom designed low-noise resistors
      • Ultra clean signal path

      Recommended Applications:

      • Vocals
      • Voice Over and Broadcast
      • High SPL sources, such as Kick Drums and Bass Guitar Amps
      • Electric Guitar
      • Piano
      • Drum Overheads, Drum Rooms

      TRANSDUCER TYPE: Externally polarized, pressure gradient capacitor - double diaphragm.
      DIAPHRAGM: 1-inch diameter, gold sputtered
      DIAPHRAGM THICKNESS: 3 microns
      POLAR PATTERN: 3 patterns; omni, cardioid and figure-8
      FREQUENCY RESPONSE: 20 Hz to 20 KHZ, +/-3 dB at "flat" setting of bass cut
      switch. Bass cut switch provides 6 dB per octave attenuation below
      100 Hertz in "cut" setting
      SENSITIVITY: -40.5 dB, re. 1V/pa
      MAXIMUM SPL: 120 dB with pad off, 135 dB with pad on.
      DISTORTION: < 1% @ 120 dB SPL , < 3% @ 134 dB SPL with pad off
      < 1% @ 134 dB SPL, < 3% @ 148 dB SPL with pad on
      SELF NOISE: 14dB nominal, not to exceed 16dB (A weighted)
      PAD: 15 dB
      BASS CUT: 6 dB per octave below 100 hertz.
      IMPEDANCE: 550 ohms, transformer balanced (Jensen)
      POWERING: 48VDC phantom power; current 1.2 mA
      Carrying case with microphone, shock mount: 10" x 9" x 4.5", 4 lbs.
      Microphone: 7 5/8" X 2" (194mm x 51mm), 1 lb. (0.45Kg)

Need more info on the Mojave MA-301fet? Click HERE for the manufacturer's website >>>
