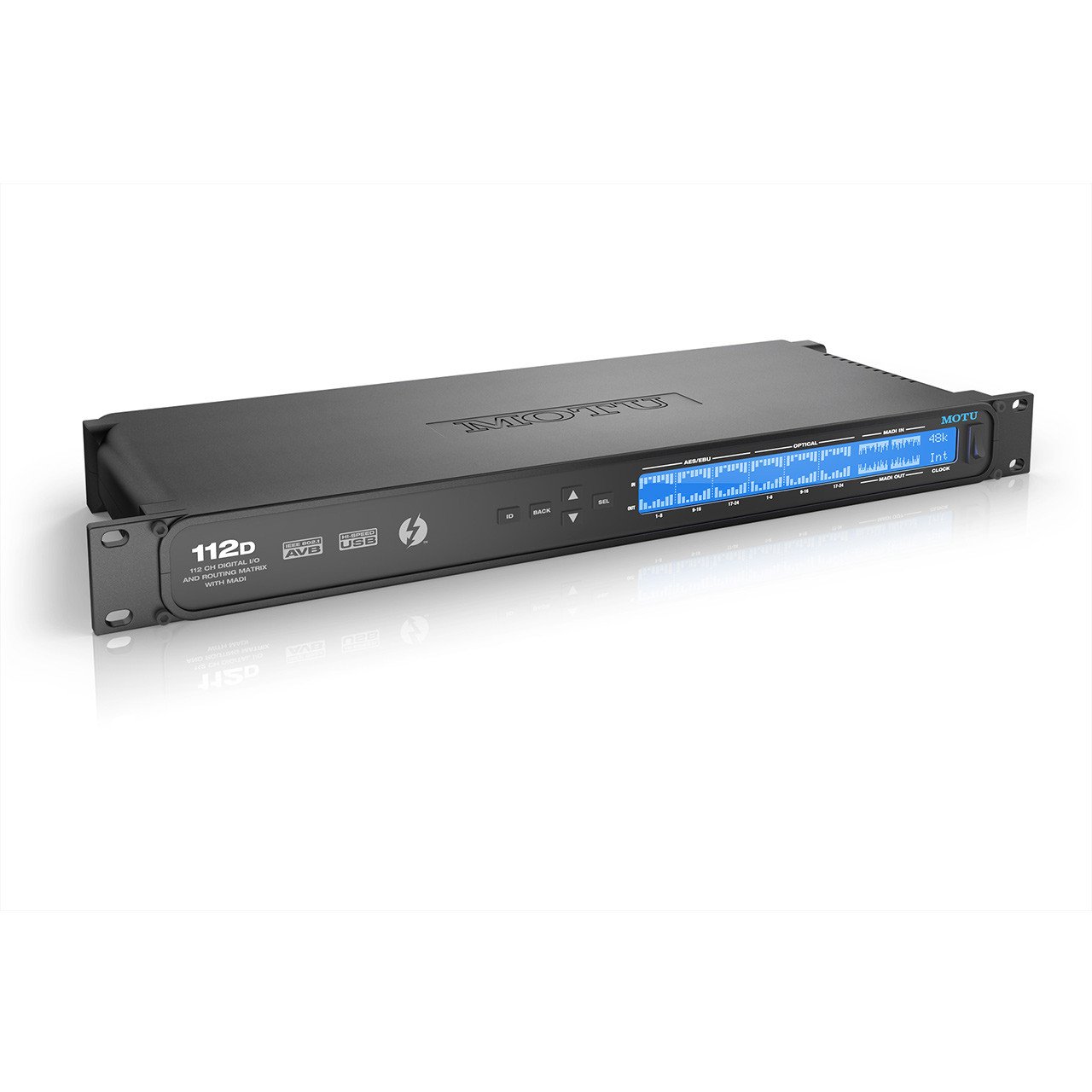

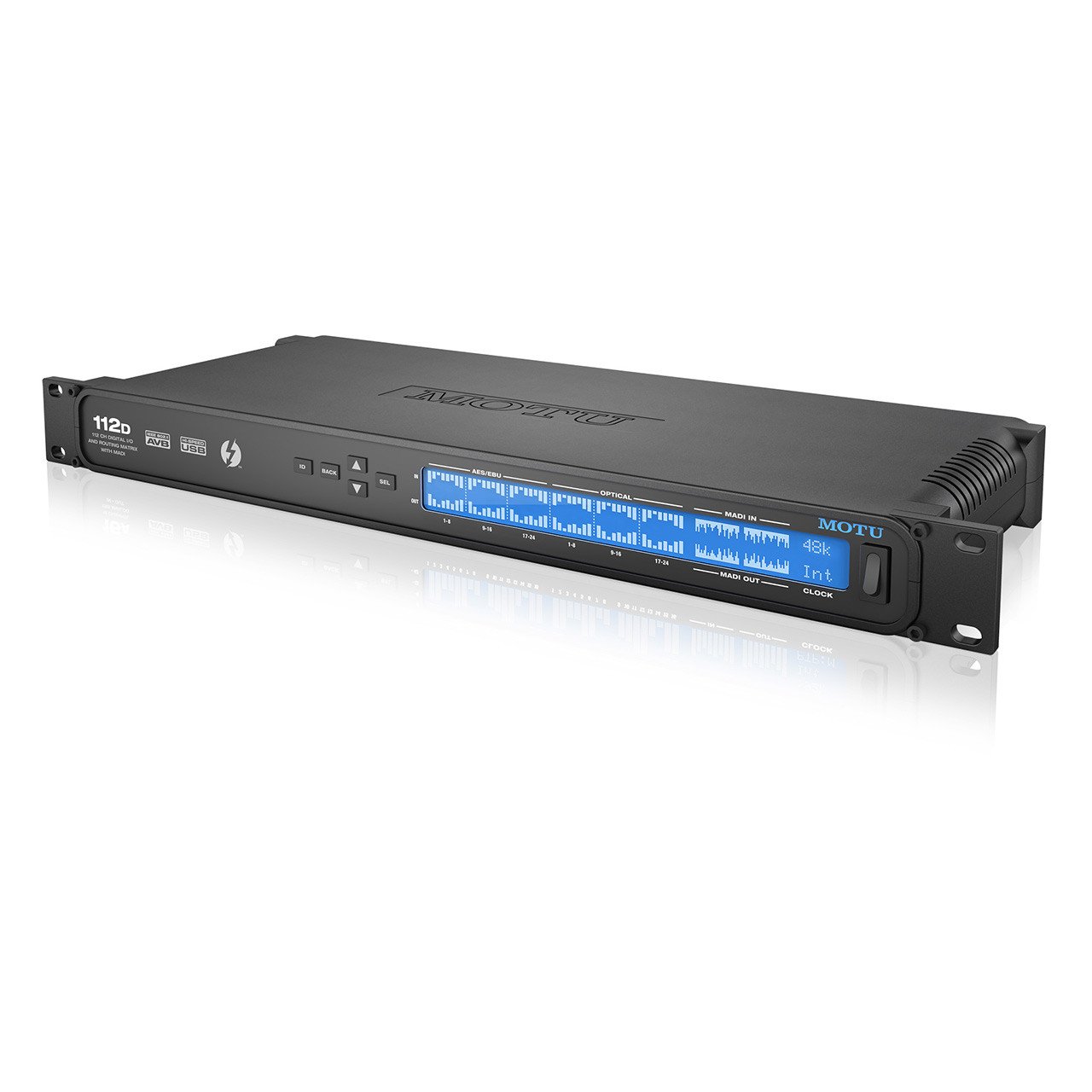

MOTU 112D Thunderbolt / AVB Ethernet / USB Audio Interface

If you need lots of simultaneous digital I/O in a solid interface and from a brand you can trust - look no further than the MOTU 112 D!  The 112D is a flexible digital audio interface, router, format converter, and stand-alone mixer, with connectivity to a host computer through ultra-fast Thunderbolt™ technology, AVB Ethernet, or class compliant, high-speed USB 2.0 (compatible with USB 3.0 and iOS). The 112D provides 24 channels of AES/EBU digital I/O, 24 channels of ADAT optical digital I/O and 64 channels of MADI for a total of 112 simultaneous digital I/O channels.


    • MOTU 112D PRODUCT FEATURES:

      Summary:

      With near-zero latency, send any input to any output, or multiple outputs. Freely route all 112 audio channels to and from the computer over Thunderbolt, plus any devices on the AVB network. Convert any format to any other: AES/EBU, optical, MADI, AVB, and computer audio (Thunderbolt or USB). Powerful DSP delivers large console style mixing with 48 channels, 12 stereo busses, and 32-bit floating point effects processing, including modeled analog EQ, vintage compression and classic reverb. Use the 112D as a stand-alone mixer and control everything from the 112D's innovative web app running on your iPad™, iPhone™, tablet, smart phone, and laptop. Connect a second MOTU AVB interface (such as a 1248, 8M, 16A or 112D) with a simple Ethernet cable. Add more I/O with the MOTU AVB Switch (sold separately). Build an AVB audio network with multiple switches and sub-millisecond latency, even over long cable runs. Stream hundreds of channels among devices and computers on the network. From studio to stage, the 112D delivers flexible digital routing/conversion, state-of-the-art operation, and reliable performance.

      Main Features:

      The 112D is a flexible digital audio interface, router, format converter, and stand-alone mixer, with connectivity to your computer through ultra-fast Thunderbolt™ technology, AVB Ethernet, or class compliant, high-speed USB 2.0 (compatible with USB 3.0 and iOS).

      The 112D provides 24 channels of AES/EBU digital I/O and 24 channels of ADAT optical digital I/O at sample rates up to 96 kHz. The 112D also serves as a 64-channel MADI interface, router, converter, and MADI-to-AVB bridge, for a total of 112 simultaneous digital I/O channels.

      With near-zero latency, send any input to any output, or multiple outputs. Freely route all 112 audio channels to and from the computer, plus any devices on the AVB network. Convert any format to any other: AES/EBU, optical, MADI, AVB, and computer audio (Thunderbolt or USB). Mix and process up to 48 channels using the professional on-board digital mixer — with no latency and no processor strain on your computer. Apply hardware DSP-driven effects processing to inputs, outputs, and busses independent of your host computer. Add Classic Reverb™ with lengths up to 60 seconds. Further sculpt your sound with gating, 4-band parametric EQ, and vintage compression modeled after the legendary LA-2A™ leveling amplifier.

      Add more MOTU interfaces as your needs grow, connected to a state-of-the-art audio network using standard AVB Ethernet switches and CAT-5e cabling, with near-zero network latency, even over long cable runs (100 meters point to point). Record and monitor up to 128 audio channels in and out, simultaneously, to a host computer through Thunderbolt. Route hundreds of audio channels among multiple devices and computers on the network.

      Control all DSP-based mixing and effects, device settings, and network audio routing using your favorite web browser running on your laptop, tablet or smart phone connected wirelessly or locally to the 112D audio network.

      From studio to stage, the 112D delivers flexible digital routing/conversion, state-of-the-art operation, and reliable performance.

    • MOTU 112D TECHNICAL SPECIFICATIONS:

      Sample rates

      44.1, 48, 88.2, 96, 176.4, 192 kHz

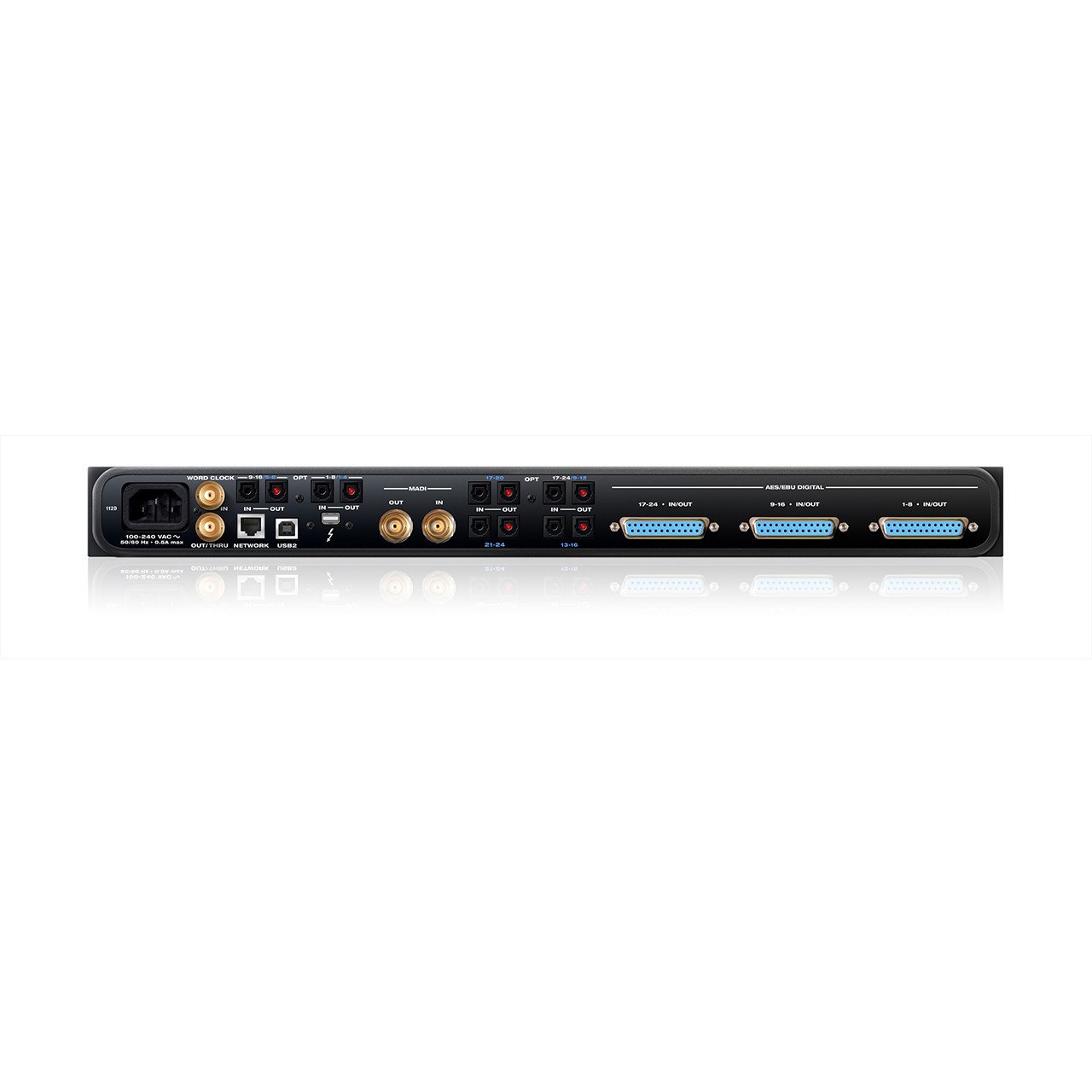

      Digital I/O

      3x 8-ch banks (24 ch) of ADAT optical at 1x sample rates
      6x 4-ch banks (24 ch) of SMUX optical at 2x sample rates
      3x 8-ch banks (24 ch) of AES/EBU on 25-pin D-sub
      1x BNC MADI in/out (64/56 ch @ 1x, 32 @ 2x, 16 @ 4x)

      Total I/O

      112 inputs and 112 outputs (224 total) at 1x sample rates
      80 inputs and 80 outputs (160 total) at 2x sample rates
      16 inputs and 16 outputs (32 total) at 4x sample rates

      Computer I/O

      1 x Thunderbolt (compatible with 1 and 2)
      1 x USB 2.0 audio class compliant
            USB 3.0 and iOS compatible
      1 x AVB Ethernet (requires OS X Yosemite)

      Sync I/O

      1 x word clock in
      1 x word clock out / thru

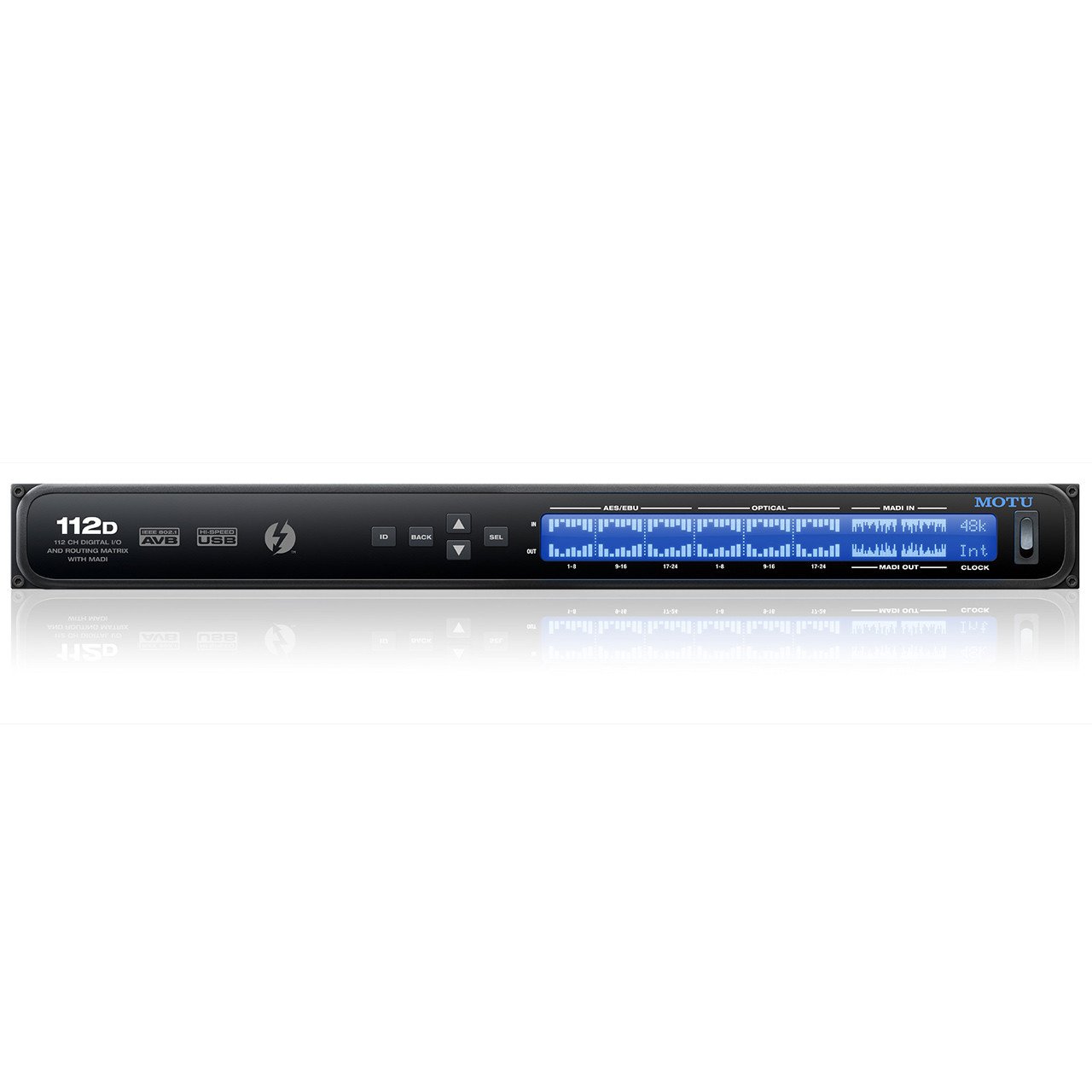

      Front panel

      5 x switches • menu navigation
      324 x 24 pixel LCD for level meters / menu nav
      1 x AC power switch

      Power

      International 100-240V autoswitching supply
      50-60 Hz • 0.5A max

    • MOTU 112D SYSTEM REQUIREMENTS:

      Mac System Requirements

      • 1 GHz Intel-based Mac or faster
      • 2 GB RAM; 4 GB or more recommended
      • Mac OS X version 10.8 or later
      • Available Thunderbolt, USB 2.0 or AVB Ethernet port*
      • A large hard drive (at least 500 GB for recording)
      • *AVB Ethernet audio interface operation requires OS X Yosemite

      Windows System Requirements

      • 1 GHz Pentium-based PC compatible or faster
      • 2 GB RAM; 4 GB or more recommended
      • Windows 7 or later
      • Available USB 2.0 or 3.0 port
      • Available Ethernet port for firmware updates
      • A large hard drive (at least 500 GB for recording)

      Web App Support

      • Any web client platform: Mac, Windows, Linux, iOS, Android
      • Any web browser: Safari, Firefox, Chrome, Opera, Explorer, etc.
      • Web client must be connected to the same network as the MOTU AVB interface by wire or Wi-Fi.

      Included Software

      • Thunderbolt and USB 2.0 drivers
      • MOTU AVB Discovery App for Mac (finds connected MOTU interfaces)
      • MOTU AVB Discovery App for iOS (available from Apple App Store)
      • MOTU AVB Control web app (served from the hardware itself)
      • AudioDesk 4.0 for Mac and Windows (separate download)

      Operating Systems

      • For computer audio I/O: Mac OS X 10.8 or later; Windows 7 or later
      • For web app control: Mac, Windows, Linux, iOS, Android
