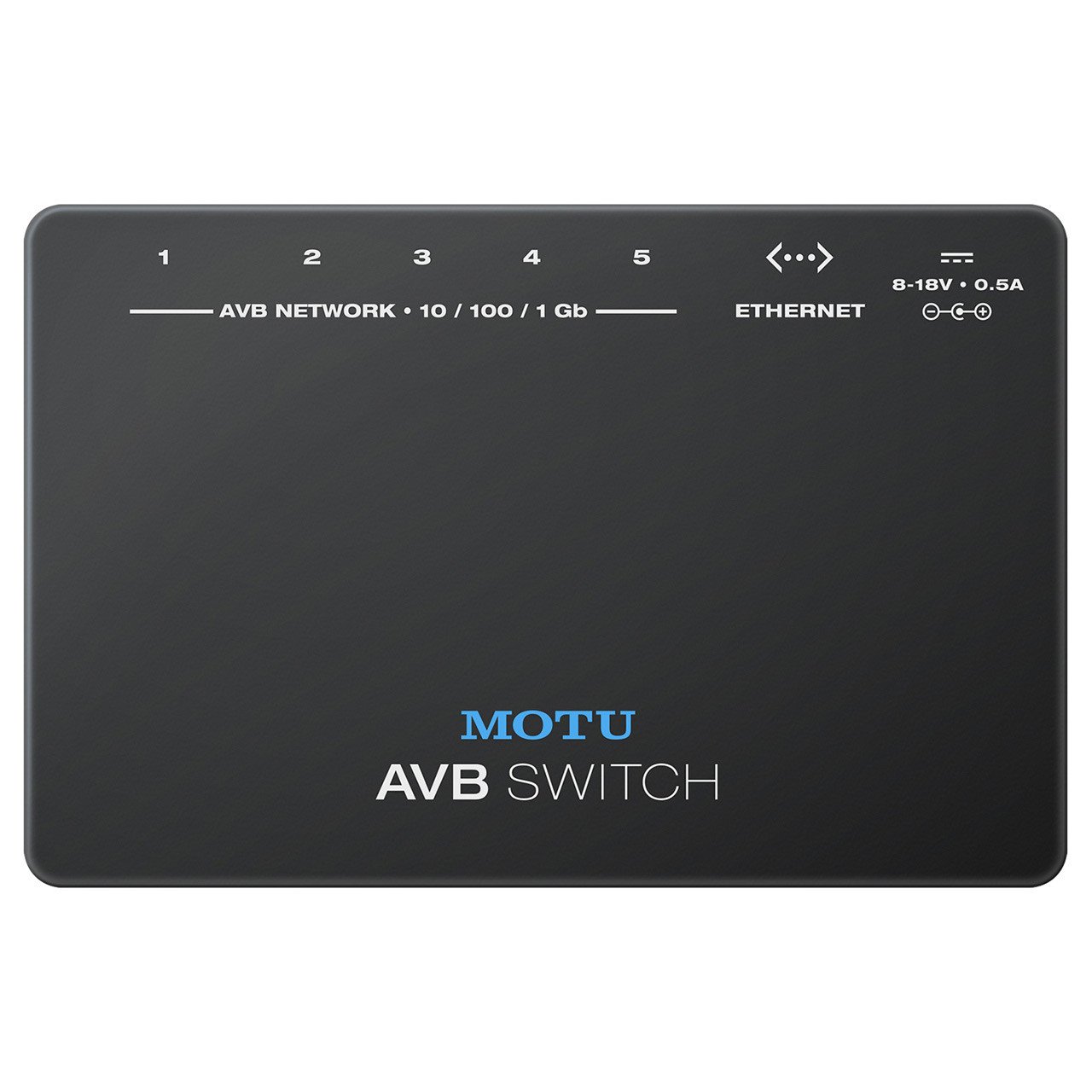

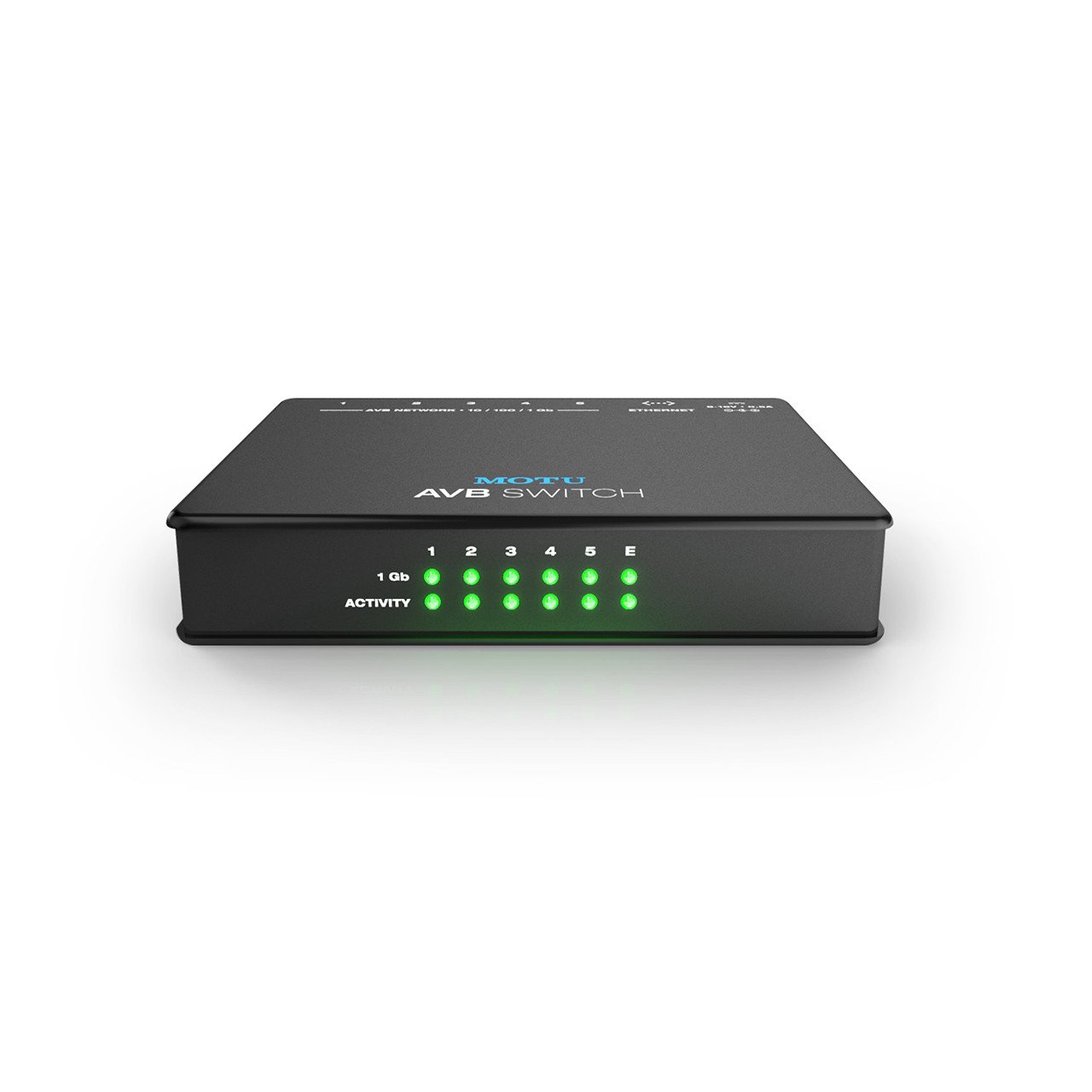

MOTU AVB Switch - Five-port AVB Ethernet switch

Audio Video Bridging (AVB) is the exciting new extension which allows low-latency, fully synchronized audio and video streamed in real-time over Ethernet! AVB fulfills the promise of a true A/V standard that brings together the worlds of networking technology and professional audio/video. The MOTU AVB Switch™ provides five 1-Gigabit AVB ports for any AVB devices (even other switches), plus an extra sixth port for bridging to a standard Ethernet network.


    • MOTU AVB Switch PRODUCT FEATURES:

      Enjoy the many benefits of AVB, including plug-and-play operation, guaranteed quality of service, and self-regulated network resource management.

      Bullet points:

      • Industry standard IEEE 802.1 AVB Ethernet switch.

      • Plug-and-play — supports automatic device discovery and network bandwidth management among connected AVB devices. No IT expertise required.

      • Standard cabling — use standard CAT-5e or CAT-6 Ethernet cables up to 100 meters.

      • 1-Gigabit operation — supports high audio channel counts and very low latency.

      • Guaranteed quality of service — all existing audio and video streams are maintained, regardless of other network traffic.

      • Network-wide clock and sync accurate to nanoseconds.

      • Bridging to standard Ethernet for internet and Wi-Fi.
    • MOTU AVB Switch TECHNICAL SPECIFICATIONS:

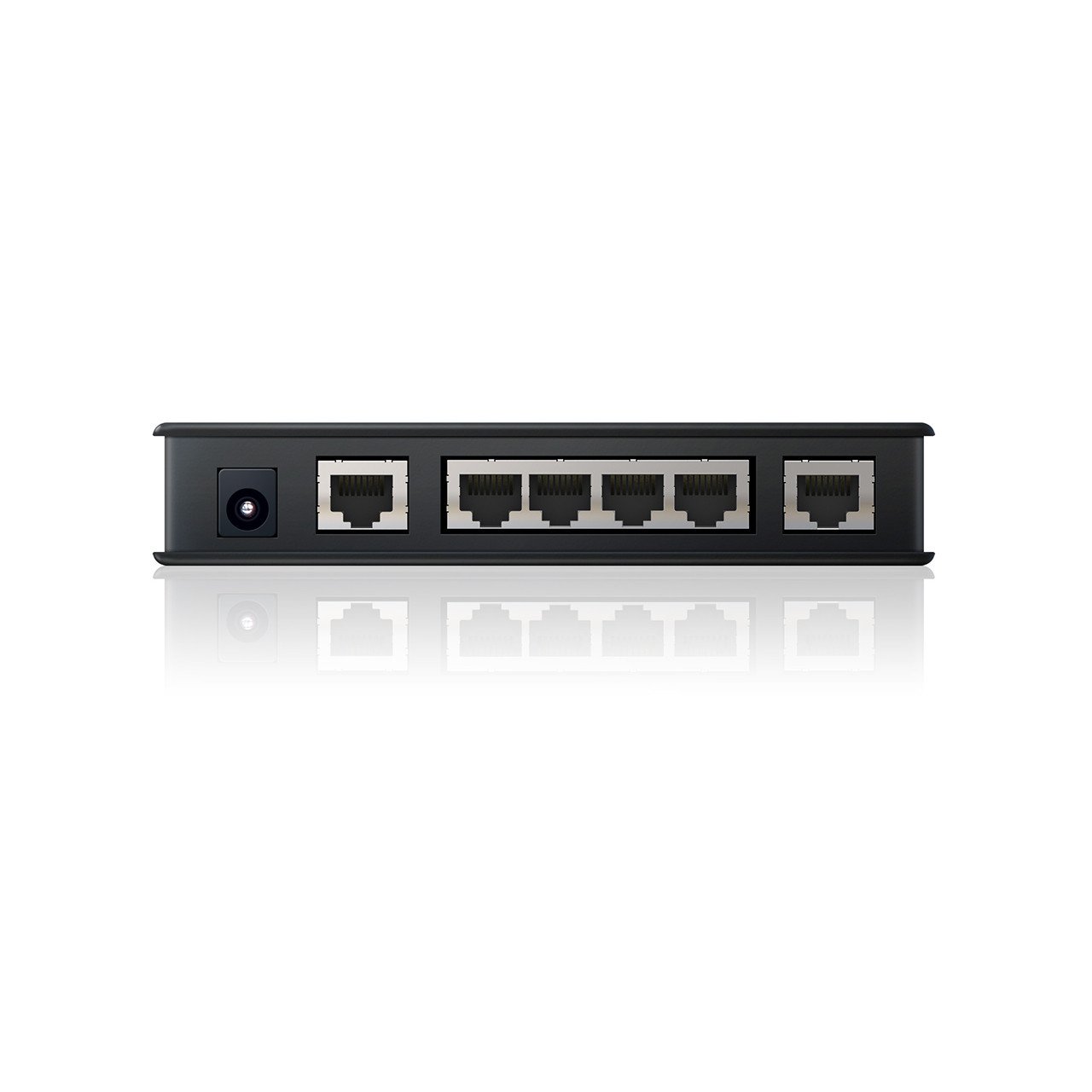

      AVB ports

      5

      Ethernet ports


      (Note: the five AVB ports can also be used for Ethernet)

      Operational bandwidth

      10 / 100 / 1 Gigabit

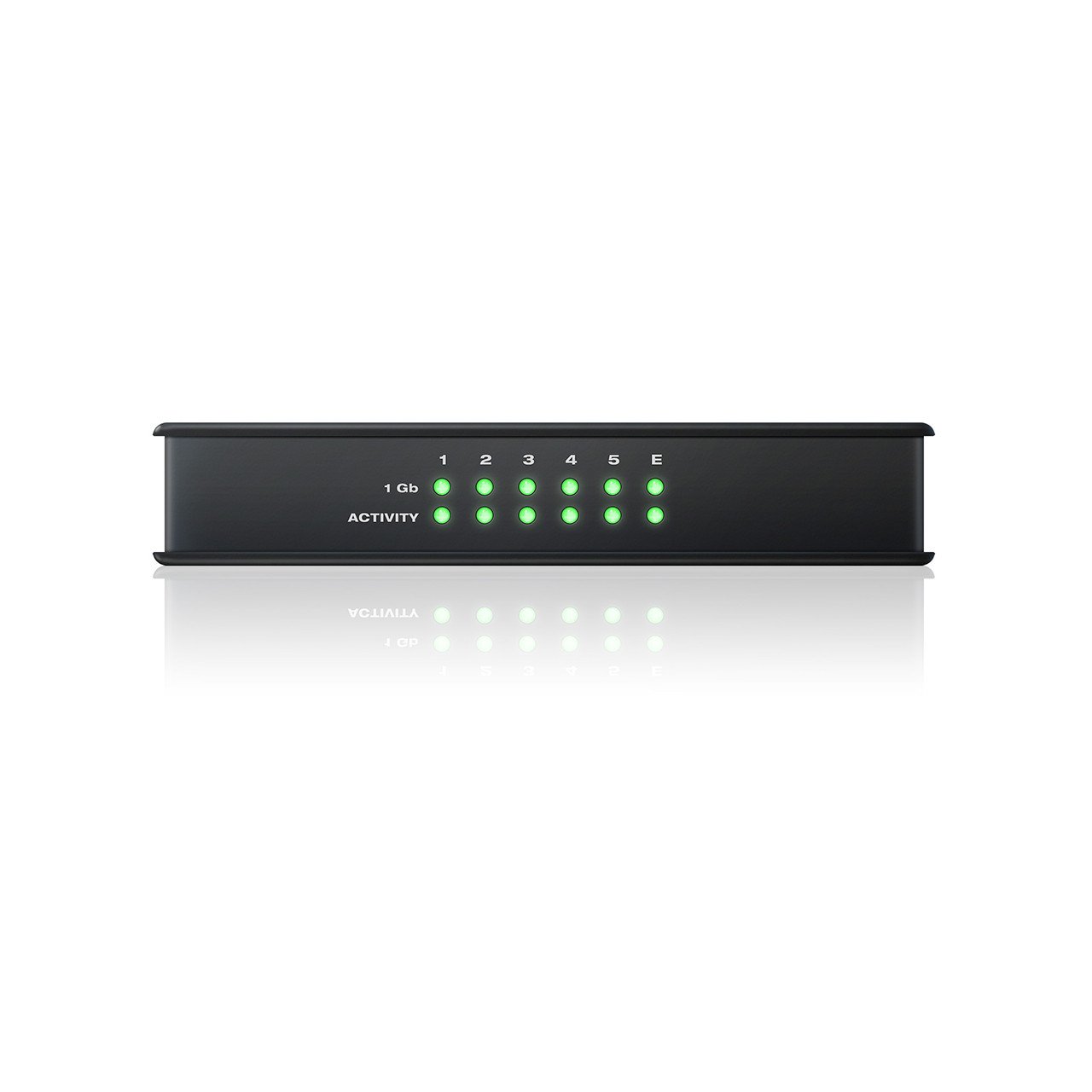

      Front panel

      12 x activity LED

      Power

      8-18V DC • 0.5A • tip positive

      Dimensions

      Length: 5 ½ in / 14 cm
      Width: 3 ⅝ in / 9.2 cm
      Height: 1 ⅛ in / 2.7 cm

Need more info on the MOTU AVB Switch? Click HERE for the manufacturer's website >>>
