MOTU

Product Code: MOT-MIDIExpXTUSB

MOTU MIDI Express XT 8x8 USB MIDI interface

The MOTU MIDI EXPRESS XT is exactly what you need if you want a professional quality 8-in/8-out MIDI interface, patch-bay, and merger with time code sync.  The MIDI Express XT is b uilt with MOTU's award-winning MIDI interface technology - a professional MIDI interface and SMPTE synchronizer that provides reliable plug-and-play connectivity to any USB-equipped Mac or Windows computer.  The Express XT provides 8 MIDI IN, 9 MIDI OUT, 128 MIDI channels and compatibility with all Mac and Windows software.


    • MOTU MIDI Express XT Features:

      • USB MIDI interface for Mac and Windows
      • Stand-alone MIDI patchbay/merger/processor
      • SMPTE time code sync in all formats (includes new support for 23.976 fps time code)
      • 8x8 MIDI merge matrix: connects any device to any other
      • 16 front panel presets
      • 8 independent MIDI IN
      • 8 independent MIDI OUT (9 output connectors)
      • 128 MIDI channels
      • Supports MIDI Machine Control
      • Pedal input for momentary foot switch
      • 16 presets with 8 programmable, battery-backed memory
      • MIDI Time Stamping (MTS) for sub-millisecond timing accuracy
      • Includes updated drivers and ClockWorks™ software for Mac and Windows
      • Internal Power Supply

      MIDI and Sync

      • Merge any inputs to any outputs
      • Route any inputs to any outputs
      • Mute any MIDI data on any cable
      • Re-channelize on input and output

      Synchronization

      • SMPTE time code (LTC) generater and reader
      • Converts LTC to MIDI Time Code (MTC) to sync a Mac, PC or any other devices to SMPTE time code
      • Converts all SMPTE frame rates (23.976, 24, 25, 29.97 drop, 29.97 non-drop, 30)
      • Stripes SMPTE time code in all frame rates (23.976, 24, 25, 29.97 drop, 29.97 non-drop, 30)
      • Converts MIDI Time Code to SMPTE time code
      • SMPTE "Jam Sync" with adjustable freewheeling for dropout-free sync
      • Supports MIDI Machine Control - serves as either an MMC master or slave, distributes MMC transport commands to all other MMC devices
    • MOTU MIDI Express XT Tech Specs:

      • Custom-designed VLSI technology

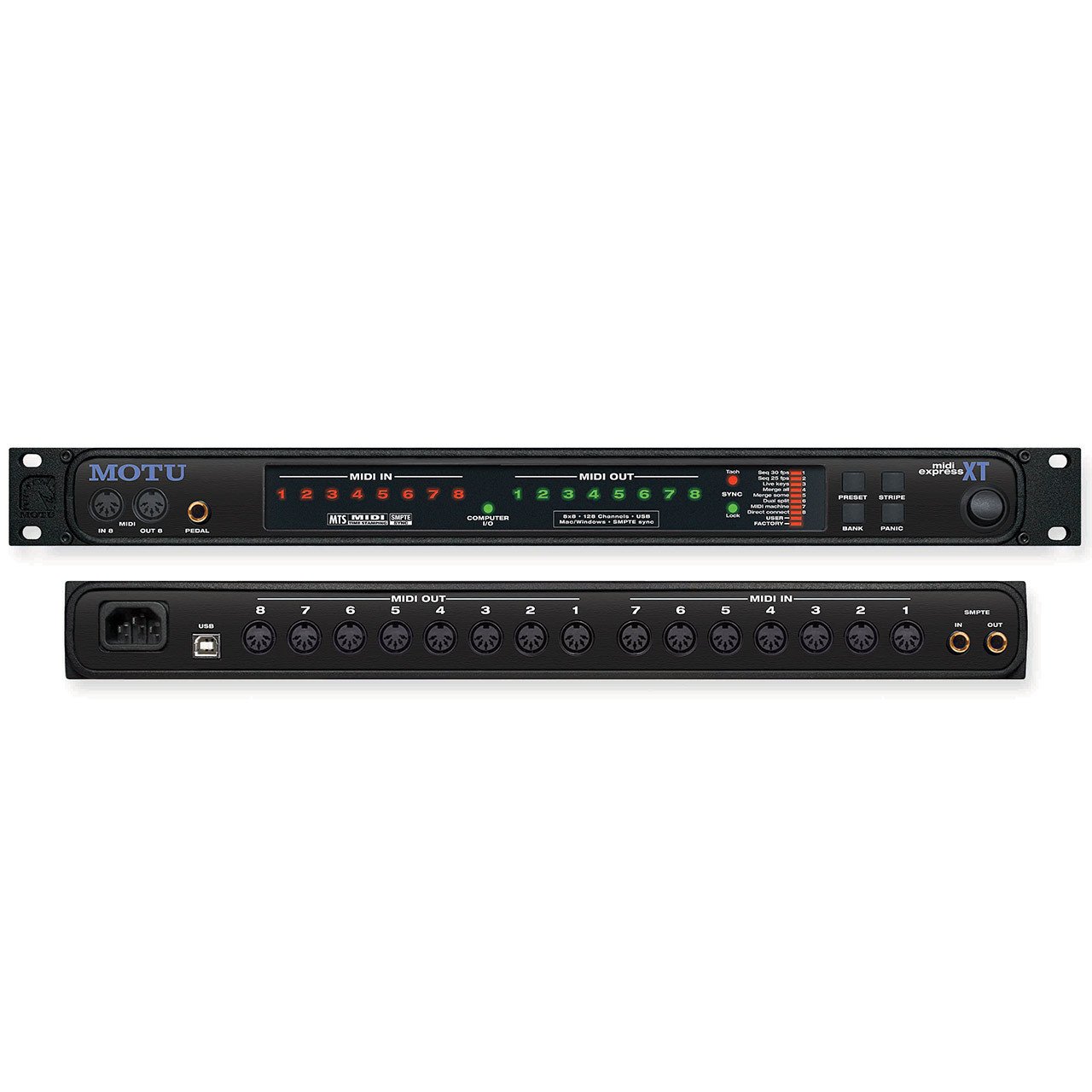

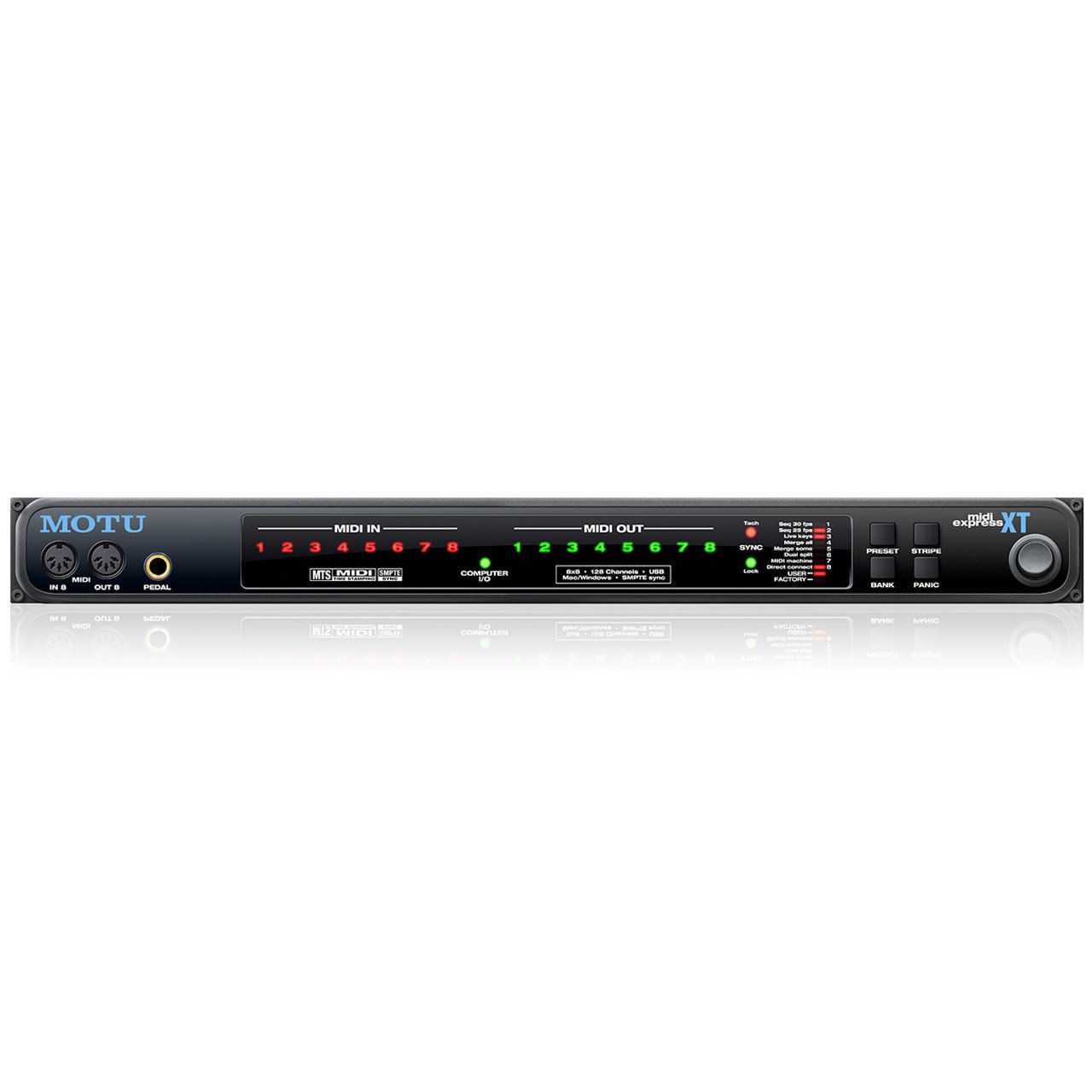

      • Front panel buttons and LED's for choosing presets (8 factory, 8 user)
      • Front panel SMPTE stripe button
      • Front panel SMPTE lock and tach LED's
      • Status lights for MIDI IN/OUT and computers
      • Front panel MIDI IN and OUT ports
      • Panic button
      • 17 MIDI connectors
      • 2 SMPTE quarter-inch phone (line level)
      • 1 pedal quarter-inch phone input
      • 1 IEC power connector (switchable 115V - 220V)
      • Includes: Software console for Macintosh and Windows, power cord, USB cable
      • Chassis dimensions, excluding rack ears: 19 × 7 × 1.75 inches (48.26 × 17.78 × 4.45 cm). With rack ears attached, fits standard 19 inch (48.26 cm) rack at 1U high.
Need more info on the MOTU MIDI Express XT? Click HERE for the manufacturer's website >>>
