    MOTU Ultralite MK5 18 In/22 Out USB Audio Interface

    5th-generation engineering delivers unprecedented sound quality, ultra-
    low latency and proven performance.

    The UltraLite-mk5 includes renowned ESS Sabre32™ DAC technology, featuring the ES9026PRO DAC, to deliver measured 125 dB dynamic range and -114 dB THD+N. Renowned drivers deliver rock-solid performance and industry-leading low latency.

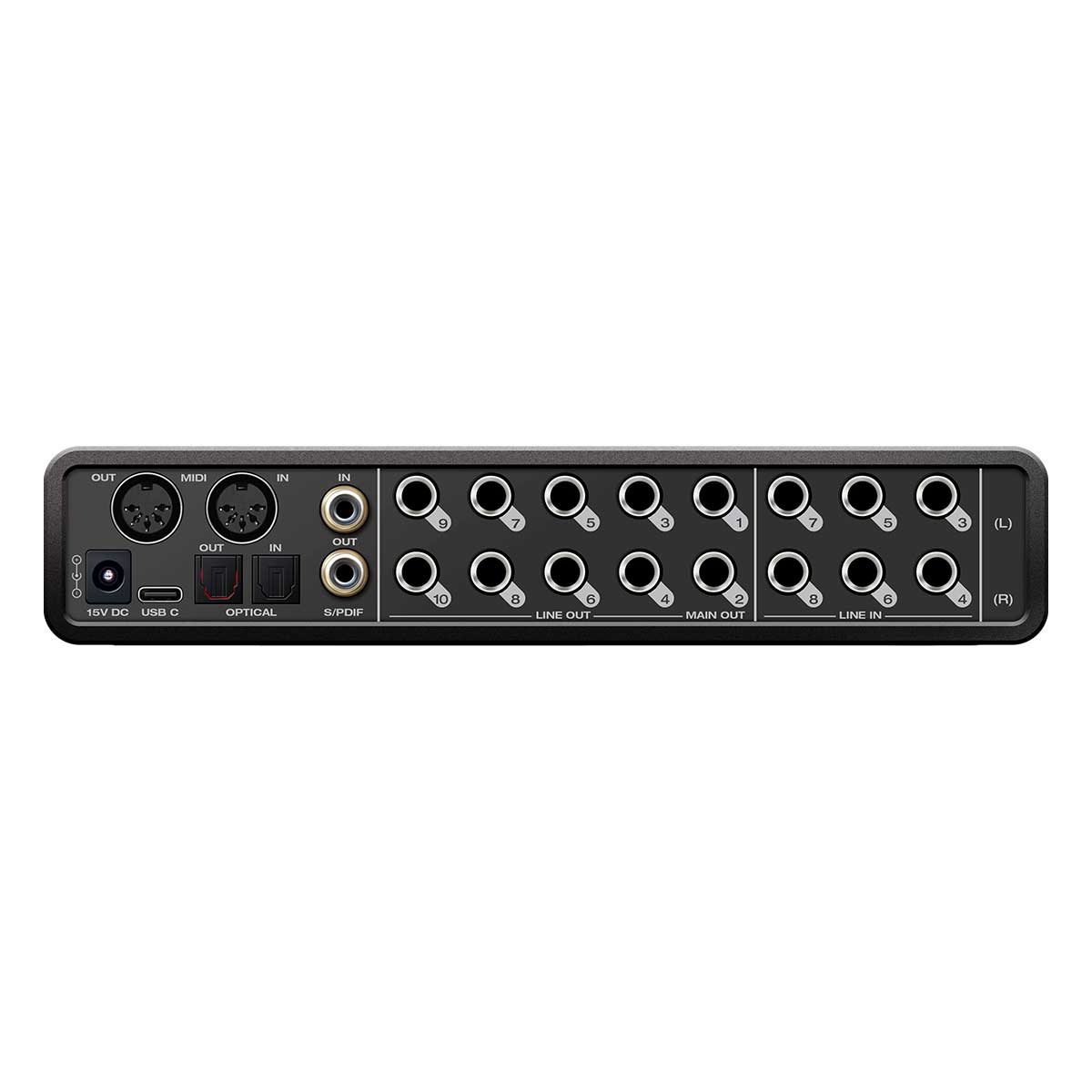

    I/O (18 x 22)

    • 2x mic/line/Hi-Z guitar inputs
    • 10x balanced 1/4-inch TRS outputs
    • 6x balanced 1/4-inch TRS inputs
    • 1x optical in/out (ADAT or TOSLink)
    • 1x RCA S/PDIF digital in/out
    • 1x stereo headphone w/volume
    • 1x MIDI in/out


    • Superb sound quality & performance
    • 40 simultaneous ins/outs (18 x 22)
    • On-board DSP, mixing and effects
    • Universal connectivity
    • Loopback and other advanced extras
    • CueMix™ 5 console app (Mac/Win/iOS)
    • Performer® Lite workstation software


    • USB-C audio class compliant
    • Compatible with USB Type A
    • Low-latency Windows ASIO driver
    • Low-latency Windows WAVE driver
    • Low-latency Mac driver (optional)
    • iOS / USB-C
    • iOS / Lightning (with adapter kit)


    • 125 dB dynamic range on output
    • -129 dBu EIN on mic inputs


    • macOS 10.11 or higher
    • For macOS 11 Big Sur, click here.
    • Windows 10
    • iOS 9 or higher

    Ultra-low latency

    Optimized drivers for both Mac and PC deliver ultra-low latency performance. With a high-performance DAW such as Digital Performer, the UltraLite-mk5 delivers an astonishing round trip latency (RTL) of 2.4 ms (milliseconds) over USB (at 96 kHz with a 32-sample host buffer).

    Built for studio and stage

    Housed in a compact, steel enclosure you can take anywhere, the UltraLite-mk5 is equally well-suited for studio and stage, with or without a computer. Connect all your personal studio gear for state-of-the art computer-based recording and production, or take it to your next gig to mix live, without a computer.

    40 simultaneous audio channels

    As an interface or mixer, the UltraLite-mk5 provides 18 inputs and 22 outputs, for a total of 40 simultaneous, independent I/O channels. You get 2 mic/line/instrument inputs, 6 line inputs, 10 line outputs, headphone out, and 8-channel optical I/O. The optical ports alternatively support stereo TOSLink (optical S/PDIF).

    iOS compatibility

    The UltraLite-mk5 is USB audio class compliant, giving you plug-and-play compatibility with iPad® and other Apple® iOS devices. Record on-the-go, directly to your iPad, or play backing tracks during a gig, mixed with your live inputs with the UltraLite-mk5's built-in mixing. Control everything from the CueMix 5™ mixing app on your iPad or iPhone.


    The UltraLite-mk5 provides convenient loopback channels to your host computer or iOS device, so you can easily route computer output, along with a mix of live inputs from the UltraLite-mk5 itself, back to the computer, where you can record it back into your podcasting host software or stream it live to the internet. Streaming and podcasting has never been easier and better-sounding!

    Introducing CueMix™ 5

    CueMix 5 gives you simple, yet comprehensive graphic control over your mix. CueMix 5 is a completely new app with attractive graphic mixing, graphic editing of parametric EQ, and a convenient touch-friendly interface for quick access to all mixing features, digitally controlled trims, and other settings in your UltraLite-mk5.
