MXL

MXL-603PAIR

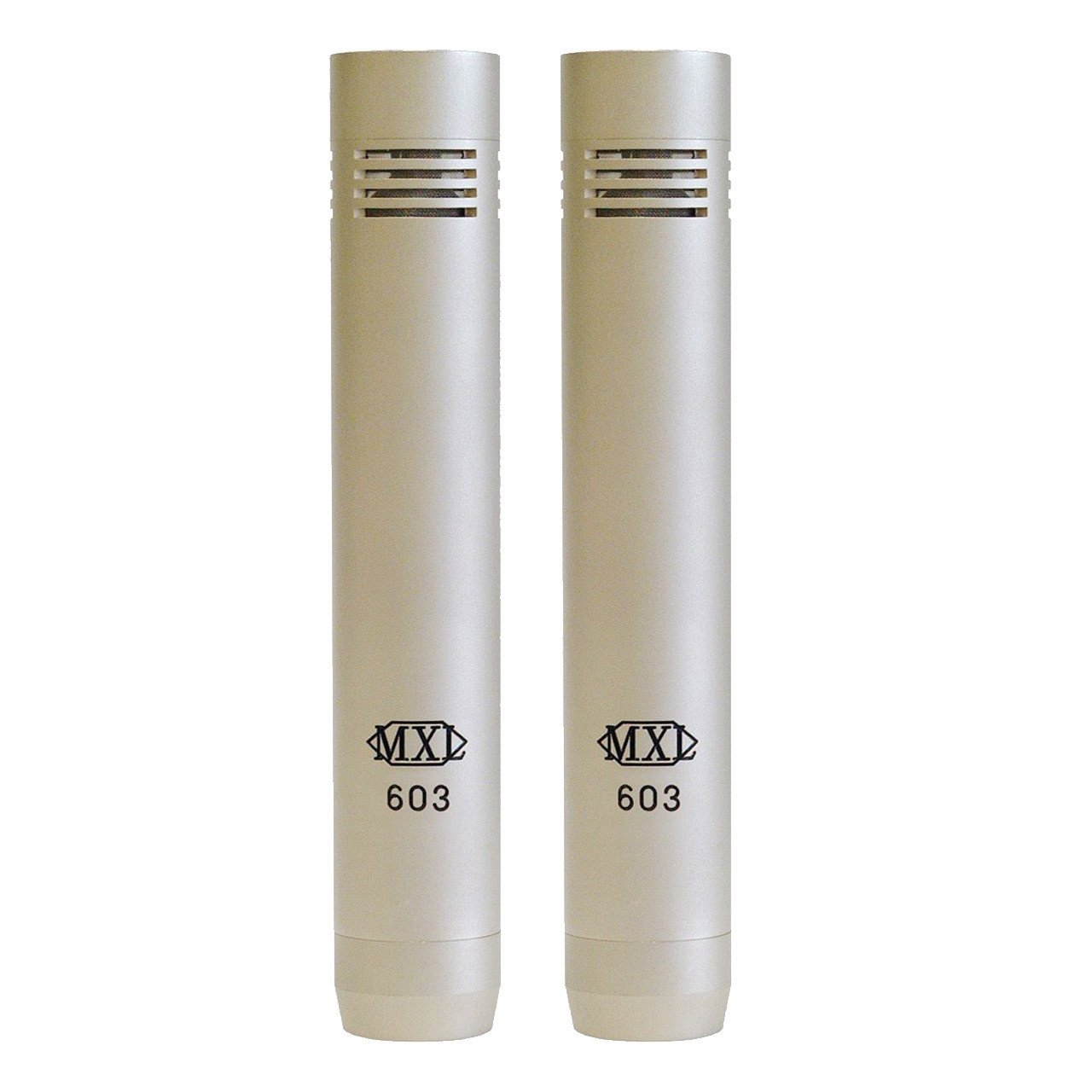

MXL 603 PAIR Instrument Microphones

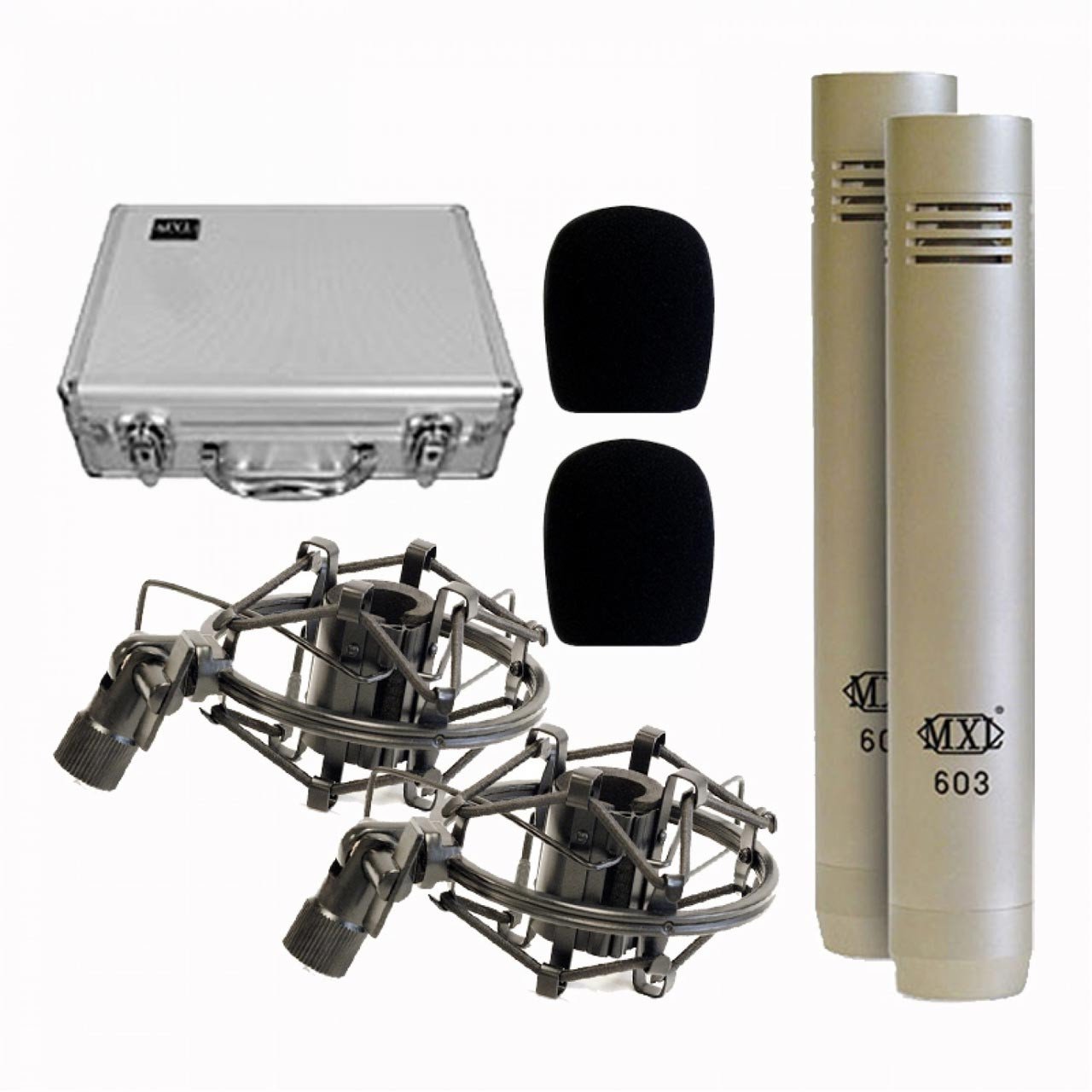

The MXL 603 PAIR microphones are a set of 2 x small diaphragm cardioid condenser microphones, designed for instrumental recordings and stereo-miking configurations. The 603 PAIR ship standard with 2 x shock-mounts, foam windshields and a durable metal case for transportation. The MXL 603 microphone has a crisp and bright tonal characteristic and solid low-frequency response due to the transformerless design.


    • MXL 603 PAIR PRODUCT FEATURES:

      Designed with professional and working musicians in mind, the MXL 603 PAIR Instrument Microphones deliver the natural acoustic properties you need for overhead drums, piano, string instruments, and more. Sharing characteristics of European and Japanese imports at a fraction of the price, a transformerless design provides a solid bottom and an extremely open top end sound. The MXL 603 PAIR can even handle guitar amp recordings!

      Instrument microphone with a crisp, bright sound

      Transformerless design for a solid low end and an open top

      Ideal for drum overheads, acoustic guitars, pianos and strings

      Fast transient response for extra accuracy

      Small-diaphragm capsule that captures extra detail

    • MXL 603 PAIR TECHNICAL SPECIFICATIONS:

      Type:
      Pressure gradient condenser microphone

      Diaphragm:
      6 micron gold-sputtered

      Capsule Size:
      22mm/.87 in.

      Frequency Response:
      30Hz - 20kHz

      Polar pattern:
      Cardioid

      Sensitivity:
      10mV/Pa

      Output Impedance:
      200 ohms

      Equivalent noise:
      18 dB (A-weighted IEC 268-4)

      S/N Ratio:
      80 dB (Ref. 1 Pa A-weighted)

      Max SPL for .5% THD:
      134 dB

      Power Requirements:
      48V phantom power (+/-4V)

      Size:
      22mm x 133mm/5.24 in. x .87 in.

      Weight:
      0.3 lbs/136.08g (individual mic weight)

      Metal Finish:
      Silver

Need more info on the 603 PAIR? Click HERE for the official MXL product listing >>>
