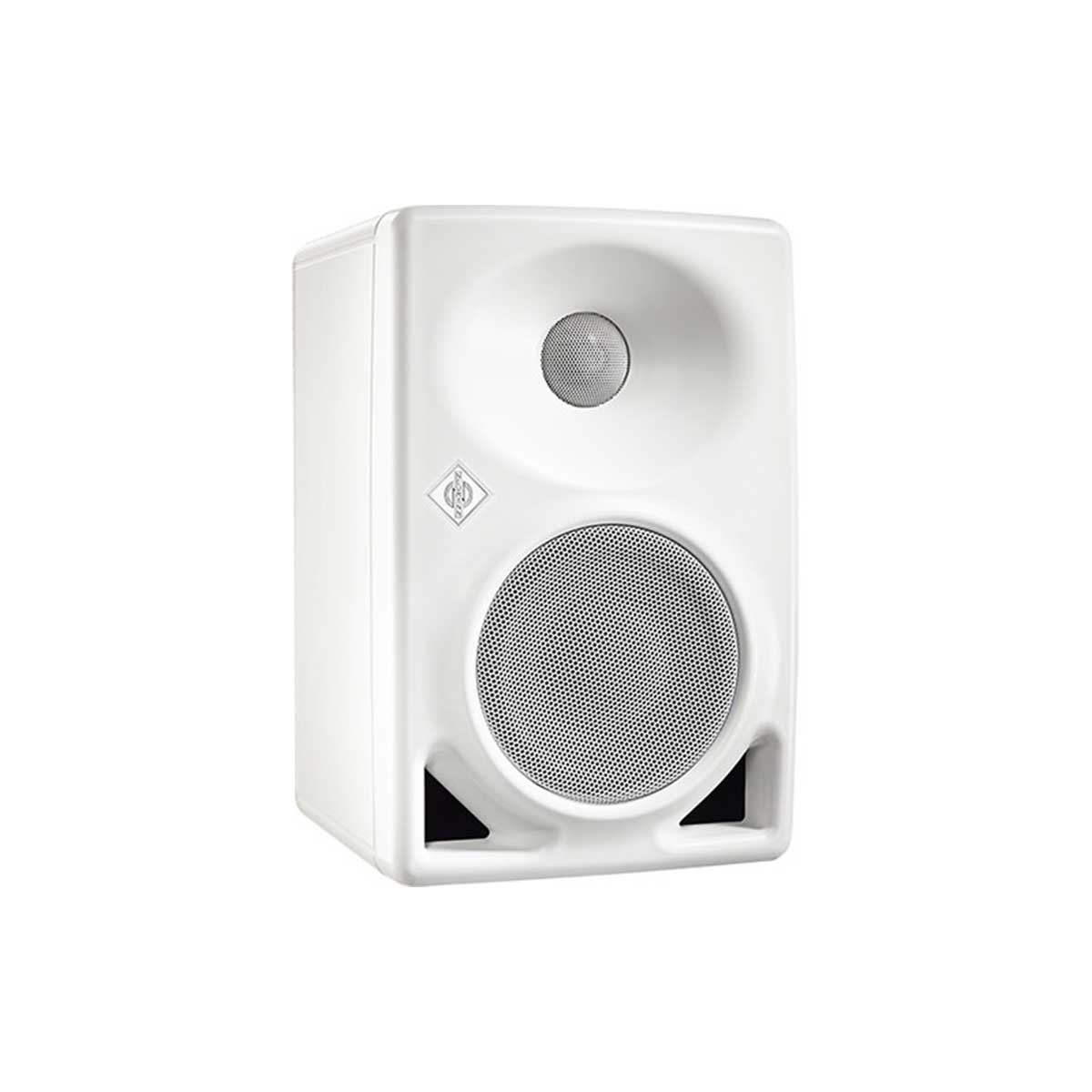

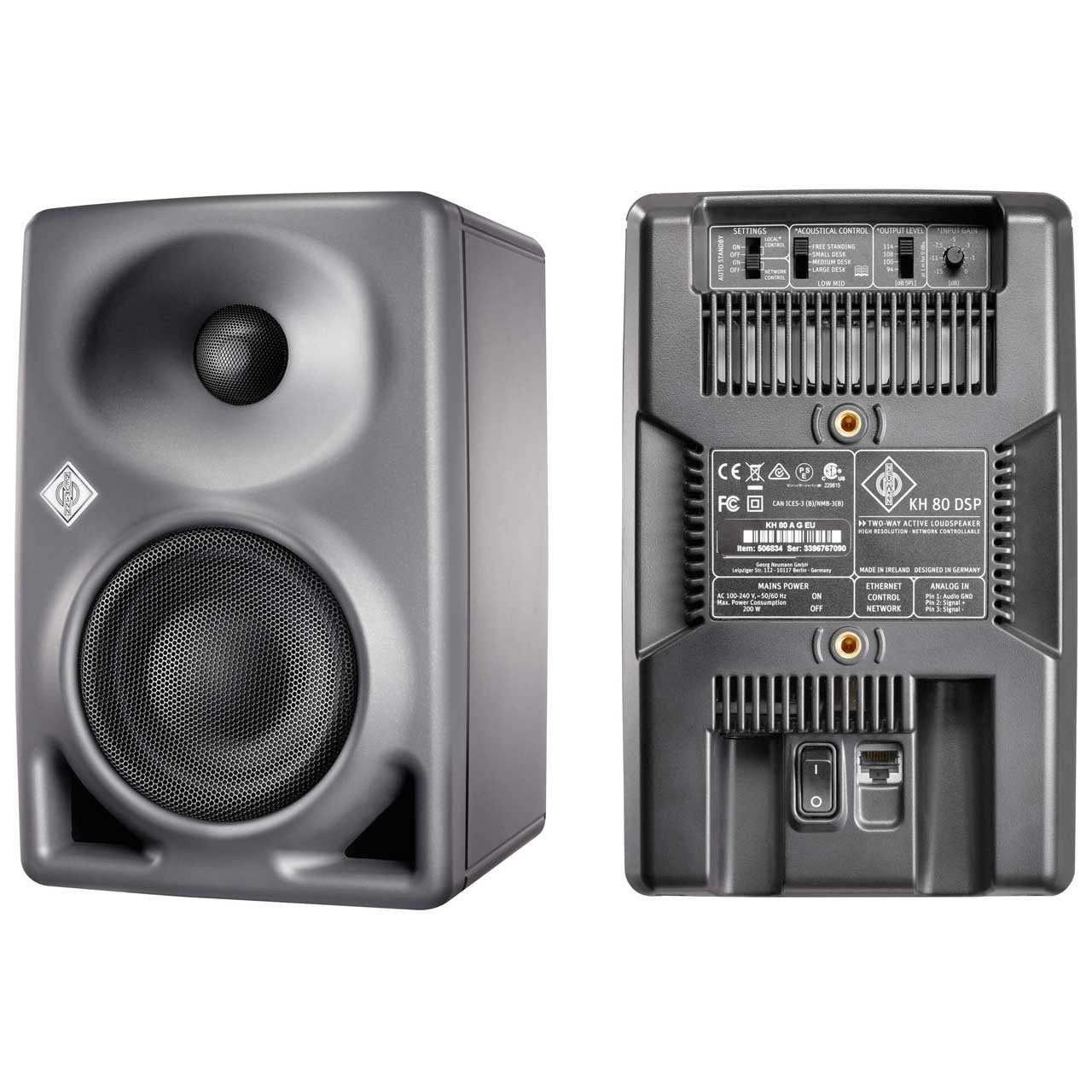

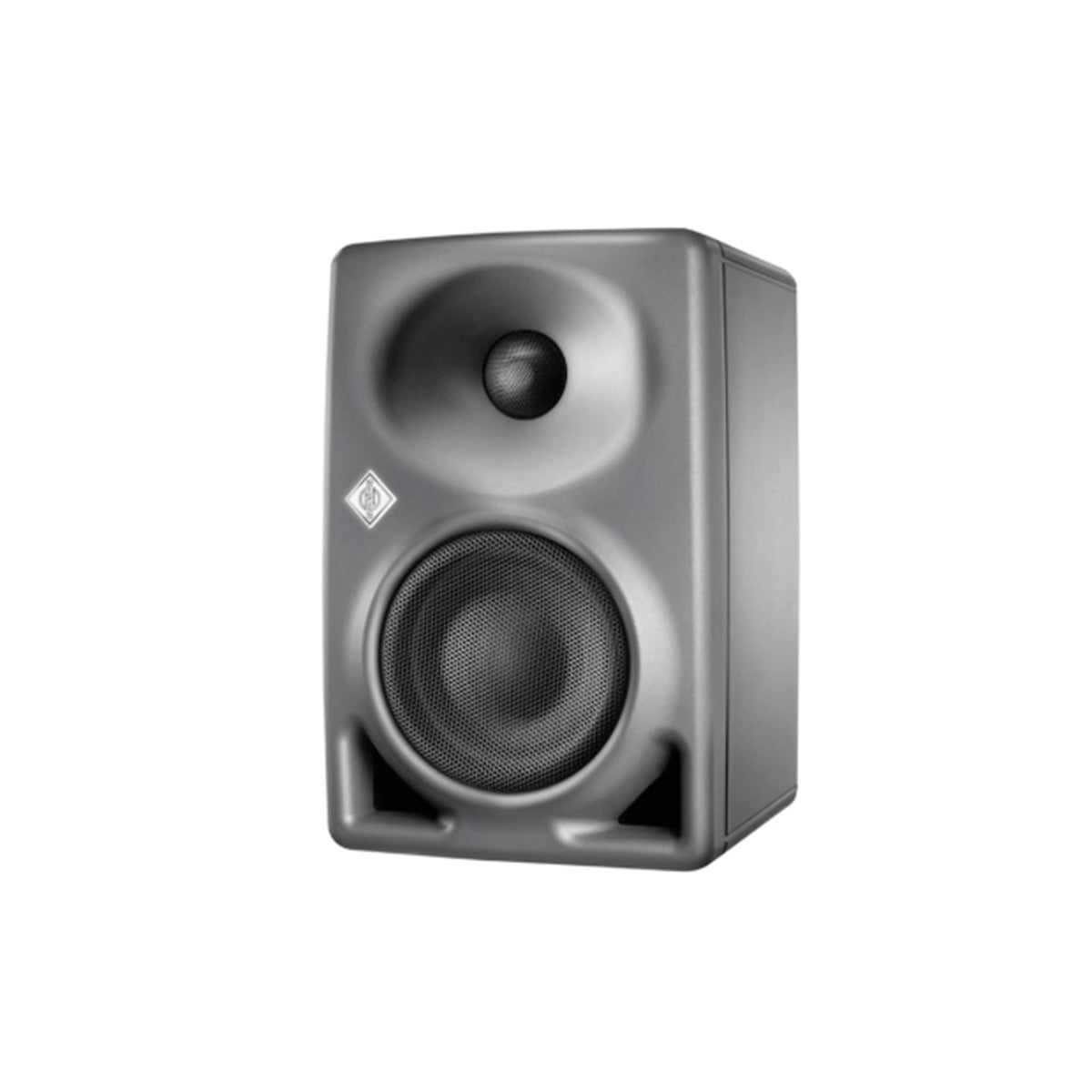

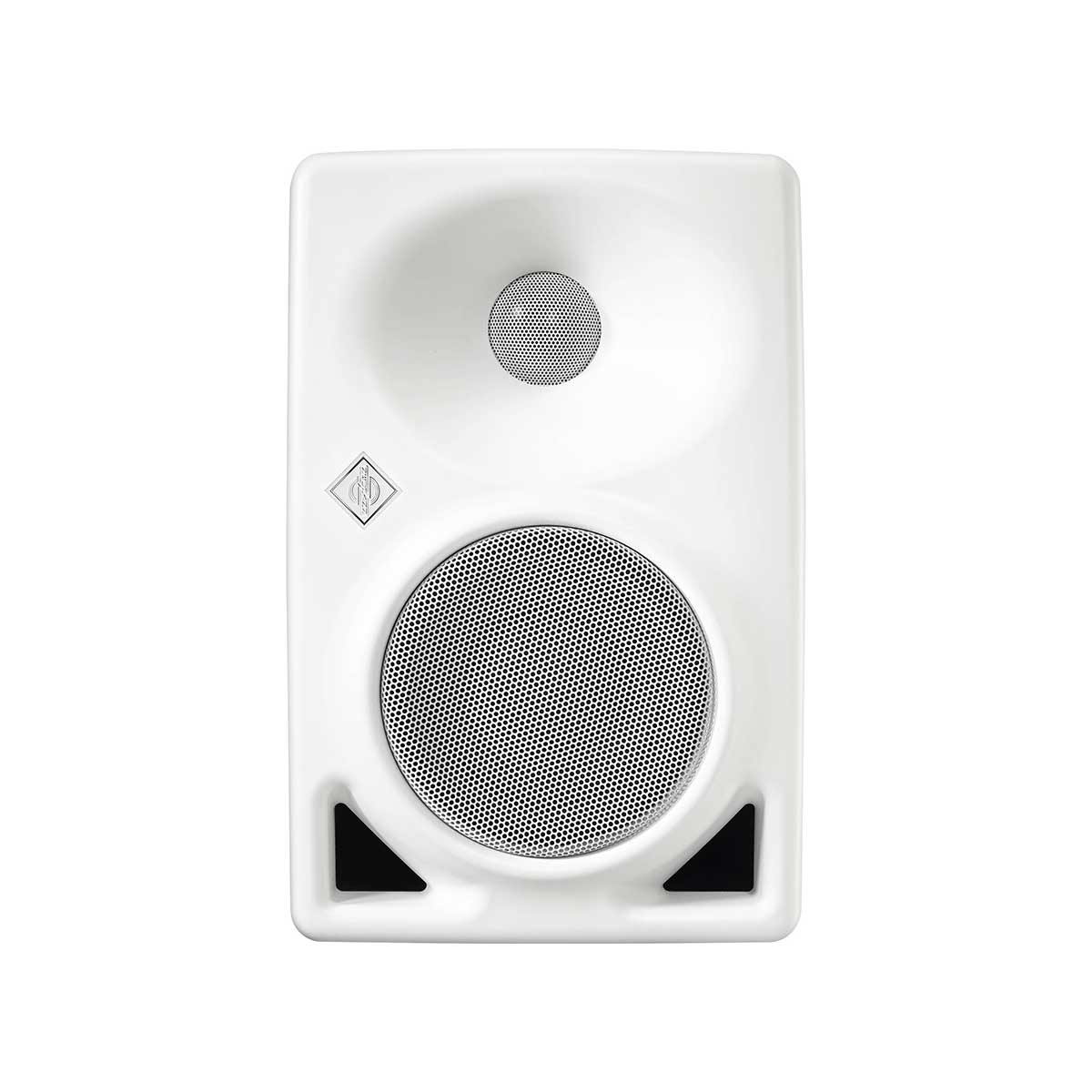

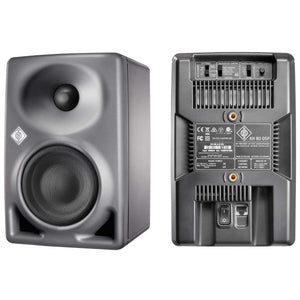

Neumann KH 80 DSP A G - Active DSP Studio Monitor (PAIR)


The Neumann KH 80 DSP A G is a 2-way bi-amped active near-field studio monitor. The KH 80 DSP A G features an all new inbuilt DSP engine for focusing and tying your speakers to match your listening environment. The DSP can be accessed using the Neumann.Control software via a standard IP network connection. Neumann.Control is available to Mac, Windows, iOS and android platforms, making it a flexible system that is easy to use.

    • Neumann KH 80 DSP A G Features:

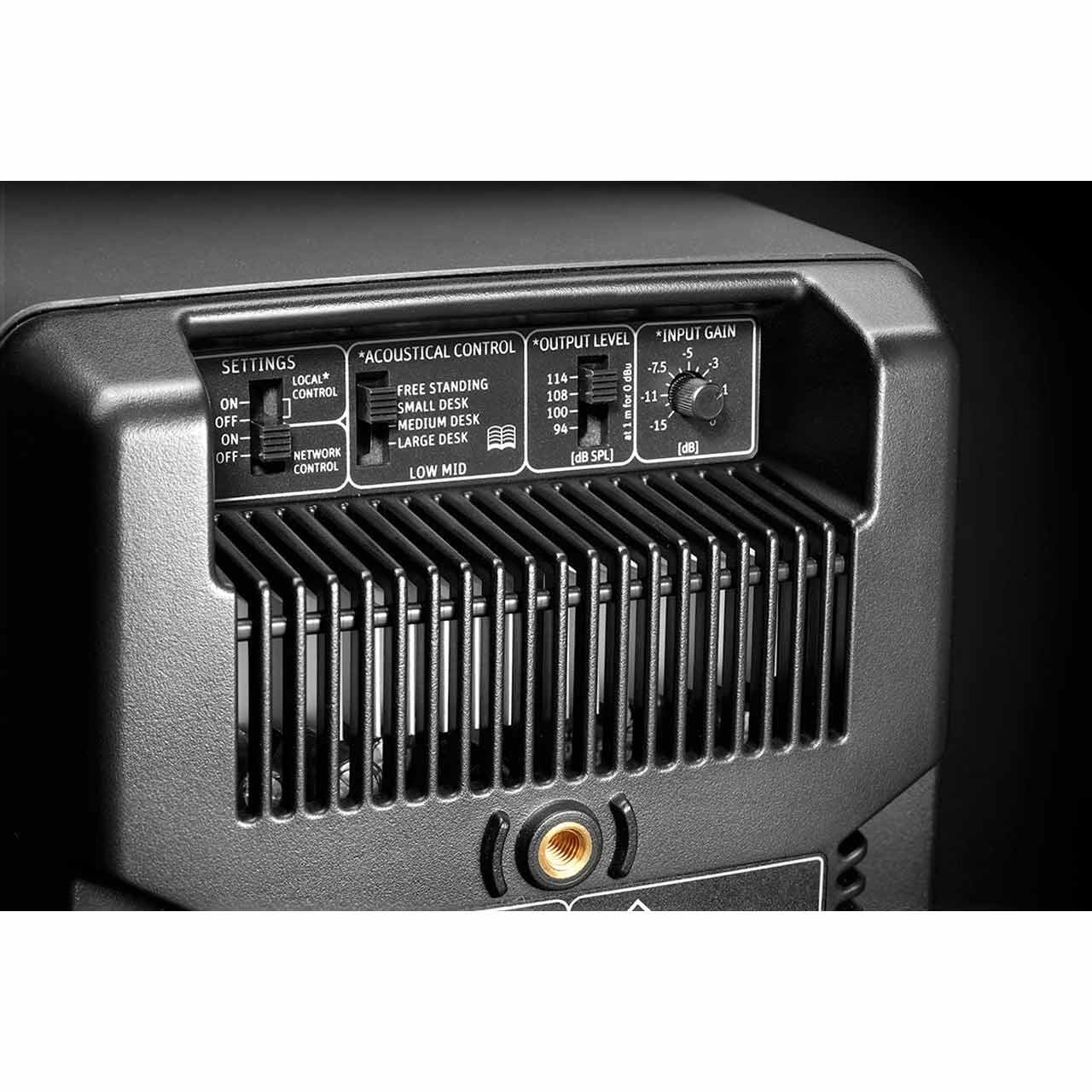

      The KH 80 DSP two-way (4” + 1”) active bi-amplified monitor features a DSP engine with network control, a Mathematically Modeled DispersionTM Waveguide (MMDTM), an analogue input and an extensive range of mounting hardware. A standard IP network connection allows the monitoring system to be controlled using Neumann. Control which runs on a PC/Mac computer or Android/iOS tablet. This allows the loudspeaker to be used in diverse acoustical conditions, with any source equipment and in a wide variety of physical locations.

      The KH 80 represents the latest in acoustic and electronic simulation and measurement technologies to ensure the most
      accurate sound reproduction possible.

      Target Applications:
      The KH 80 DSP is designed for use as a near-field monitor, as a front loudspeaker in compact multi- channel system, or as a rear loudspeaker in a smaller multi-channel system. Due it small footprint, it is well suited to desktop applications and domestic environments. It can be used in project, music, broadcast centers, OB vans, and post production studios for tracking, mixing, and mastering.

      The KH 80 DSP can be used with Neumann’s existing range of analog Studio Monitors and Subwoofers.
    • Neumann KH 80 DSP A G Specifications:

      Key Features:
      4” + 1” drivers powered by high efficiency 120 and 70 W amplifiers
      Computer modeled and optimized drivers and MMDTM waveguide
      57 Hz (-3 dB) bass extension and 108.8 dB SPL at 1 m
      DSP engine with standard IP networking and Neumann.Control software

      345 x 277 x 243 mm
      4.1 kg (there is one KH 80 DSP per carton)

      Package Contents:
      1 x KH 80 DSP
      1 or 2 Mains Cable
      1 x Safety Booklet
      1 x Getting Started Quickly Guide
      1 x Set of Stick-on Feet
Need more info on the Neumann KH 80 DSP A G?
