Neumann

008439

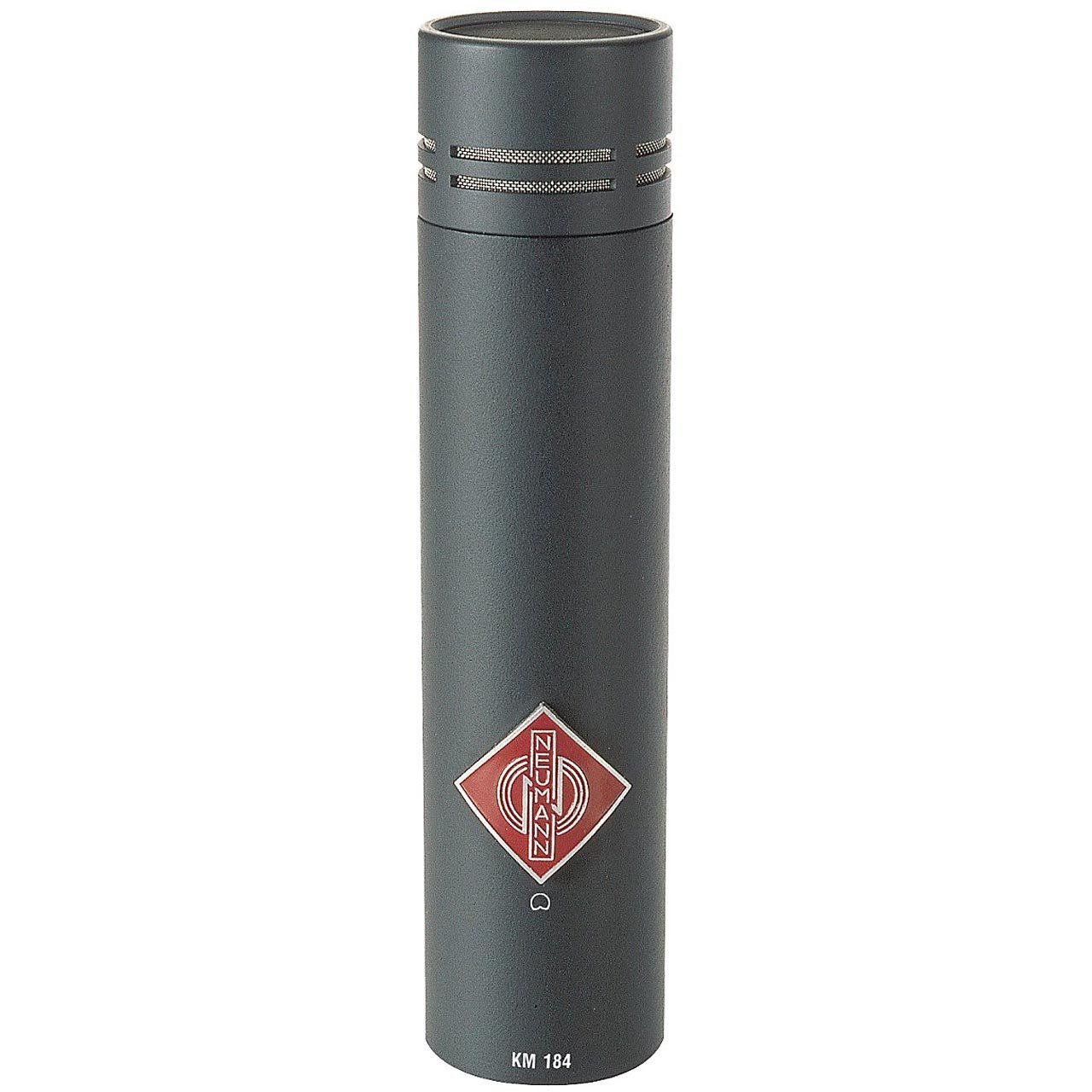

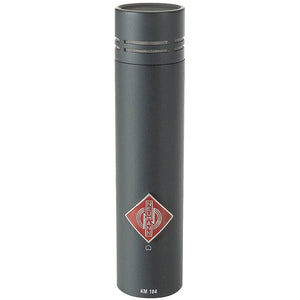

Neumann KM 184 Cardioid Miniature Microphone

2 IN STOCK

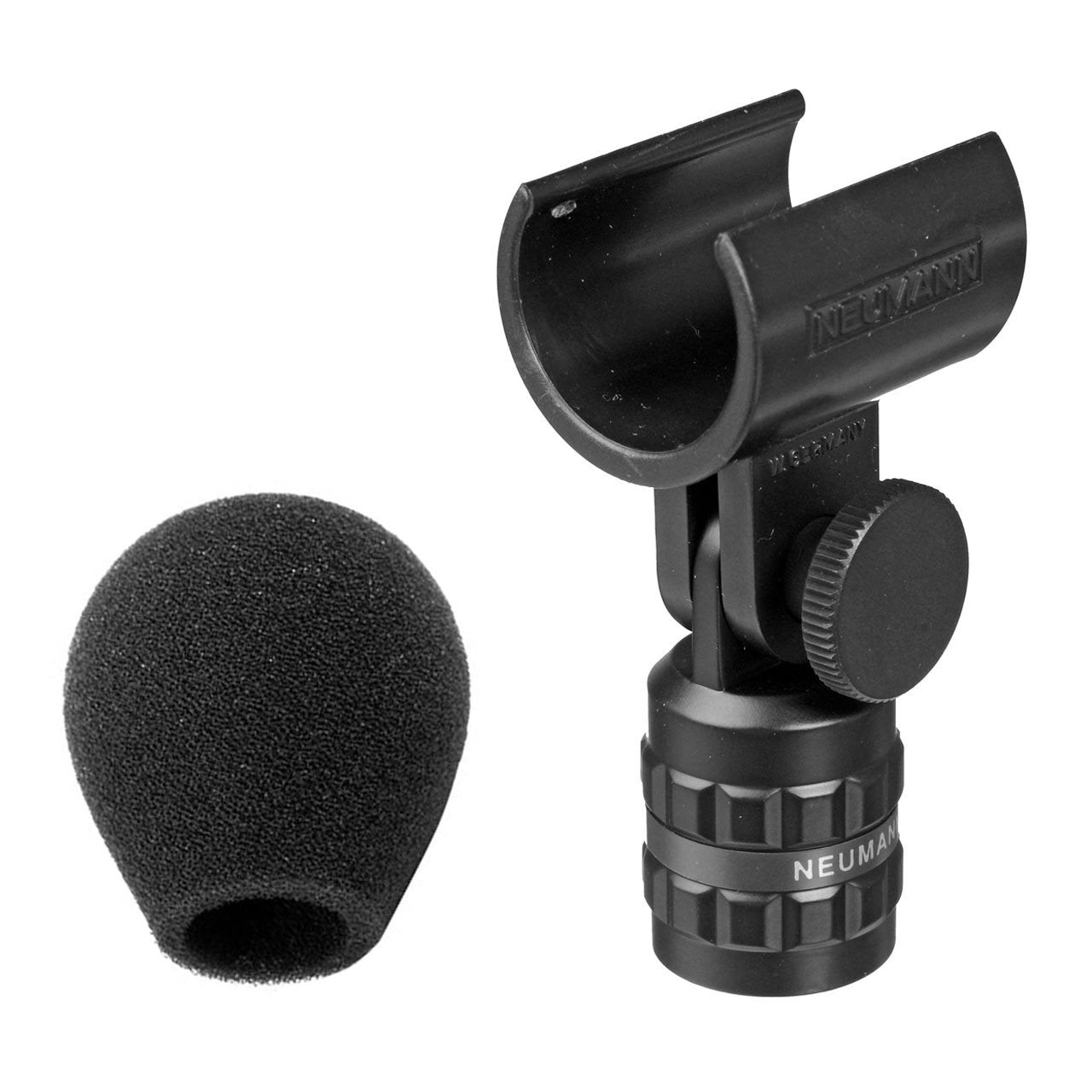

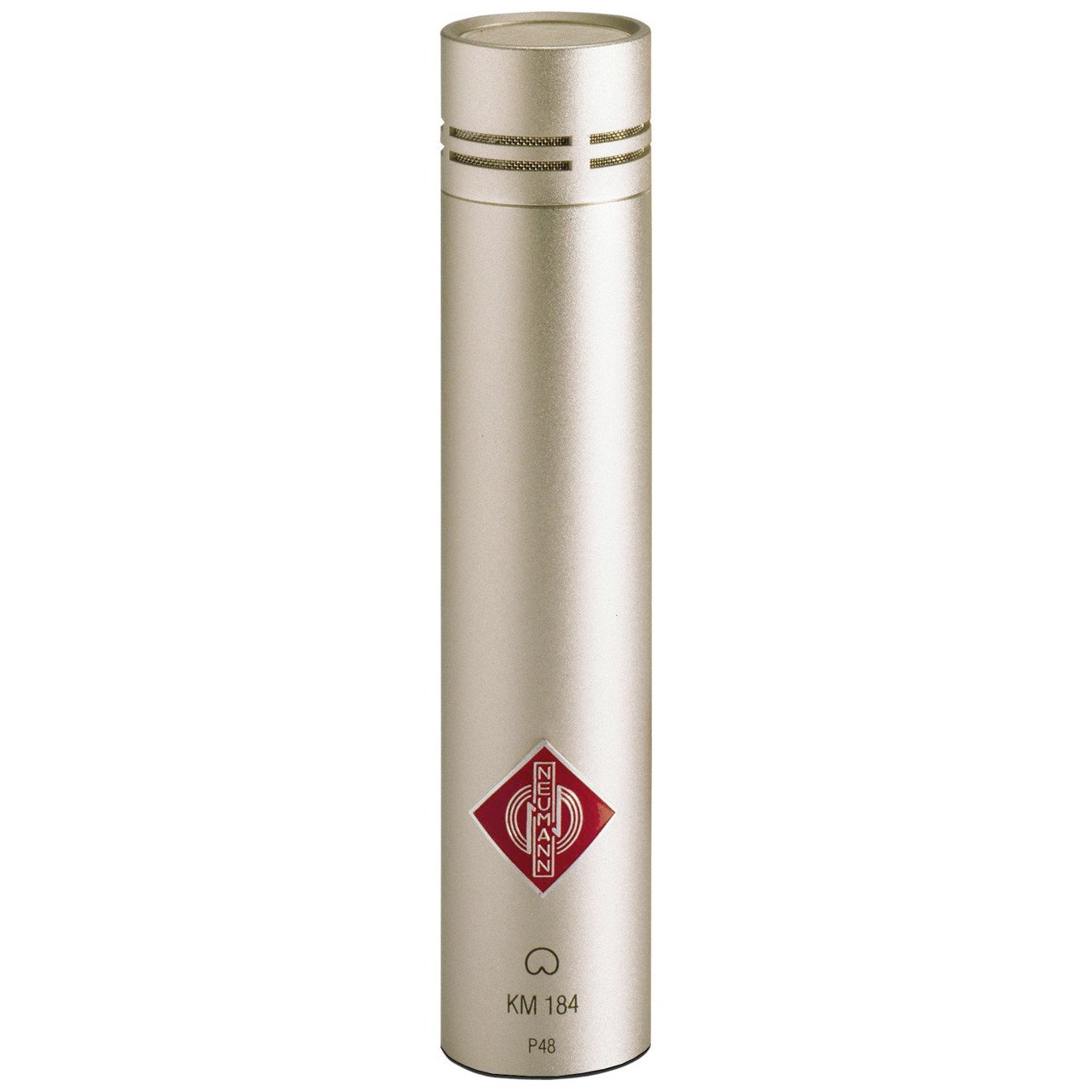

The Neumann KM 184 Cardioid Miniature Microphone has become a studio standard in a short period of time. Available in either matte black or nickel finish, this version comes with the WNS 100 WINDSCREEN and SG 21 SWIVEL MOUNT.

Please note:
The KM 184 is also available as a Stereo Set.


    • Neumann KM 184 PRODUCT FEATURES:

      The "Series 180" consists of three compact miniature microphones with patterns that satisfy the demands of all common studio applications.

      Because of its optimized mechanical construction and conscious omission of modularity, which is unnecessary in many cases, the "Series 180" is predestined for economy-minded production and home recording studios.

      Although the KM 184 has the same capsule as the KM 84, the microphone differs slightly on the 0° frequency response: The KM 184 has a gentle rise at about 9 kHz, a characteristic that was introduced very successfully with the KM 140. The result is a tonal balance that is fresher and livelier when compared to the KM 84 with its flat frequency response in that band.
    • Neumann KM 184 TECHNICAL SPECIFICATIONS:

      Frequency range: 20 Hz ... 20 kHz
      Sensitivity at 1 kHz into 1 kohm: 15 mV/Pa
      Rated impedance: 50 ohms
      Rated load impedance: 1 kohms
      Equivalent noise level, CCIR1): 22 dB
      Equivalent noise level, A-weighted1): 13 dB-A
      Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL): 72 dB
      Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL): 81 dB
      Maximum SPL for THD 0.5%2): 138 dB
      Maximum output voltage: 10 dBu
      Supply voltage (P48, IEC 61938): 48 V ± 4 V
      Current consumption (P48, IEC 61938): 3.2 mA
      Matching connectors: XLR 3F
      Weight approx. 80 g
      Diameter: 22 mm
      Length: 107 mm

      1) according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS
      2) measured as equivalent el. input signal
