Neumann

008435

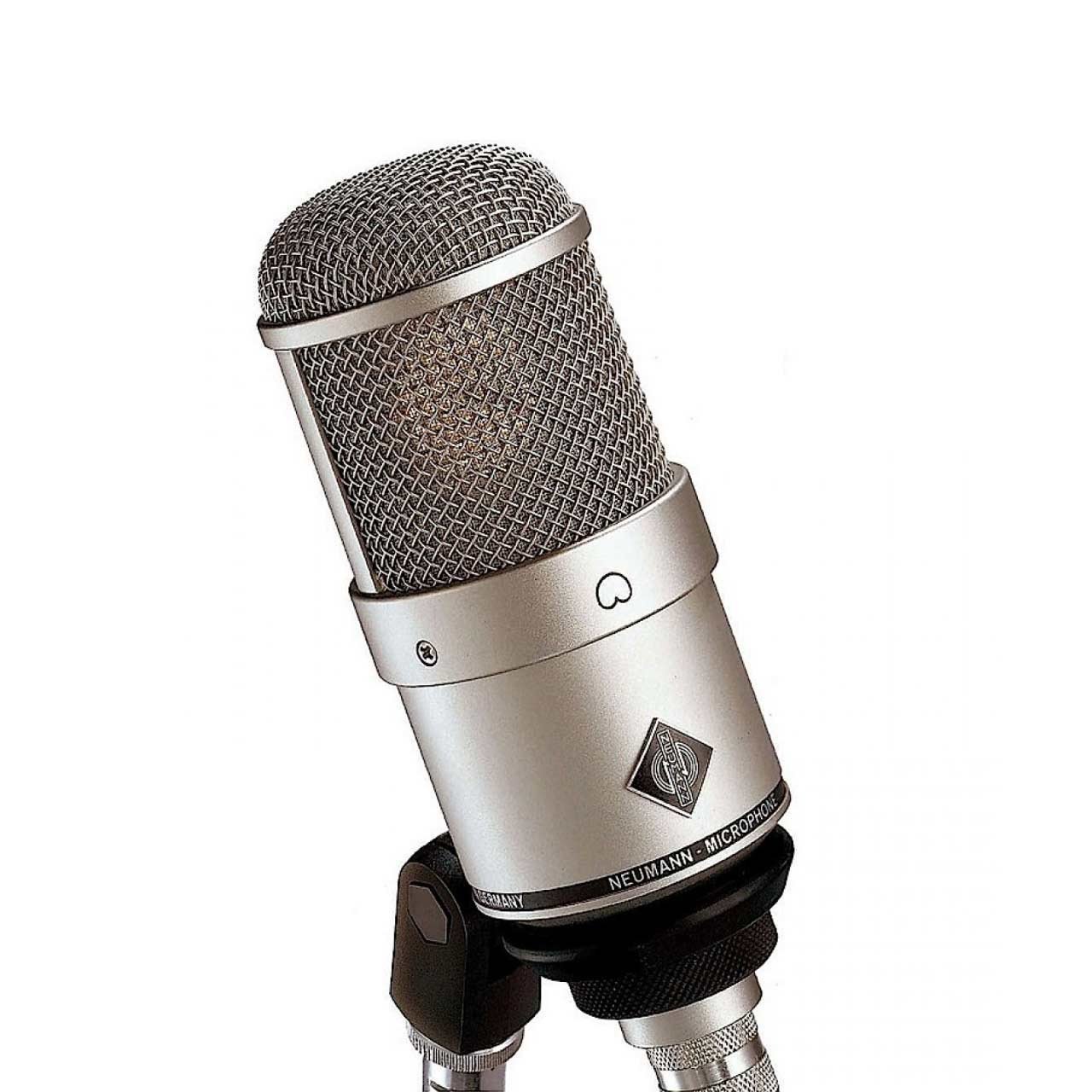

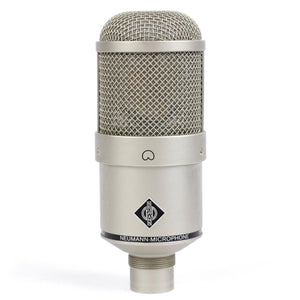

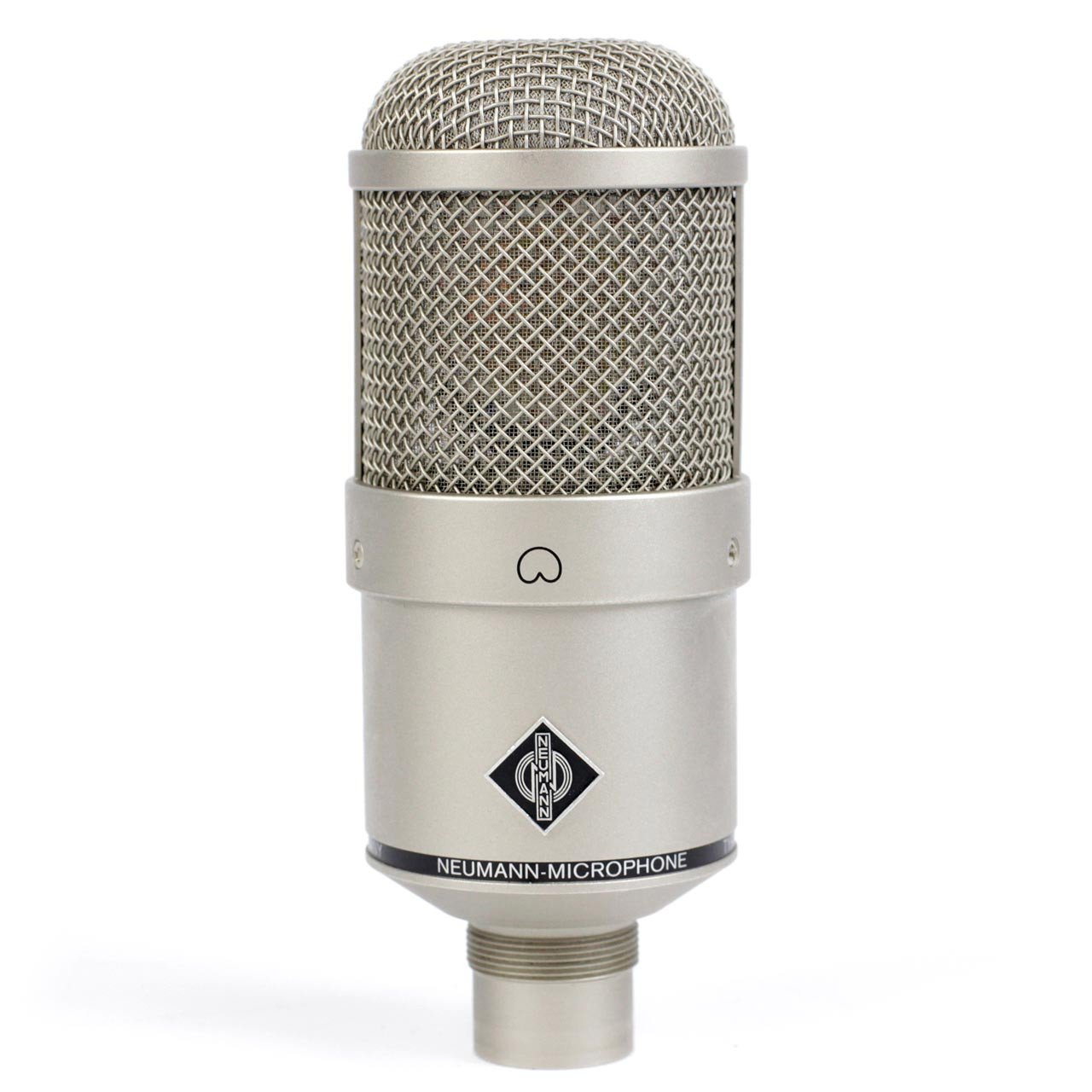

Neumann M 147 Tube Cardioid Condenser Microphone

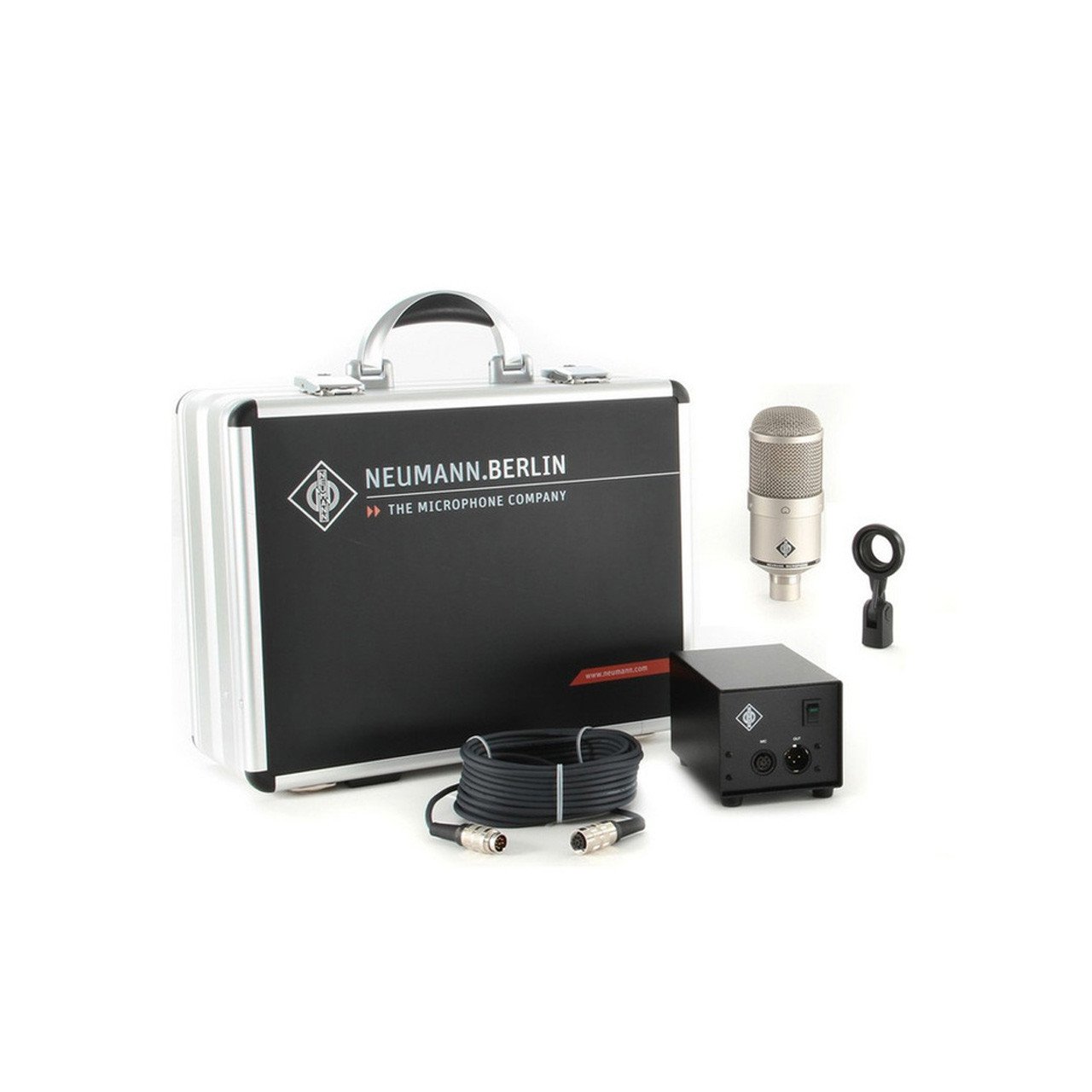

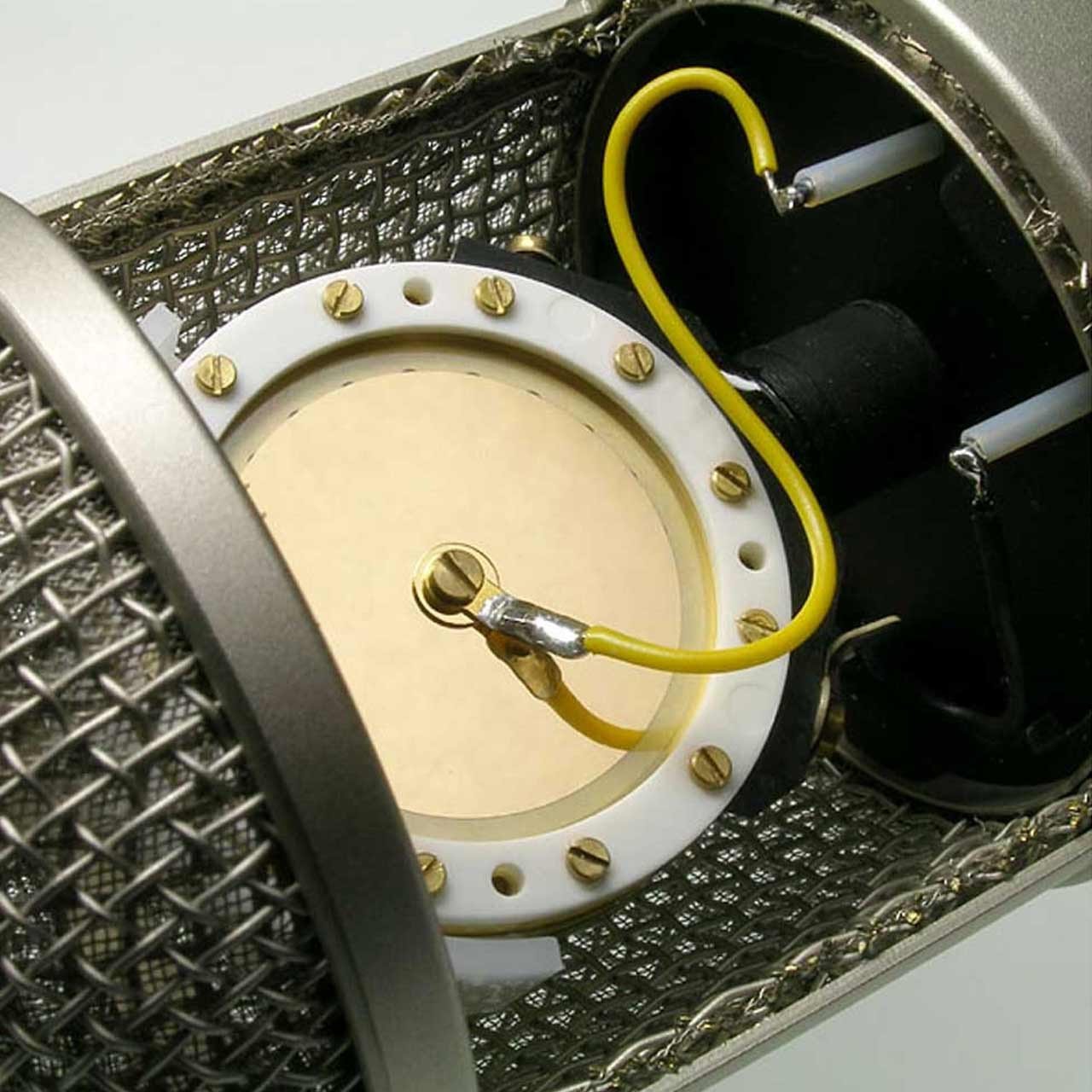

The Neumann M 147 Tube is a cardioid side-addressed condenser microphone with a K 47 dual diaphragm capsule. The K 47 capsule design was inspired by Neumann’s legendary U 47 and M 49 microphones. Whilst the microphone has a cardioid polar pattern, it becomes more directional when capturing higher frequencies - similar to the performance of a U 47. The M 147 Tube excels on vocals with it’s microscopic detail and beautiful warmth. The M 147 Tube combines a transformerless output - guaranteeing extremely low self noise, and the warmth of Neumann’s valve technology. The M 147 Tube comes with the KT 8 aluminium protective case, SG-2 microphone clip and the N 149 A tube power supply.

The M 147 ships with the SG-2 mic-clip NOT the shock mount depicted on the Neumann website.
Neumann shock mounts for the M 147 can be purchased separately.


    • Neumann M 147 Tube PRODUCT FEATURES:

      Neumann tube sound with a cardioid directional characteristic and a classic design. The double diaphragm capsule is derived from that of its legendary predecessors, the U 47 and M 49.

      Feature Summary:
      Universal tube microphone
      Pressure gradient transducer with the large diaphragm capsule from the legendary U 47 and M 49
      Transformerless circuitry
      Low self noise level
      Comes with swivel stand mount made of metal, universal power supply, and cable in an attractive aluminium case
    • Neumann M 147 Tube TECHNICAL SPECIFICATIONS:

      Acoustical operating principle: Pressure gradient transducer
      Directional pattern: Cardioid
      Frequency range: 20 Hz ... 20 kHz
      Sensitivity at 1 kHz into 1 kohm: 20 mV/Pa
      Rated impedance: 50 ohms
      Rated load impedance: 1 kohms
      Equivalent noise level, CCIR1): 24 dB
      Equivalent noise level, A-weighted1): 12 dB-A
      Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL): 70 dB
      Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL): 82 dB
      Typical SPL (tube characteristic)2): 114 dB for THD < 0.5 %, 134 dB for THD < 5 %
      Maximum output voltage: 8 dBu
      Powering: Power supply N 149 A
      Matching connector: Microphone: DIN 8F, Power Supply: XLR3F
      Weight: 460 g
      Diameter: 57 mm
      Length: 142 mm

      1) according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS
      2) measured as equivalent el. input signal
Need more info on the Neumann M 147?
