Neumann

008456

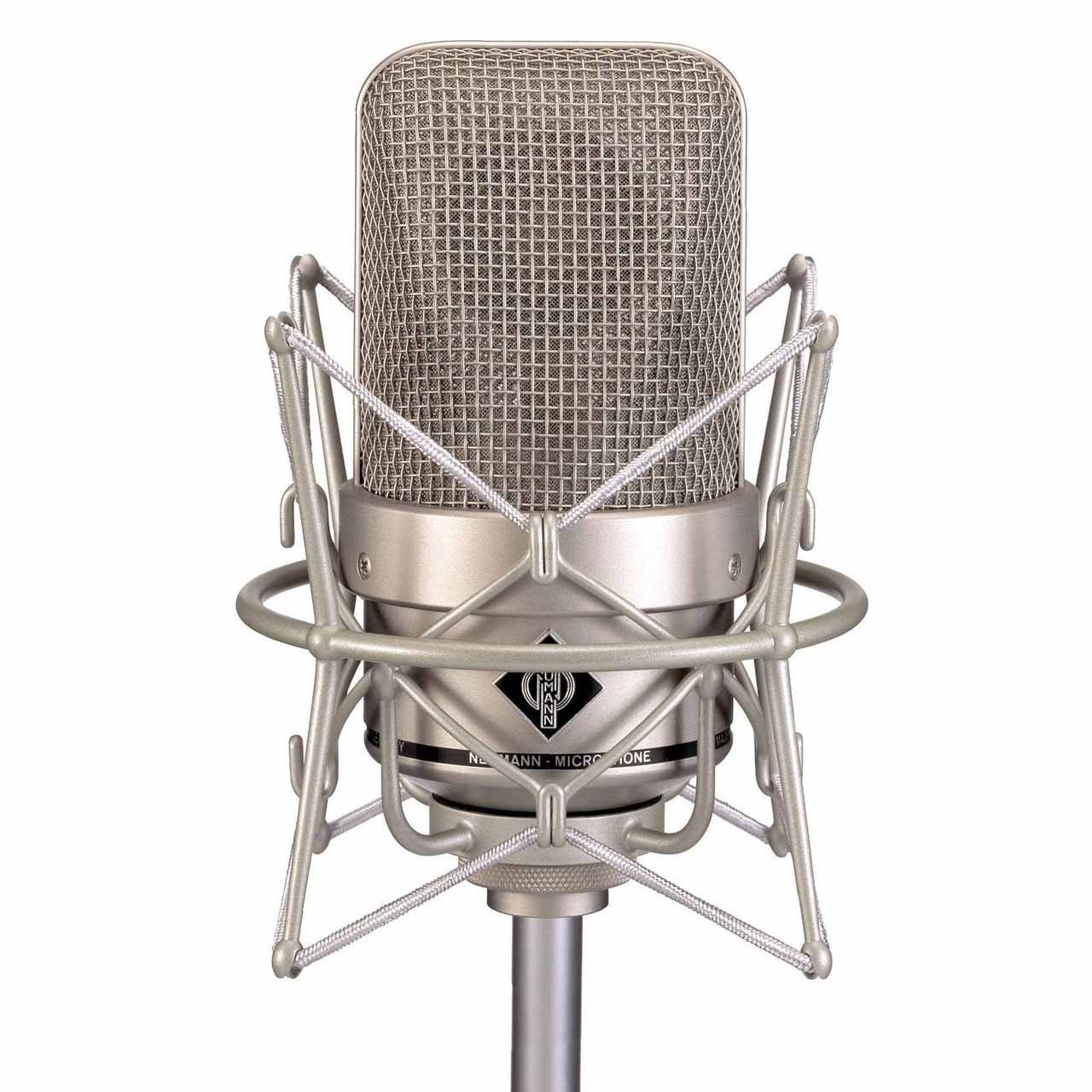

Neumann M 150 Tube Omnidirectional Condenser Microphone

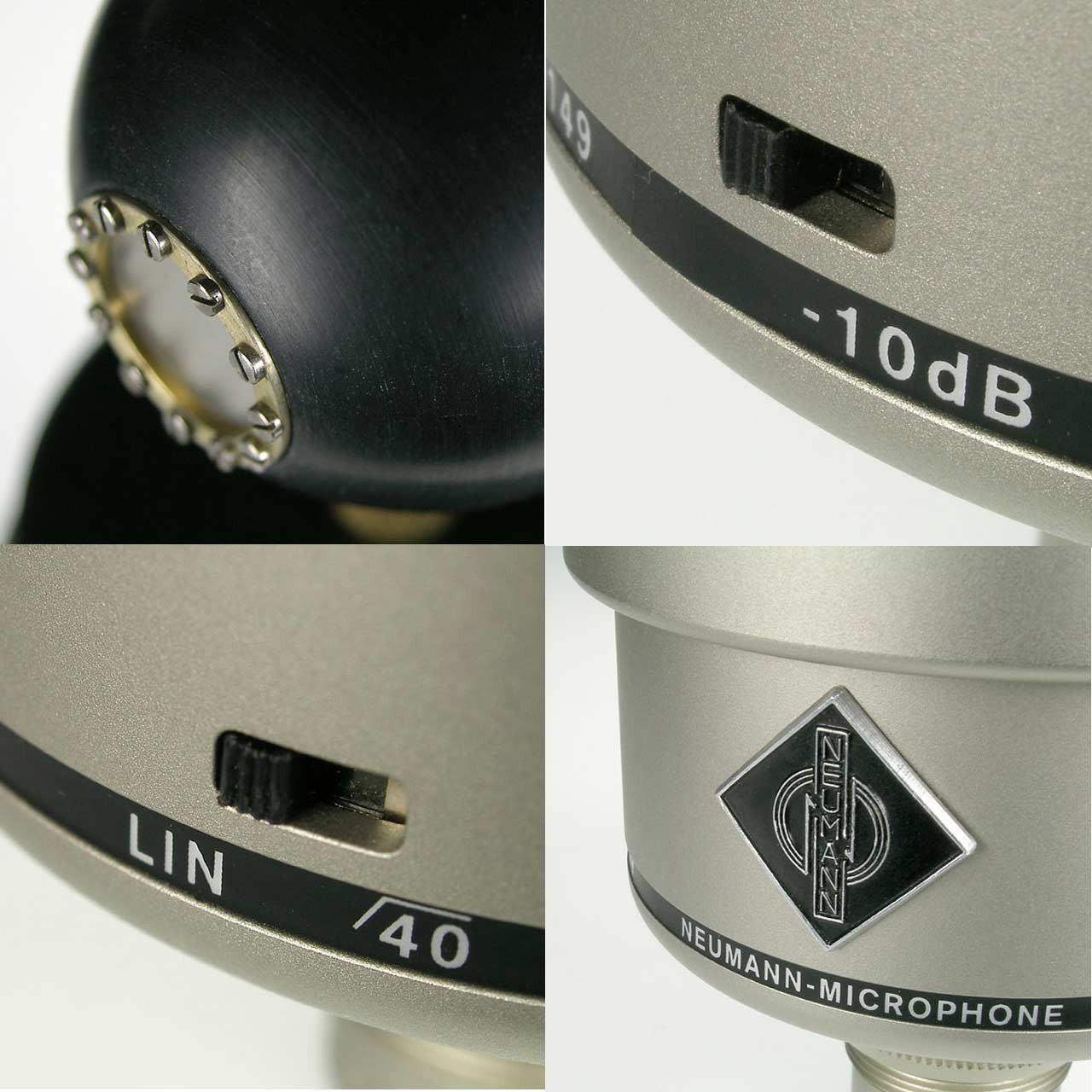

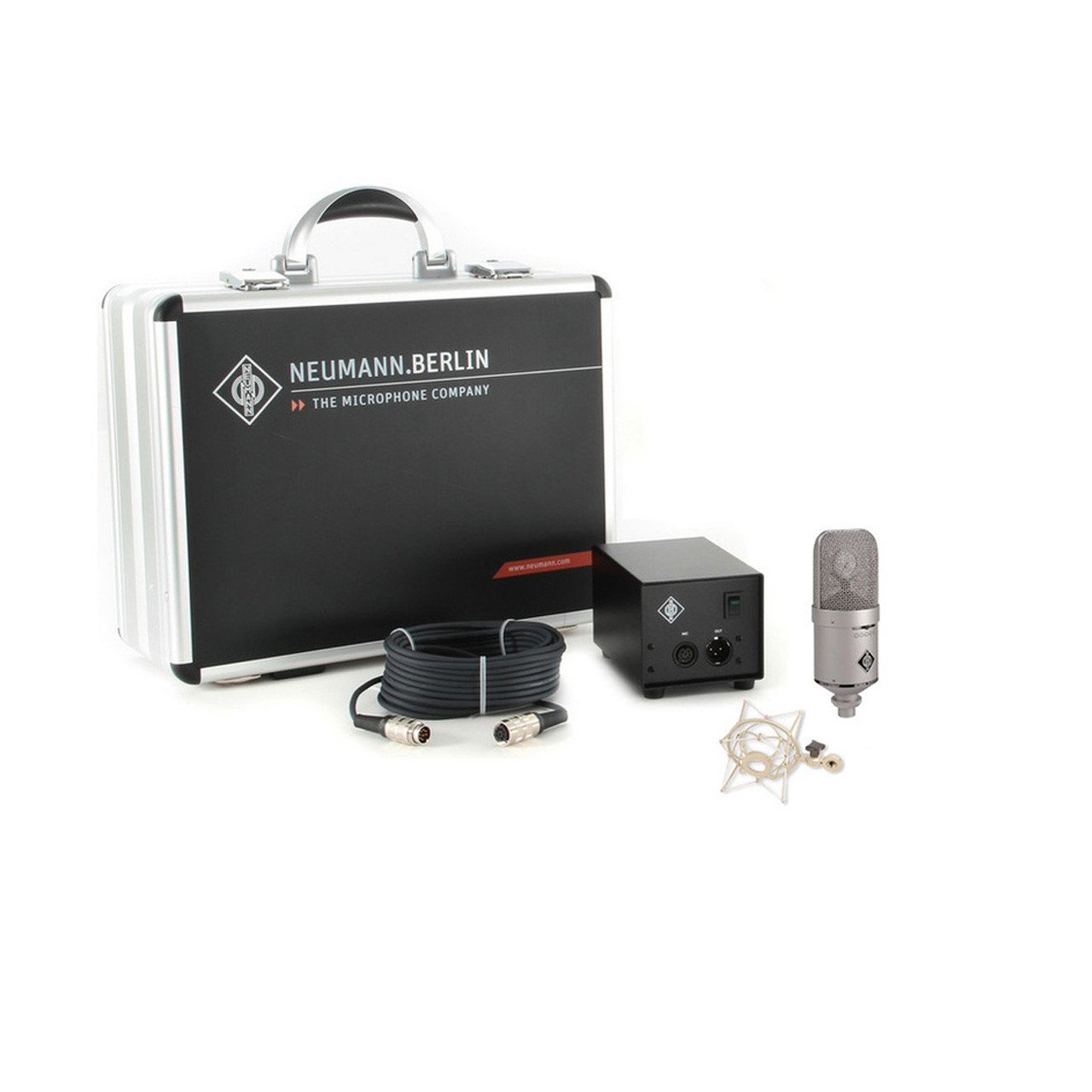

The Neumann M 150 Tube is a large diaphragm tube condenser microphone with an omnidirectional polar pattern. The M 150 is derivative of the historical Neumann M 50 developed in the 1950s. The M 150 Tube has since developed a similar reputation to the M 50 as being a first choice microphone for orchestral recordings - especially string ensembles. Although the M 150 Tube has maintained the original grille design of the M 50, it boasts a redesigned capsule made from titanium. The M 150’s sound reproduction is open, warm and incredibly detailed. The Neumann M 150 Tube ships with the KT8 aluminium case, EA170 shock mount and the N 149 power supply.


    • Neumann M 150 Tube PRODUCT FEATURES:

      A redesigned classic with state-of-the-art circuit technology and correspondingly low self-noise. Like the legendary M 50, this tube microphone is ideal for orchestral recording.

      Feature Summary:
      All Titanium capsule
      Unparalleled transient accuracy
      Pressure omni capsule for extended low frequency response
      Modern version of the world-famous M 50
      Transformerless tube amplifier based on the award-winning M 149 Tube microphone
      Ideal for DECCA tree recording and surround miking techniques
      Very low self noise of 15 dB-A
      Stereo sets with consecutive serial numbers
    • Neumann M 150 Tube TECHNICAL SPECIFICATIONS:

      Acoustical operating principle: Pressure transducer
      Directional pattern: Omnidirectional
      Frequency range: 20 Hz ... 20 kHz
      Sensitivity at 1 kHz into 1 kohm: 20 mV/Pa
      Rated impedance: 50 ohms
      Rated load impedance: 1 kohms
      Equivalent noise level, CCIR1): 28 dB
      Equivalent noise level, A-weighted1): 15 dB-A
      Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL): 66 dB
      Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL): 79 dB
      Typical SPL (tube characteristic)2): K < 0,5 %: 114 dB, K < 5 %: 134 dB
      Maximum output voltage: 8 dBu

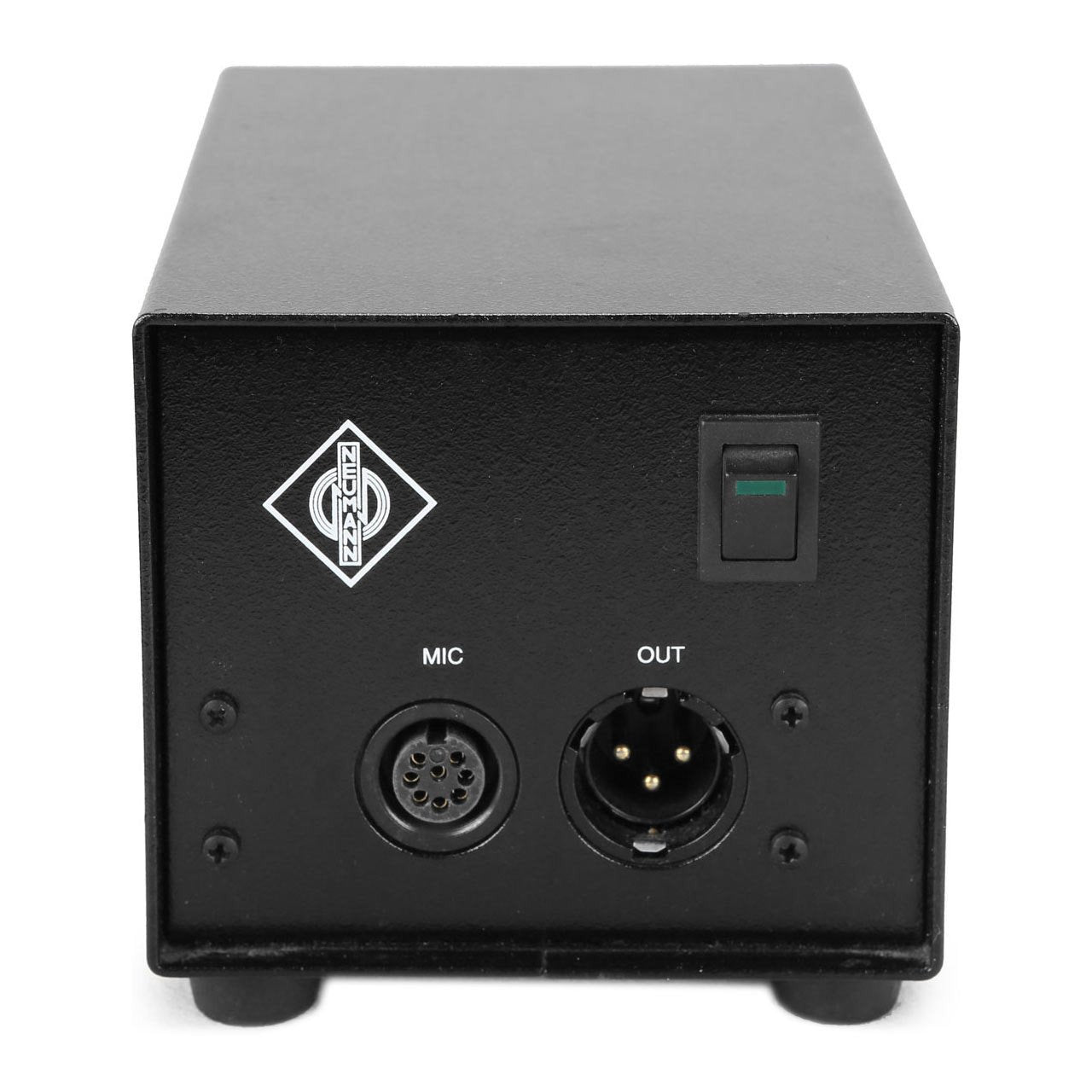

      Powering: Power supply N 149 A
      Matching connector microphone: DIN8F
      Matching connector power supply: XLR3F
      Weight: 800 g
      Diameter: 78 mm
      Length: 165 mm

      1) according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS
      2) measured as equivalent el. input signal
Need more info on the Neumann M 150?
