Neumann

509140

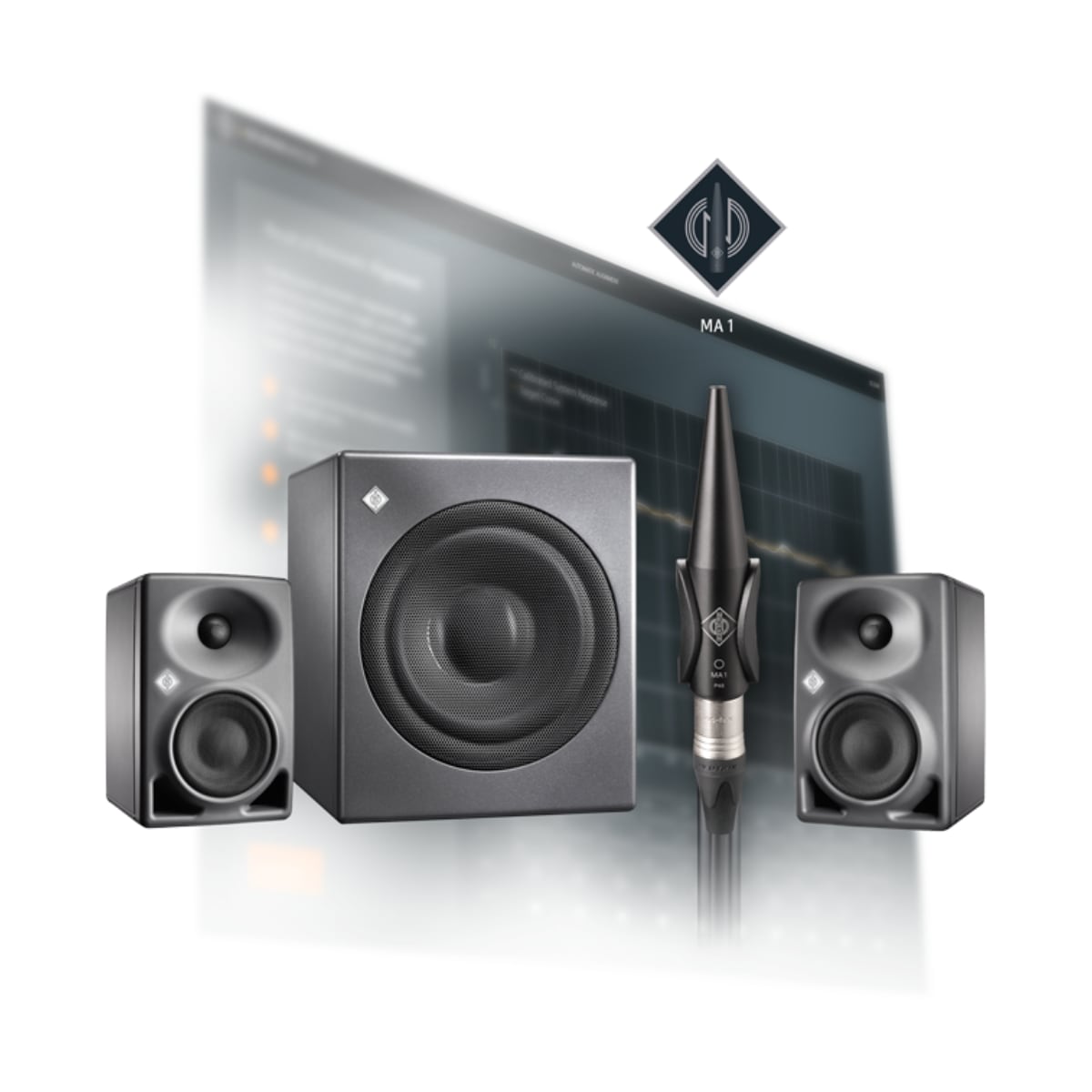

Neumann Monitor KH80 DSP (Pair) with KH 750 DSP Sub + MA 1 Measurement Mic


Please contact me with information about availability and pricing for Neumann Monitor KH80 DSP (Pair) with KH 750 DSP Sub + MA 1 Measurement Mic




2x Neumann KH 80 DSP

  • Studio Monitor with DSP

  • 24-Bit 48 kHz signal processing

  • Equipped with: 4" woofer 1" tweeter

  • Frequency response (+/- 3 dB): 57 Hz - 21 kHz

  • Maximum output level: 108.8 dB SPL

  • Power: 90 W woofer and 50 W tweeter

  • Control panel for standby and acoustical control

  • Electronic peak /Thermo limiter protection circuit separately for woofer and tweeter

  • Input / output level control

  • Linear phase DSP crossover 8th order

  • External 4-position acoustical controls for low-mid or internal automatic or manual room correction (Precision Alignment) with max. 8 IIR filters plus low/high shelf global filter balance

  • 70-ms delay function for time and lipsync settings

  • Self-generated noise <20 dB (A) at 10 cm

  • Input: balanced XLR, magnetically shielded

  • Network connection

  • 2 x M6 threaded inserts for stands/mounts

  • Dimensions (H x W x D): 233 x 154 x 194 mm

  • Weight: 3.5 kg

Neumann KH 750 DSP

  • Active Studio Subwoofer with DSP

  • Equipped with: 10" Ultra long-excursion woofer

  • Power: 256 W

  • Maximum SPL: 105.0 dB

  • Frequency response: 18 - 750 Hz (+3 dB)

  • 4 Different LFE modes are selectable

  • Crossover frequency: 80 Hz

  • Acoustic control with 8 fully parametric filters via the Neumann.Control app

  • FIR phase correction for the connected Neumann analogue monitors via the Neumann.Control app or optional MA 1

  • Switchable stand-by mode

  • Analogue inputs / outputs in XLR

  • Digital inputs/outputs in BNC (75 Ohm, AES3)

  • Optional control and configuration via the Neumann.Control iPad app

  • Automatic calibration including the connected Neumann monitors via optional MA 1 software (MAC/PC)

  • Dimensions: 383 x 330 x 383 mm

  • Weight: 19.5 kg

Neumann MA 1

  • Automatic Monitor Alignment

  • Calibration system for stereo setups with Neumann KH 80 DSP and all analog (non-DSP-based) Neumann monitors in connection with the KH 750 DSP subwoofer

  • Calibration algorithms developed jointly with Fraunhofer IIS

  • Individually calibrated measurement microphone

  • Space-adaptive target curve

  • Phase and amplitude optimization for analog Neumann monitors

  • Frequency range:  20 - 20000 Hz

  • Directional characteristic: Omnidirectional

  • For Mac and PC

  • Dimensions (length x diameter): 117 x 23 mm

  • Weight: 37 g

  • System requirements: Windows 10 (64 bit) or macOS 10.13 / 10.14 / 10.15, audio interface with balanced, analog input with 48 V phantom power and 2 balanced, analog outputs or digital AES3 output (only KH 750 DSP), ASIO driver (for Windows ), Network switch
