    Neumann TLM 103 Studio Microphone

    Select Color
    Nickel
    Black

    Notify me when this product is available:

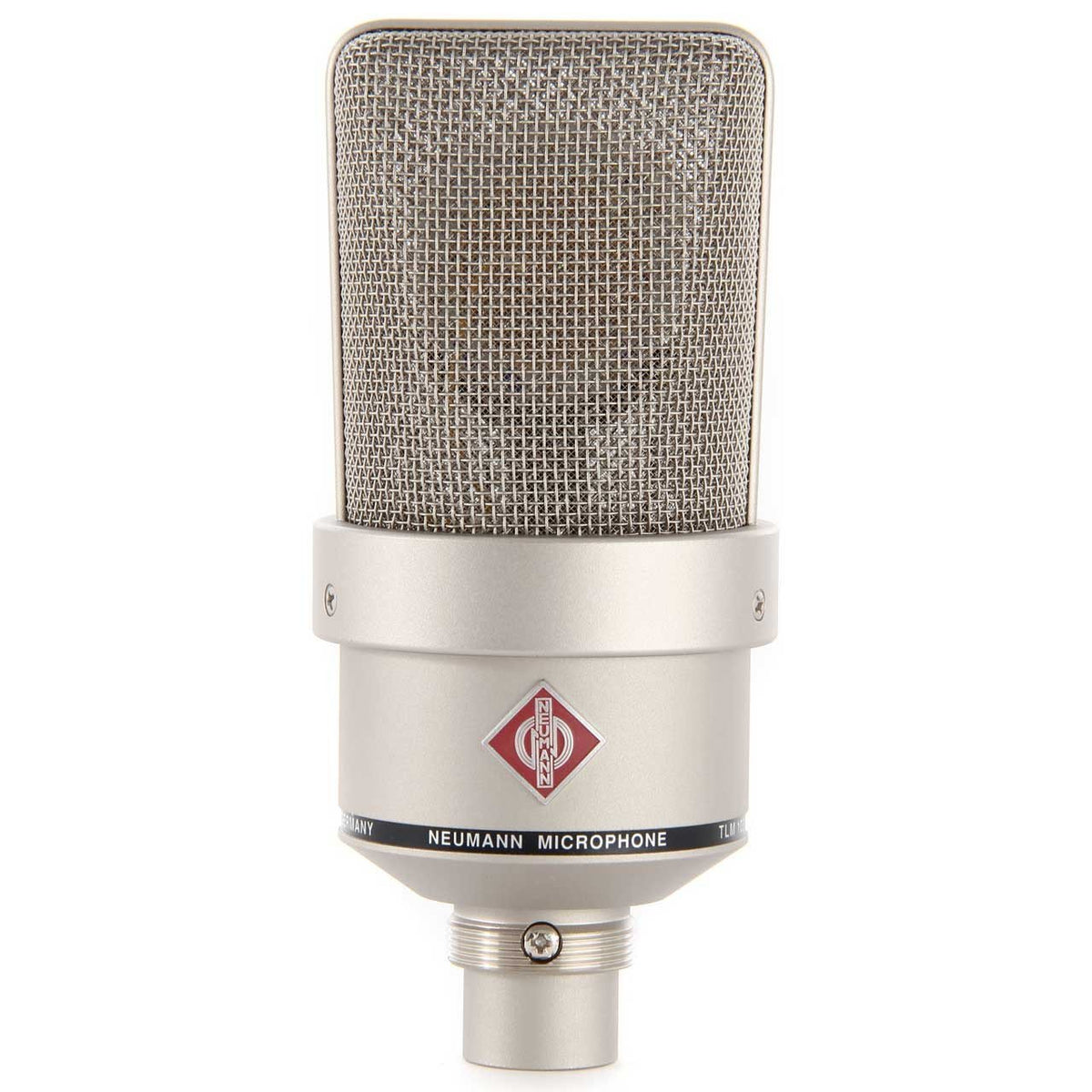

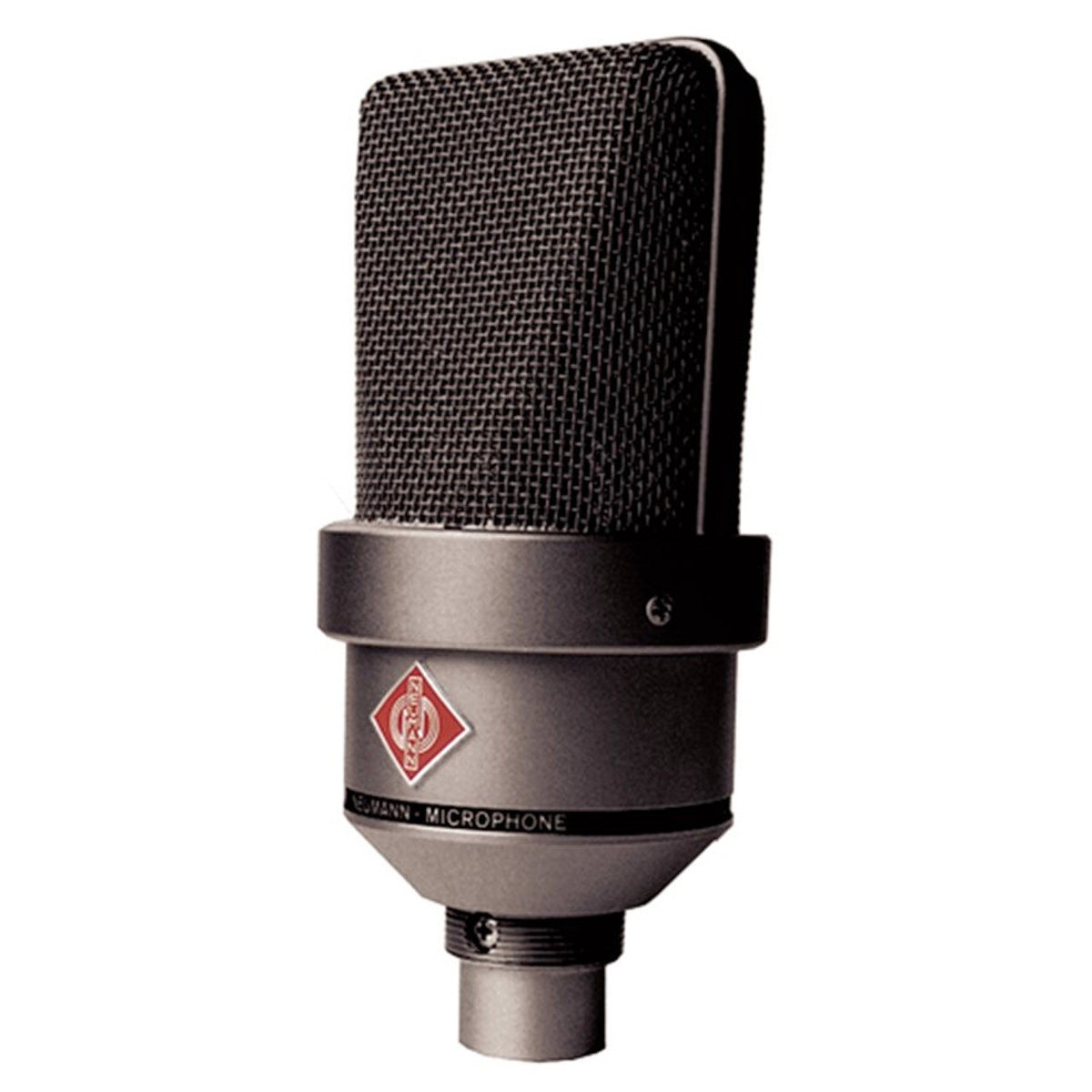

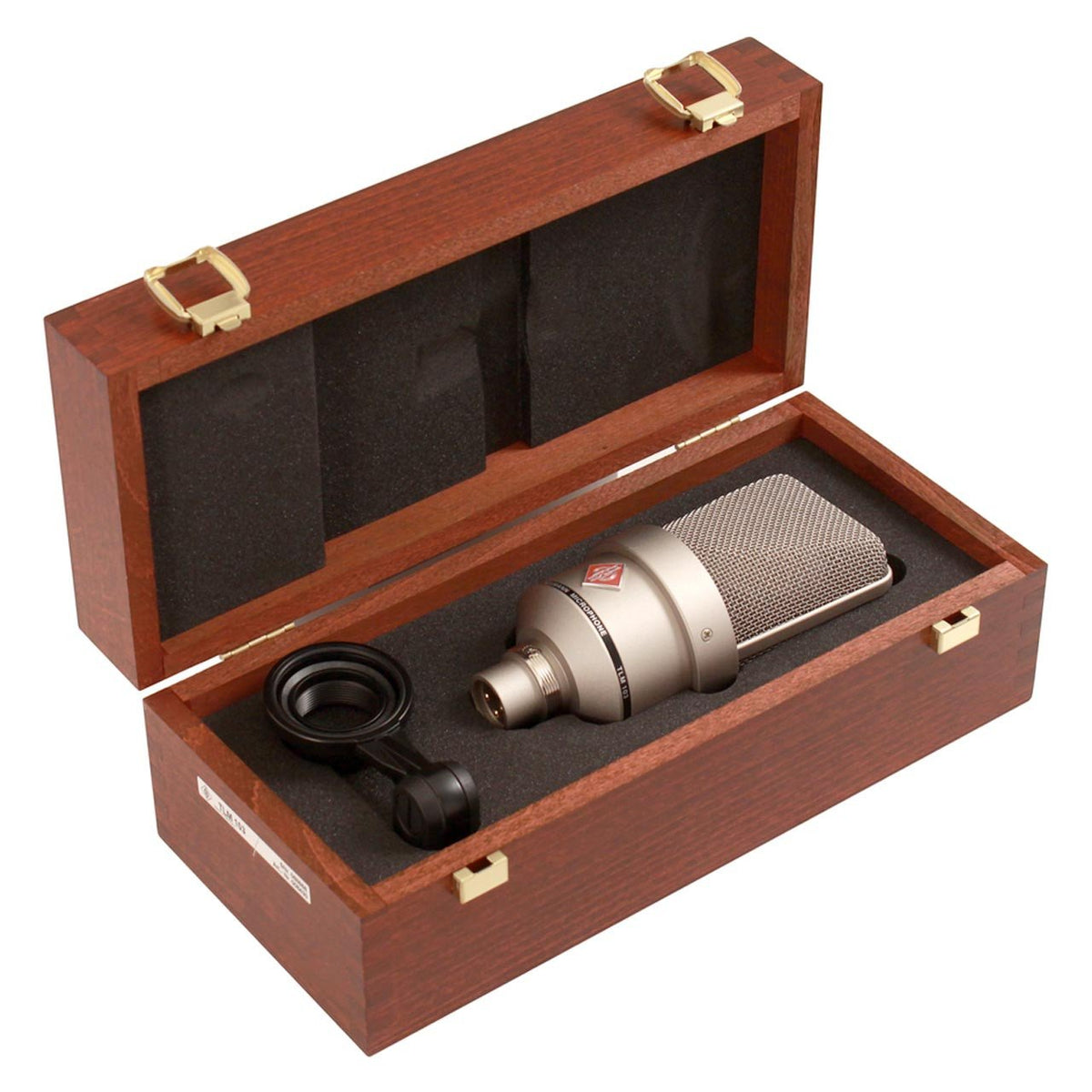

    The Neumann TLM 103 Studio Microphone is an ideal large diaphragm microphone for anybody who demands outstanding sound quality on a limited budget.  Available in either satin nickel or matte black. This version includes the SG 2 Swivel mount and wooden box.

    FEATURES

    • Large-diaphragm cardioid microphone

    • Pressure gradient transducer with one-diaphragm capsule

    • Transformerless circuitry

    • Extremely low noise: 7 dB-A

    • Includes swivel mount

    • Straightforward handling for home recording and professional studios

    • High-quality professional equipment for limited budgets

    By utilizing the tried and true transformerless circuit found in numerous Neumann microphones, the TLM 103 features yet unattained low self-noise and the highest sound pressure level transmission. The capsule, derived from that used in the U 87, has a cardioid pattern, is acoustically well-balanced and provides extraordinary attenuation of signals from the rear

    Applications
    Due to the universal cardioid pattern, straightforward handling, extremely low self-noise level, and finally, the price, the TLM 103 is predestined for all demanding applications from home recording to professional broadcasting and commercial recording studios.


    Polar pattern
    The TLM 103 is equipped with a large diaphragm capsule with a cardioid pattern. By focusing on this pattern – used in most recording situations – the attenuation of unwanted rear sound has been optimized. Off-axis sounds are rendered naturally while isolation is increased. This also leads to high feedback suppression when the microphone is used in live situations or where loudspeaker playback is a factor.

    Acoustic features
    The TLM 103 is addressed from the front, marked with the red Neumann logo on the microphone body. The K 103 large diaphragm capsule is based on the K 87, well-known from the U 67 / U 87 microphones. The capsule has a flat frequency response up to about 5 kHz, and above that, a wide flat 4 dB presence boost.

    The large wire mesh head grille protects the capsule from plosive sounds and effectively prevents pop noises. These characteristics are achieved without resorting to corrective resonance effects.

    Therefore, the microphone maintains an excellent impulse response and reproduces the finest details of music and speech without colouration.

    Electrical features
    With just 7 dB-A / 17.5 dB CCIR the self-noise level of the TLM 103 is so reduced that even the smallest signals are reproduced basically noise-free. It is capable of handling sound pressure levels up to 138 dB without distortion.

    The letters TLM stand for "transformerless microphone". With TLM technology the usual output transformer is replaced by an electronic circuit. As with traditional transformers, it ensures good common mode rejection and prevents RF interference that may influence the balanced audio signal.

    Operational safety
    The entire internal construction is elastically mounted to attenuate any structure-borne noise that could interfere with the TLM 103's operation. Furthermore, the capsule is set on an elastic mount. The frequency range reaches below 20 Hz and thus even very low bass signals are reproduced without coloration.

    Due to this low-frequency extension, the TLM 103 is more sensitive to structure-borne interference and wind noise. For such cases, the elastic suspension EA 1 and the windscreen WS 87 are available as accessories. For close vocal use, the PS 15 or PS 20 pop screens are recommended.

    SPECIFICATIONS:

    Acoustical operating principle

    Pressure gradient transducer

    Directional pattern

    Cardioid

    Frequency range

    20 Hz ... 20 kHz

    Sensitivity at 1 kHz into 1 Kohm

    23 mV/Pa

    Rated impedance

    50 ohms

    Rated load impedance

    1 ohms

    Equivalent noise level, CCIR1)

    17.5 dB

    Equivalent noise level, A-weighted1)

    7 dB-A

    Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL)

    76.5 dB

    Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL)

    87 dB

    Maximum SPL for THD 0.5%2)

    138 dB

    Maximum output voltage

    13 dBu

    Supply voltage (P48, IEC 61938)

    48 V ± 4 V

    Current consumption (P48, IEC 61938)

    3 mA

    Matching connector

    XLR3F

    Weight

    approx. 450 g

    Diameter

    60 mm

    Length

    132 mm
