Neumann

008666

Neumann TLM 107 Multi-Pattern Large Diaphragm Condenser Microphone

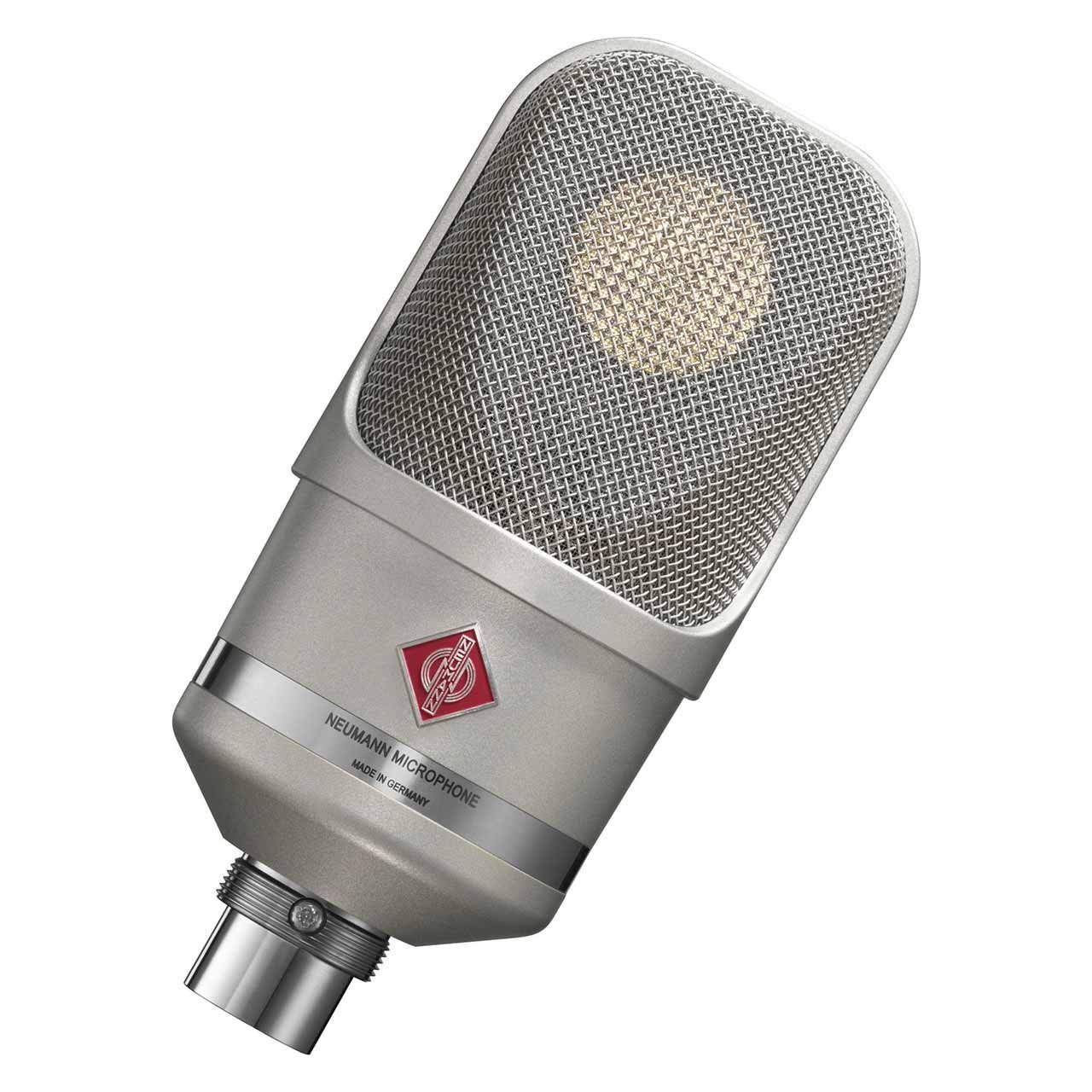

The Neumann TLM 107 is a large-diaphragm studio condenser microphone. The TLM 107 is the multi-pattern cousin of the popular Neumann TLM 103 cardioid condenser; although the TLM 107 has a newly designed capsule. The TLM 107 has five fixed polar patterns, selectable on the rear of the body. Incredibly versatile, you can record with the TLM 107 in omnidirectional, wide cardioid, cardioid, hyper cardioid or as a bidirectional microphone. The TLM 107 also offers attenuation and a low cut frequency filter.

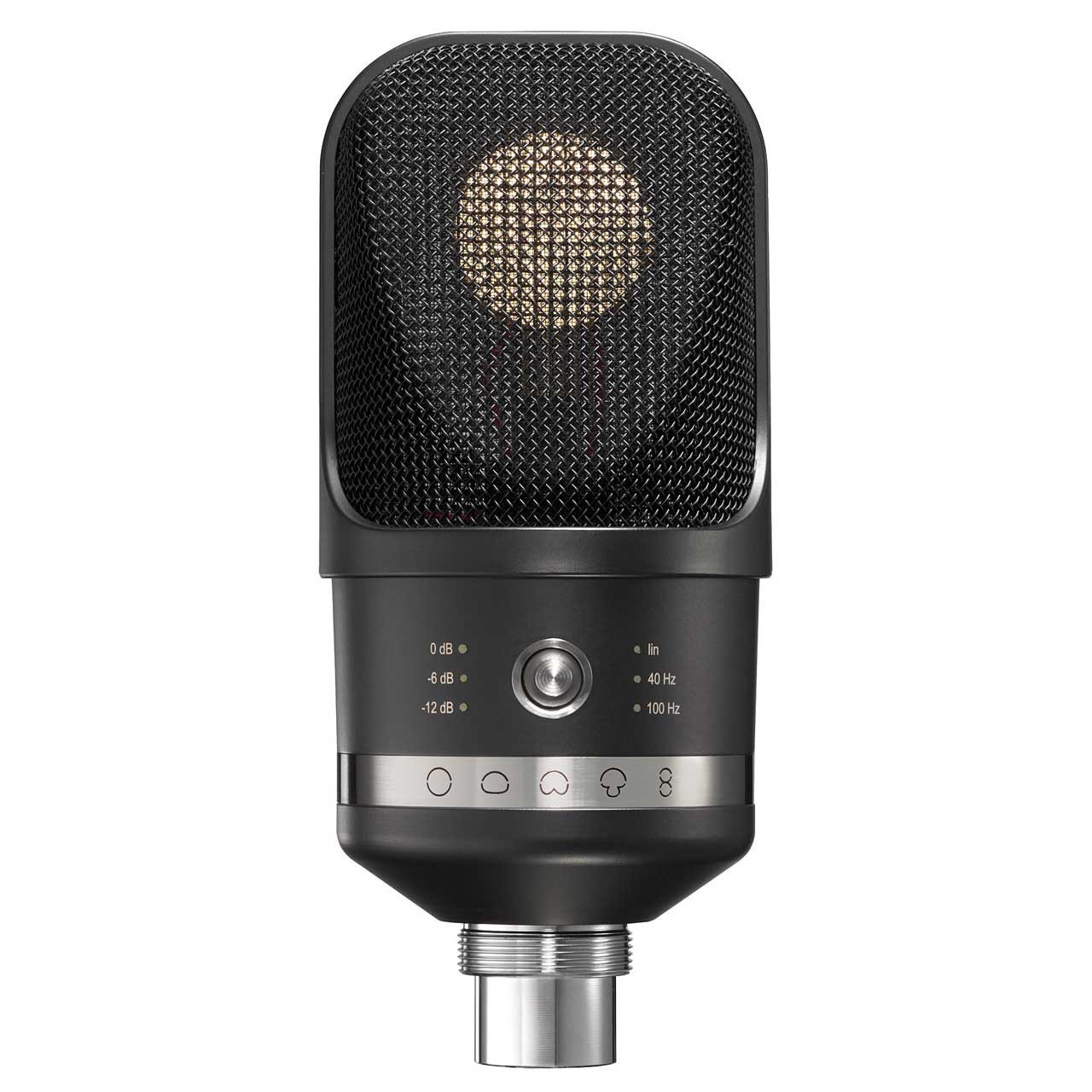

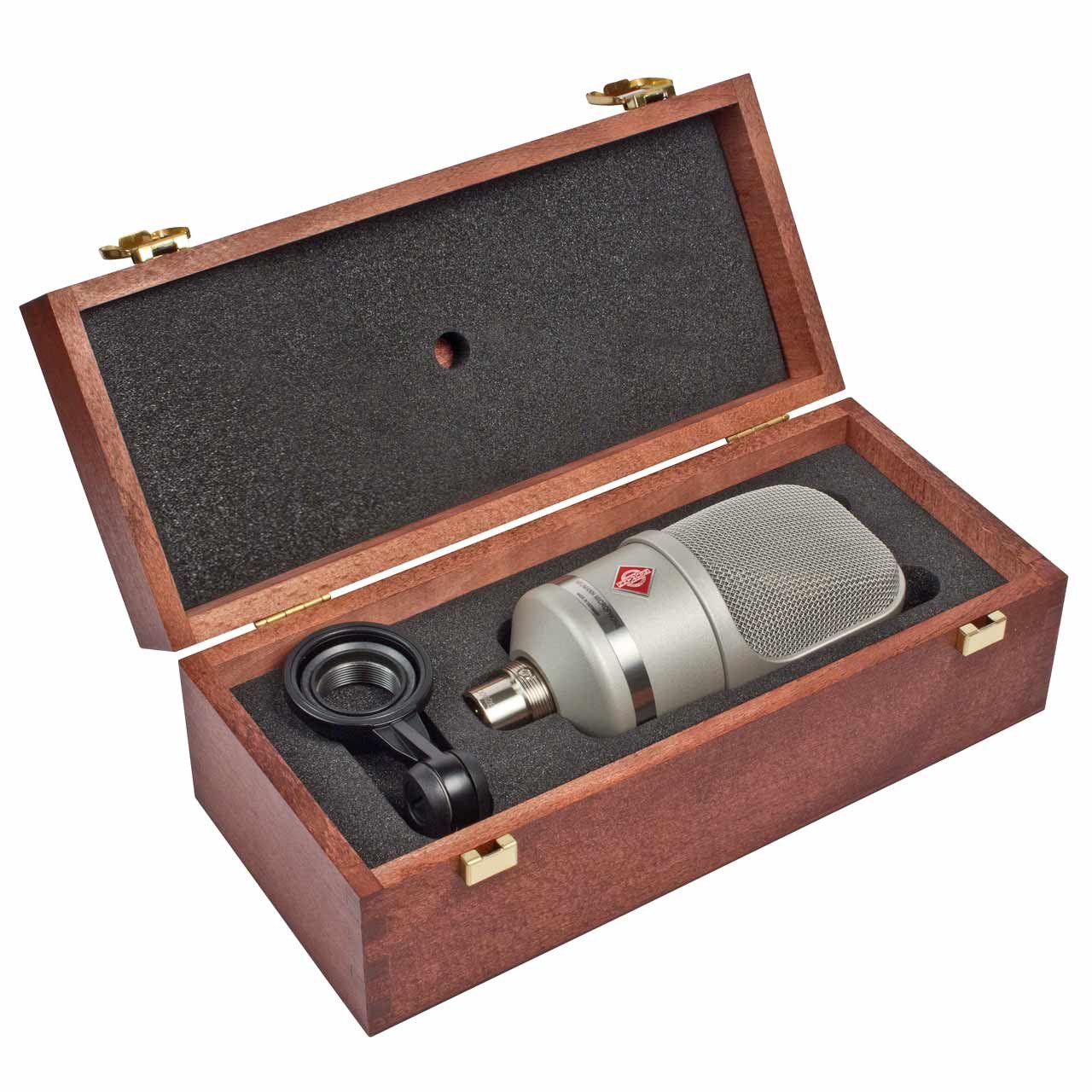

Includes Neumann SG2 swivel mount & wooden box - Available in Nickel or Black


    • Neumann TLM 107 PRODUCT FEATURES:

      Multi-faceted versatility, no-compromise sound and innovative operation: With five directional characteristics and a novel operating concept, the TLM 107 provides sound without any coloration. Featuring equally impressive level handling and low self-noise, it captures everything from the softest whisper to thundering drums.

      Multipattern large diaphragm microphone with 5 polar patterns (omni, wide cardioid, cardioid, hypercardioid, figure-eight)

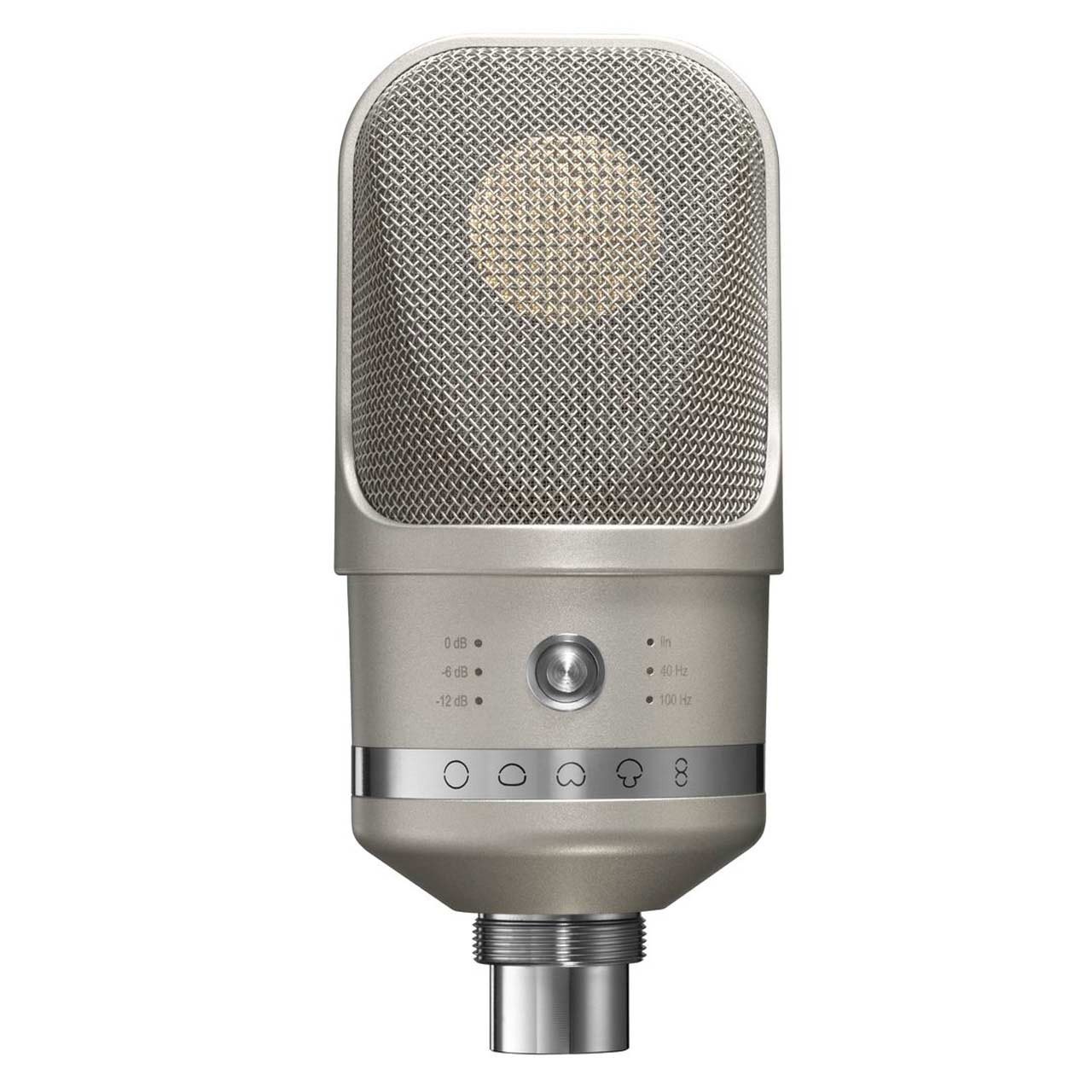

      Navigation switch with LED illuminated display for polar pattern, PAD and low cut
      Sound characteristics: transparent, natural reproduction of human voice, outstanding transient response
      Balanced sound in all 5 polar pattern settings
    • Neumann TLM 107 TECHNICAL SPECIFICATIONS:

      Acoustical operating principle: Pressure gradient transducer
      Directional pattern: Omni, wide angle cardioid, cardioid, hypercardioid, figure-8
      Frequency range: 20 Hz ... 20 kHz
      Sensitivity at 1 kHz into 1 kohms: 11 mV/Pa
      Rated impedance: 50 ohms
      Rated load impedance: 1000 ohms
      Equivalent noise level, CCIR1): 22 dB
      Equivalent noise level, A-weighted1): 10 dB-A
      Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL): 72 dB
      Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL): 84 dB
      Maximum SPL for THD < 0.5%2): 141 dB
      Maximum SPL for THD < 0.5%2) with pre-attenuation -6 dB: 147 dB
      Maximum SPL for THD < 0.5%2) with pre-attenuation -12 dB: 153 dB
      Maximum output voltage: 10 dBu
      Supply voltage (P48, IEC 61938): 48 V ± 4 V
      Current consumption (P48, IEC 61938): 3.2 mA
      Matching connectors: XLR3F
      Weight: 445 g
      Diameter: 64 mm
      Length: 145 mm

      1) according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS
      2) measured as equivalent el. input signal
