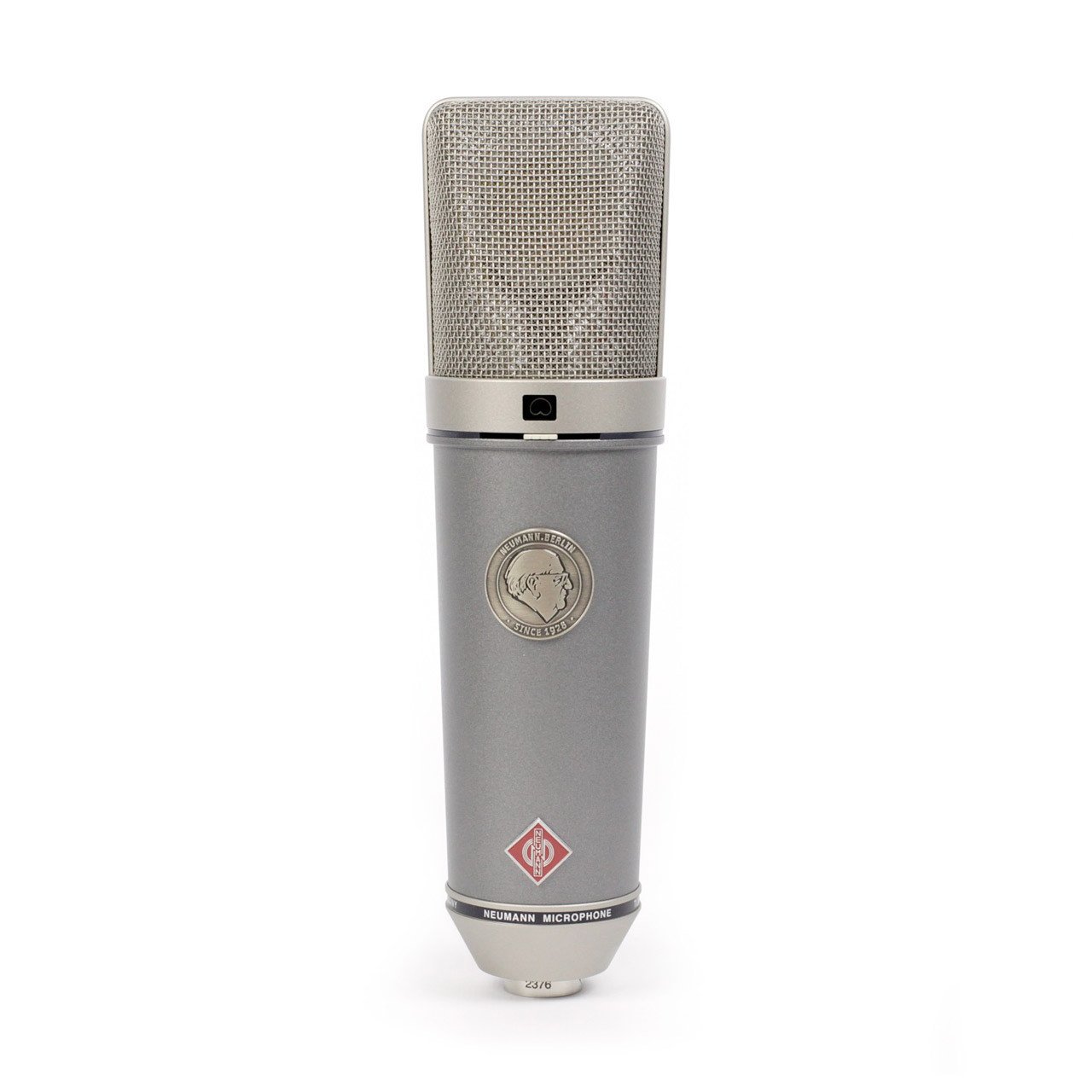

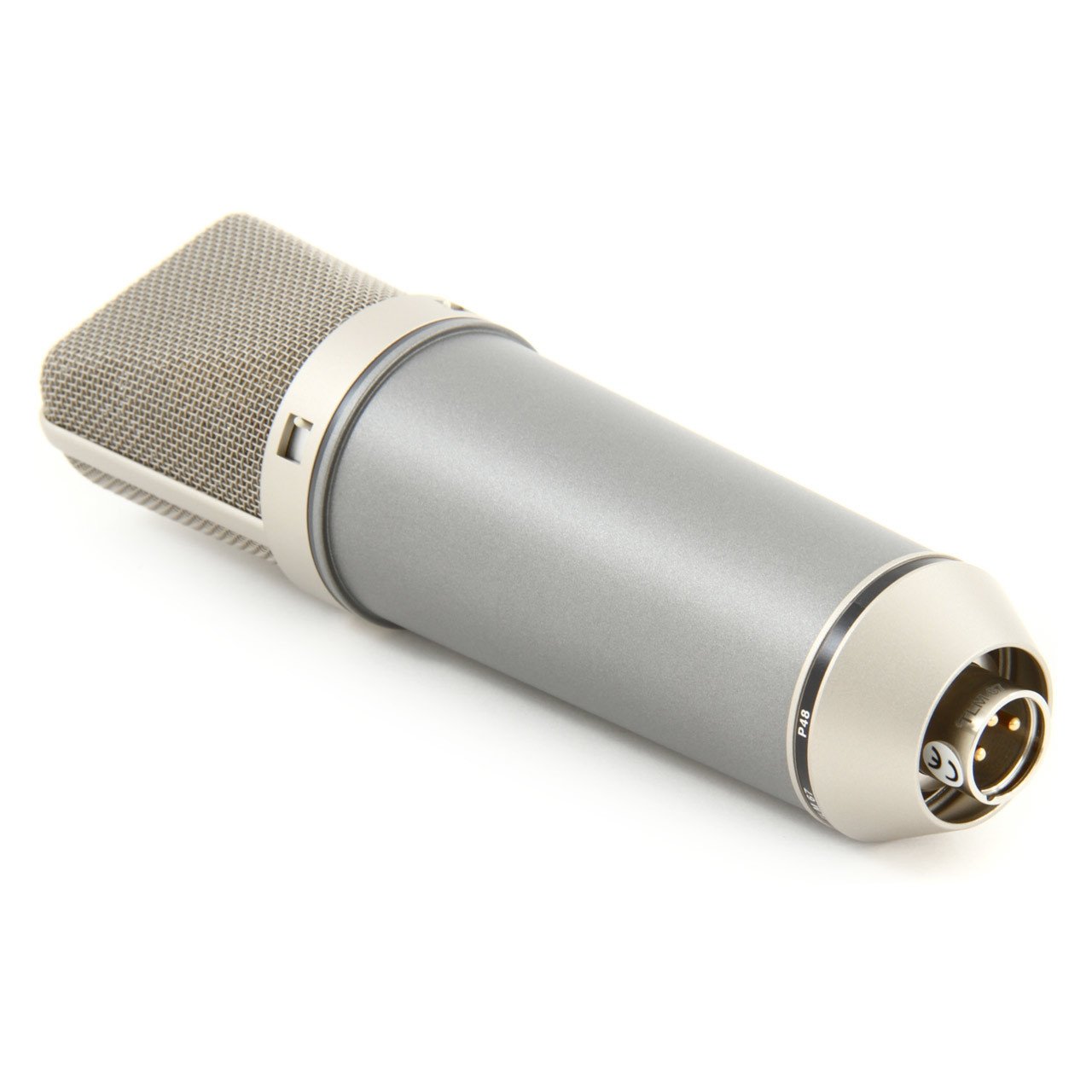

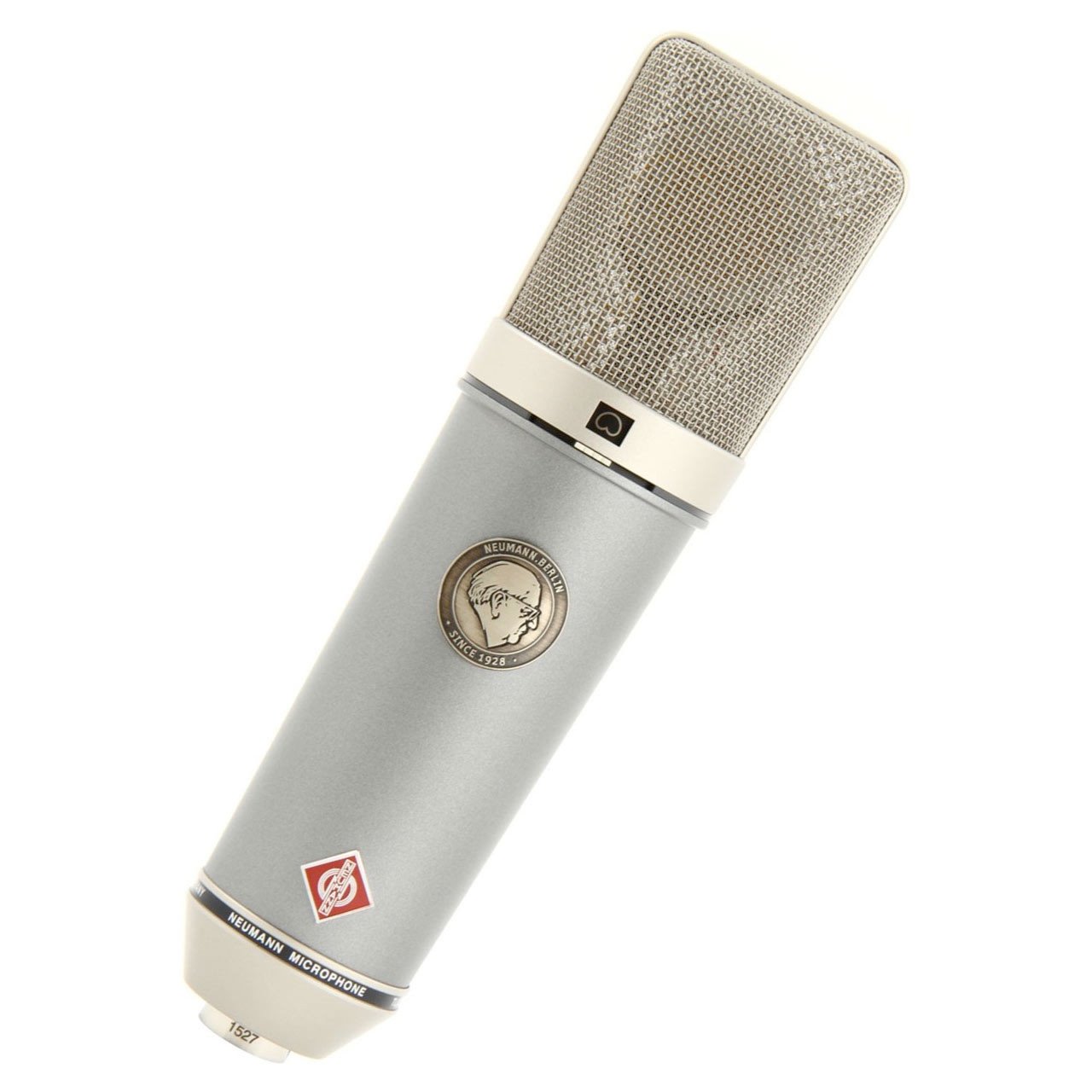

Neumann TLM 67 - Multi-pattern Studio Condenser Microphone

Please contact me with information about availability and pricing for Neumann TLM 67 - Multi-pattern Studio Condenser Microphone

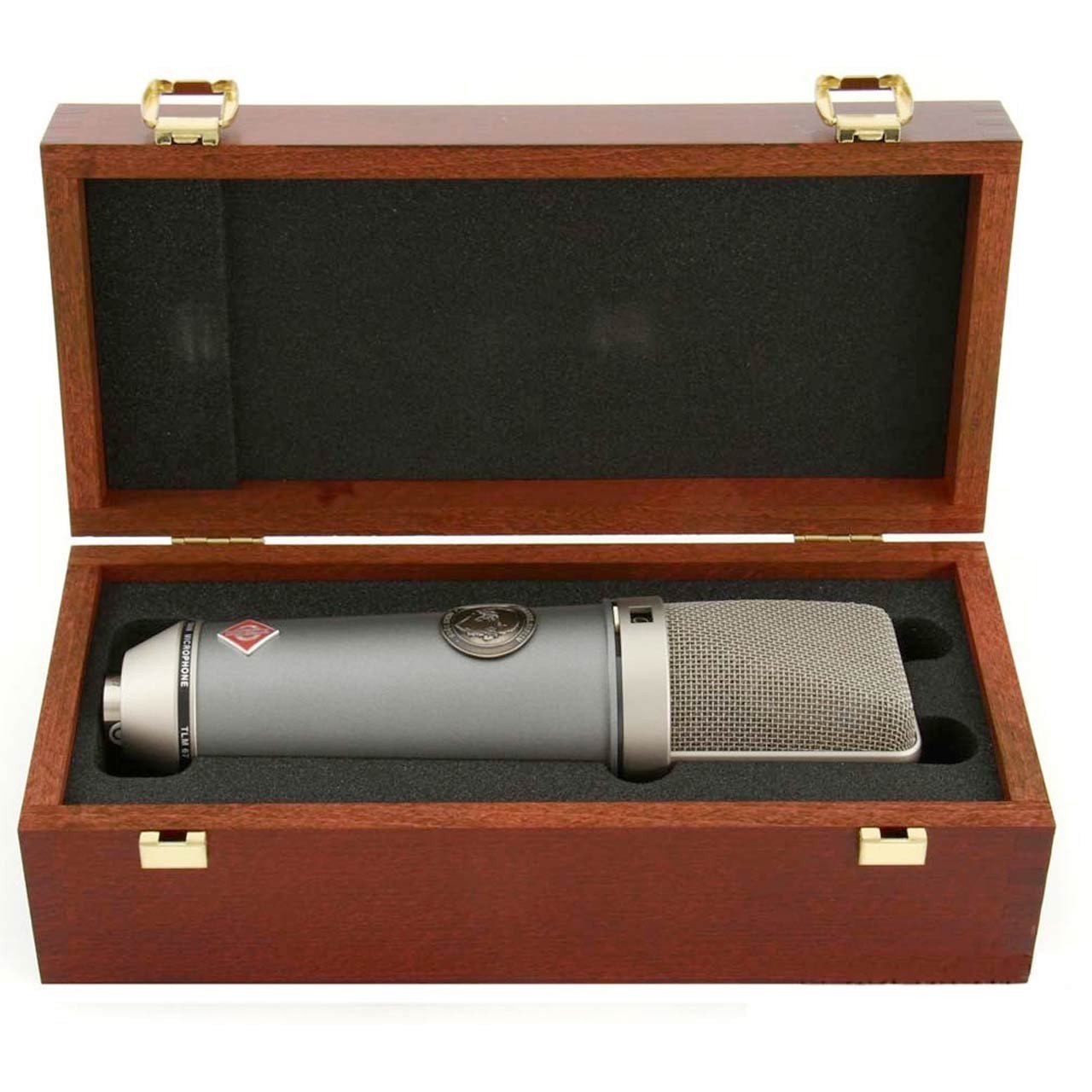

The Neumann TLM 67 is a large diaphragm, side address studio condenser microphone that features three fixed polar patterns. Cardioid, Omni directional and figre-8. The TLM 67 is a modern recreation of the infamous U 67 - a studio workhorse during the 1960’s. The TLM 67 uses the K 67 capsule. Neumann have re-designed the circuit to emulate the tonal character of the original, as a solid-state version of the U 67. The TLM 67 ships with a nice wooden case and mic-clip.

    • Neumann TLM 67 Features:

      A further development of the classic U 87. The 5 directional characteristics, 2-level low-cut filter and switchable pre-attenuation provide maximum flexibility.

      Acoustic features:
      The microphone is addressed from the front, marked with the Neumann logo. The large diaphragm capsule has a very smooth frequency response for all polar patterns over a wide acceptance angle. The frequency response curves are flat up to 10 kHz within a pickup angle of ± 100°.

      As a result the U 89 i has a very even diffuse-field response for all polar patterns. This is important in a reverberant environment when more reflections arrive at the microphone capsule. The acoustic information is not affected in its tonal quality when recorded by the microphone.

      This characteristic is achieved without resorting to corrective resonance effects.

      The capsule it is elastically mounted to avoid any structure borne noise that could interfere with its operation.

      Feature Summary:
      Variable large diaphragm microphone
      Pressure-gradient transducer with double membrane capsule
      Five directional characteristics: omni, wide angle cardioid, cardioid, hypercardioid, figure-8
      Thereby most versatile in all recording situations
      Two-stage roll-off filter
      Switchable 6 dB pre-attenuation
      Extended frequency range in comparison to U 87 Ai

      Application Hints:
      A microphone for universal usage
      Use as spot mic for wind instruments, strings, piano
      These are just some of the most common applications. We recommend additional experimentation to gain maximum use from this microphone.
    • Neumann TLM 67 Specifications:

      Acoustical operating principle: Pressure gradient transducer
      Directional pattern: Omni/cardioid/figure-8
      Frequency range: 20 Hz ... 20 kHz
      Sensitivity at 1 kHz into 1 kohm: 10/18/9 mV/Pa
      Rated impedance: 50 ohms
      Rated load impedance: 1 kohms
      Equivalent noise level, CCIR1): 29/24/30 dB
      Equivalent noise level, A-weighted1): 16/11/17 dB-A
      Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL): 65/70/64 dB
      Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL): 78/83/77 dB-A
      Maximum SPL (tube characteristic) for THD < 0.5 %2): 110/105/111 dB
      Maximum SPL (tube characteristic) for THD < 5 %2): 130/125/131 dB
      Maximum output voltage: -1 dBu
      Power supply: P48
      Matching connector: XLR 3F
      Weight: 490 g
      Diameter: 56 mm
      Length: 200 mm

      1) according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS
      2) measured as equivalent el. input signal, k2 dominant
