Neumann

008661

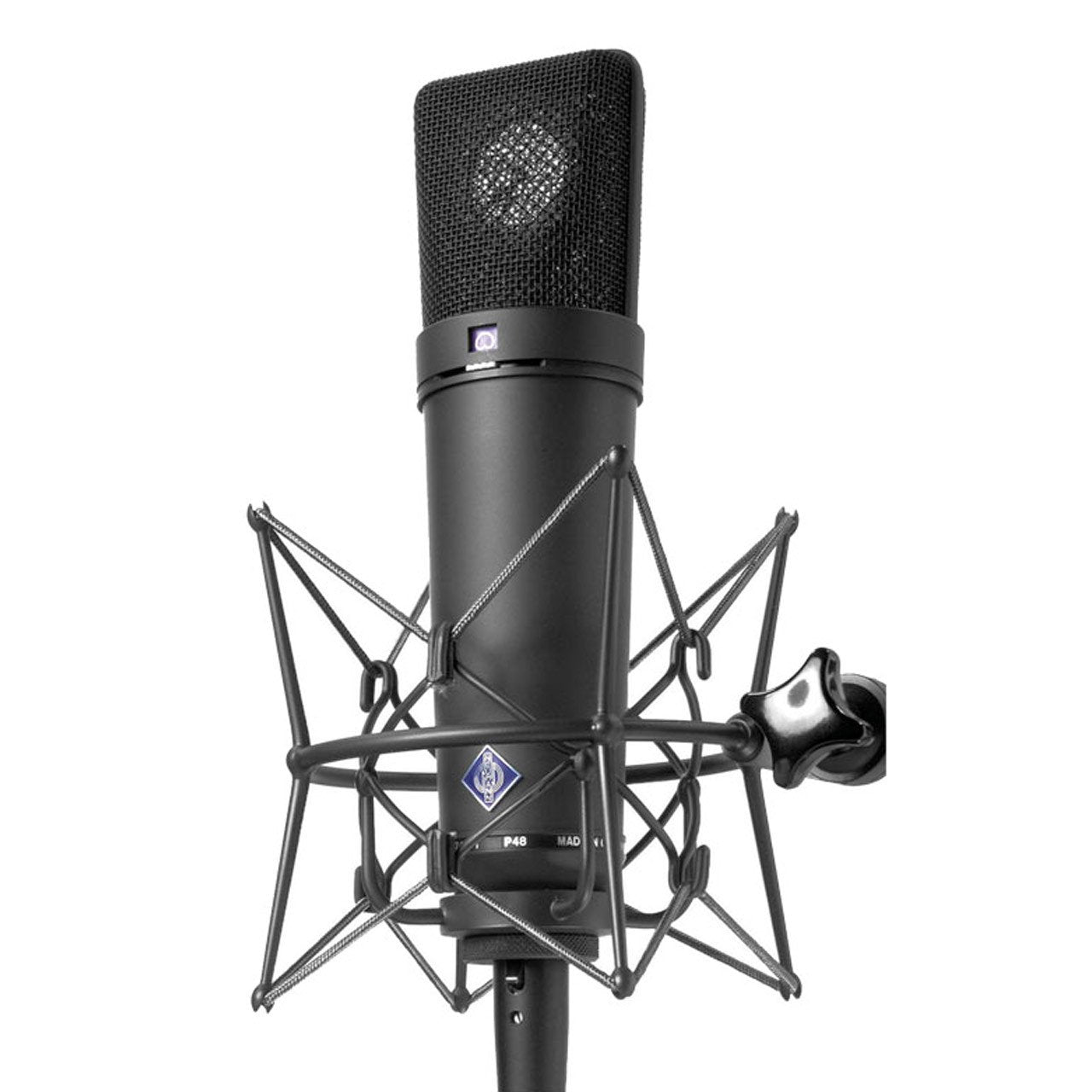

Neumann U 87 Ai Switchable Studio Microphone Studio Set

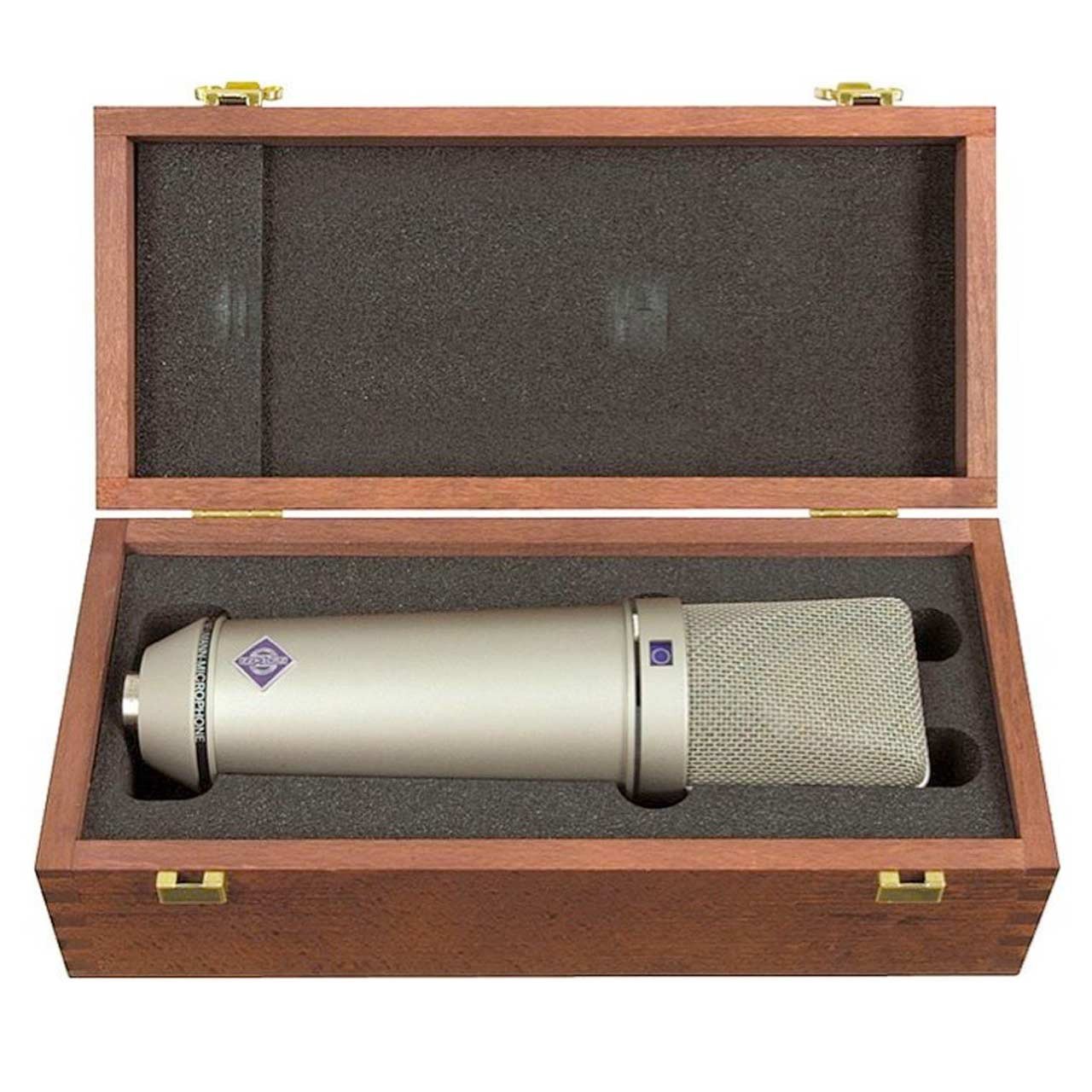

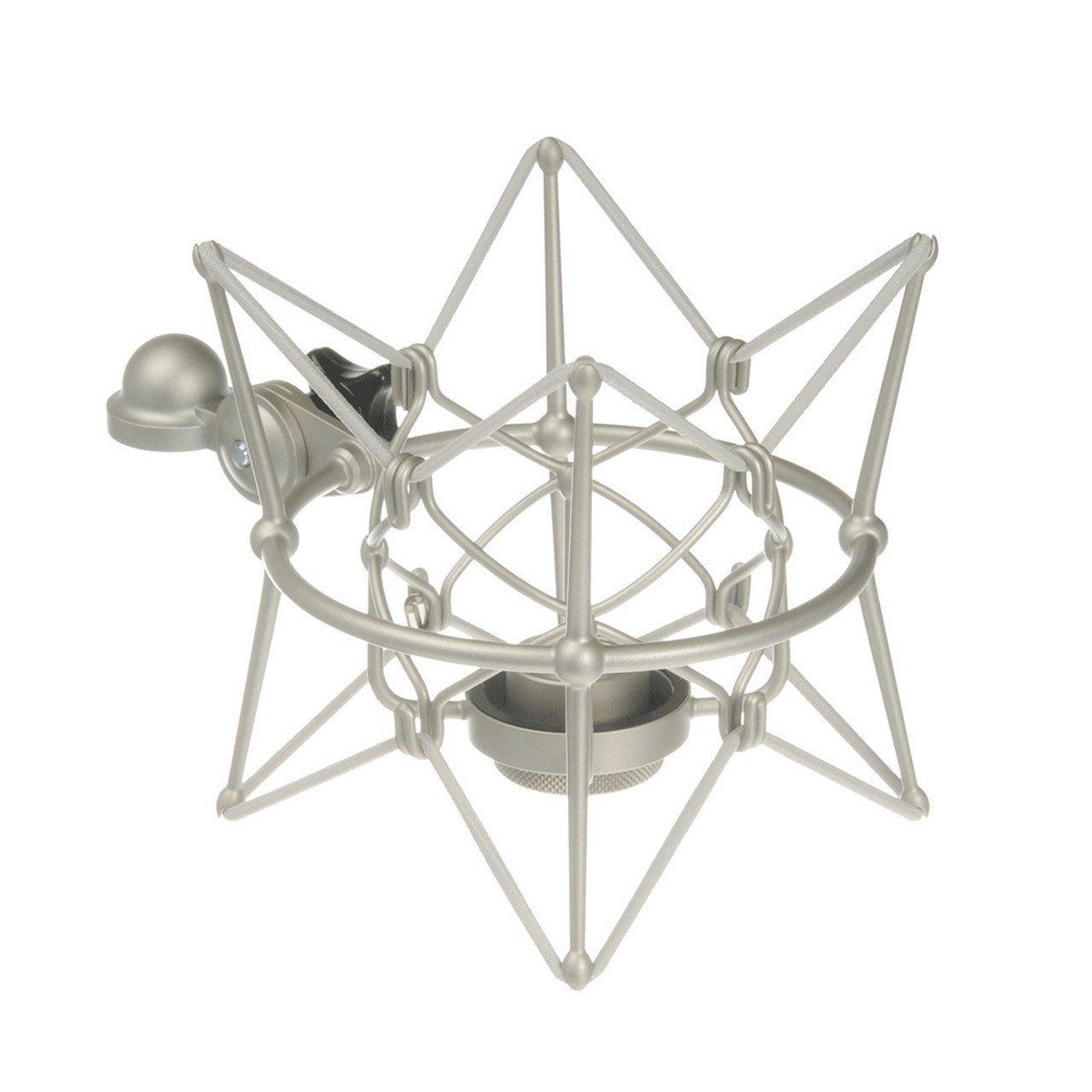

This microphone by Neumann is a studio staple and comes complete with the Neumann shock mount. Being multi pattern the versatile nature of the Neumann U 87 Ai has made it a 'go-to' mic for most general purpose applications in studios, broadcasting, film and television, orchestral recordings, spot miking single instruments, and famously as a vocal microphone. This version includes the EA 87 suspension and wooden box.


    • PRODUCT FEATURES:

      The Neumann U 87 Ai - voted as THE best microphone

      The readers of the SOUND ON SOUND magazine have voted: U 87 Ai - the BEST MICROPHONE, announced during the Winter NAMM show 2012 in Anaheim, California.

      The SOS award went to products, that "have made our lives in the studio all the more enjoyable". It is a further evidence for the reputation of the U 87 Ai as the world famous, professional standard studio condenser microphone. Until today the U 87 sets the mark in the microphone industry by which all others are measured.

      The U 87 presents a wide range of features and versatility that make it to one of the most desirable mics available. Our users are recognising the microphone immediately by its distinctive design. Well-known for its warm and well balanced characteristics - your perfect choice as vocal microphone for all types of music and speech. The usage as main microphone for orchestra recordings or as spot mic for single instruments make it the most general-purpose microphone - in studios, for broadcasting, film and television.

      The U 87* is equipped with a large dual-diaphragm capsule with three directional patterns: omnidirectional, cardioid and figure-8. These are selectable with a switch below the headgrille.

      A 10 dB attenuation switch is located on the rear. It enables the microphone to handle sound pressure levels up to 127 dB without distortion.

      Furthermore, the low frequency response can be reduced to compensate for proximity effect.

      Features:

      Variable large diaphragm microphone

      Pressure-gradient transducer with double membrane capsule

      The studio microphone classic

      Three directional characteristics: omni, cardioid, figure-8

      Switchable low frequency roll-off

      Switchable 10 dB pre-attenuation

      Ideal as main and as support microphone in the most differing recording situations

    • TECHNICAL SPECIFICATIONS:

      Acoustical operating principle

      Pressure gradient transducer

      Directional pattern

      Omnidirectional, cardioid, figure-8 plus

      Frequency range

      20 Hz ... 20 kHz

      Sensitivity at 1 kHz into 1 kohm

      20/28/22 mV/Pa1)

      Rated impedance

      200 ohms

      Rated load impedance

      1 kohms

      Equivalent noise level, CCIR2)

      26/23/25 dB1)

      Equivalent noise level, A-weighted2)

      15/12/14 dB-A1)

      Signal-to-noise ratio, CCIR2) (rel. 94 dB SPL)

      68/71/69 dB1)

      Signal-to-noise ratio, A-weighted2) (rel. 94 dB SPL)

      79/82/80 dB1)

      Maximum SPL for THD 0.5%3)

      117 dB (cardioid)

      Maximum SPL for THD 0.5% with preattenuation3)

      127 dB

      Maximum output voltage

      390 mV

      Supply voltage (P48, IEC 61938)

      48 V ± 4 V

      Current consumption (P48, IEC 61938)

      0.8 mA

      Matching connectors

      XLR3F

      Weight

      500 g

      Diameter

      56 mm

      Length

      200 mm

    • SYSTEM REQUIREMENTS:

      n/a
Need more info on the Neumann U 87 Ai? Click HERE for the manufacturer's website >>>
