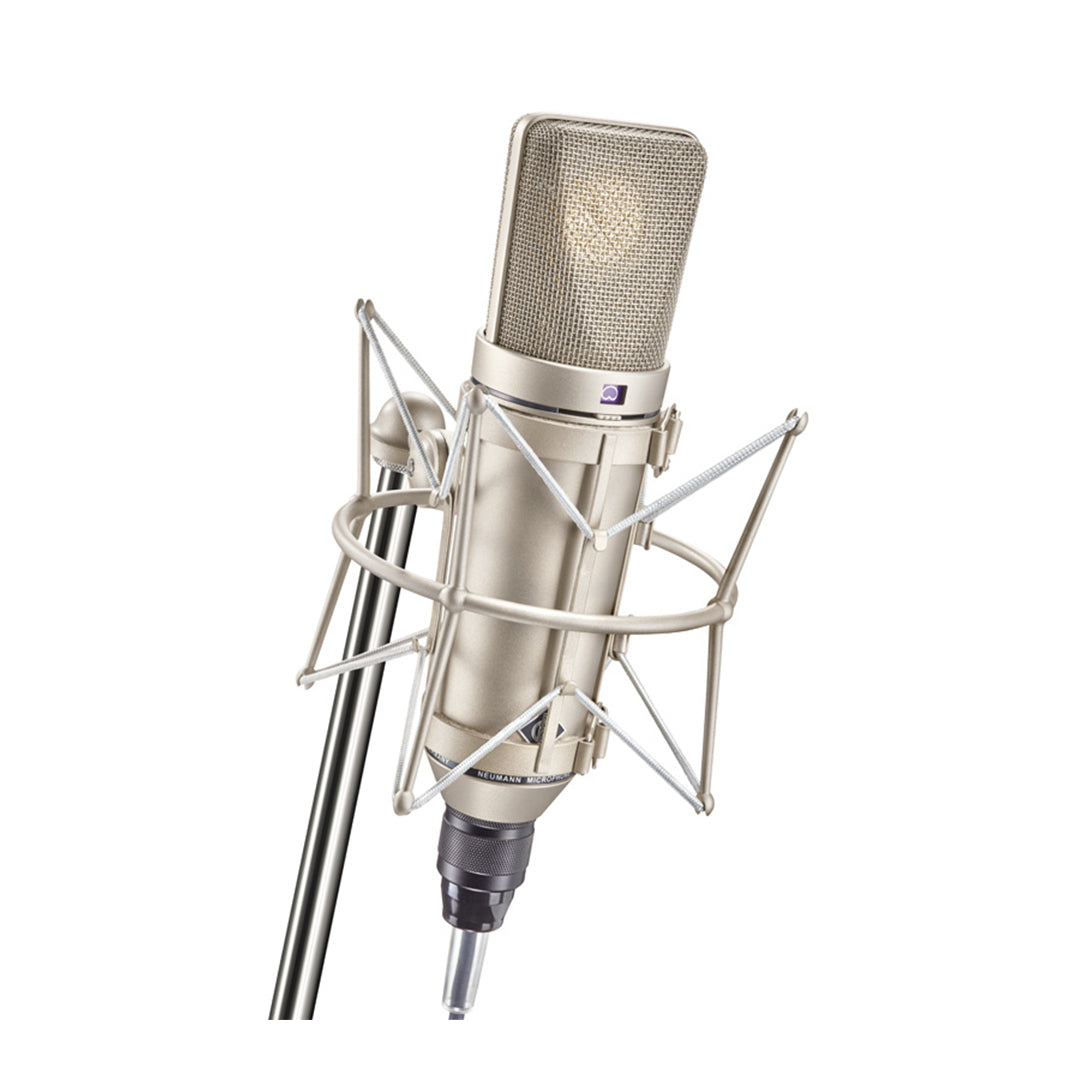

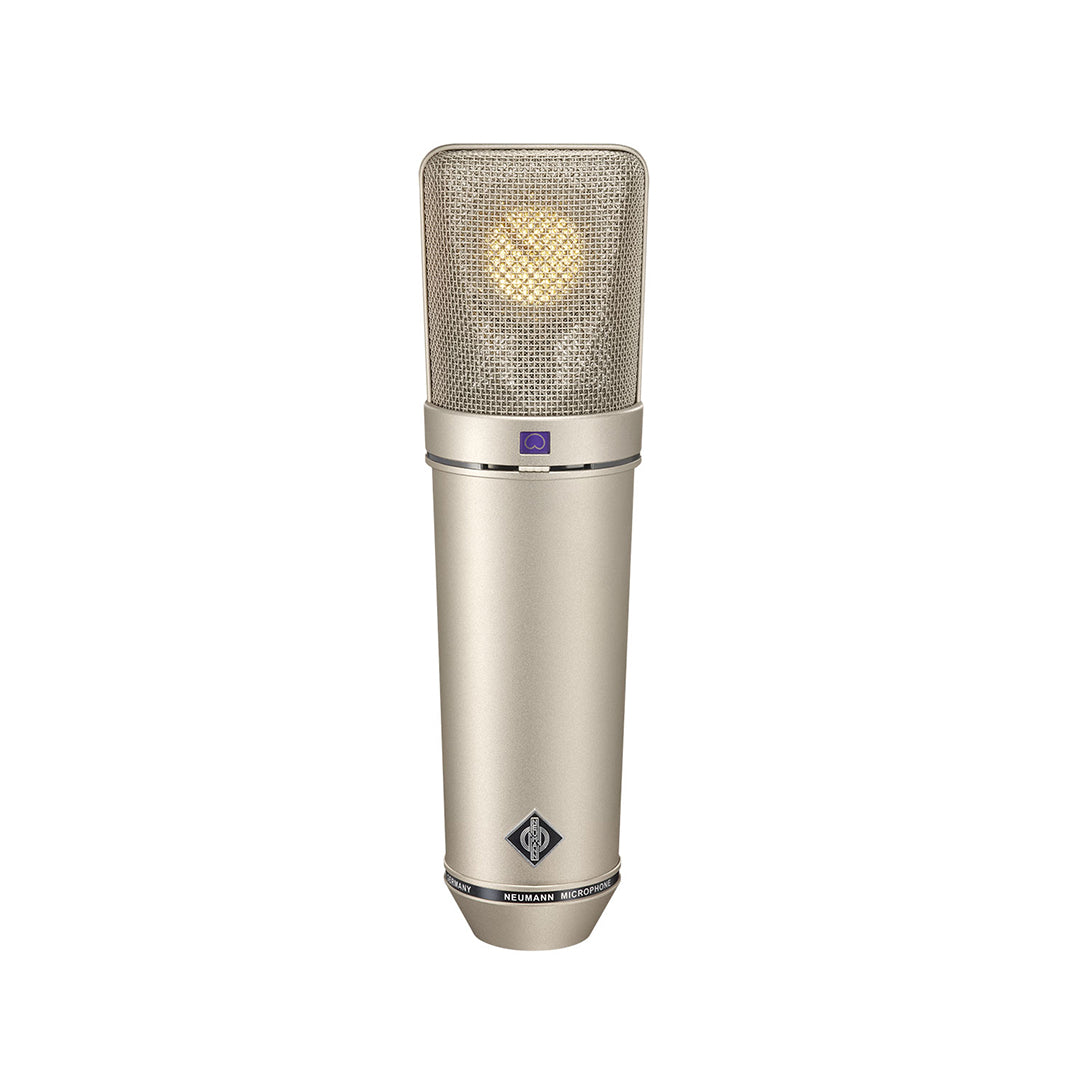

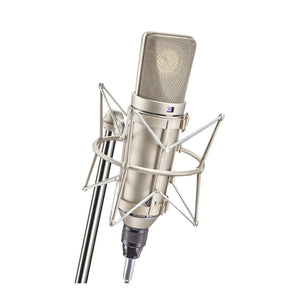

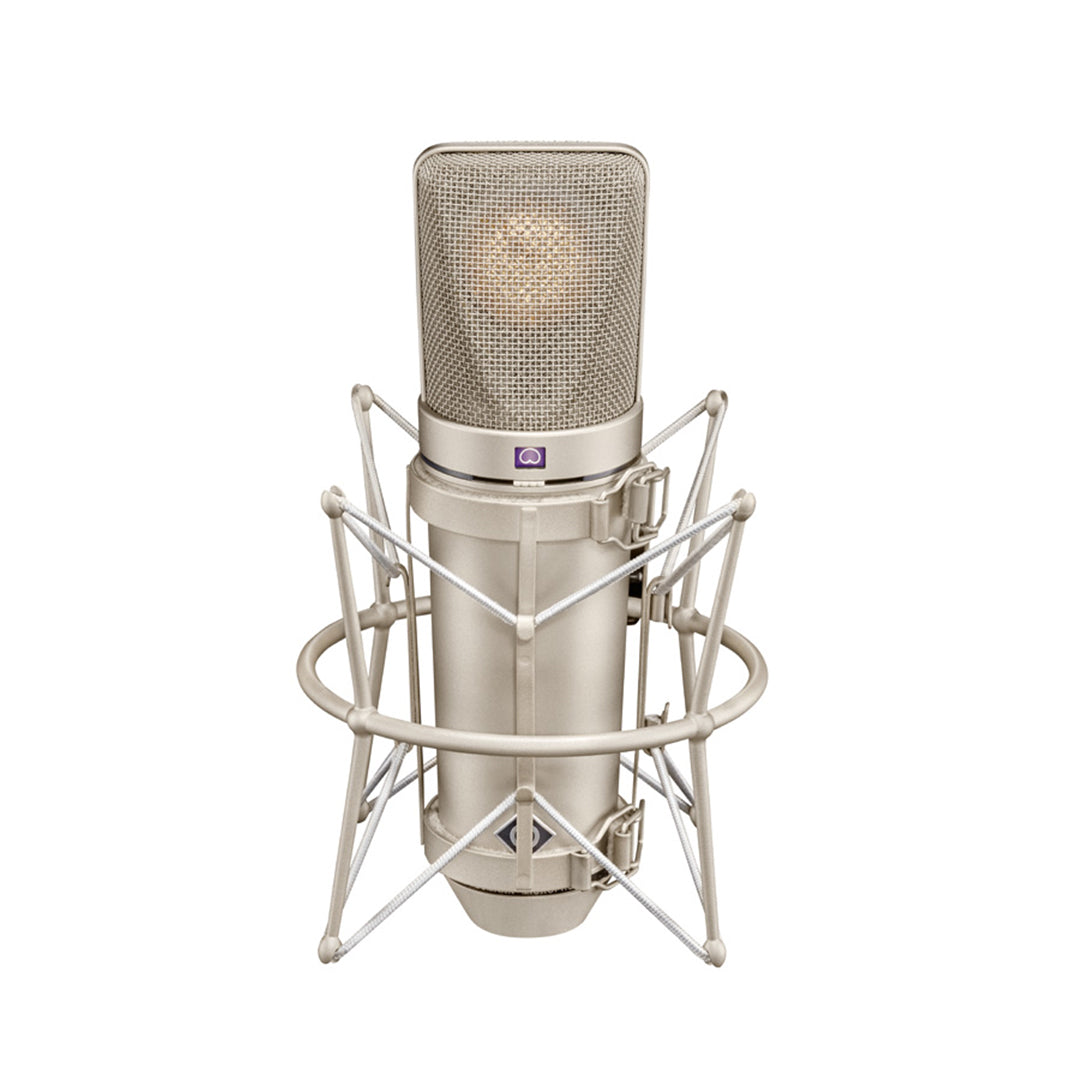

    Neumann U67 Studio Tube Microphone Set

    Notify me when this product is available:

    Introduced in 1960, the U 67 was the quintessential studio workhorse
    throughout the formative years of modern music. Today, more than ever,
    its inimitably smooth sound continues to be in high demand. Now, for the first time in decades, Neumann’s legendary tube microphone is back in production, built to the original specifications. The U 67 is a universal studio microphone suitable for all applications. Its smooth top end with a subtle tube shimmer makes the U 67 an outstanding vocal microphone. Due to its essentially linear response in three polar patterns – Omni, cardioid, and figure-8 – the U 67 is also a very versatile microphone for all kinds of instruments such as strings, woodwinds, brass, piano, drums, acoustic and electric guitar, bass guitar and upright bass.

    PLEASE CONTACT US BEFORE ORDERING!

    Features

    • Classic tube circuit, transformer balanced

    • Balanced sound in three polar patterns

    • Meticulously reproduced to original specifications

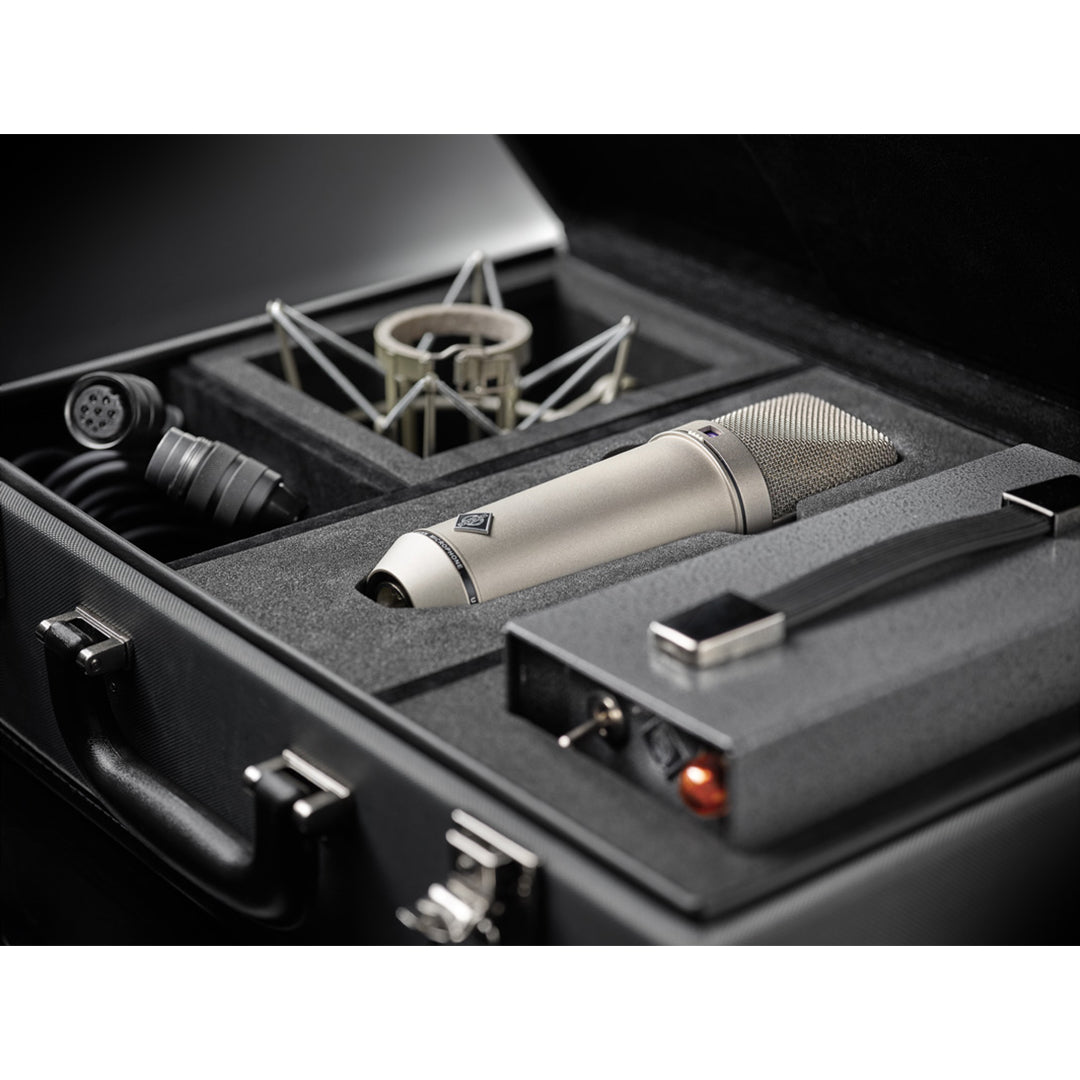

    • Vintage case, handmade in Germany

    • Reissue of the legendary Neumann U 67

    • Superb vocal microphone for male and female singers

    • Versatile microphone for all kinds of instruments

    • Made to original specifications using archived documentation

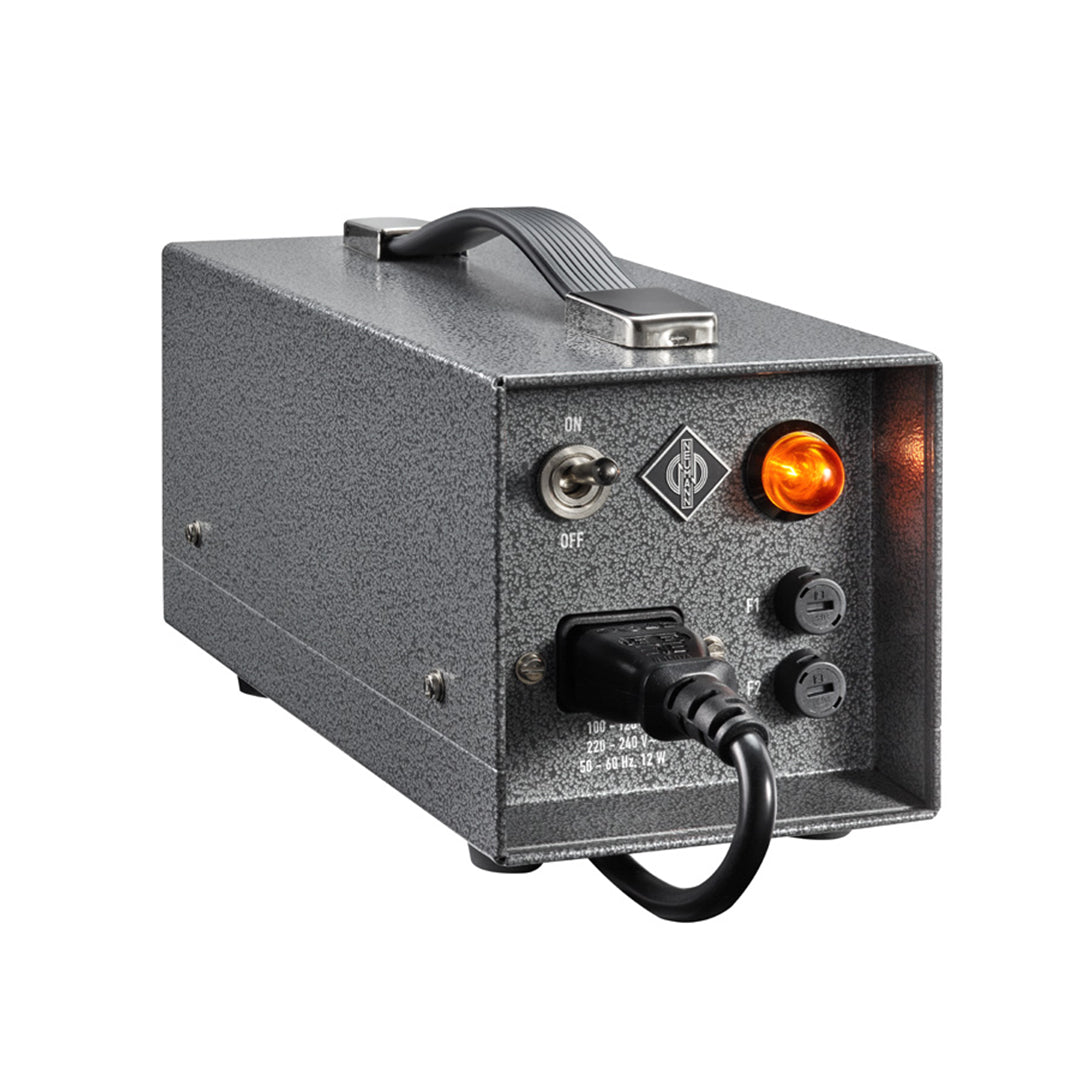

    • New power supply NU 67 V automatically adapts to the local mains voltage

    • Handmade and hand-soldered in German

    Specifications



    Acoustical operating principle

    Pressure gradient transducer

    Directional Pattern

    Omnidirectional, cardioid, figure-8

    Frequency Range

    20 Hz ... 20 kHz

    Sensitivity at 1 kHz into 1 Kohm

    15/24/16 mV/Pa ± 1 dB (Omni/cardioid/8)

    Rated Impedance

    200 ohms

    Rated load impedance

    1 Kohms

    Equivalent noise level, CCIR 1

    32/28/31 dB (Omni/cardioid/8)

    Equivalent noise level, A-weighted 2

    21/17/20 dB-A (Omni/cardioid/8)

    Maximum SPL for THD 0.5% 3

    114 dB (cardioid)

    Maximum SPL for THD 0.5% with pre-attenuation 4

    124 dB

    Signal-to-noise ratio, CCIR (re. 94 dB SPL) 5

    62/66/63 dB (Omni/cardioid/8)

    Signal-to-noise ratio, A-weighted (re. 94 dB SPL) 6

    73/77/74 dB (Omni/cardioid/8)

    Maximum output voltage

    -9.8 dBu

    Power supply

    NU 67 V

    Matching connector

    Microphone: spec. 7pin, Power Supply: XLR 3 F

    Weight

    560 g

    Diameter

    56 mm

    Length

    200 mm
