NEV-1073DPX

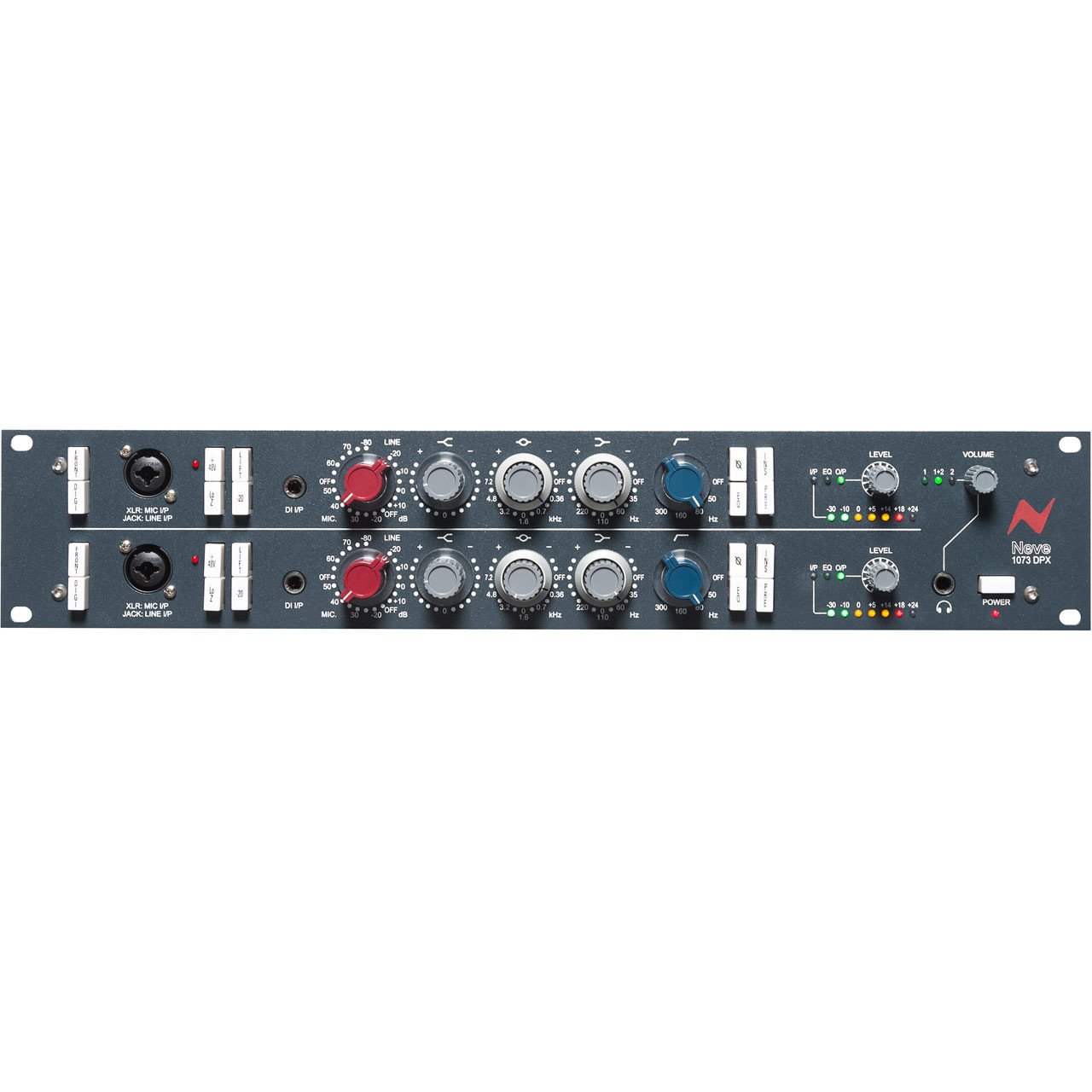

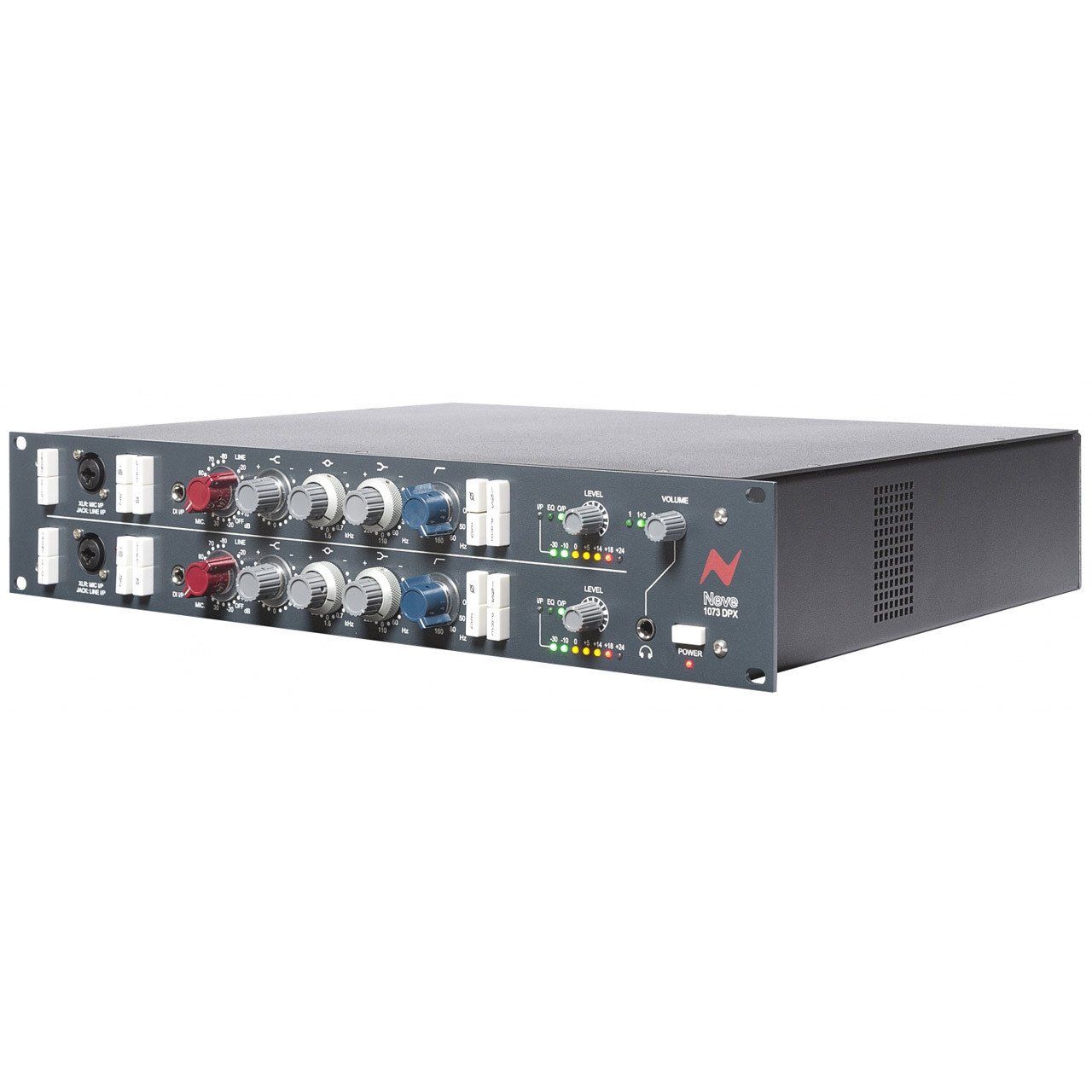

Neve AMS 1073DPX Dual Preamp & EQ
The Neve AMS DPX dual preamp & EQ has a legacy etched in some of the most famous recordings ever made since the 1970’s. The big, aggressive sound of the 1073 preamp has seen it become a mainstay in studios, and versatile across a number of styles from rock, hip-hop and classical. The 1073DPX matches the specifications of the original 1073, and is still designed and constructed in England. The Neve 1073DPX has 2 x classic Neve 1073 preamps, and 2 x 3-band EQ’s on each channel. Other features include a DI input, inserts, phantom power, level meters and headphone output.
Type: Preamps/Channel Strips
-
-
Neve AMS 1073DPX PRODUCT FEATURES:
2 independent, genuine Neve 1073 transformer-coupled microphone preamplier / EQ circuits, in a single 2U 19" rack mount enclosure
Exclusive Neve Marinair™ transformers used on each input and output stage.

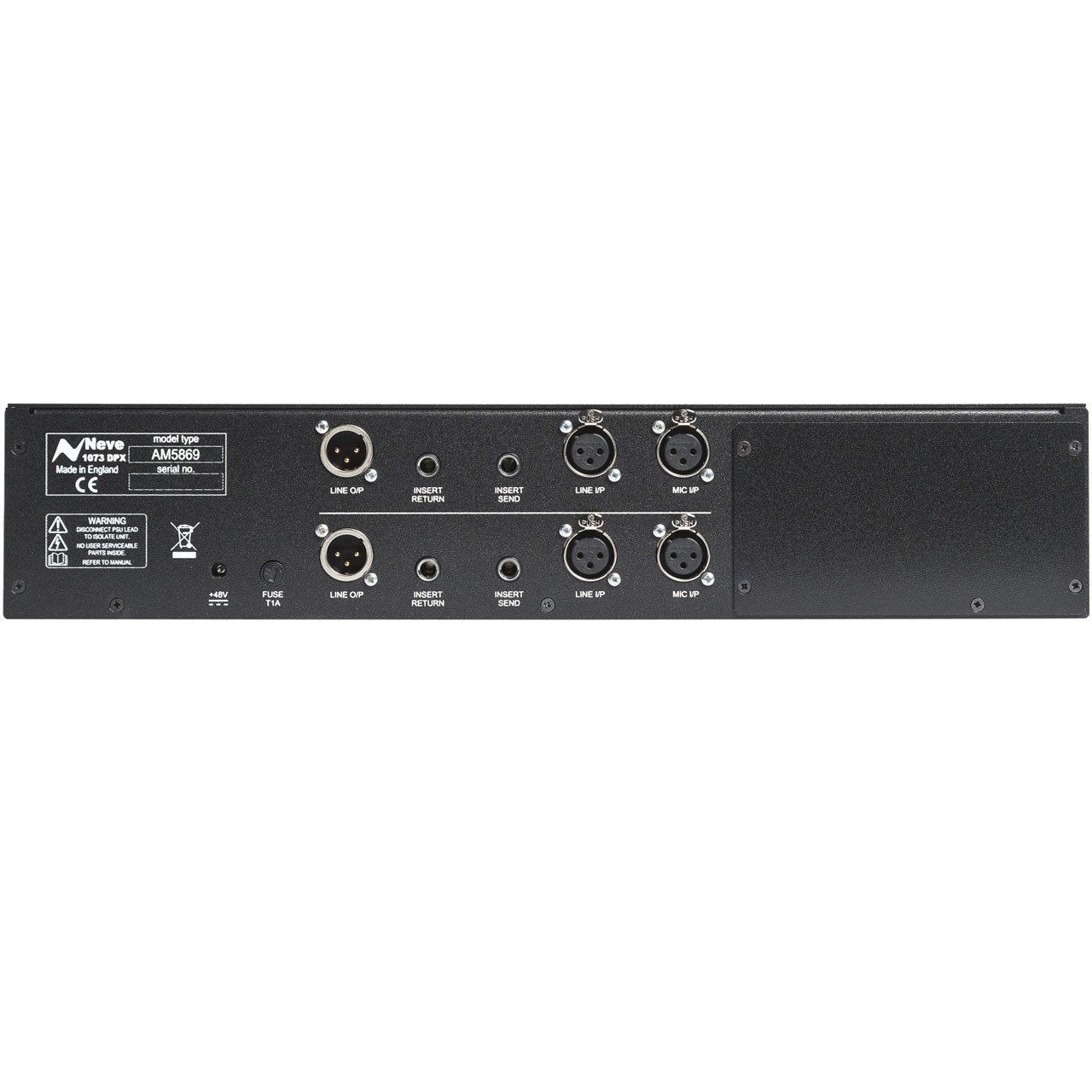

Convenient connections for Mic, Line & DI inputs on front of unit, with switchable mic/line input connections on the rear of the unit
Switchable +48v Phantom Power, Hi/Lo impedence, -20dB pad and DI ground lift on the input stage
Switchable Phase, and EQ in/out
Insert send and return loop feature allows external equipment to be connected easily to the 1073DPX audio chain, such as mono/stereo limiter/compressors;
Pre-EQ insert send/return - a line level send is available from the mic-preamp output stage and a return just before the EQ stage
Post-EQ insert send/return - a line level send is available from the post-EQ stage and a return just before the main output stageIndependent channel output level controls
7-stage LED signal level meters for each channel - can show mic/line/DI input-stage level, EQ-stage level or output-stage level up to +24dB
Headphone output with adjustable volume control, can listen to channel 1, channel 2 or both channels combined
External multi-voltage PSU
-
Neve AMS 1073DPX TECHNICAL SPECIFICATIONS:
Microphone Input:
Input impedance 300 Ohms or 1200 Ohms, gain +80dB to +20dB in 5dB steps.Input is transformer balanced and earth free.
Line Input:
Input impedance 10K Ohms bridging, gain +20dB to -10dB in 5dB steps.Input is transformer balanced and earth free.
DI Input:
Input impedance 10M Ohms (PAD off) / 10K Ohms (PAD on)Gain +80dB to +20dB in 5dB steps.
Output:
Maximum output is >+26dBu into 600 Ohms. Output impedance is 75 Ohms @ 1kHzOutput is transformer balanced and earth free.
Distortion:
Not more than 0.07% from 50Hz to 10kHz at +20dBu output (80kHz bandwidth) into 600 Ohms
Frequency Response:
'+/-0.5dB 20Hz to 20kHz, -3dB at 40kHz, EQ out.
Noise:
Not more than -83dBu at all Line gain settings, EQ In/Out (22Hz to 22kHz bandwidth)
EIN:
Better than -125dBu @ 60dB gain.EQ Section:
High Frequency:
Smooth +/- 16dB fixed frequency shelving at 12kHz
Mid Frequency:
Smooth +/- 18dB peaking, fixed 'Q' with selectable centre frequencies of 0.36kHz, 0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz & 7.2kHz
Low Frequency:
Smooth +/- 16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz
High Pass Filter:
18dB per octave slope, switchable between 50Hz, 80Hz, 160Hz & 300Hz
EQL Button:
Switches the equaliser in or out of circuit.
Phase Button:
Gives 180 degree phase change at balanced outputWidth:
480mm (19 inches)
Height:
88mm (3.5 inches)
Depth:
356mm (14 inches)
Approx. Weight:
10kg (22 pounds)
