NEV-8803

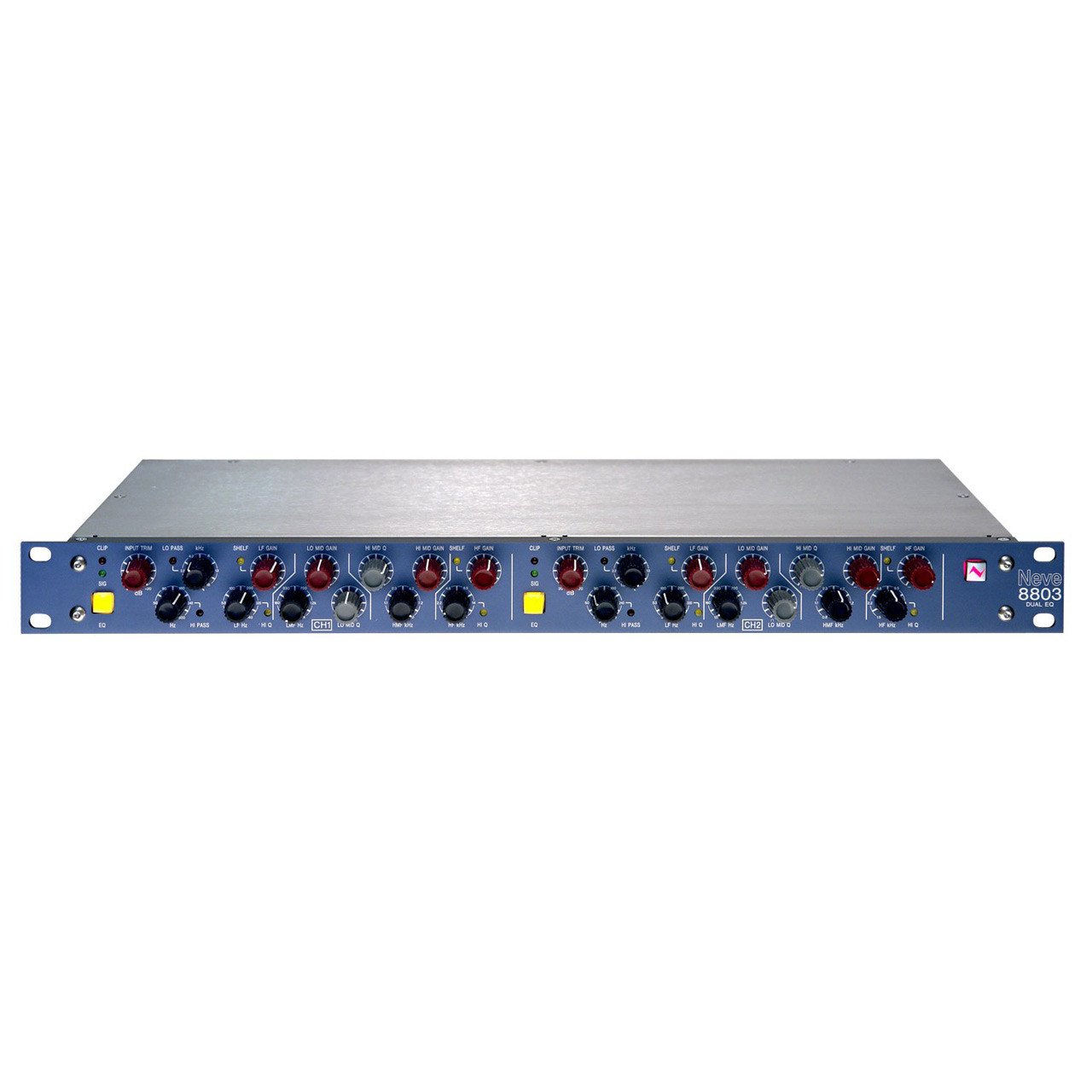

Neve AMS 8803 - Dual Channel Equalizer
Classic dual channel rack-mount EQ from one of the most legendary manufactures around. The Neve 8803 is built by hand in the UK. Offers recallable settings via its USB connectivity for DAW users!
Part of the exclusive Neve 88 Series, the 8803 is a dual-channel equalizer and filter. Like the other units in the 88 series collection, the 8803 is hand-made and hand-wired in Burnley, England, and delivers legendary Neve sound with digitally recallable settings via USB connection to Mac or PC. This is an outstanding tool for creative flexibility, allowing Neve’s legendary analogue processing to be used as never before in collaboration with computer workstations.
Type: EQ
-
-
Neve AMS 8803 PRODUCT FEATURES:
Designed to deliver the inimitable sound of the flagship Neve 88RS console, the 8803 Dual Equalizer’s circuitry is based on the classic Neve 8108 topology. Balanced inputs and ±20dB trim are followed by two 12dB per octave filters. The High-Pass Filter has a variable corner frequency from 25Hz to 300Hz, and the Low-Pass Filter has a range of 3kHz-15kHz. The four bands of equalization offer selectable shelving and switchable Q on the high and low bands, with continuously variable Q on the mid frequency bands. Frequency selection is variable on all bands within the ranges 33Hz-440Hz, 120Hz-2kHz, 0.8kHz-9kHz and 1.5kHz-18kHz.
For modern producers and engineers looking to shape and develop sounds with unrivalled sonic purity and musicality, the 8803 Dual Channel Equalizer is the preeminent choice.
Feature Summary:
Revered equalization circuitry derived from classic 8108 design and flagship 88RS analogue console
Hand-built and hand-wired by Neve in Burnley, England
±20dB Input trim
High pass filter 25Hz-300Hz, 12dB per octave
Low pass filter 3kHz-15kHz, 12dB per octave
EQ High 1.5k-18kHz, selectable Shelving/Bell, selectable Hi Q
EQ Mid High 0.8kHz-9kHz, Q range: 0.3 to 7 continuously variable
EQ Mid Low 120Hz-2kHz, Q range: 0.3 to 7 continuously variable
EQ Low 33Hz-440Hz, selectable Shelving/Bell, selectable Hi Q
EQ bypass switch

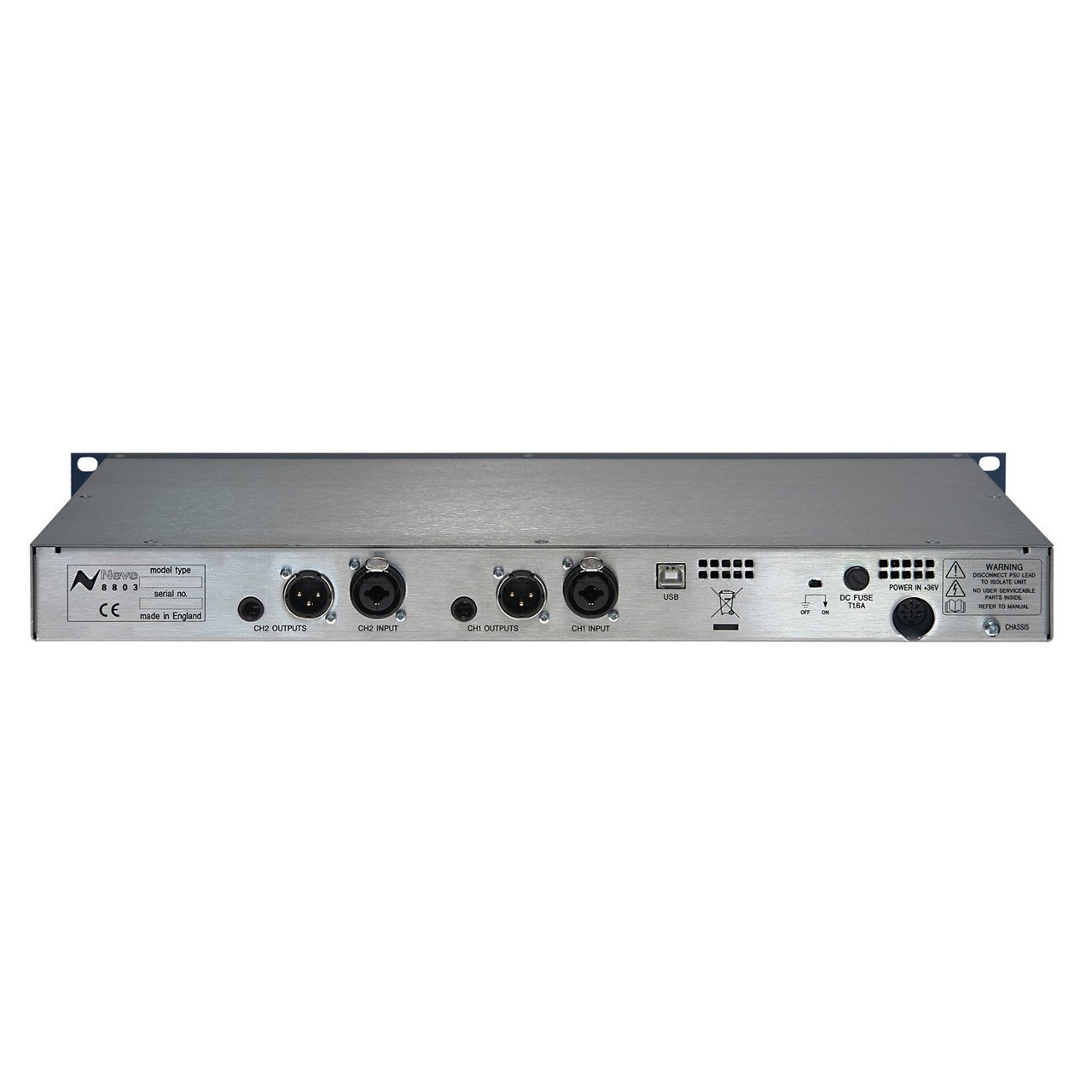

USB port for recall of settings via Mac or PC and control software
XLR input combination jack, +4dBu, -10dBV
XLR and parallel jack outputs
External 100V-250V power supply -
Neve AMS 8803 TECHNICAL SPECIFICATIONS:
Performance:
Frequency Response:
+/- 0.3dB (10Hz to 20kHz)+/- 0.5dB (10Hz to 35kHz)
Distortion:
<0.006% (10Hz to 20kHz using a measurement window of 10Hz to 80kHz)
Noise:
< 80dB (20Hz to 20kHz using a measurement window of 10Hz to 22kHz)Line Input:
Input Impedance (balanced):
> 20k OhmsOutput:
Line Output Impedance:
< 50 Ohms
Line Output Maximum:
Maximum of +26dBu into 600 Ohms. Zout 75 Ohms +/-5% @ 1kHz, balanced and earth-free.An unbalanced output 8dB below the level of the balanced output is also provided.Dimensions:
Width:
482mm (19 inches)
Height:
44mm (1.75 inches) - 1U
Depth:
240mm (9.5 inches) - without power socket plugged in
Weight:
2.5kg (5.5 pounds) -
Neve AMS 8803 SYSTEM REQUIREMENTS:
Please visit the Neve AMS website via the link below for more information including relevant manuals, brochures, drivers, software and firmware.
