  • PAL-PAN04

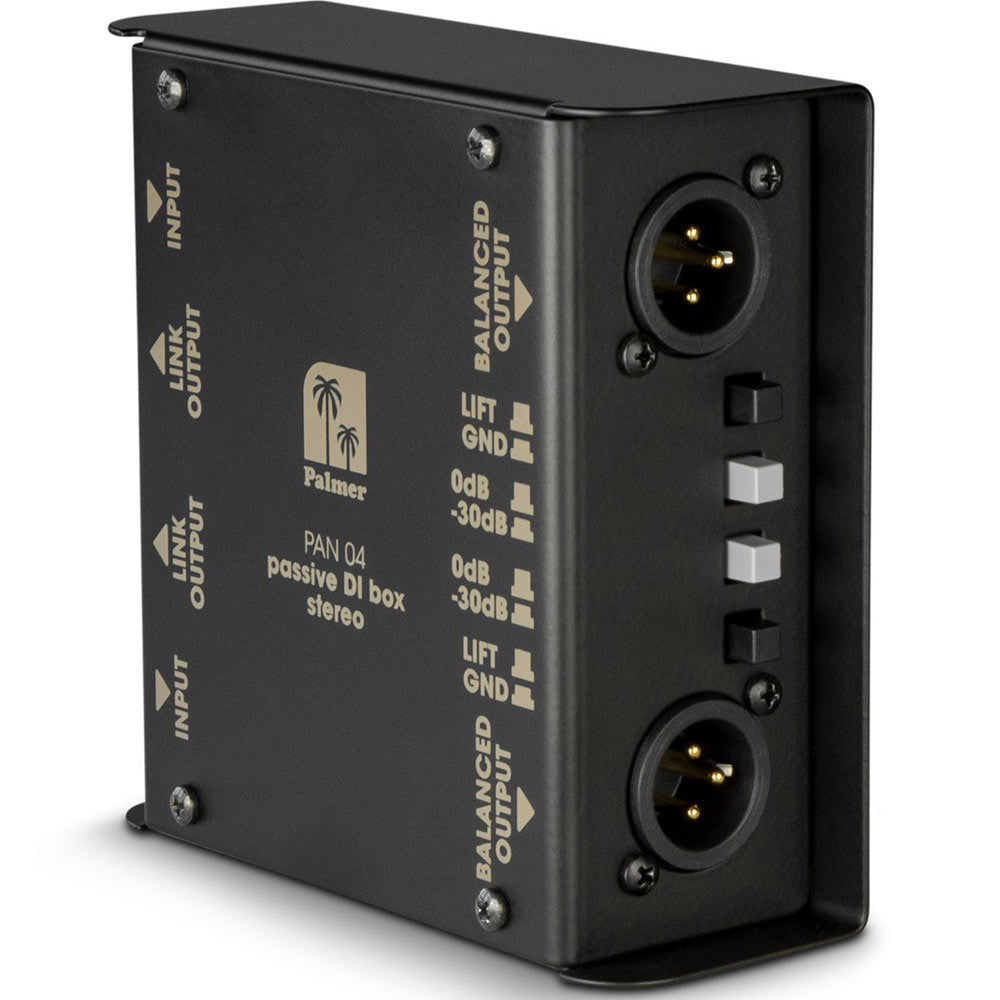

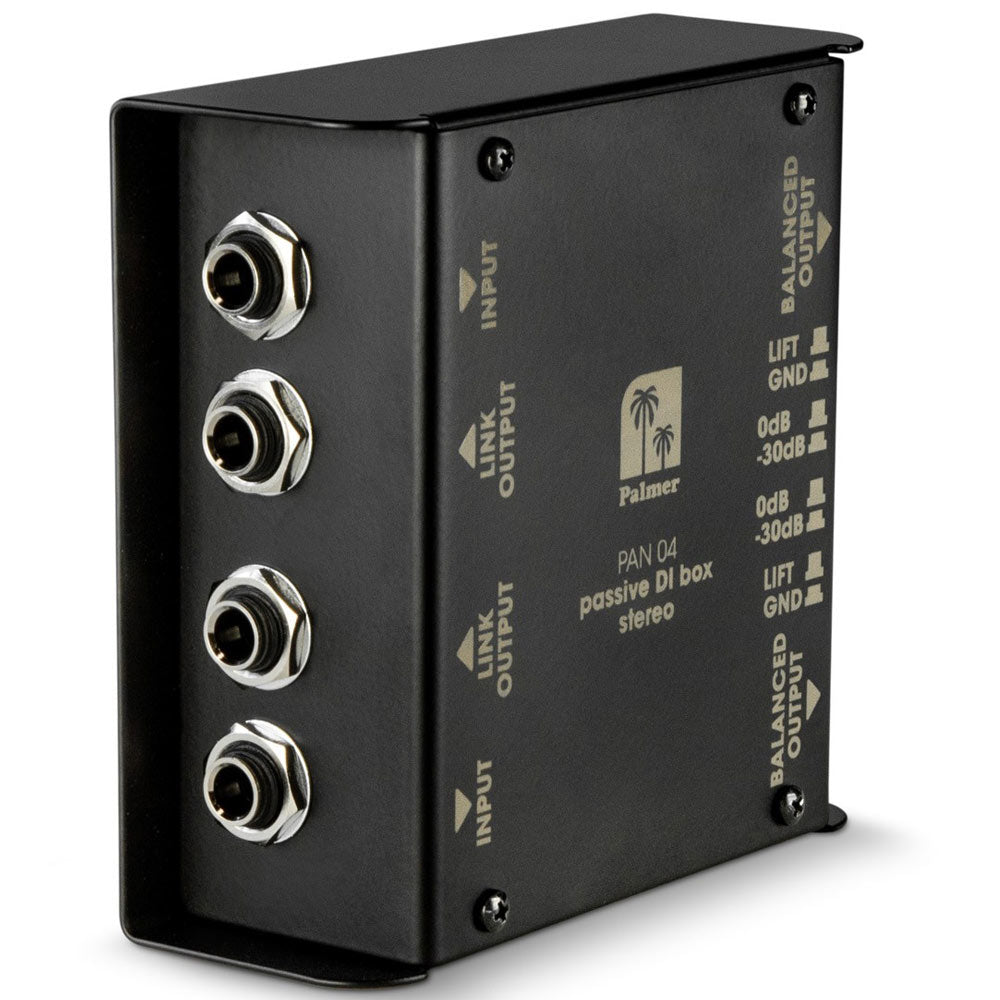

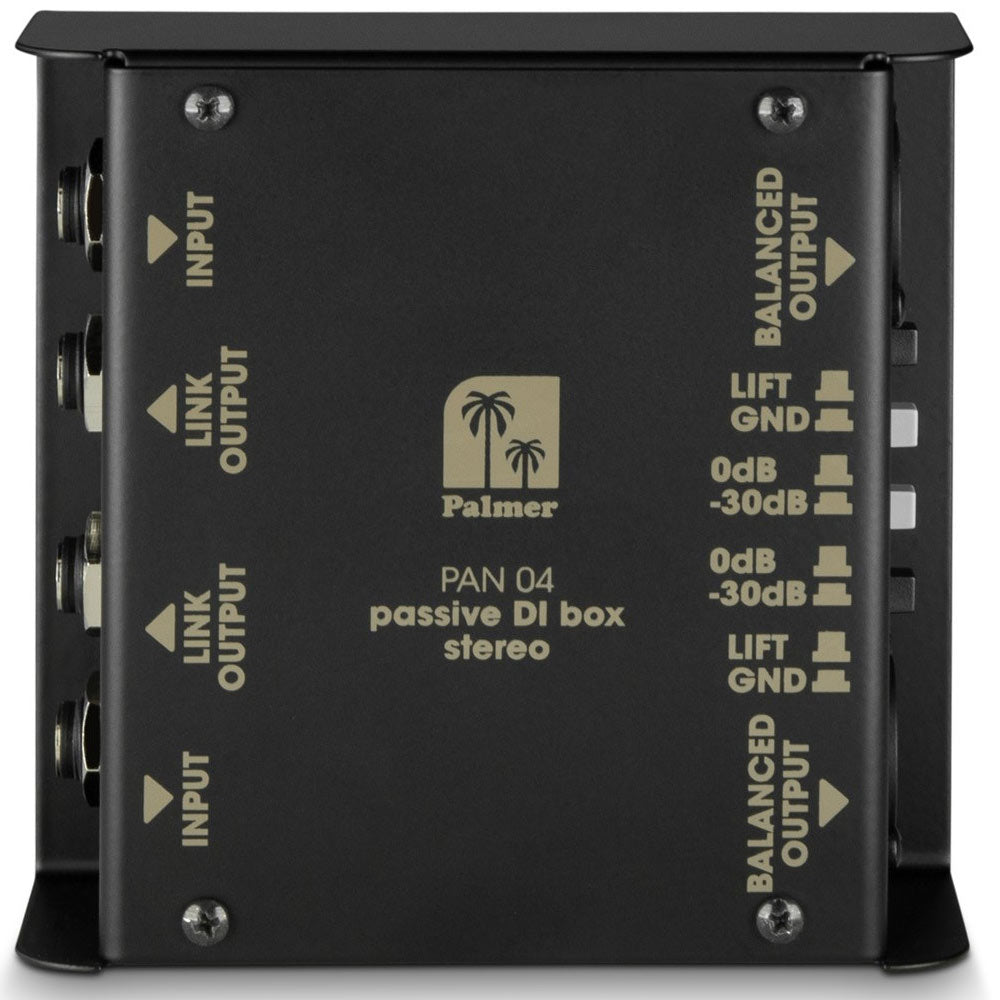

    Palmer PAN 04 DI Box 2-Channel passive

    5 In Stock

    The PAN-04 consists of a housing containing the equivalent of two PAN-01s, making it a dual channel passive DI box. This „stereo" configuration makes it ideally suited for use with certain keyboards and devices which have several outputs.ive DI box. Jack input with paralell „THRU" output, transformer balanced XLR output. Attenuable input sensitivity, can handle both line level and speaker level signals.


    Product type DI Boxes
    Type passive
    Channels 2
    Inputs 2
    Input connectors 6.3 mm jack
    Max. input level + 54 dBu
    Input impedance 60 k Ohm(s)
    Input pad 0 / -30 dB
    Outputs 2
    THRU outputs/channel 1
    Output connectors 6.3 mm jack, XLR
    Max. output level + 4 dBu
    Output impedance 600 Ohm(s)
    Frequency response 10 - 40.000
    Transformer balanced Yes
    Ratio 10 : 1
    Controls attenuation, ground lift
    Cabinet material sheet steel
    Cabinet surface Powder coated
    Width 110 mm
    Depth 110 mm
    Height 45 mm
    Weight 0,419 kg
