$940.00
CO-8WD-BE

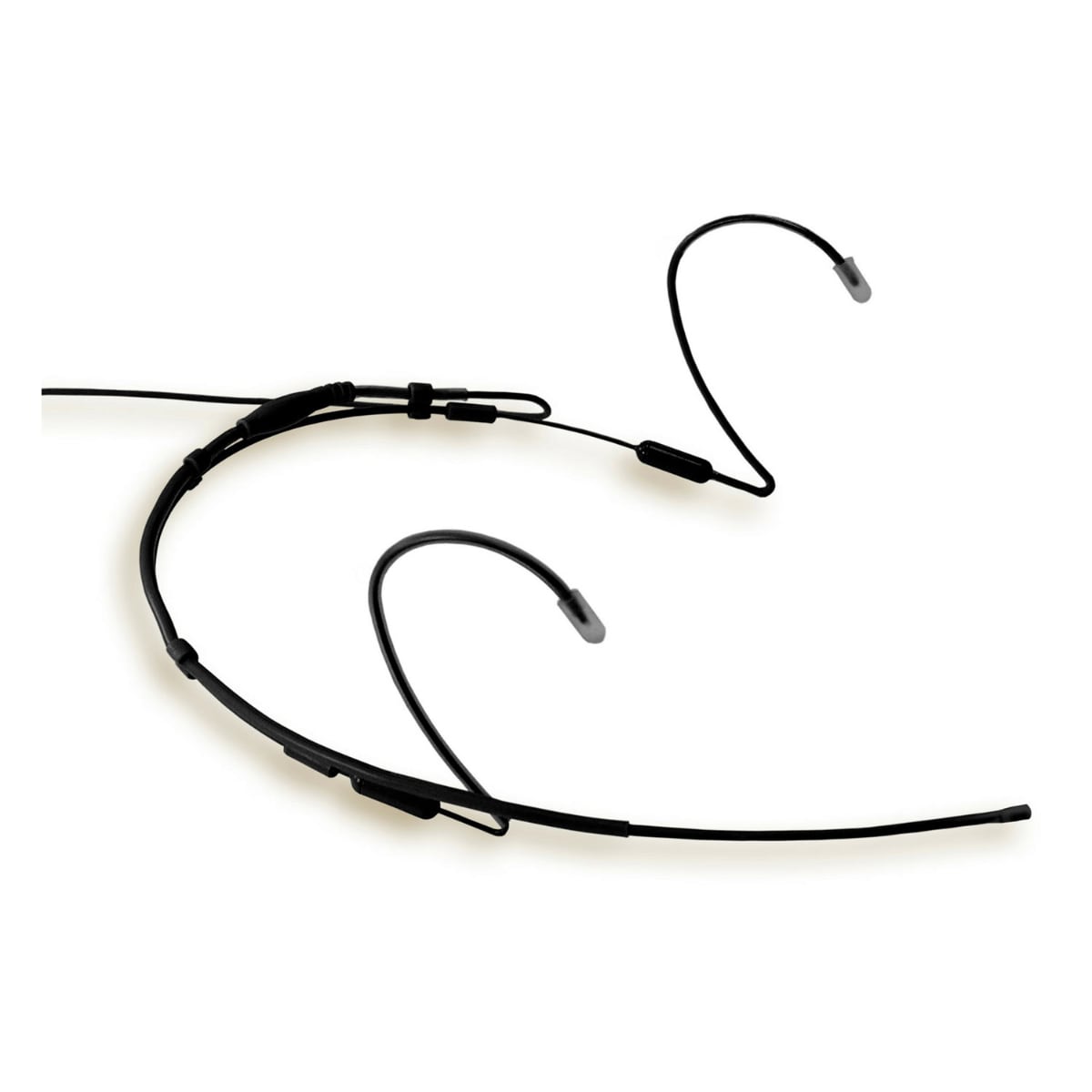

Point Source Audio SERIES8 Headset Microphone
The CO-8WD is a fully integrated dual ear headset microphone providing you with absolute confidence in fitting and microphone placement. The omnidirectional pattern assures ease in fitting with a natural vocal sound well suited in low to moderate noise environments. Its circular pick up pattern adapts exceptionally to a wide array of mic'ing applications.
Features
- "Unbreakable Boom" bends 360°
- 136dB max SPL
- IP57 waterproof rated
- Interchangeable X-Connectors for all popular wireless packs including Shure, Sennheiser and Audio-Technica
- Mic element only 4mm in diameter
- Optimal gain before feedback

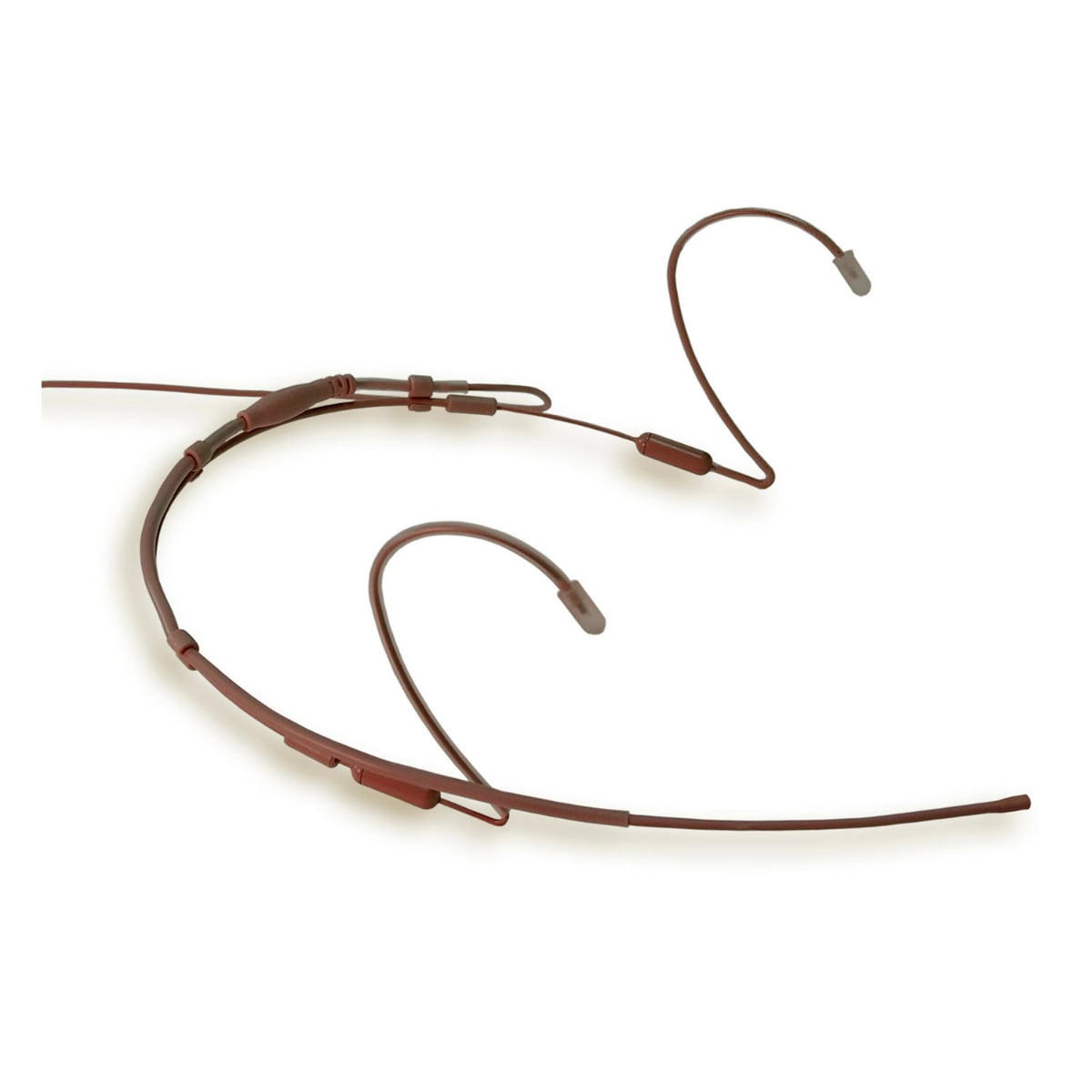

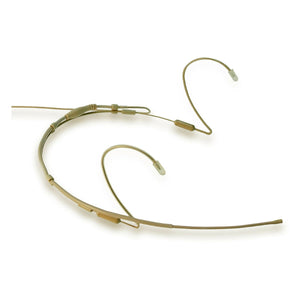

- Available in colours beige, brown or black
Specifications
Element: Back Electret Condenser
Pattern: Omnidirectional
Frequency: 20Hz - 20kHz
Sensitivity: -43dB 1V/Pa (± 3dB at 1kHz)
Maximum SPL: 136dB SPL
Output Impedance: 1400 Ω (at 1kHz)
Operating Voltage: 1 - 10 V
Cable Length: 4 ft .077 in + connector
Net Weight: 0.6 oz
Colors: Beige, Brown or Black
Connector Types: TA3F, TA4F, TA5F, lockable 3.5mm, Hirose, Lemo-style
Polar Response
Frequency Response
Type: Headset Microphones
