PreSonus HP60 PRODUCT FEATURES:
Each channel also has stereo line outputs that can send a copy of the line-level headphone-channel mix to additional headphone amplifiers or monitor systems. So if you have a large band and need more than six headphones, you can chain two or more HP60s.

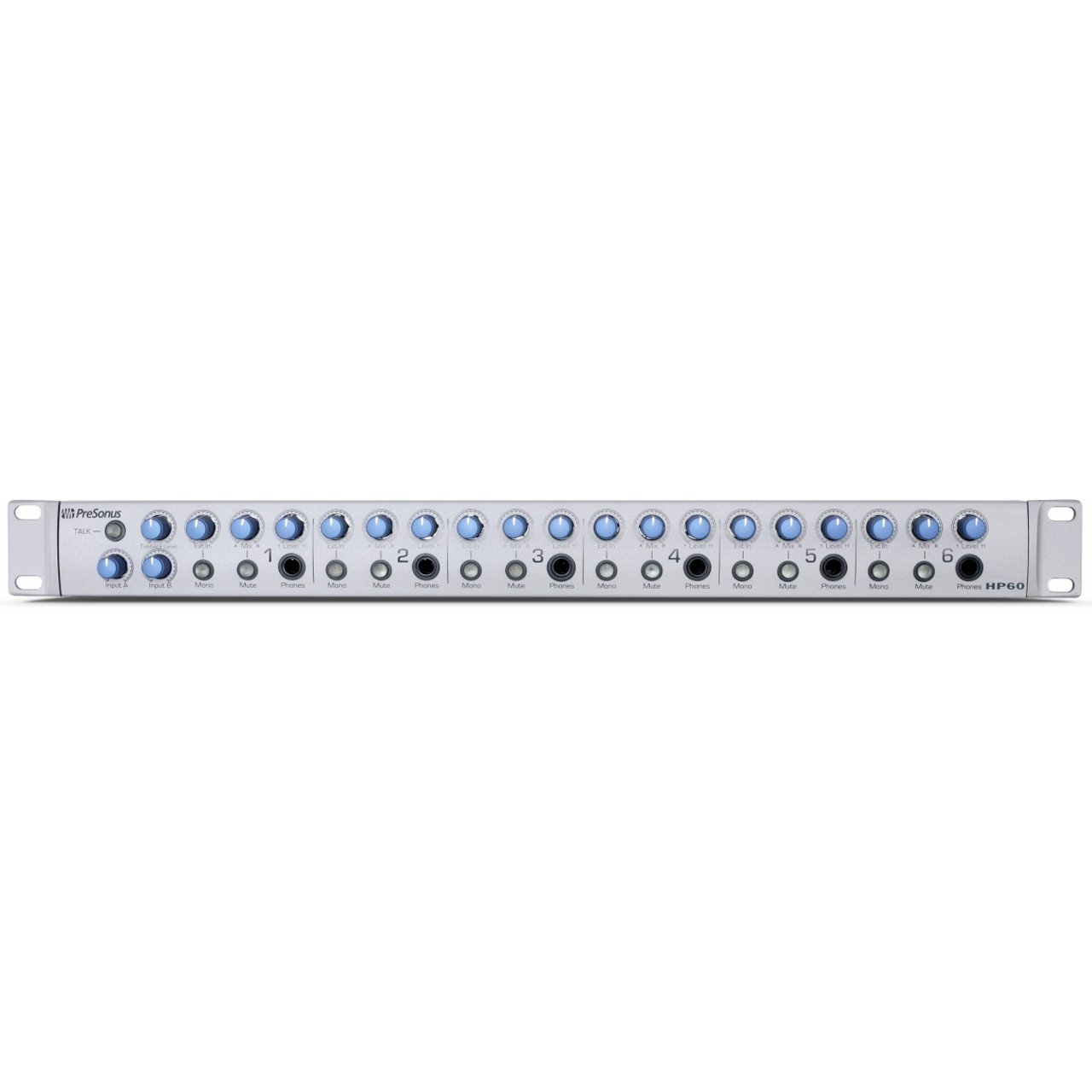

- 6 screaming-loud (150 mW/channel) headphone amplifiers, each with:
- Headphone level control
- Mix control (blends signals from input pairs A and B)
- Mute switch (mutes input pairs A and B)
- Stereo external input with level control
- Mono switch for external input
- Stereo (L/R) line outputs
- 2 stereo input channels (A and B)
- Talkback-microphone input with:
- Mic-level control
- Talk button (momentary switch)
- Footswitch jack for hands-free talkback operation

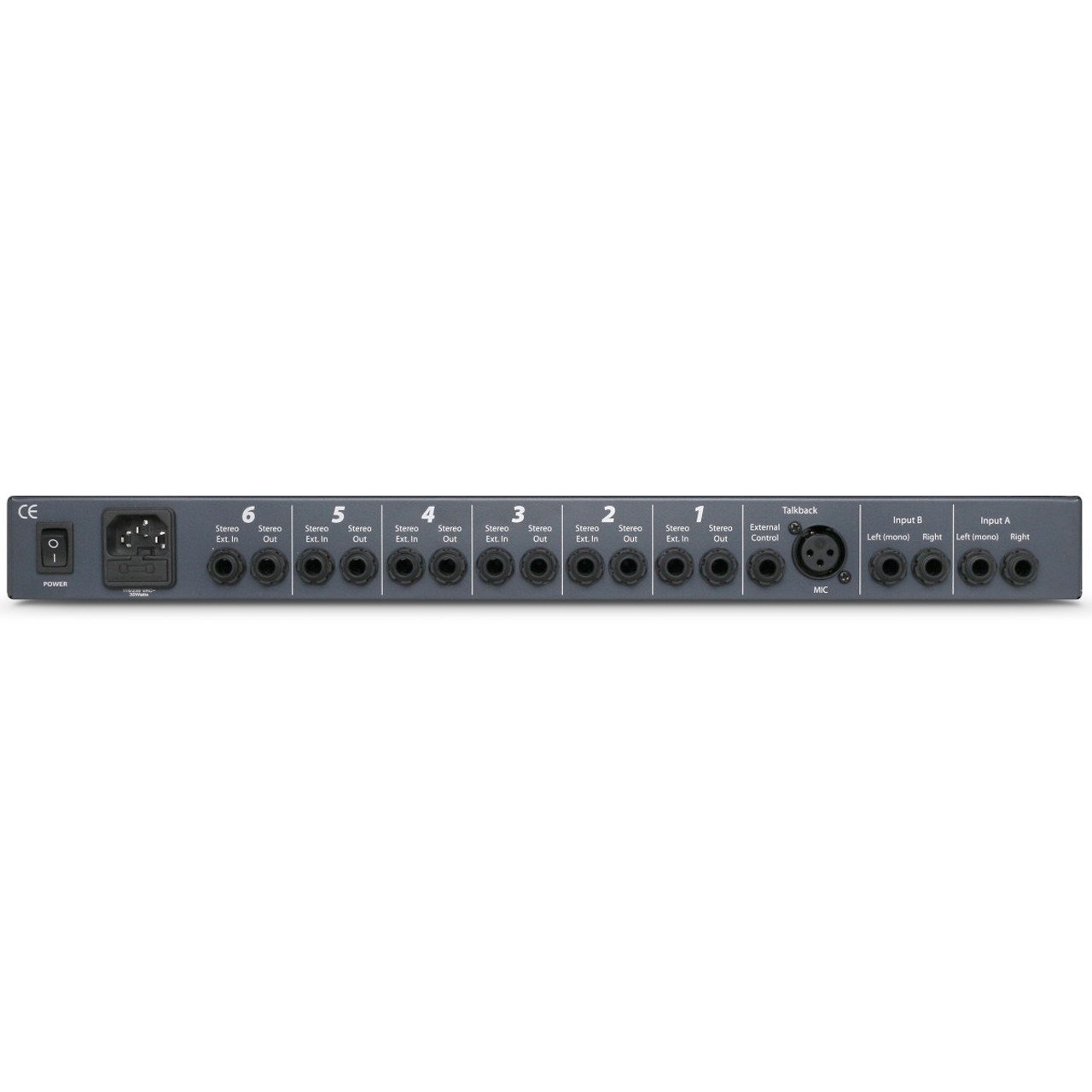

- Input/Output:
- 4 balanced ¼” analog line inputs (L/R Mix input pairs A and B)
- 6 stereo ¼” external analog line inputs (1 per channel) for “more me,” with trim controls
- 6 stereo ¼” headphone outputs (front panel)
- 6 stereo ¼” line outputs (1 per channel); carries a copy of the channel mix
- 1 balanced XLR input for external dynamic talkback microphone
- 1 ¼” footswitch jack for hands-free talkback operation
-
PreSonus HP60 TECHNICAL SPECIFICATIONS:
- Input A: (2) ¼” TRS balanced 10k Ohms
- Input B: (2) ¼” TRS balanced 10k Ohms
- External input: TRS stereo unbalanced 10k Ohms
- Headphone amplifier output power: 150 mW RMS (60 Ohms) per channel
- Audio outputs: ¼” TRS stereo unbalanced per channel
- Master controls: Talk button, Talkback volume, Input A, Input B
- Channel controls: Headphone level, Mix A/B control, External input level, Mono, Mute
- External talkback: XLR with TS external control jack
- Power: IEC - factory configured for 115V or 230V
- Dimensions: 1U - 19"(W) X 1.75" (H) X 5.5"
- Weight: 8.0 lbs.
-
