Presonus

PRE-MONITORSTAT2

PreSonus Monitor Station V2 Desktop Studio Control Centre

The PreSonus Monitor Station V2 provides unparallelled value with essential pro studio monitoring features in a sleek desktop control unit. Manage multiple audio sources and sets of monitor speakers, track using illegally loud headphone amplifiers, and talk back to your drummer—all from your desktop.


    • Monitor Station V2 PRODUCT FEATURES:

      Consider Your Sources.
      Switch quickly and easily between up to four audio sources with a selection of input types.

      Manage Your Destinations.
      Audition your music with your choice of three stereo pairs of speaker outputs, each with separate level control—and four screaming-loud headphone outs.

      Get This In Your Head.
      With Monitor Station V2, you can evict the drummer from the main room, banish the guitarist to the bathroom, shove the singer into a closet, and make them like it.

      Have it Your Way.
      The Monitor Station V2 offers powerful options that allow you to configure it for the way you like to work.

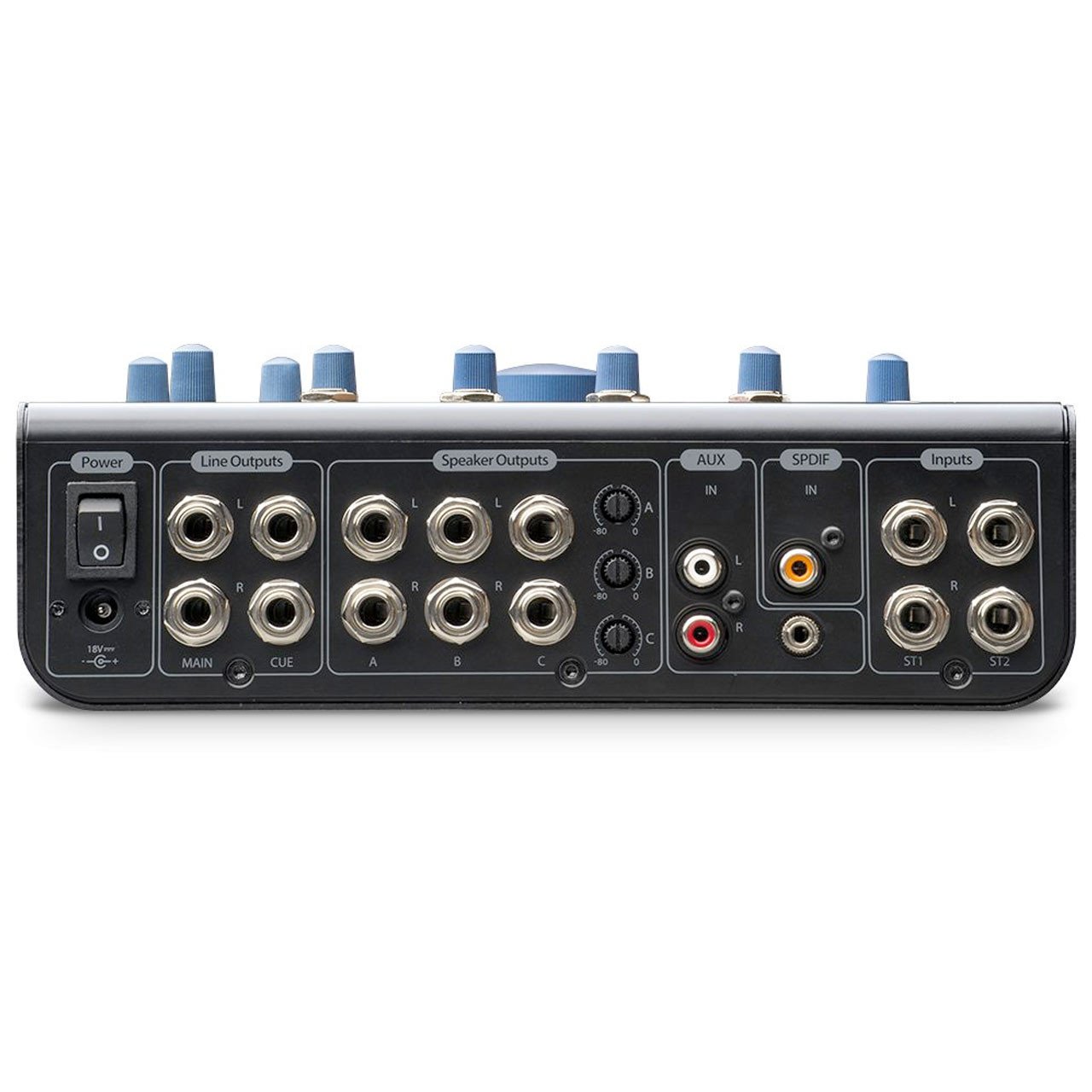

      Inputs and Outputs

      • 2 Stereo pairs of ¼” TRS inputs
      • 1 Stereo pair of RCA Aux inputs
      • 1 Stereo S/PDIF coaxial (RCA) digital input (44.1/48/88.2/96 kHz)
      • 3 Stereo pairs of ¼” TRS speaker outputs with level controls
      • 1 Stereo pair of ¼” TRS Main outputs
      • 1 Stereo pair of ¼” TRS Cue outputs
      • 4 ¼” TRS screaming-loud stereo headphone outputs

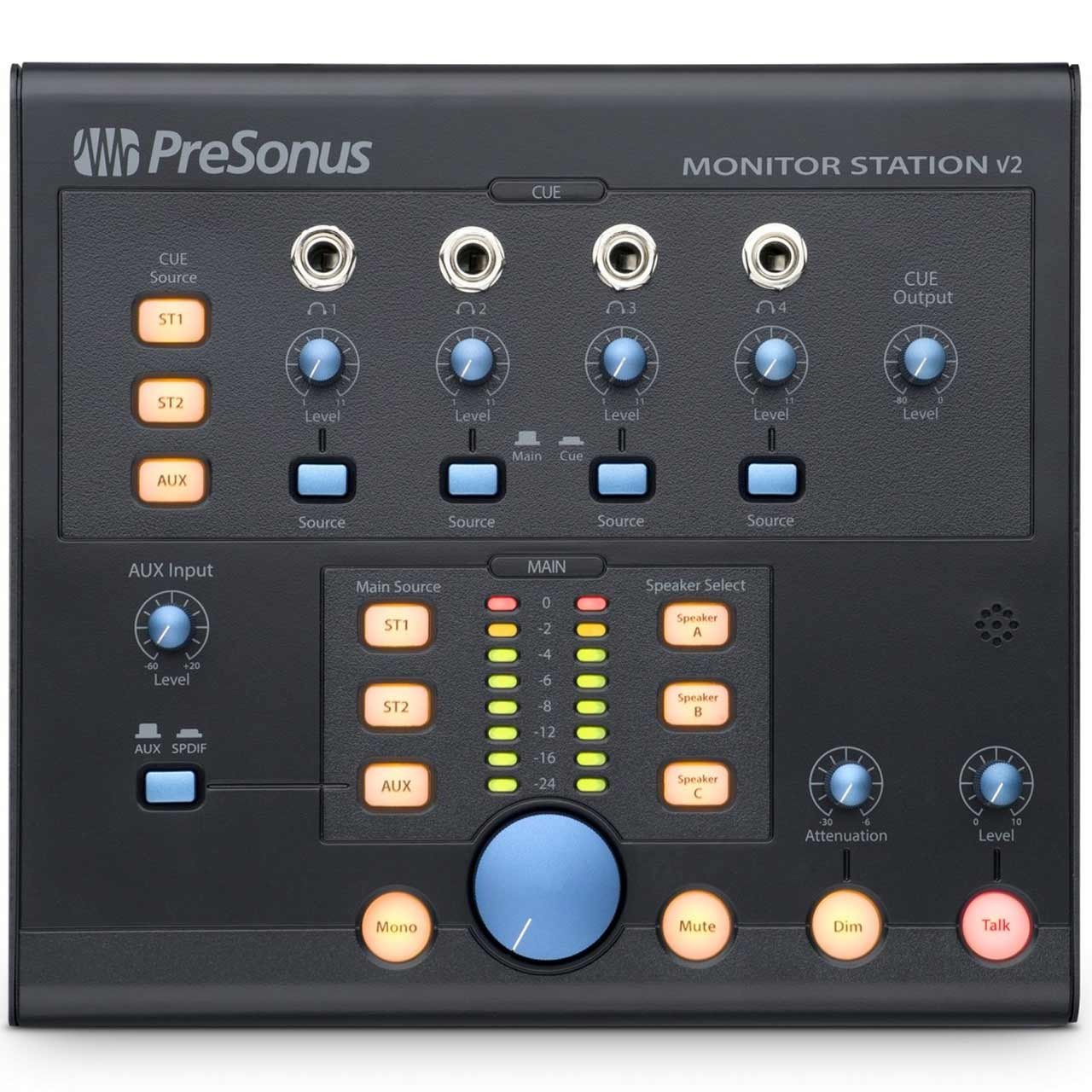

      Controls

      • Large Main level control
      • 3 Individual Main Source (ST1, ST2, Aux) select switches
      • 3 Individual Speaker Select switches
      • Cue section with Source select (ST1, ST2, Aux) and output-level control
      • Aux-S/PDIF Select switch
      • Aux Input level control
      • Main Mute, Mono, and Dim switches with variable Dim attenuation

      Additional Features

      • 8-segment colour LED input meters with selectable reference level
      • Built-in electret-condenser talkback microphone with input-gain control and Talkback button
      • Convenient desktop design
    • Monitor Station V2 TECHNICAL SPECIFICATIONS:

      Audio Inputs

      • Internal Talkback Microphone:
        Gain Range: +15 to +55 dB
        Type: Electret condenser
        Sensitivity: -42 dB
      • Stereo 1 and Stereo 2 Inputs:
        Type: ¼” TRS Active Balanced
        Input Impedance (Balanced): 10 kΩ
        S/N Ratio (1 kHz @ +10 dBu, Unity Gain): >105 dB
        THD+N (unwtd, 1 kHz @ 0 dBu Output, Unity Gain): <0.0075%
        Frequency Response (±0.5 dB): 10 Hz to 65 kHz
        Noise Floor (20 Hz to 20 kHz, 150Ω input termination): -96 dBu
        Maximum Input Level (Minimum Gain, 1 kHz @ 0.5% THD+N): +22 dBu
      • Auxiliary Inputs:
        Type: RCA Active Unbalanced
        Input Impedance: 47.5 kΩ
        S/N Ratio (1 kHz @ 0 dBu, Unity Gain): >115 dB
        THD+N (unwtd, 1 kHz @ 0 dBu Output, Unity Gain): <0.01%
        Frequency Response (±0.5 dB): 10 Hz to 50 kHz
        Gain Range: 80 dB to +10 dB
      • S/PDIF:
        Types: RCA 75Ω coax
        Dynamic Range: 113 dB
        THD+N: 0.0025% (1 kHz @ -1 dBFS)
        Maximum output at 0 dBFS: +18 dBu
        Sample Rates: 44.1, 48, 88.2, 96 kHz
      • Input Meters (ST1, ST2, and Aux only):
        Type: Dual 8-segment LED w/peak hold
        Sensitivity Range: -24 dB to 0 dB



      Audio Outputs

      • Type: ¼” TRS Active Balanced
      • Output Impedance (Balanced): 51Ω
      • THD+N (unwtd, 1 kHz @ 0 dBu, Unity Gain): <0.01%
      • Frequency Response (±0.5 dB): 10 Hz to 50 kHz
      • Speaker A, B, and C:
        Trim Range: -80 dB to 0 dB
        Main Level Range: -80 dB to 0 dB
        Dim Attenuation Range: -30 dB to -6dB
      • Cue:
        Cue Level Range: -80 dB to 0 dB
        Dim Attenuation (Talkback activated): -20 dB
      • Headphones:
        Type: ¼” TRS Active Stereo
        Maximum Output (60Ω load): 150 mW / channel
        Frequency Response (±1.0 dB): 10 Hz to 50 kHz
      • Power:
        Power Supply Type: External DC Transformer/Internal Line
        Input Connector Type: Barrel, 5.5 mm outside diameter, 2.1 mm inside diameter
        Monitor Station Input Voltage Range: 18 VDC
        Power Requirements (Continuous): 10W



      Physical

      • Height: 2.5” (63.5 mm)
      • Depth: 8.5” (216 mm)
      • Width: 9” (228.6 mm)
      • Weight: 6 lbs. (4.54 kg)



    • SYSTEM REQUIREMENTS:

      N/A
Need more info on the Monitor Station V2? Click HERE for the manufacturer's website >>>
