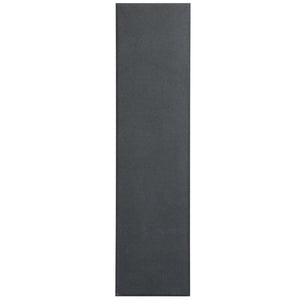

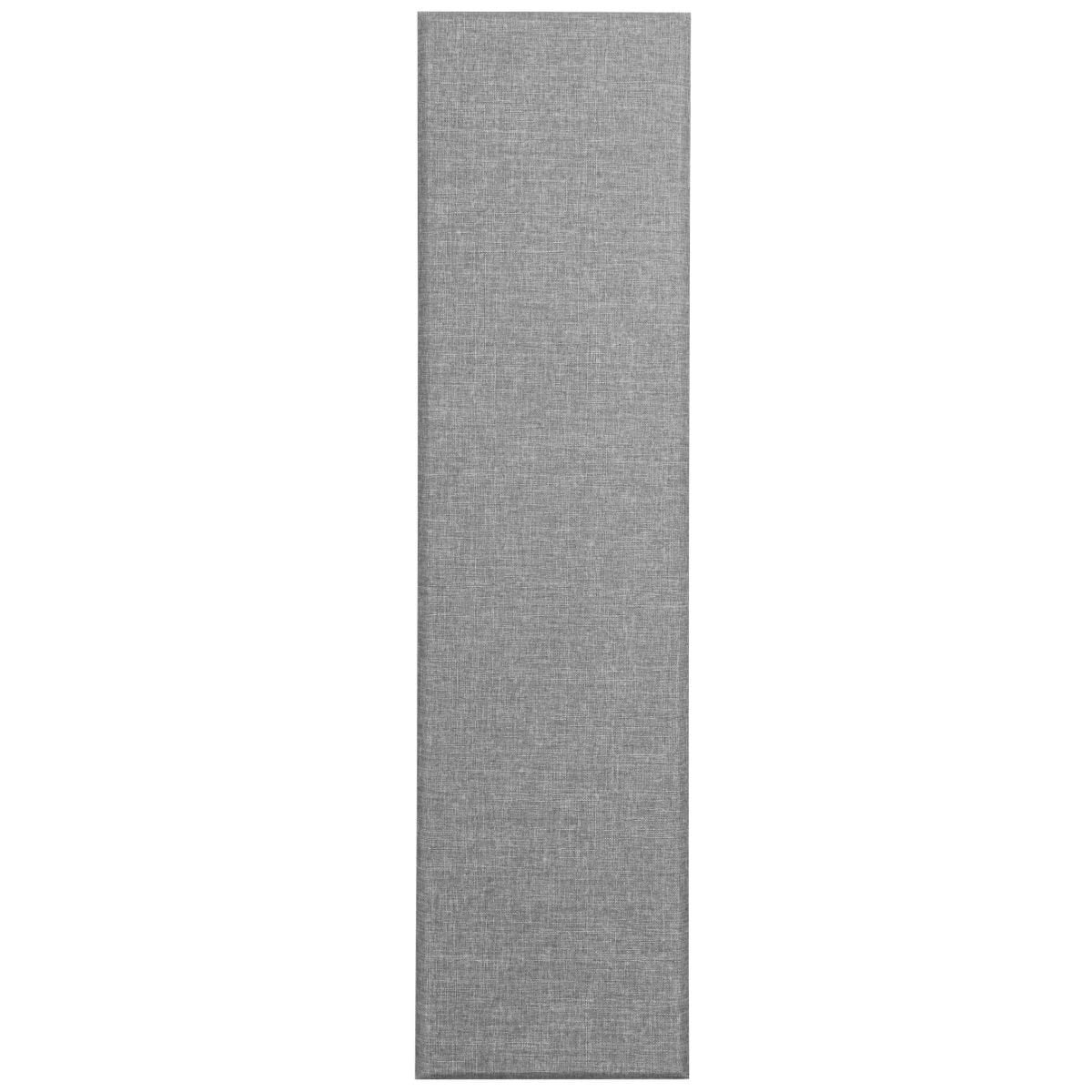

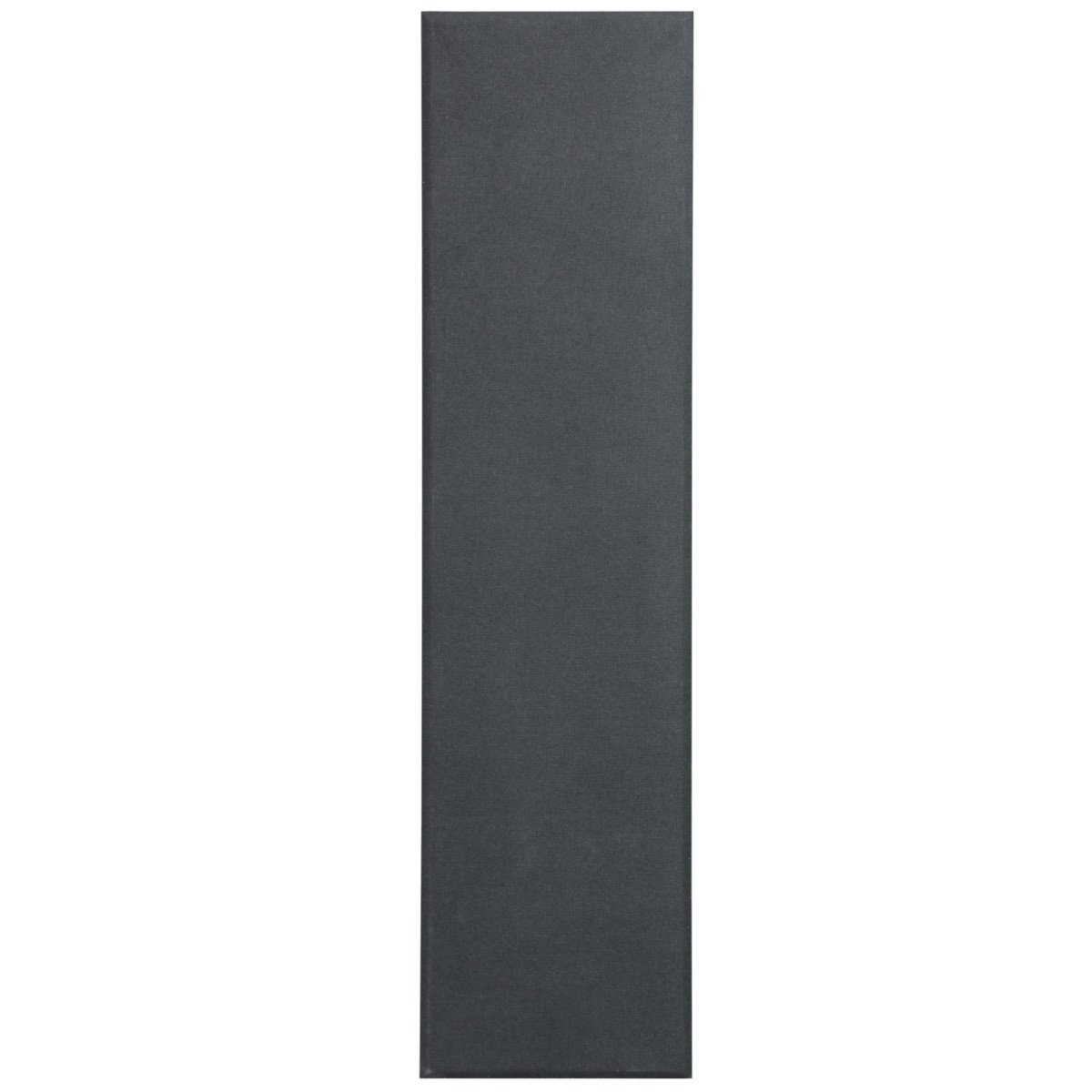

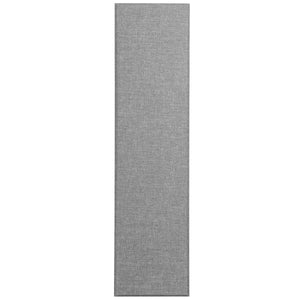

Control Columns 12x48x2 FEATURES:
Broadway Control Columns present an attractive, 'easy-to-install' solution for acoustic treatment where you want to control primary reflections, eliminate flutter echo and reduce standing waves.
The Control Column's long narrow design is reminiscent of the historic 'Roman Pillar' making it an ideal compliment more demanding architectural designs. This makes the Control Columns an excellent choice for LEDE live-end / dead-end studio designs and home theatres. For those with creative flair, Control Columns can be combined with Primacoustic Accent panels to create an attractive solution for office spaces, board rooms, restaurants and lobbies that often need to be tamed in effort to reduce the reverberant field.
Made from high density 6lb per cubic foot high density glass wool, Control Columns are designed to be arranged in a ‘spaced array' to treat bothersome first order reflections that interact with the sound source and the listener. The panels are typically spread across a wall surface leaving space in between each panel. This allows some of the energy to reflect back into the room so as not to completely deaden the space while maximising the panel's absorptive efficiency.

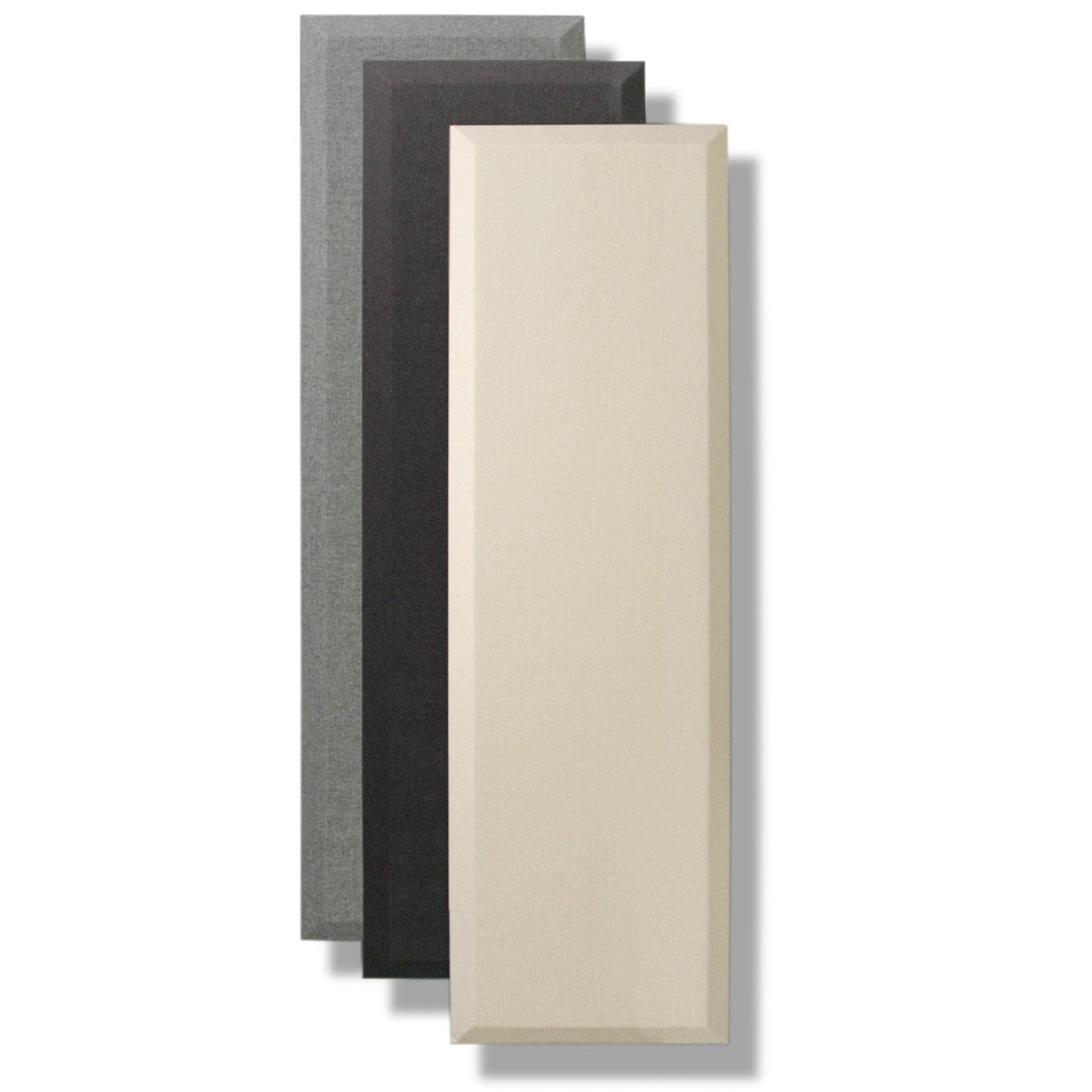

Broadway Control Columns come in a choice of 1", 2" and 3" thick panels with choice of square or bevelled edge. Color options include black, grey or beige.
Mounting Control Columns is easy and quickly accomplished using Primacoustic Surface Impalers. Most installations only require two impalers per panel. For areas with higher traffic, three or four impalers may be used. For extra security, add a dab of construction adhesive on the impalers, to secure the panel in place. This is recommended in class rooms or public places.
Control Columns 12x48x2 SPECIFICATIONS:
Core Material: Formed, semi rigid inorganic glass fibers
Density: 6.0 lbs. per cubic foot (96 kg/m3)
Fabric Facing: Acoustically transparent polyester tweed
Encapsulation: Micromesh on front and rear surface, resin treated edges
Absorption H2O: < 2% by weight @ 49°C, 95% relative humidity
Temperature: -29°C - 66°C
Fire Rating: Class-A (ASTM E 84 / CAN/UL-S102)
Mounting: Galvanized steel impalers
Size: 12" x 48" (30.48 x 121.92 cm)
Colour: Black, Beige or Grey
Thickness: 2" (5.08cm)
Edge Treatment: Beveled or Square
Qty. in Box:12
Surface Coverage per Box: 48 sq-ft (4.46 sq-meters)
