Primacoustic

RA-B1212-BV1-BE

Primacoustic Broadway Scatter Blocks 12x12x1 Bevelled Edge

These 12x12x1 Primacoustic Broadway Scatter Blocks provide a cost-effective, hassle-free solution to turn any space into an acoustically controlled environment - an essential tool for professional mixing and mastering. This package comes with 24 x panels in the box. Installation is as easy as hanging a picture! Available in Beige, Black, or Grey. Bevelled Edge. Choose your color preference below:


    • Scatter Blocks 12x12x1 Bevelled FEATURES:

      • Used to control flutter echo and reverberant field
      • The ultimate in Soft Diffusion™
      • Easy to install on practically any surface
      • Wide range of great looking patterns and colors

      Broadway Scatter Blocks present an ‘easy-to-install' solution for acoustic treatment where you want to control sound, but do not want to eliminate natural ambiance.

      Made from high density 6 pound per cubic foot high density glass wool, Scatter Blocks are designed to be randomly spaced on large wall surfaces to create an effect we call Soft Diffusion—an affordable alternative to full scale quadratic diffusion. By leaving reflective spaces in between the panels, some energy is absorbed while some is left to reflect back into the room. This helps control flutter echo and reduces standing waves while retaining a sense of ‘air' or space in the room.

      This makes the Scatter Blocks an excellent choice for live-end, dead-end designs in studios, controlling chatter echo in home theatres and presents a cost effective solution for larger spaces such as dance studios, fitness centers and classrooms that need to be tamed in effort to reduce the reverberant field and improve intelligibility.

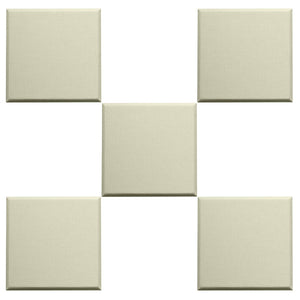

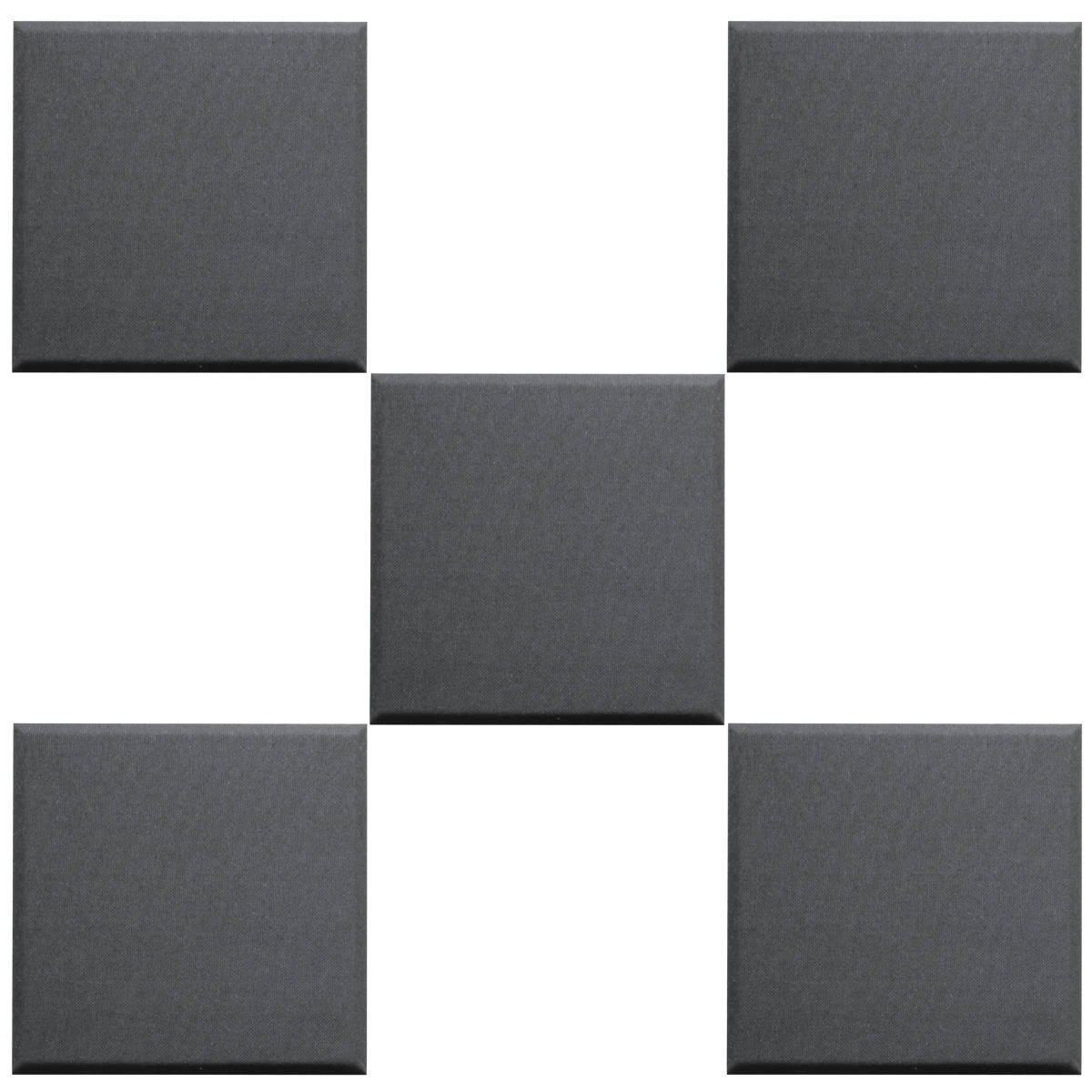

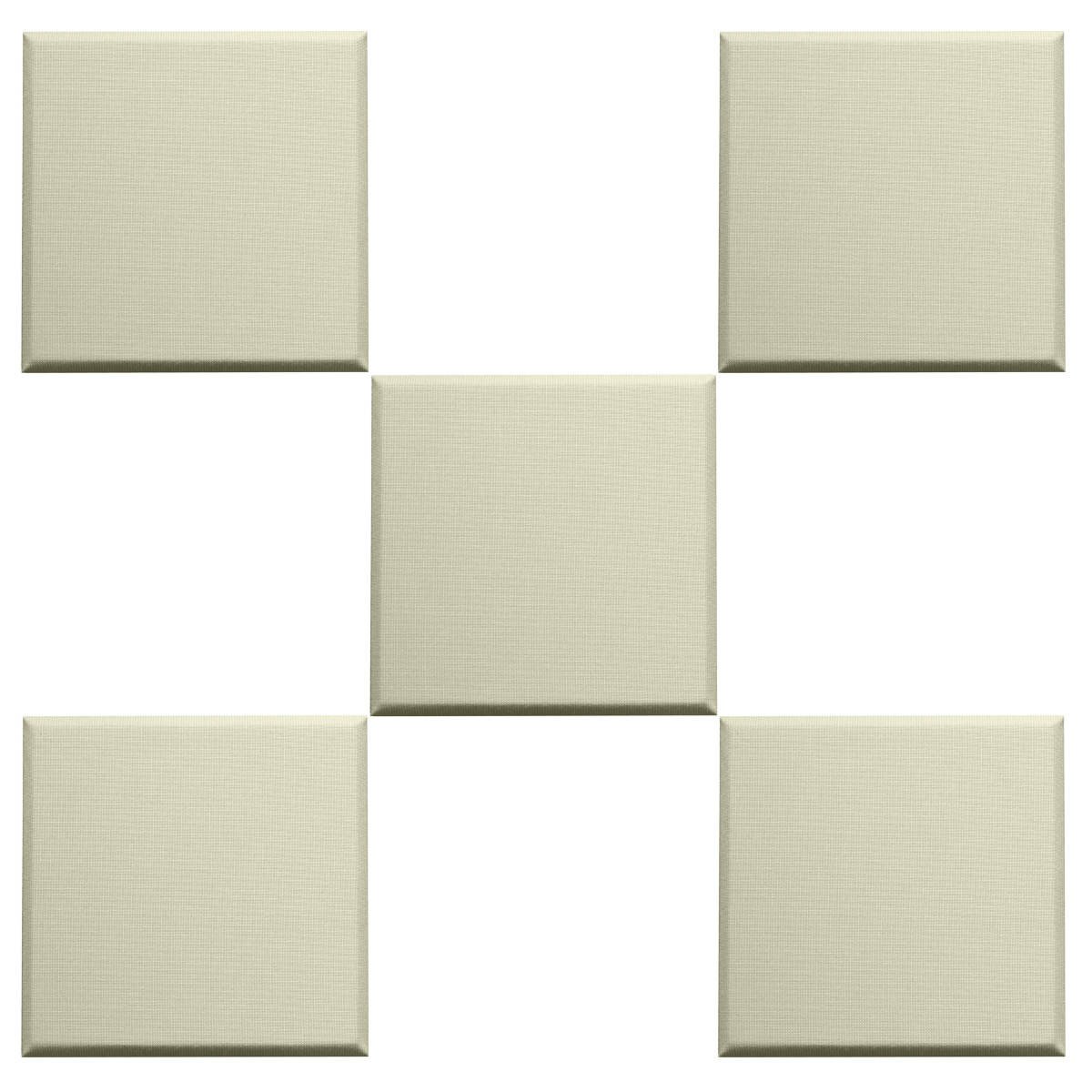

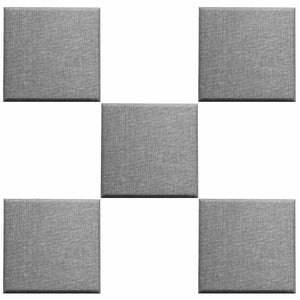

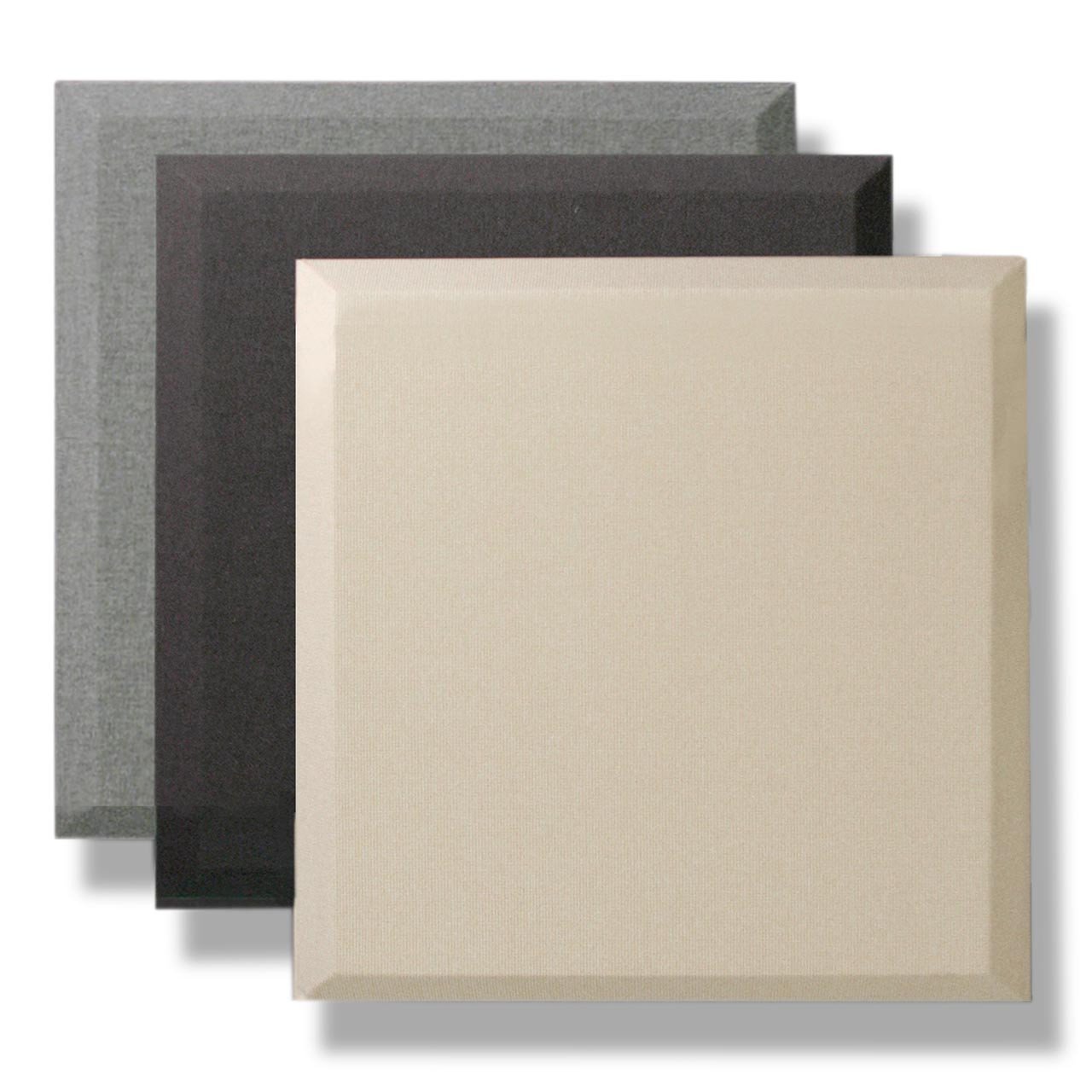

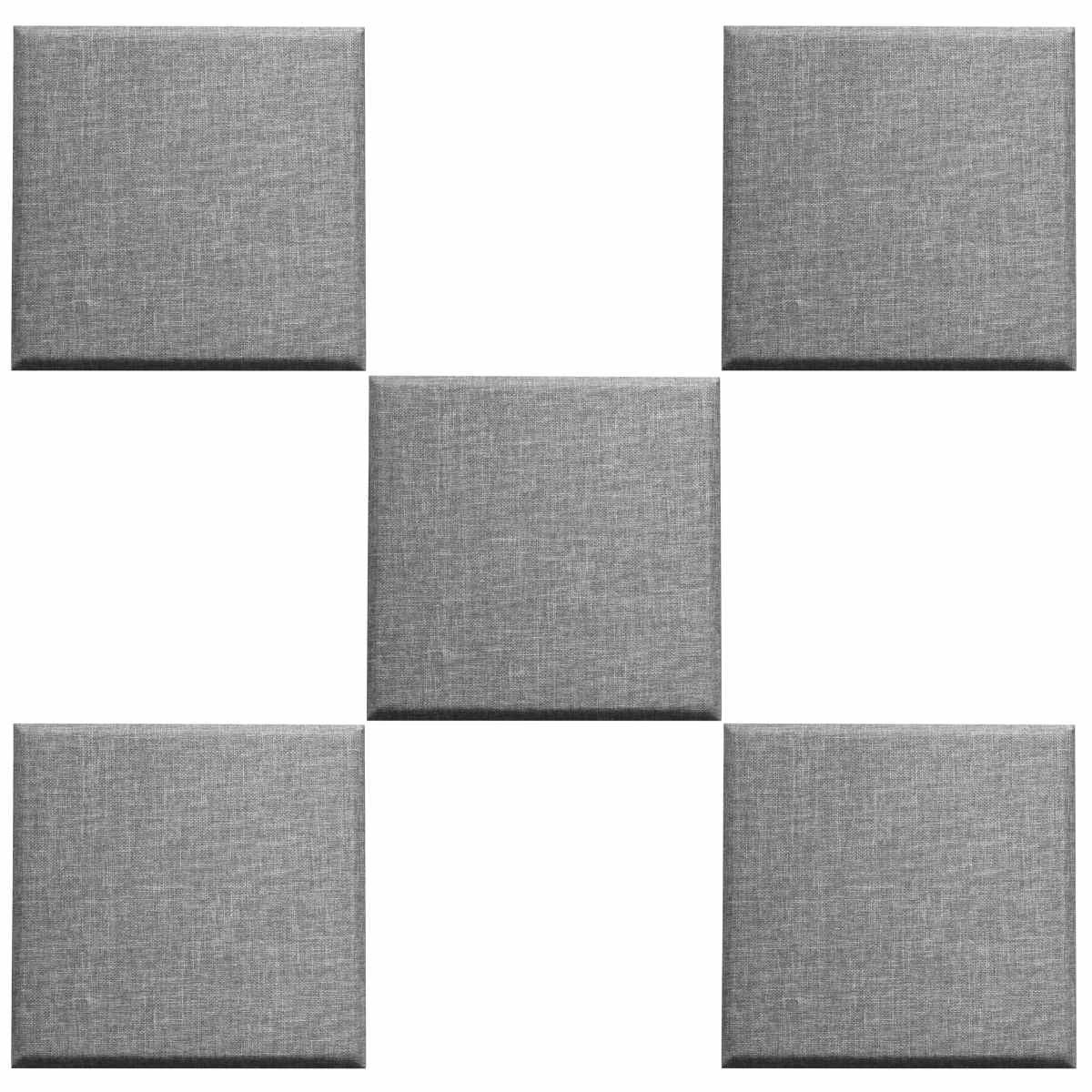

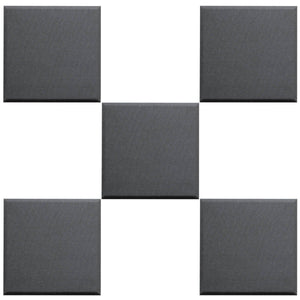

      Broadway Scatter Blocks are twenty four 1" thick glass wool panels with bevelled edges available in grey, black or beige fabric.

      Mounting

      Mounting Scatter Blocks is easy and quickly accomplished using Primacoustic Surface impalers. Most installations only require one impaler per panel. For areas with higher traffic, two impalers may be used. For extra security, add a dab of construction adhesive on the impalers, to secure the panel in place. This is recommended in class rooms or public places.

    • Scatter Blocks 12x12x1 Bevelled SPECIFICATIONS:

      Core Material: Formed, semi rigid inorganic glass fibers
      Density: 6.0 lbs. per cubic foot (96 kg/m3)
      Fabric Facing: Acoustically transparent polyester tweed
      Encapsulation: Micromesh on front and rear surface, resin treated edges
      Absorption H2O: < 2% by weight @ 120°F (49°C), 95% relative humidity
      Temperature: -20°F ~ 150°F (-29°C ~ 66°C)
      Fire Rating: Class-A (ASTM E 84 / CAN/UL-S102 see details below)
      Mounting: Galvanized steel impalers (sold separately)
      *Absorption Coefficient:   125 250 500 1000 2000 4000 NRC
      1" 0.17 0.28 0.81 1.00 1.02 0.95 0.71
      Data Sheets &
      Test Reports:



      Panel Details

      Image Size Color Order Number
      (xx denotes color code)
      Thickness Edge Treatment Qty. in Box Surface Coverage per Box
      12" x 12"
      (30.48 x 30.48cm)

      Coverage:
      1 sq-ft per panel
      (0.092 sq-meters)
      Black=00
      Beige=03
      Grey=08
      F121-1212-xx 1" (2.54cm) 24 24 sq-ft (2.22 sq-meters)


      Absorption Coefficients

      Frequency - Hz 100 125 160 200 250 315 400 500 630 800 1000 1250 1600 2000 2500 3150 4000 5000
      Broadway 1" 0.15 0.17 0.14 0.20 0.28 0.47 0.62 0.81 0.92 0.97 1.00 1.01 1.00 1.02 0.98 0.94 0.95 0.92

       1" (25mm) Broadway

      Testing performed by Riverbank Acoustical Laboratories. The test method conformed explicitly with the requirements of the ASTM Standard Test Method for Sound Absorption and Sound Absorption Coefficients by the Reverberation Room Method: ASTM C 423-02a and E795-05.

Need more info on the Primacoustic Scatter Blocks 12x12x1 Bevelled? Click HERE for the manufacturer's website >>>
