Primacoustic

RA-PT-1248-BV2

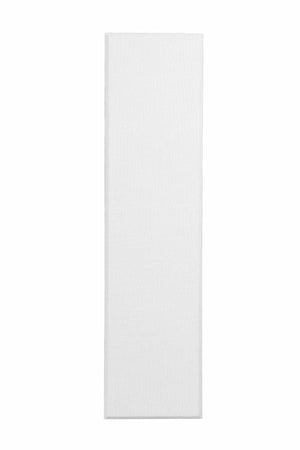

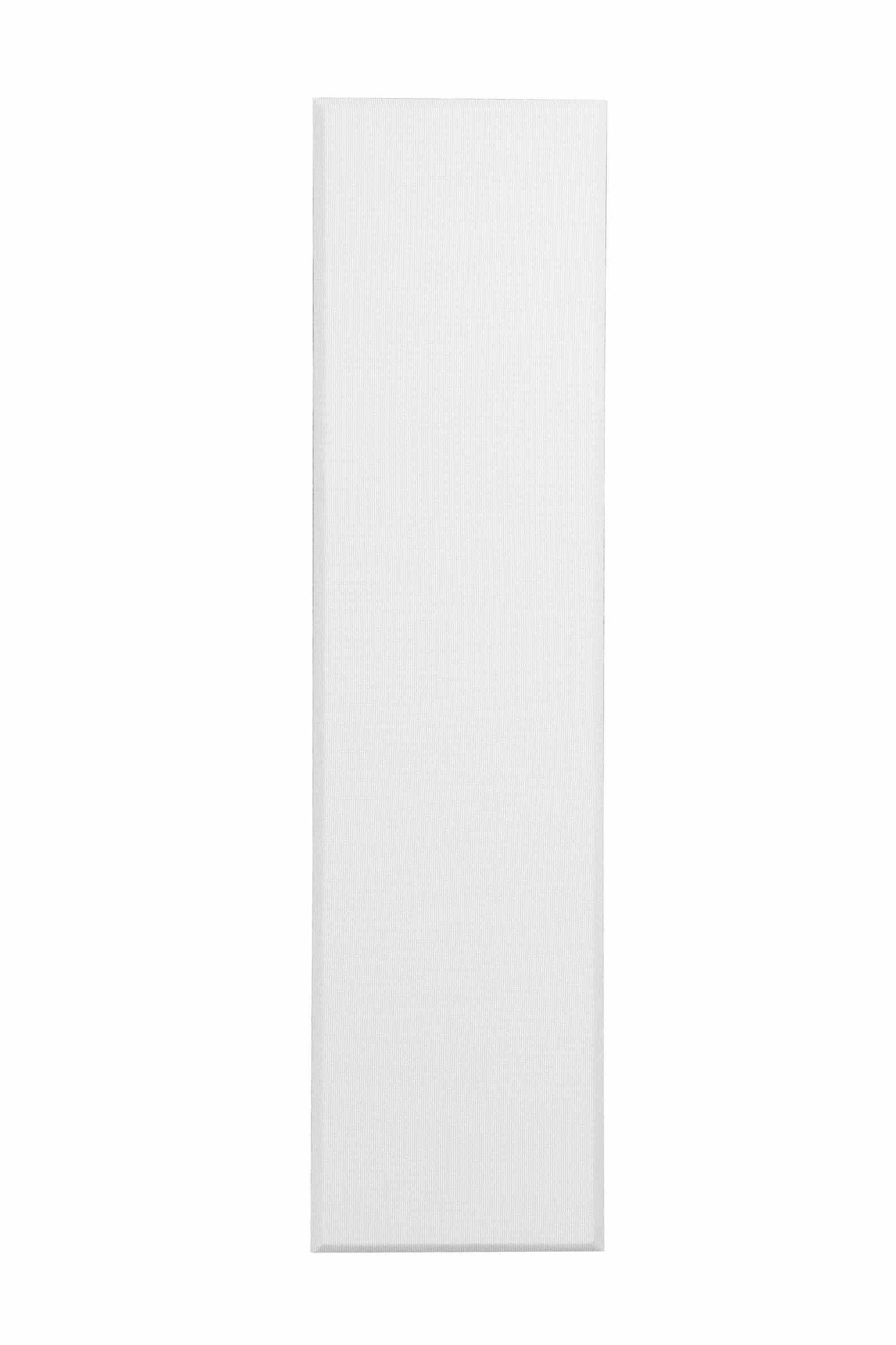

Primacoustic Paintable Control Column 12x48x2

4 IN STOCK

The Primacoustic Paintables 12x48x2 are an innovative acoustic panel that features a specially formulated textured latex surface that can be repainted to match the color scheme and decor of your environment - get creative! There are 6 x panels in the box. Available in bevelled edge.


    • Primacoustic Paintables FEATURES:

      • Made from high performance 6lb glass wool
      • Can be painted without affecting performance
      • Balanced absorption for more natural sound
      • Class-A/1 fire rated for safe use anywhere

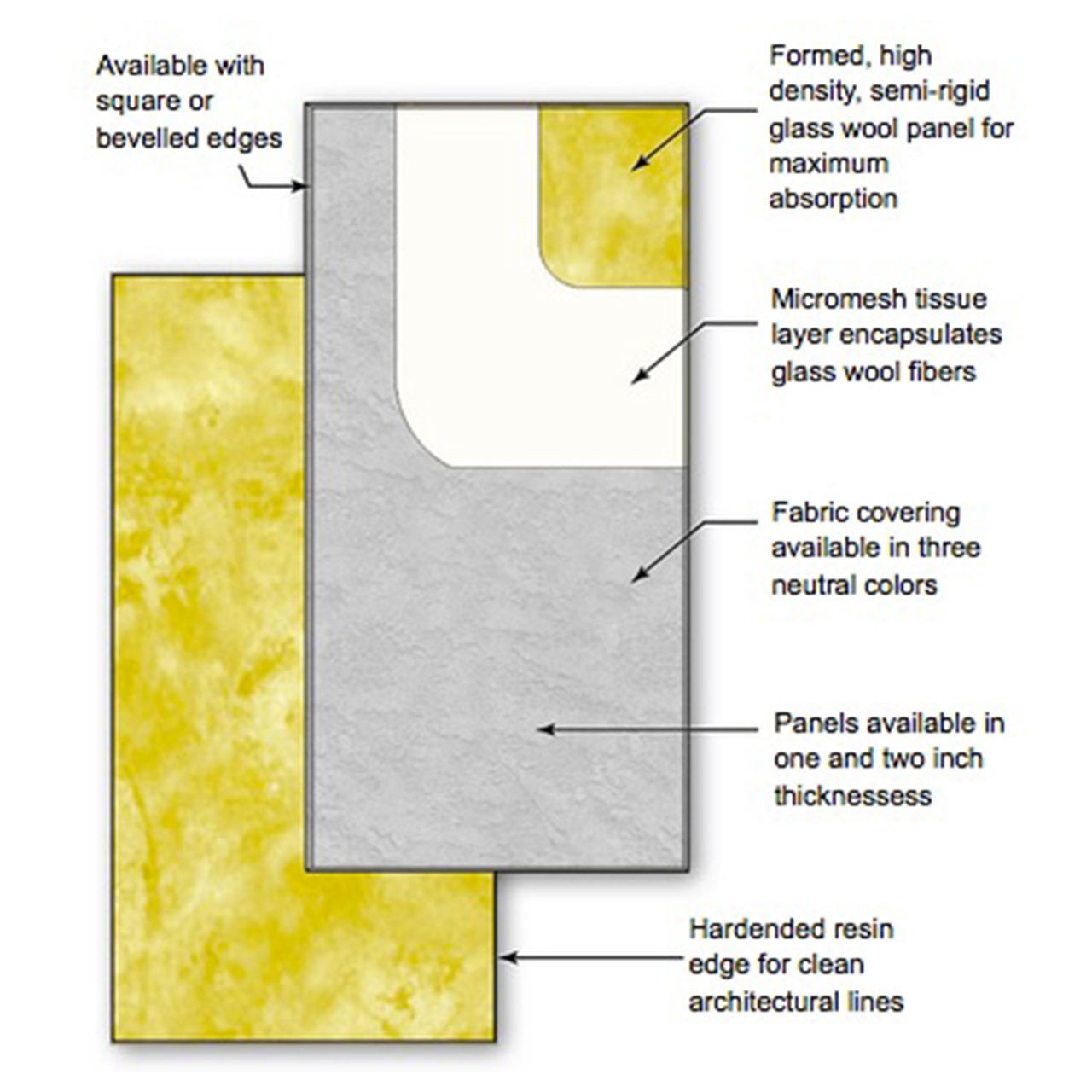

      The design begins with the same high performance 6lb glass-wool panel that is used in the popular Broadway series panels. Like Broadway, the Paintables are fully encapsulated with a woven fiberglass mesh and feature resin hardened edges to create sharp, architecturally appealing lines. Rather than wrapping the panel in fabric, the face and edges of the Paintable are coated in a textured latex finish that is porous and breathable. The balanced formulation enables the panels to be spray-painted without affecting the acoustic performance. This means that the end user can decide upon the final color without having to compromise by choosing a particular fabric or allows the acoustical engineer to leave the final color choice to the architect, thus streamlining the decision making process and installation.

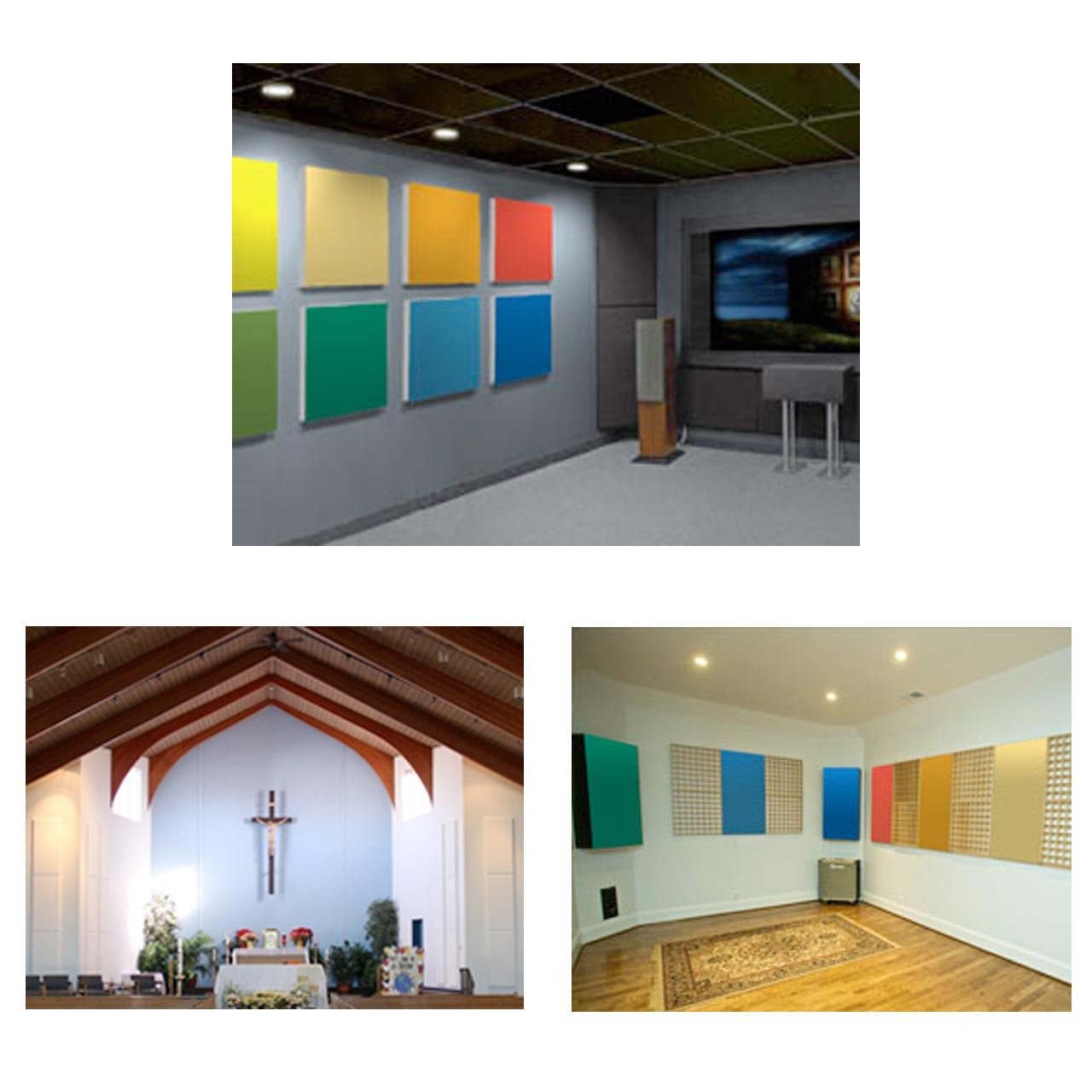

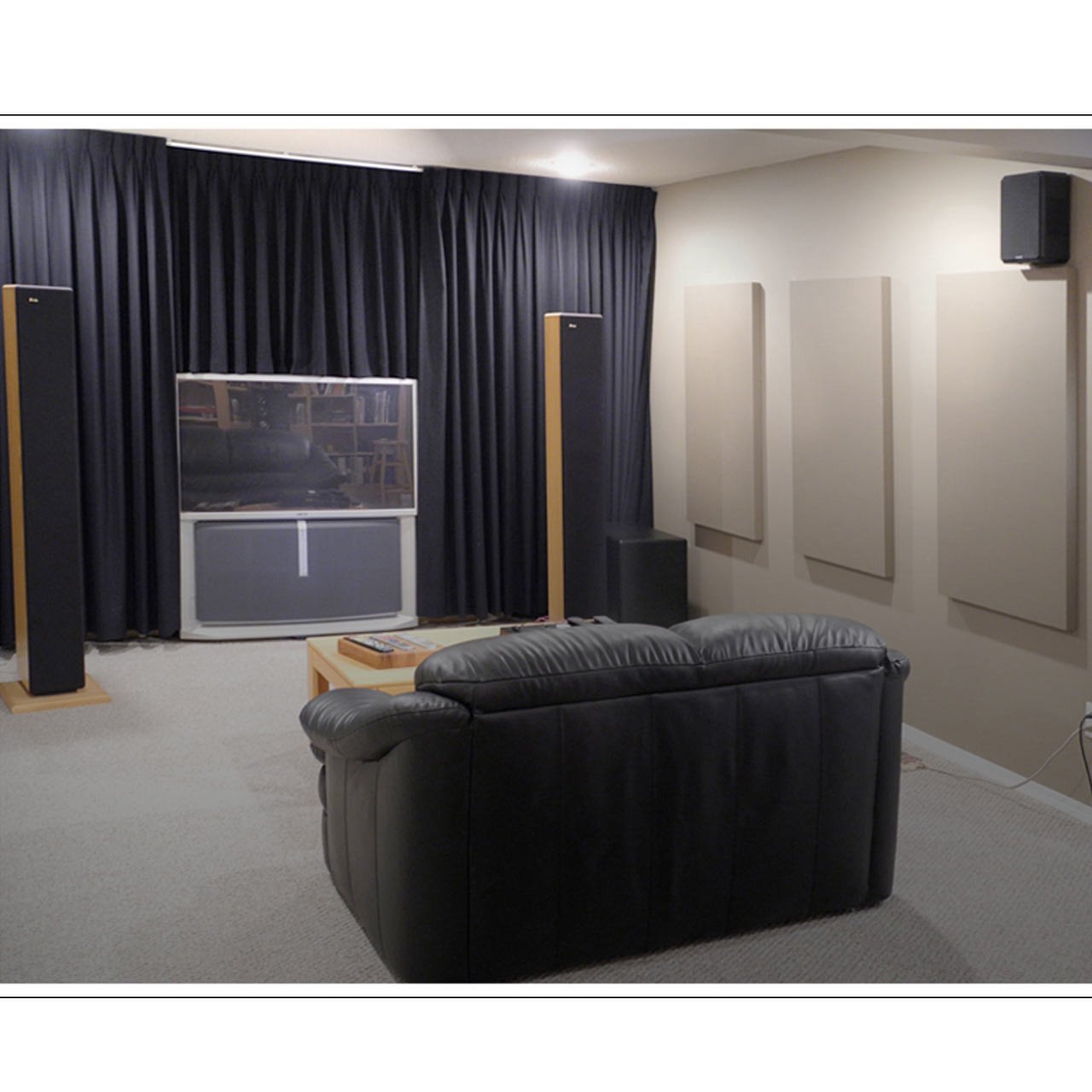

      Paintables ship in an attractive absolute white finish and are available in a variety of sizes. This makes them perfectly suitable for both large scale and small room installations including house-of-worship, airports, home theatre, offices, call centers, board rooms, restaurants, video conferencing rooms, broadcast facilities and recording studios of all sizes.

      Primacoustic Paintables... unmatched performance in unlimited colors.

    • Primacoustic Paintables SPECIFICATIONS:

      Size Thickness Order Number
      (xx denotes color code)
      Panel Weight Edge Treatment Qty. in Box Surface Coverage per Box
      12" x 48"
      (30.48 x 121.92 cm)

      Coverage: 4 sq-ft per panel (0.37 sq-meters)
      2" (5.08cm) P122 1248 09 4.25 lbs/1.9 kg 6 24 sq-ft (2.23 sq-meters)
      Core Material: Formed, semi rigid inorganic glass fibers
      Density: 6.0 lbs. per cubic foot (96 kg/m3)
      Facing: Textured fiberglass tissue sealed with water based latex
      Backing: Sealed with acoustically transparent micromesh
      Fire Rating: Class A or 1 (ASTM E 84/CAN/UL-S102), Class B (EN13823)
      Absorption H2O: < 2% by weight @ 120°F (49°C), 95% relative humidity
      Mounting: Galvanized steel impalers
      *Absorption Coefficient: 125Hz 250Hz 500Hz 1kHz 2kHz 4kHz NRC
      Unpainted 0.32 0.87 1.11 1.04 0.96 0.96 1.00
      Rolled Paint 0.74 0.58 0.66 0.45 0.25 0.17 0.50
      Sprayed Paint 0.48 0.89 1.12 1.10 1.00 0.92 1.05







      Frequency - Hz 100 125 160 200 250 315 400 500 630 800 1000 1250 1600 2000 2500 3150 4000 5000
      Raw Panel 0.27 0.32 0.50 0.68 0.87 1.03 1.10 1.11 1.12 1.07 1.04 0.97 0.96 0.96 0.96 0.94 0.96 0.91
      Rolled Paint 0.76 0.74 0.70 0.54 0.58 0.70 0.75 0.66 0.60 0.53 0.45 0.38 0.37 0.28 0.25 0.27 0.19 0.17
      Sprayed Paint 0.42 0.48 0.56 0.79 0.89 1.02 1.08 1.12 1.15 1.12 1.10 1.00 1.00 1.01 1.00 0.98 0.92 0.91

      Testing performed by Riverbank Acoustical Laboratories. The test method conformed explicitly with the requirements of the ASTM Standard Test Method for Sound Absorption and Sound Absorption Coefficients by the Reverberation Room Method: ASTM C 423-02a and E795-05.

Need more info on the Primacoustic Paintables? Click HERE for the manufacturer's website >>>
