Primacoustic

RA-PT-2448-SQ1

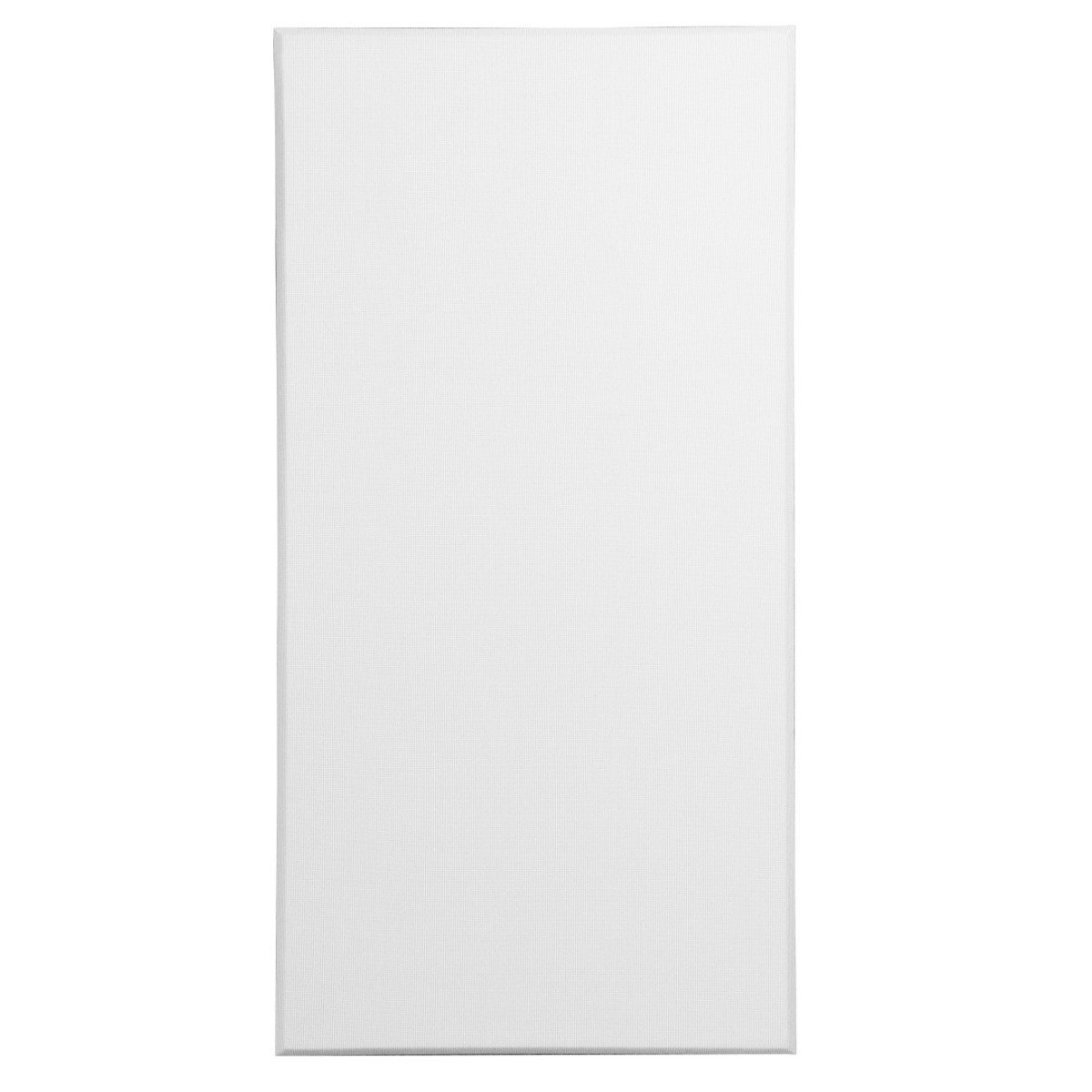

Primacoustic Paintable Broadband Absorber 24x48x1

The Primacoustic Paintable Broadband Absorber 24x48x1 is an innovative acoustic panel that features a specially formulated textured latex surface that can be repainted to match the color scheme and decor of your environment - get creative! There are 6 x panels in the box. Available in square edge.


    • Primacoustic Paintables PRODUCT FEATURES:

      • Made from high performance 6lb glass wool
      • Can be painted without affecting performance
      • Balanced absorption for more natural sound
      • Class-A/1 fire rated for safe use anywhere

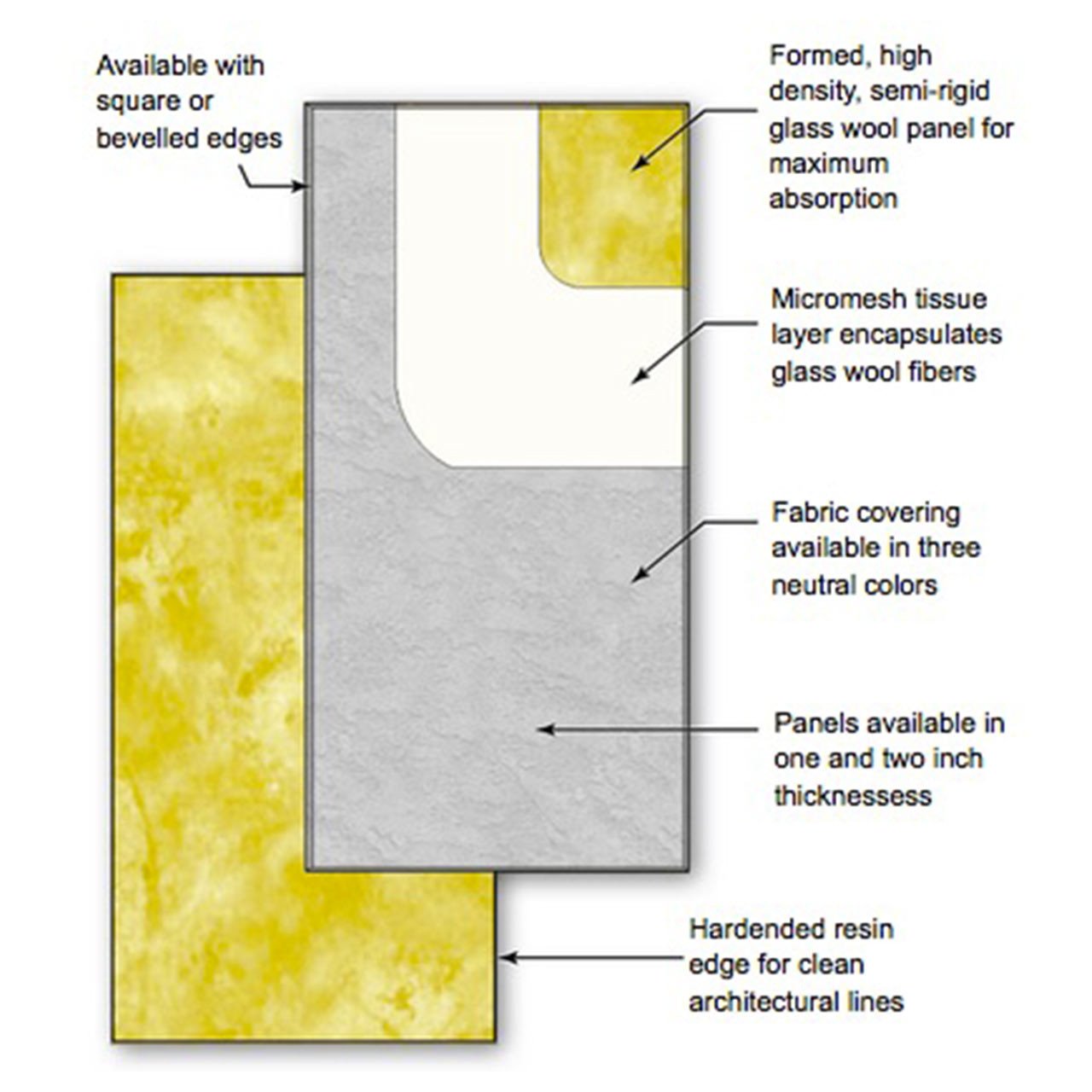

      The design begins with the same high performance 6lb glass-wool panel that is used in the popular Broadway series panels. Like Broadway, the Paintables are fully encapsulated with a woven fiberglass mesh and feature resin hardened edges to create sharp, architecturally appealing lines. Rather than wrapping the panel in fabric, the face and edges of the Paintable are coated in a textured latex finish that is porous and breathable. The balanced formulation enables the panels to be spray-painted without affecting the acoustic performance. This means that the end user can decide upon the final color without having to compromise by choosing a particular fabric or allows the acoustical engineer to leave the final color choice to the architect, thus streamlining the decision making process and installation.

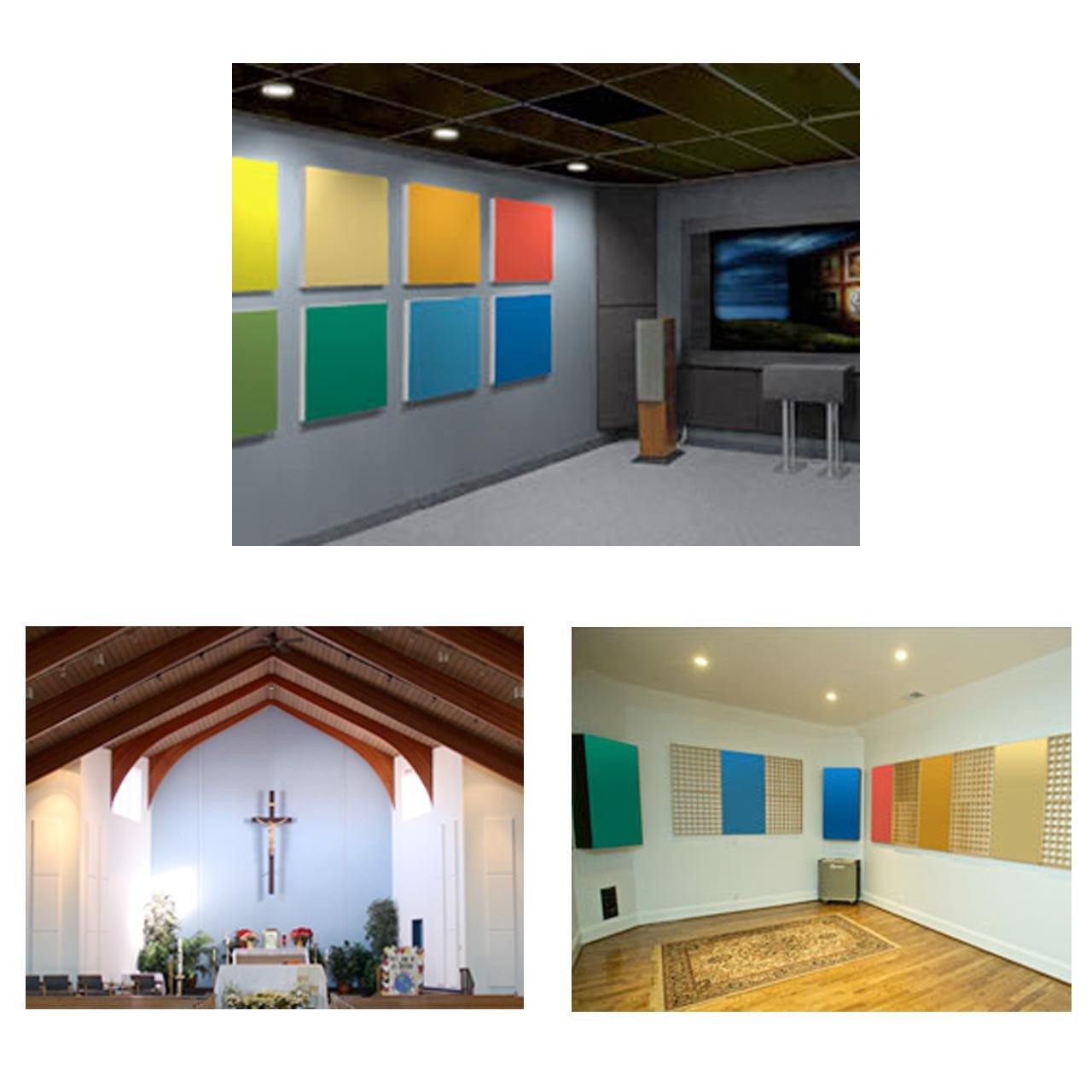

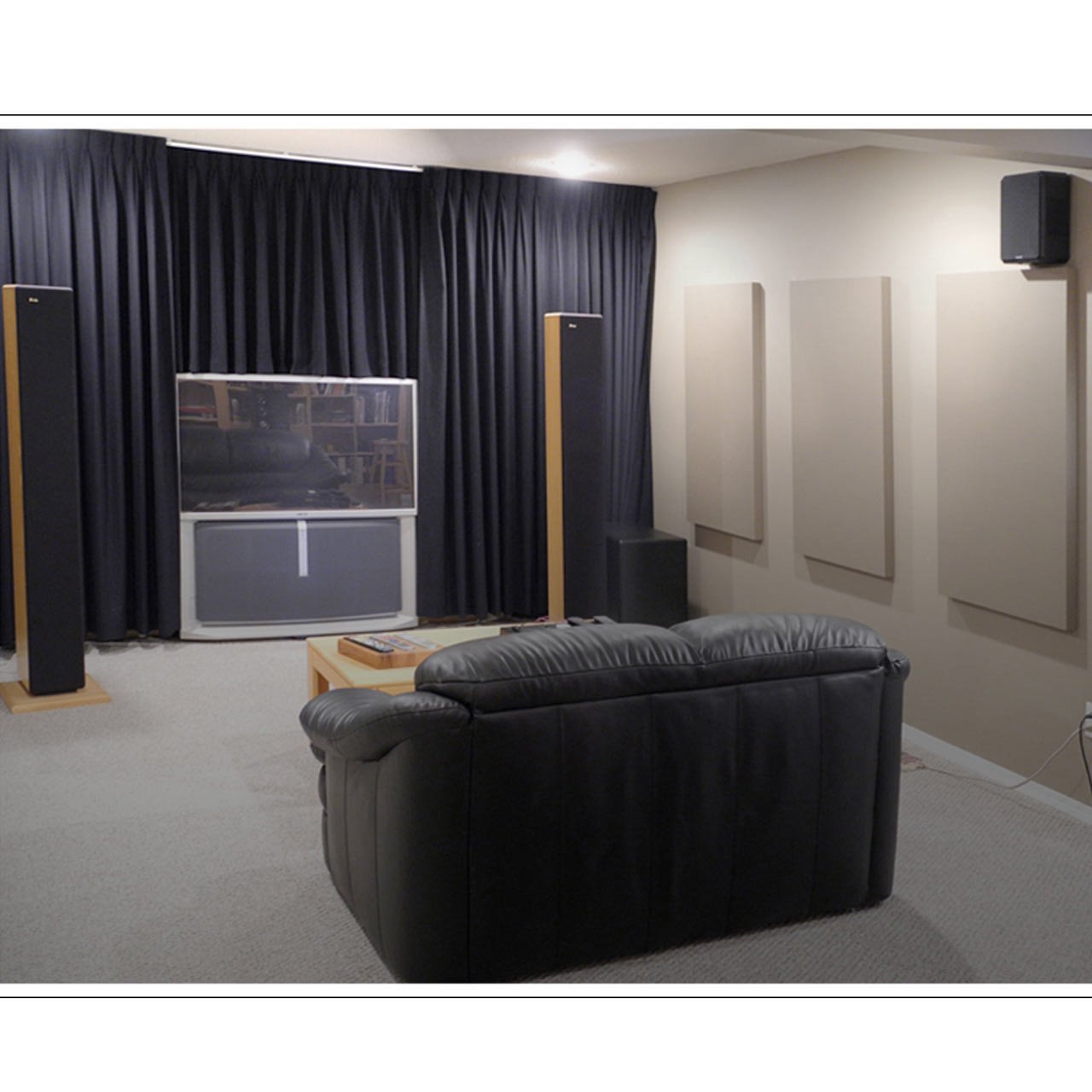

      Paintables ship in an attractive absolute white finish and are available in a variety of sizes. This makes them perfectly suitable for both large scale and small room installations including house-of-worship, airports, home theatre, offices, call centers, board rooms, restaurants, video conferencing rooms, broadcast facilities and recording studios of all sizes.

      Primacoustic Paintables... unmatched performance in unlimited colors.

    • Primacoustic Paintables TECHNICAL SPECIFICATIONS:

      Coverage: 8 sq-ft per panel (0.74 sq-meters)       1" (2.54cm)   P102 2448 09           8.5 lbs/3.9 kg                        6          48 sq-ft (4.46 sq-meters)

      2" (508cm)    P102 2448 09           8.5 lbs/3.9 kg                        3          24 sq-ft (2.23 sq-meters)

      2" (508cm)    P122 2448 09           8.5 lbs/3.9 kg                        3          24 sq-ft (2.23 sq-meters)

      Core Material:            Formed, semi rigid inorganic glass fibers

      Density:          6.0 lbs. per cubic foot (96 kg/m3)

      Facing:            Textured fiberglass tissue sealed with water based latex

      Backing:          Sealed with acoustically transparent micromesh

      Fire Rating:    Class A or 1 (ASTM E 84/CAN/UL-S102), Class B (EN13823)

      Absorption H2O:       < 2% by weight @ 120°F (49°C), 95% relative humidity

      Mounting:      Galvanized steel impalers

      *Absorption Coefficient:       125Hz 250Hz 500Hz 1kHz   2kHz   4kHz   NRC

      Unpainted      0.32    0.87    1.11    1.04    0.96    0.96    1.00

      Rolled Paint   0.74    0.58    0.66    0.45    0.25    0.17    0.50

      Sprayed Paint            0.48    0.89    1.12    1.10    1.00    0.92    1.05
