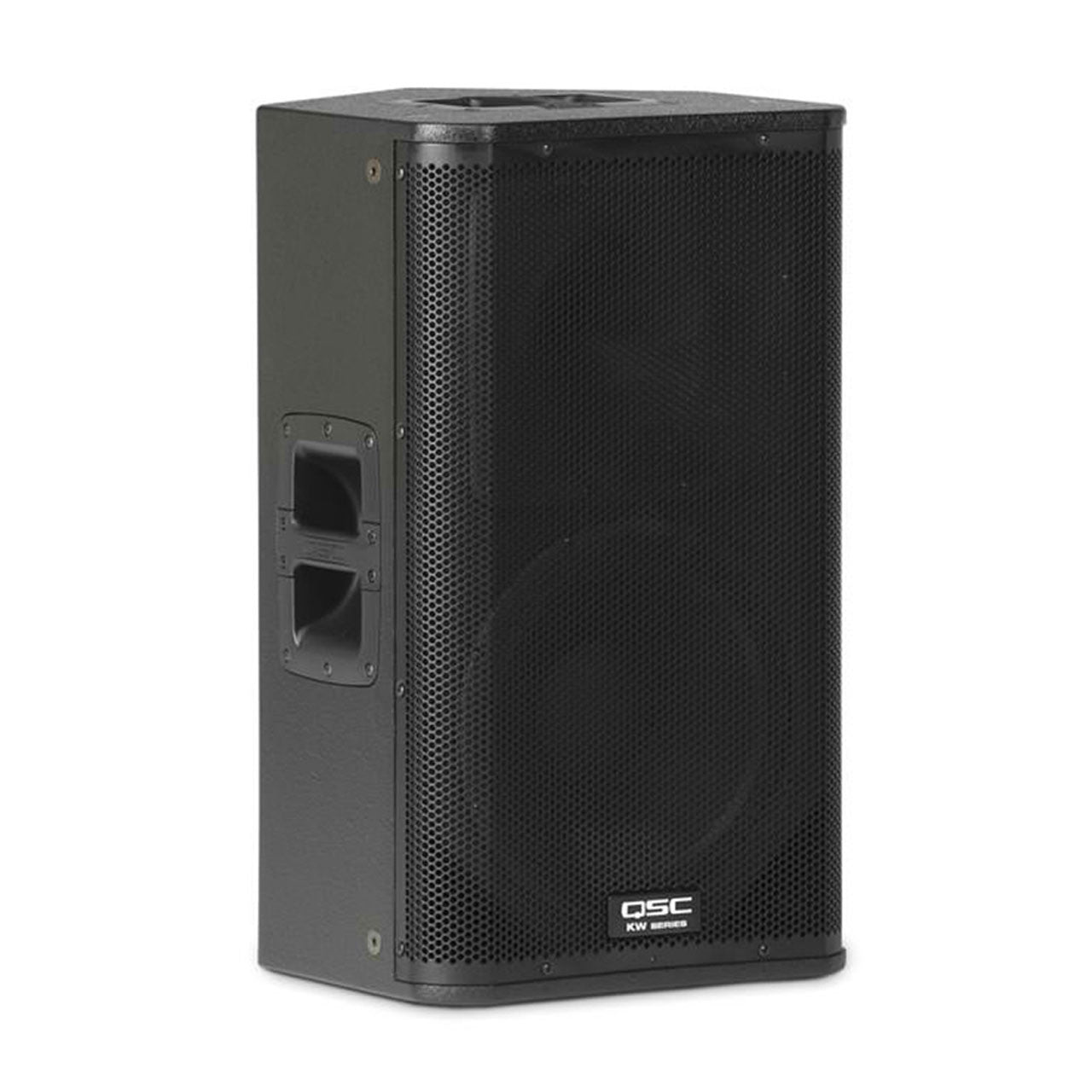

The QSC KW122 is an active two-way loudspeaker with a 12 inch woofer. The KW series are the bigger brother to the QSC K series. One of the best features in the KW series is the internal power amplifier is extremely light - under 3kg, and therefore makes carting the KW speakers around much easier. The QSC KW122 can also be flown, as it has M10 rigging points for suspended installations.

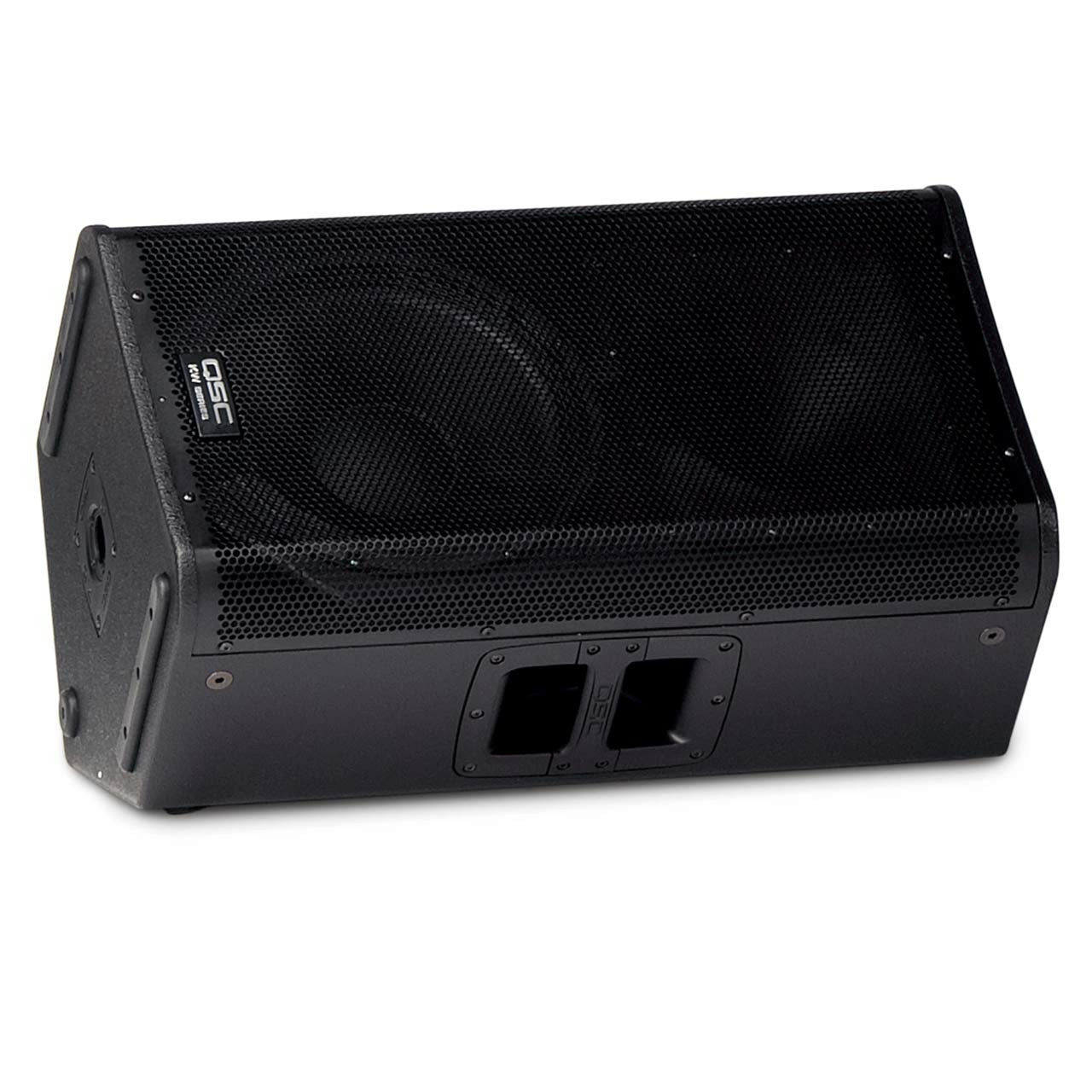

12” Woofer; 1.75” diaphragm compression driver 75° conical DMT coverage Maximum SPL 131 dB peak Also functions as monitor floor wedge 1000-watt Class D power modules in all models (2 × 500 W continuous) Onboard mixer with two combo XLR and ¼” inputs, and stereo RCA inputs, (three audio input sources); two direct channel outputs and single summed balanced output Extensive DSP featuring DEEP™ and Intrinsic Correction™ enhances system performance DMT™ (Directivity Matched Transition) ensures uniform coverage across the entire sound field Rugged, texture-painted birch enclosures Four-position Mic/Line gain (full-range models) Tour-grade 16 gauge steel grilles Comfortable ergonomic handles 35 mm pole sockets with Tilt-Direct™ M10 rigging points for suspended installation
QSC KW122 TECHNICAL SPECIFICATIONS:
Frequency Range (-10 dB): 50 Hz – 20 kHz Nominal Coverage (-6 dB): 75° axisymmetric Output(1) (Peak SPL @ 1M): 131 dB Amplifier Power: 1000 W continuous Class D Current Consumption 1/8 Power (2): 100 VAC, 2.3 A • 120 VAC, 2.01 A • 230 VAC, 1.13 A Input Connectors: Balanced female XLR / 1/4" mic/line level input Balanced female XLR / 1/4" line level input Physical: Dimensions: (HWD) 660 × 381 × 391mm Net Weight: 22.2 kg Enclosure: Painted Birch Plywood Available Accessories: KW122 suspension kit, KW122 cover, KW M10 kit - All sold separately.
1 Calculated for 1 m, based on sensitivity (full-space for full range systems and half-space for LF-only and subwoofer systems) and peak power capability of amplifier. 2 1/8 power is representative of current draw with typical music program material with occasional clipping.
