Radial Engineering

RA-CHERRY-PICKER

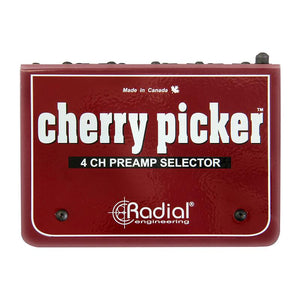

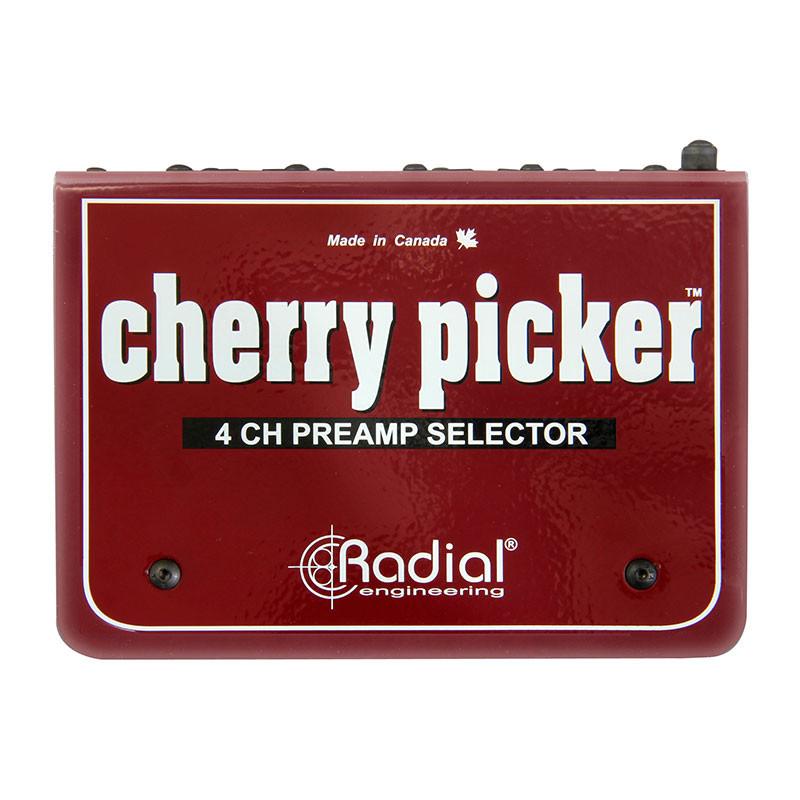

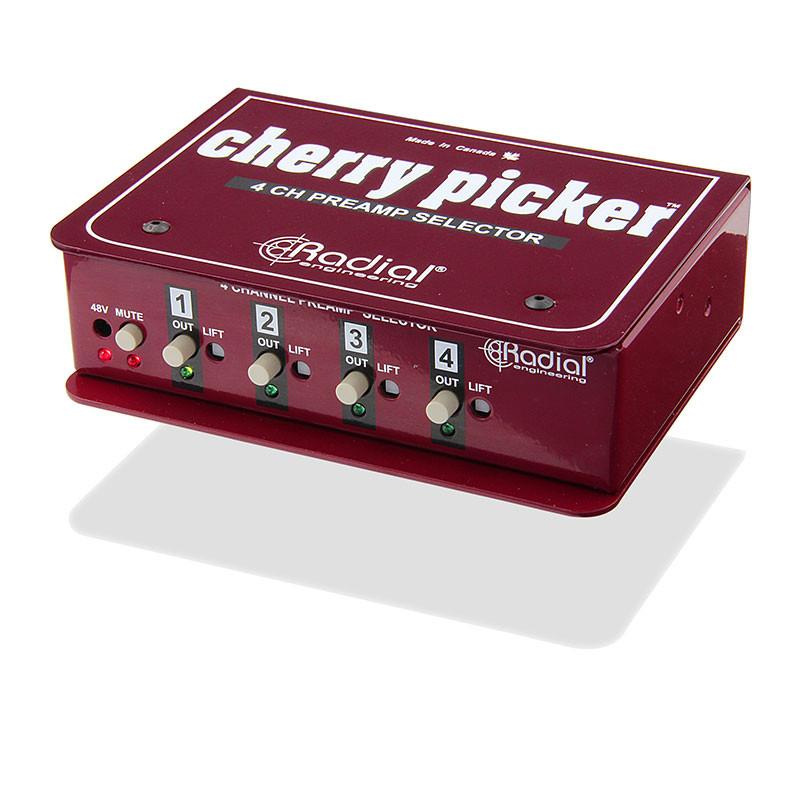

Radial Engineering Cherry Picker Mic Pre-Amp Selector

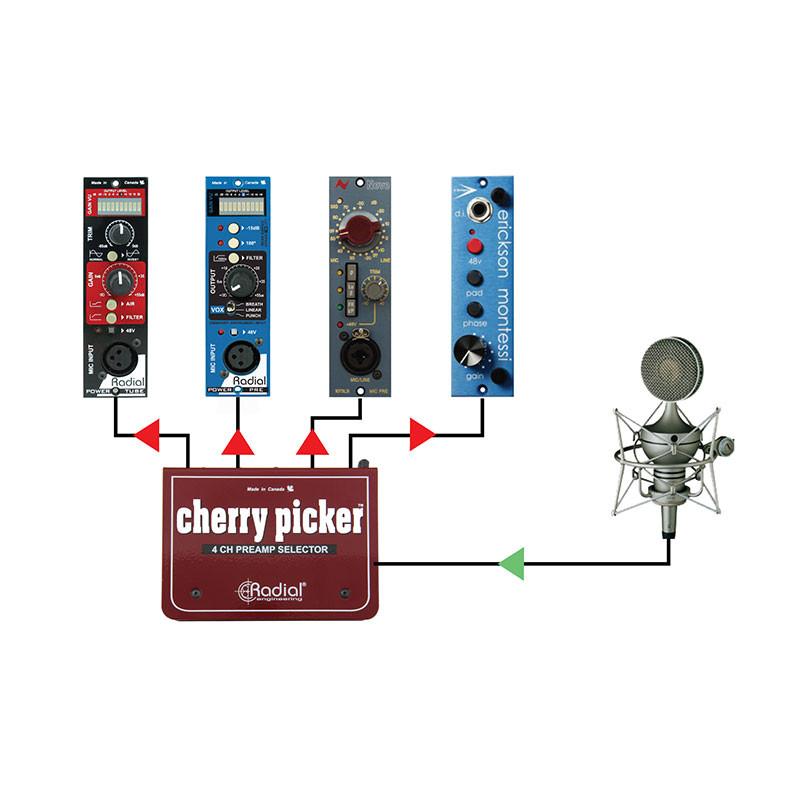

The Radial Cherry Picker is a unique tool designed to improve efficiency and workflow in the studio by simplifying the process of matching the best preamp with a microphone for a given track.


    • PRODUCT FEATURES:

      Select the best mic & preamp combination

      Passive 'straight wire' color-free signal path

      Built-in 48V phantom power for condenser mics

      Improve the workflow efficiency in your studio

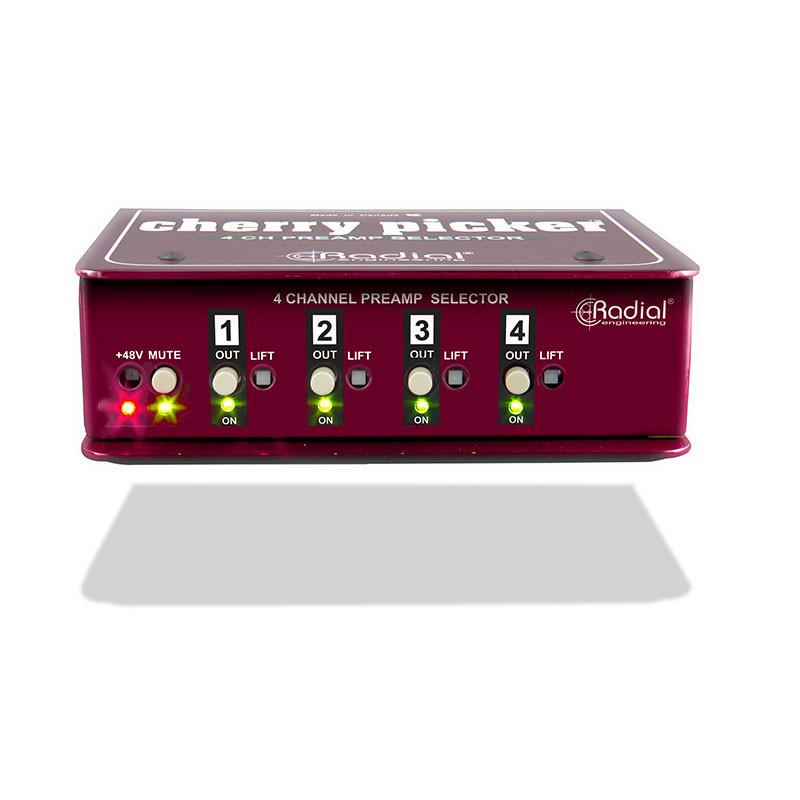

      Four front panel 'radio style' selector switches select the active preamp while automatically disconnecting the mic from the others. Completely passive and 100% discrete, the Cherry Picker features a 'straight wire' signal path. There is no active circuitry whatsoever in between the mic signal and the preamp. The audio signal switching is performed by a series of military-grade gold contact sealed relays for zero coloration and distortion to ensure a fair and honest comparison between preamps.

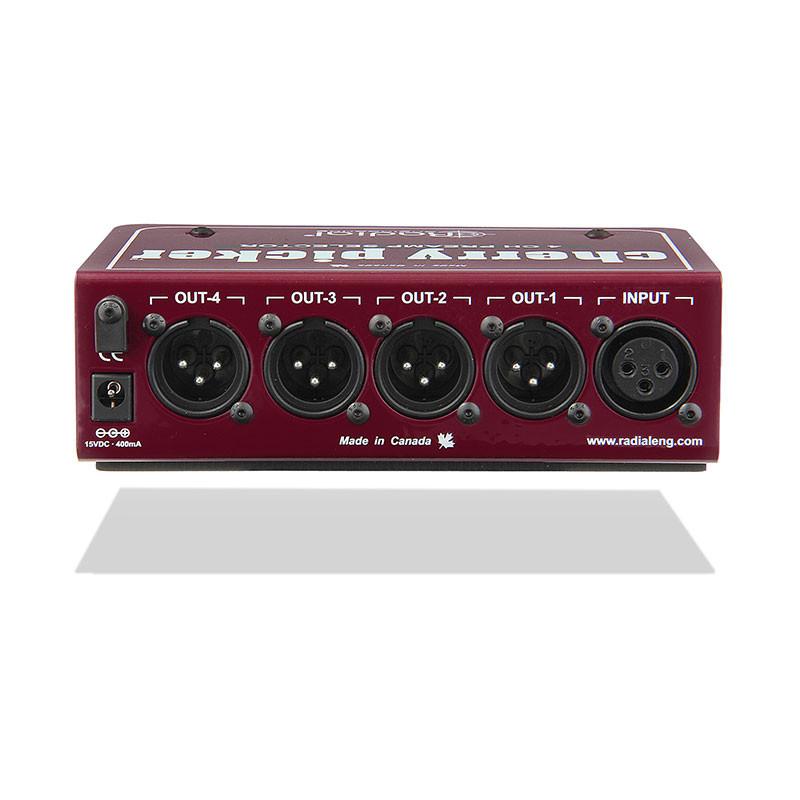

      The rear panel is equipped with a balanced XLR input for the microphone and four balanced XLR outputs to feed the various preamps. When using a studio condenser, the Cherry Picker internally generates 48V phantom power so that switching between preamps will not disrupt the phantom power going to the microphone. This could otherwise cause severe popping in the audio system and headphones. Separate ground lift switches for each output help reduce noise by eliminating ground loops plus a handy mute switch turns all outputs off, enabling the engineer to leave the preamp settings untouched when testing out other mics.

    • TECHNICAL SPECIFICATIONS:



      Audio circuit type:

      Passive signal path with active relay switching

      Frequency response:

      10Hz to 40kHz

      Dynamic range:

      >115dBu

      Equivalent input noise:

      -115dB

      Residual noise:

      -140dB

      Maximum input:

      +26dBu

      Maximum output:

      +26dBu

      Total harmonic distortion:

      0.0003%

      Phase deviation:

      < 0.001 degrees at all frequencies

      Intermodulation Distortion

      0.001%

      Input impedance:

      10 000 Ohms

      Common mode rejection:

      -97dB @55Hz

      Gain:

      0.0dB – Unity gain device

      Features



      Inputs:

      Balanced XLR female

      Outputs:

      4 x XLR male

      Switches:

      Individual on/off for each output

      Individual ground lift for each output

      Mute all function

      Phantom power:

      48V phantom on each channel with recessed switch

      XLR configuration:

      AES standard (pin-1 ground, pin-2 hot, pin-3 cold)

      General



      Power:

      +15V DC/400mA power supply included

      Construction:

      14 gauge steel chassis & outer shell

      Finish:

      Durable powder coat

      Size:  (W x H x D)

      4.5" x 2" x 6" (121 x 64 x 147mm)

      Shipping size: W x H x D:

      4.75" x 2.5" x 10.75" (121 x 64 x 273mm)

      Weight:

      2.8 lb (1.3kg)

      Shipping weight:

      3.05 lb ( 1.4kg)
