  • RA-DAN-RX

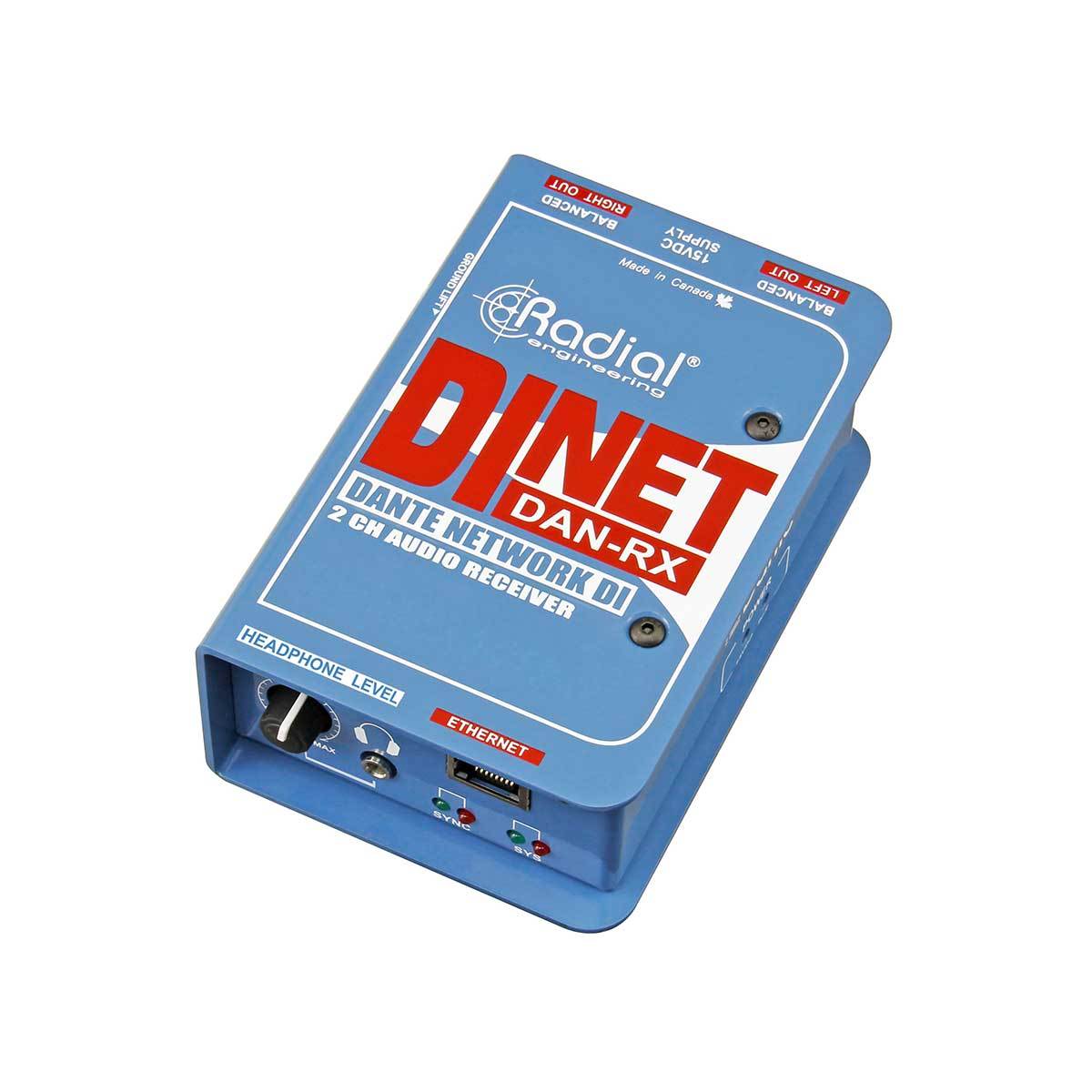

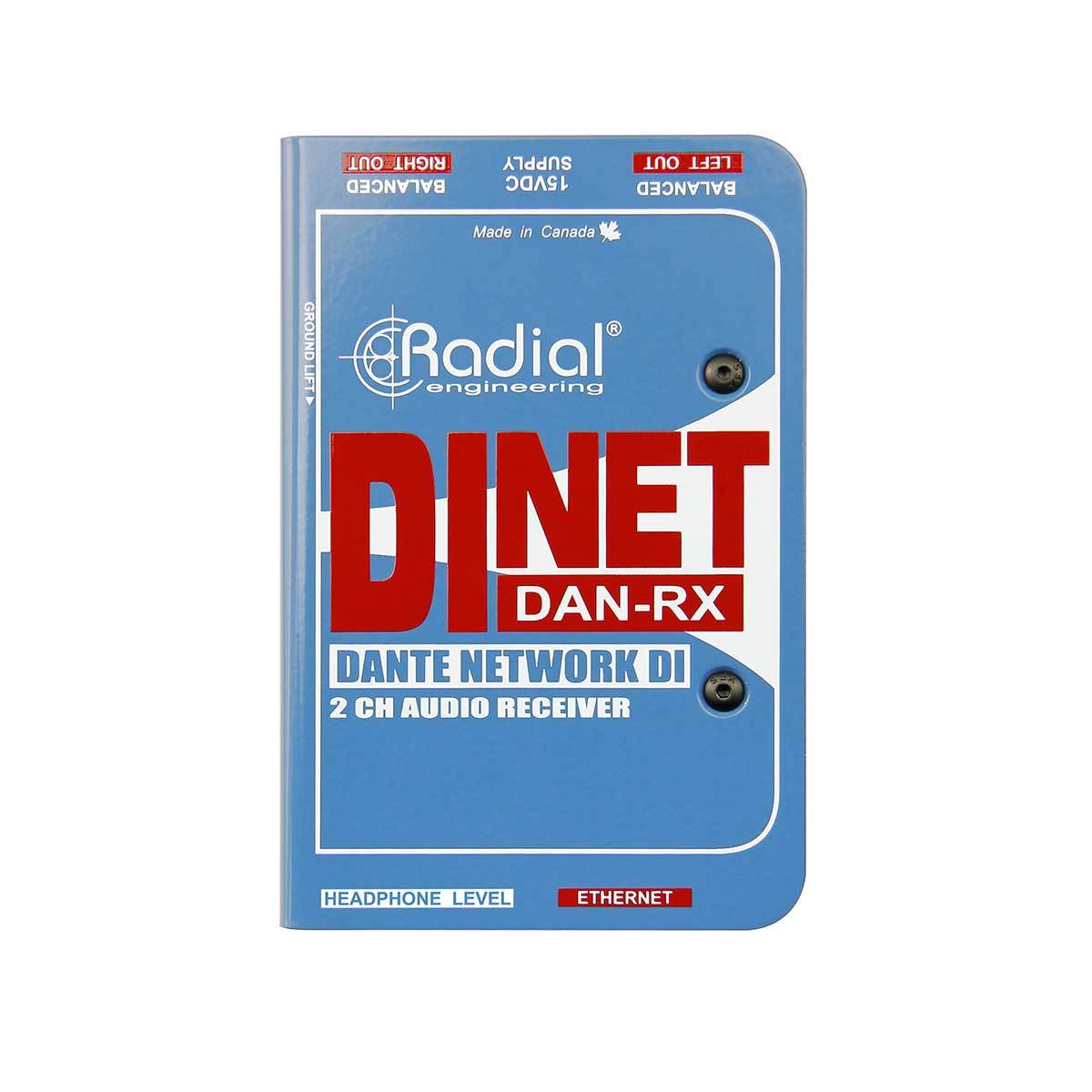

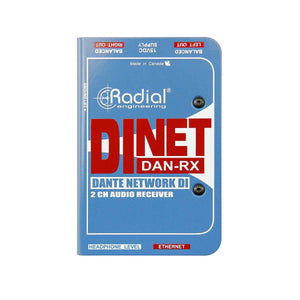

    Radial Engineering DiNET DAN-RX - Dante Enabled DI Receiver

    2 In Stock

    The Radial DAN-RX provides a simple way to take a stereo feed from the Dante network and convert it to analog audio for monitoring in any location without the need for additional equipment.It provides a 2-channel 24 bit/96kHz digital to analog endpoint that allows you to output audio from a Dante™ network for connection to professional audio systems. Connect to the Dante network over Cat5e or Cat6 cable with an Ethernet input, and it can be powered locally or using Power over Ethernet (PoE). XLR outputs are provided for connection to balanced professional audio equipment such as powered speakers or a mixing console.


      • Product Features:

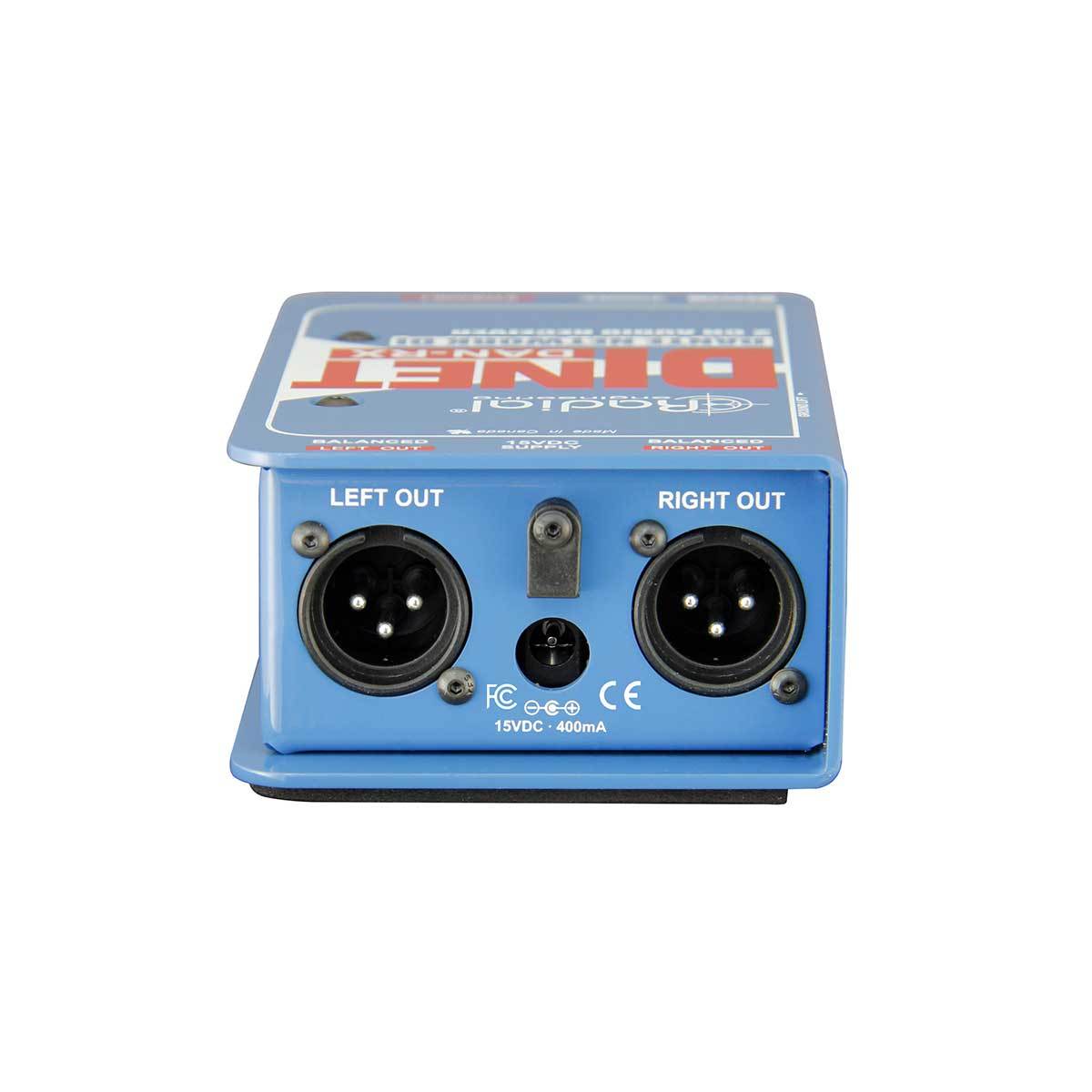

        Balanced Stereo XLR outputs

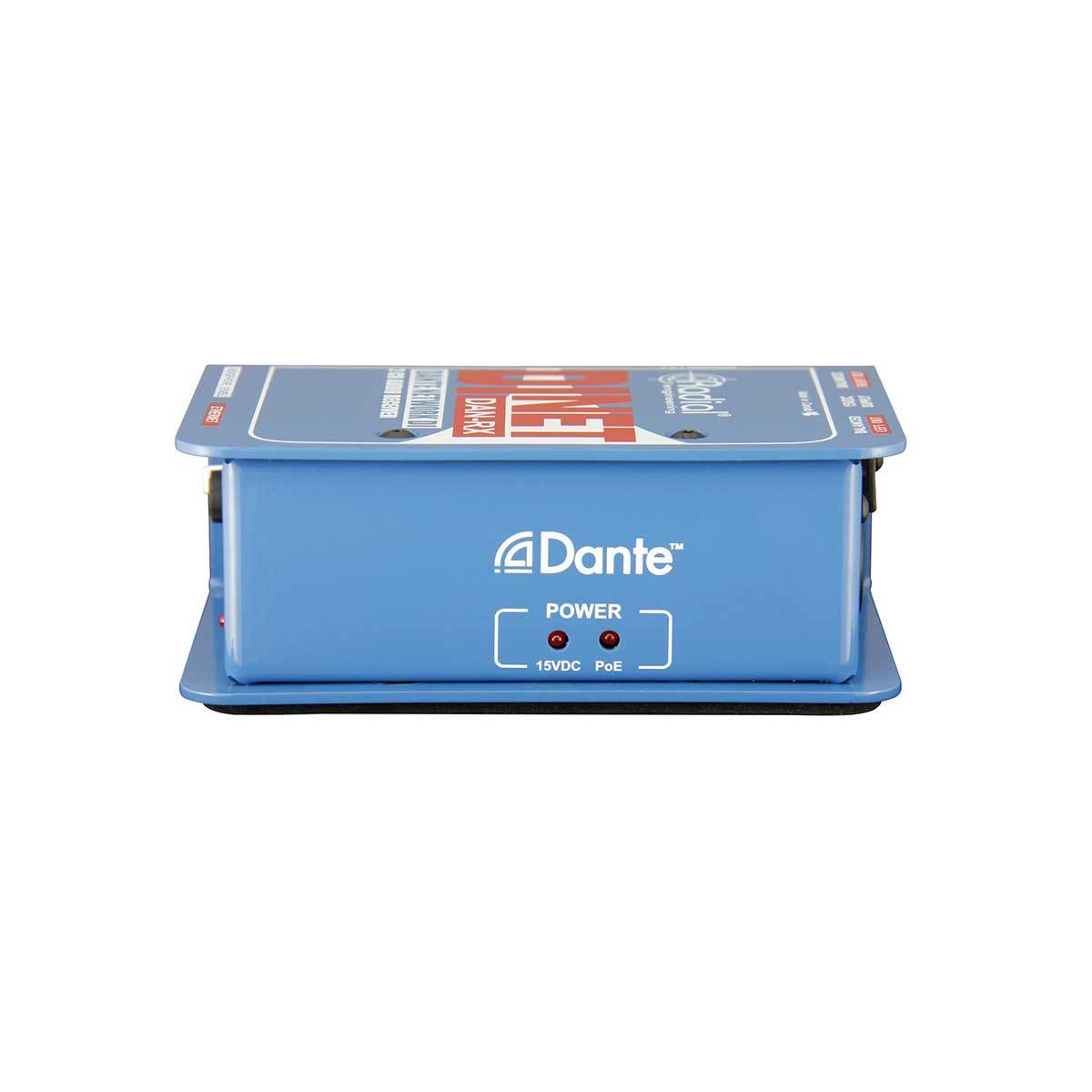

        Powered via external supply or Power over Ethernet (PoE)

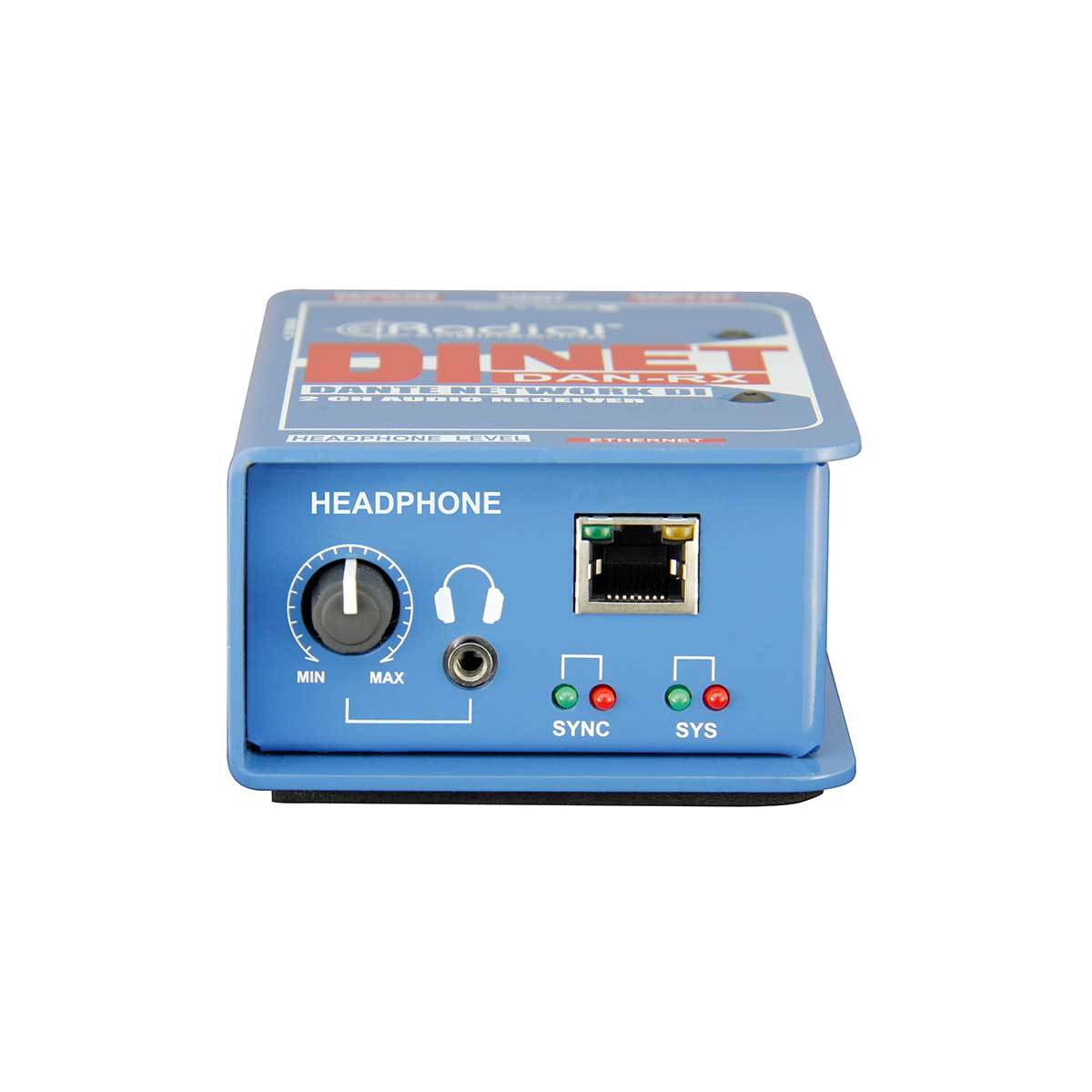

        Headphone output with level control

        Route a stereo feed to any location within a venue

        Connect to a small PA in a separate room

        Use headphones for personal monitoring over

        Outputs can be mic or line level signals

        Ground lift switch to eliminate buzz & hum

        High-quality 24bit/96kHz digital converters

      • Technical Specifications:

        Audio circuit type: High current balanced active output device
        Number of channels: 2
        Frequency response: 20Hz - 20kHz
        Dynamic range: >100dB
        Gain: 8dBu max @ -6dBfs
        Total harmonic distortion: 0.007% @ -6dBfs
        Output Impedance: 150Ω
        Noise: 44.1kHz, 48kHz, 88.2kHz, and 96kHz (24 bit)
        Features
        Headphone
        Input Connectors: RJ45 Ethernet
        Output Connectors: XLR
        Extras: 3.5mm headphone for testing
        General
        Construction: 14-gauge steel
        Size (L x W x D): 5" x 3.31" x 1.88" (12.7cm x 8.4cm x 4.8cm)
        Weight: 1.45lb (0.66kg)
        Shipping size (L x W x D): 11.75" x 4.75" x 3" (29.8cm x 12.1cm x 7.6cm)
        Shipping weight: 2.1lb (0.95kg)
        Power: 15VDC 400mA (included) or PoE
        Conditions: For use in dry locations only between 5°C and 40°C
        Warranty: Radial 3-year, transferable
