Radial Engineering

RA-Reamp-JCR

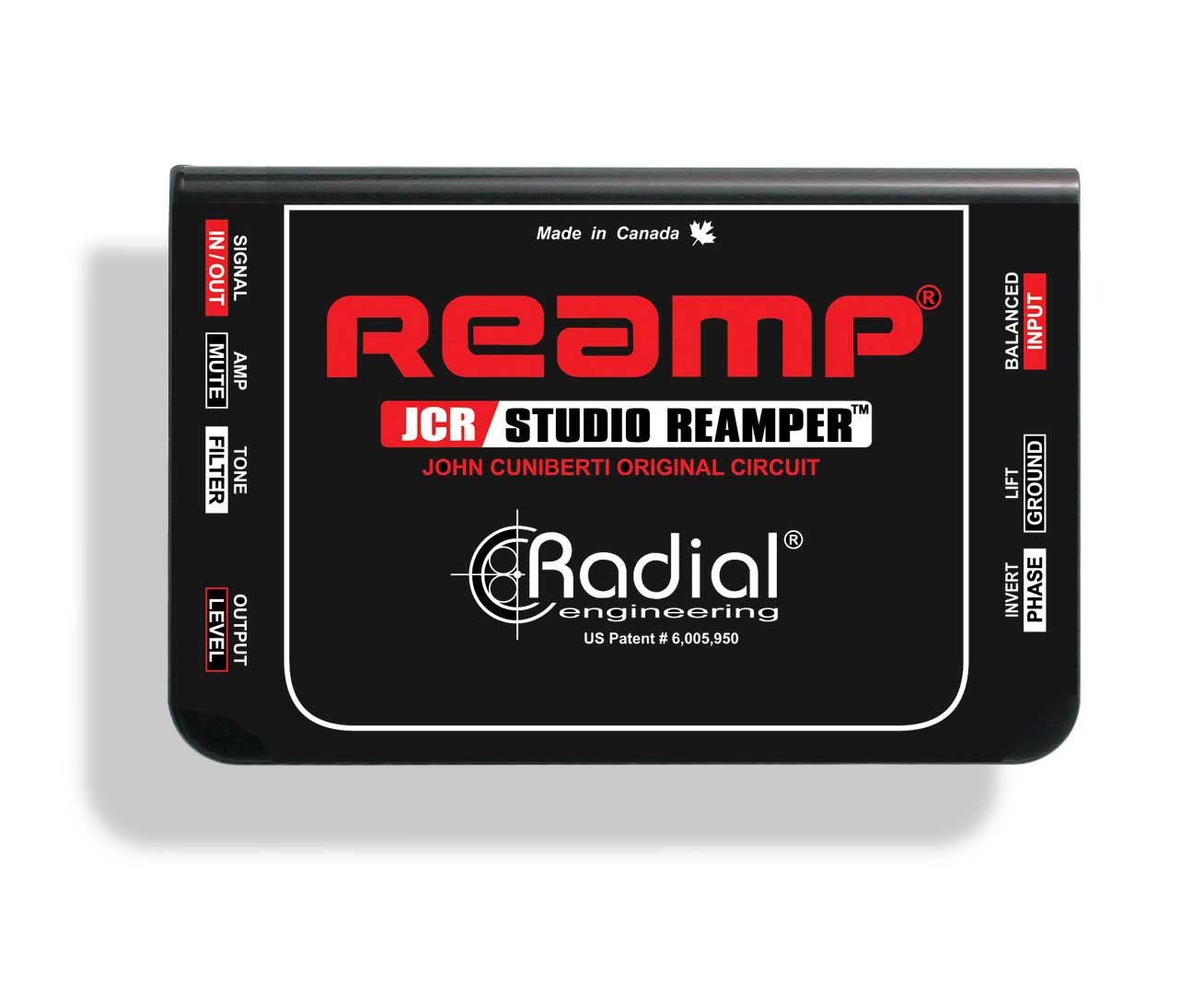

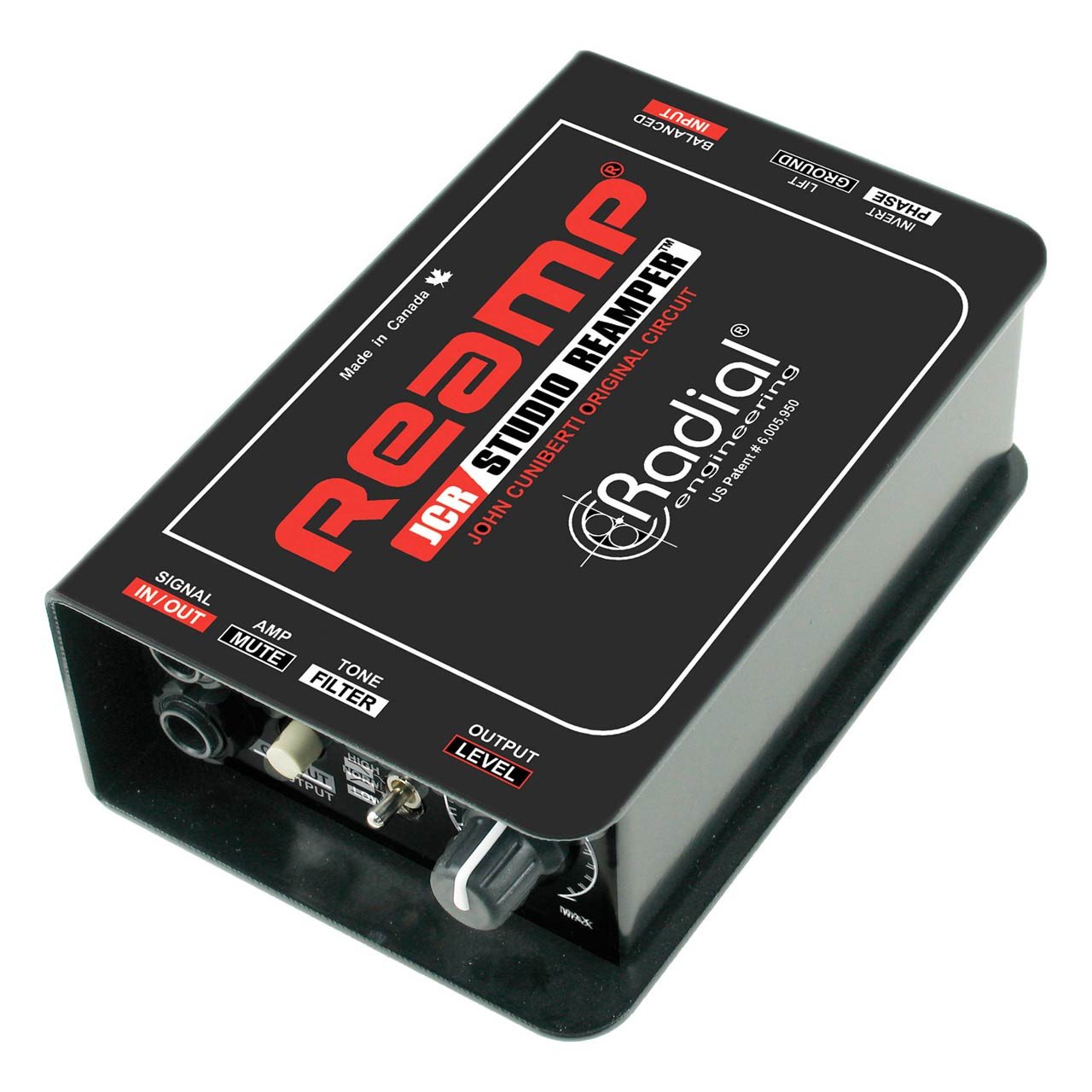

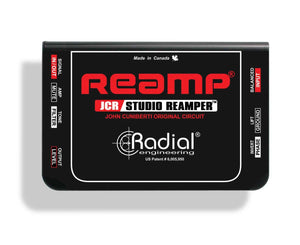

Radial Reamp JCR Studio Reamper

The Radial Reamp JCR is a passive Reamper that allows you to take a pre-recorded track from your DAW and send it back to a guitar or bass amplifier to re-record it. Instead of worrying about the sound of your track, you can focus your attention on getting the best musical performance first while tweaking the sound on your amp later. Once you have captured the magic, you can send the guitarist home and Reamp the track at will as you move your microphones around the room, and also try various amplifiers or introduce new effects.


    • Radial Reamp JCR PRODUCT FEATURES:

      • Re-record tracks through a guitar or bass amp after the initial recording
      • The Original Reamp circuit designed by the legendary John Cuniberti
      • Plug and play easy to use passive design
      • Improve your productivity while expanding creative options after the initial recording.
    • Radial Reamp JCR TECHNICAL SPECIFICATIONS:

      Specifications
      Specifications are subject to change without notice.
      Audio circuit type: Passive, transformer isolated
      Frequency response: 20Hz ~ 20kHz (+0dB/-1dB)
      Common mode rejection ratio: -55dB @ 55Hz
      Dynamic range: 140dB
      Noise floor: -115dBu
      Maximum input: +26dBu
      Total harmonic distortion: 0.001% @ 1kHz/0dBu input
      Inter-modulation distortion: 0.0025% @ 1kHz/-10dB input
      Phase deviation: 2º @ 100Hz; 0º @ 800Hz
      Input impedance: 1800 Ohms
      Output impedance: 4.8k Ohms
      Features

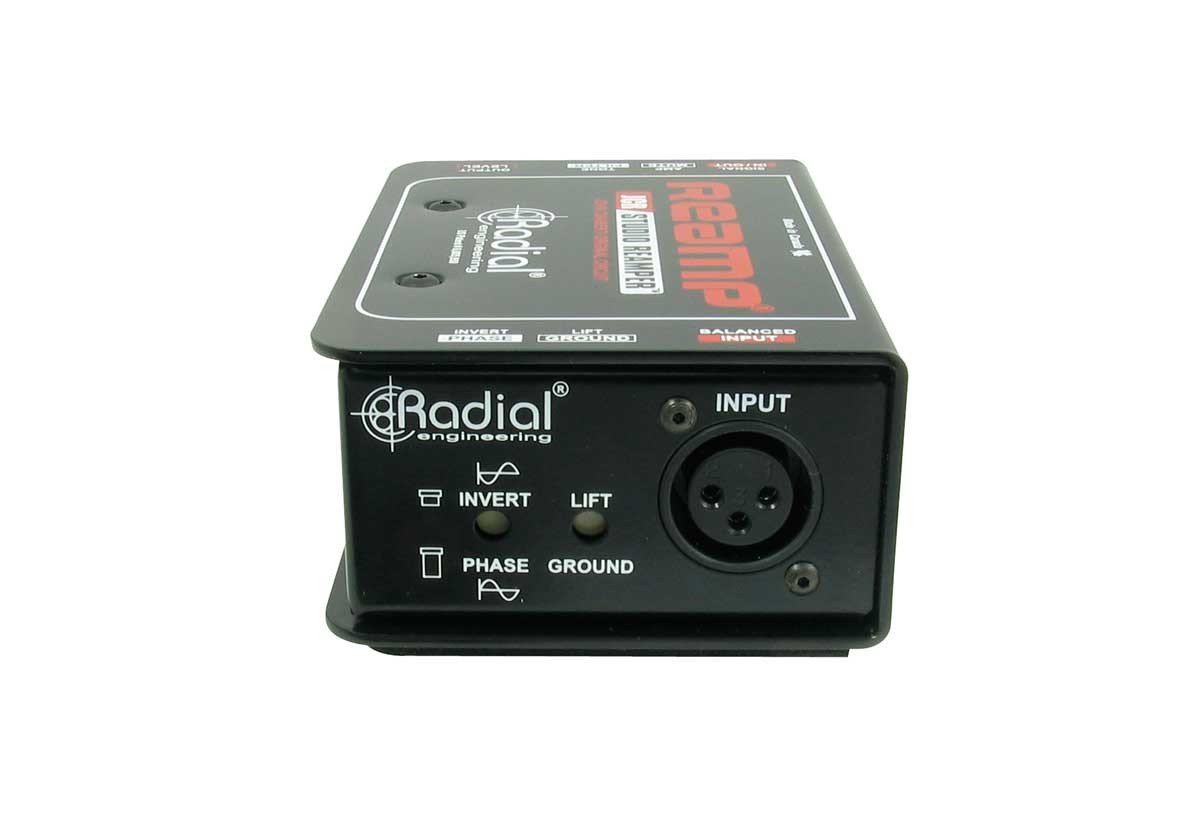

      XLR input: Balanced line-level, AES standard (pin-2 hot)
      Ground lift: Disconnects pin-1 at the XLR input

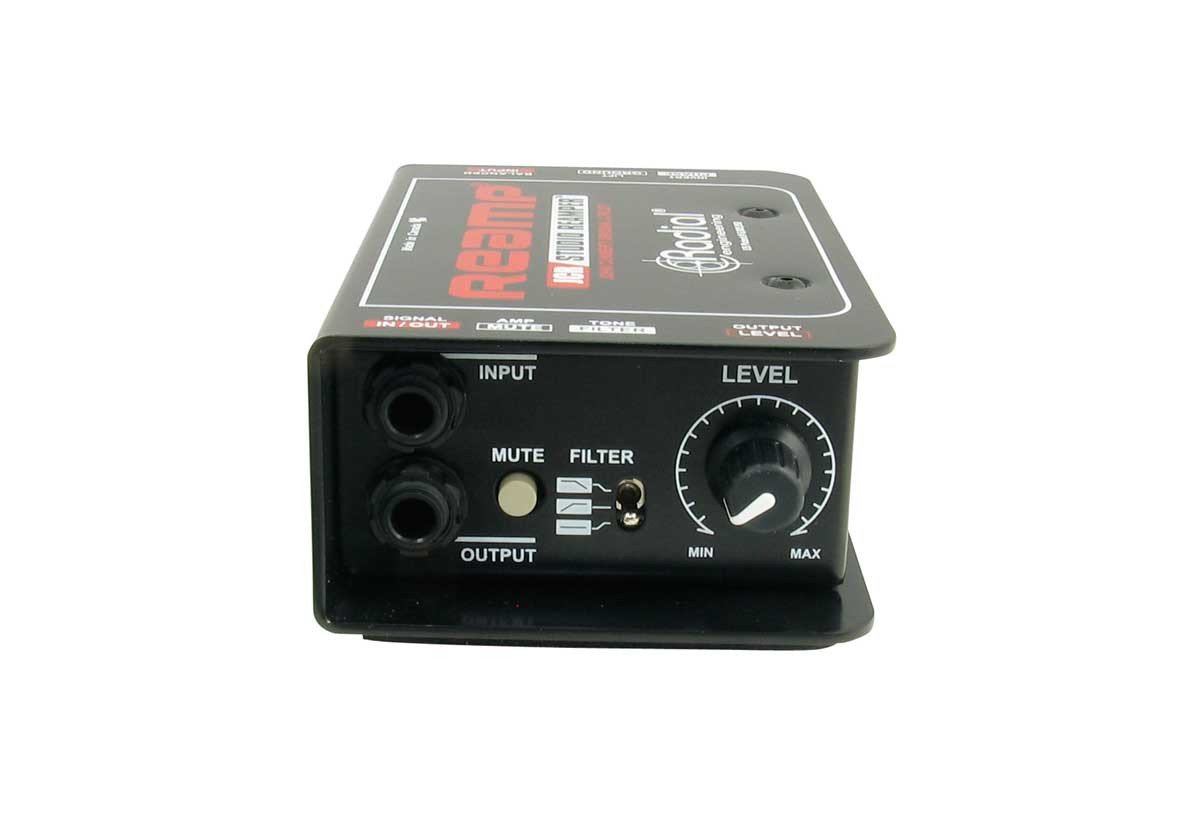

      Mute: Mutes the output at the ¼" unbalanced out
      Output level: Adjustable
      Hi-cut filter: Hi-cut: -3dB down @ 1kHz
      Low-cut filter Low-cut: -3dB down @ 180Hz
      Polarity: 180º polarity reverse at ¼" output
      General
      Power: Passive, no power required
      Construction: 14 gauge steel chassis & outer shell
      Finish: Durable powder coat
      Size: 3.3" x 5.0" x 2" (84 x 127 x 48mm)
      Weight: 1.32lb (600g)
      Shipping Size: 4" x 3" x 6.5" ( 102 x 76 x 165mm)
      Shipping Weight:  1.85lb (840g)
      Conditions:  For use in dry locations only between 5°C and 40°C
      Warranty: Radial 3-year, transferable
