  • RA-SB-1

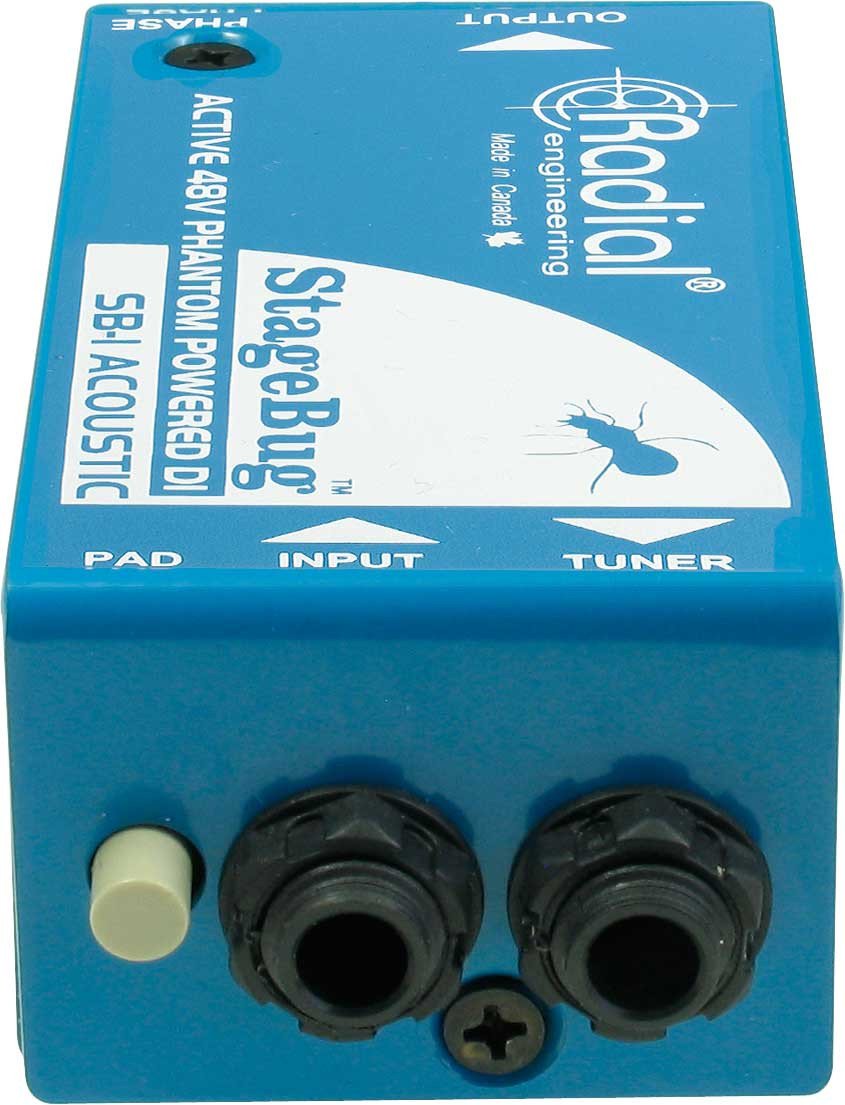

    Radial Engineering SB-1 Compact Active DI for acoustic guitar & bass

    7 In Stock

    The Radial SB-1 Acoustic is a high-performance active direct box made for players that are on the move. Made to fit inside a guitar case, the SB-1 is the smallest Radial DI box ever! But don't let the small size deter... this ultra-compact StageBug sounds absolutely terrific!

      • Radial SB-1 PRODUCT FEATURES:

        • Active direct box for acoustic guitar
        • Ultra compact to fit in your guitar case
        • Plug & play easy to use feature set
        • 48V phantom powered, no batteries needed!

        Audio circuit type:  Active Buffer with Phase Splitter
        Frequency response:  20Hz to 20KHz
        Total harmonic distortion:  <0.006%
        Dynamic range:  >100dB
        Input impedance:  800K/23K
        Maximum input:  +2dBu/+8dBu
        Gain:  +1.3dBu/+4.4dB
        Clip Level - Output  +3.3dBu/+12.3dBu
        Output impedance: 330 Ohms
        Equivalent input noise:  -101dBu
        Noise floor: -97dBu
        Intermodulation distortion: <0.01%
        Phase deviation: 25/12 degrees Maximum
        Switches:  Pad, Phase
        Merge function:  Automatic
        Input pad:  -12dB
        Polarity: Yes
        XLR configuration:  + = Pin 2, - = Pin 3, Ground = Pin 1
        Construction:  16 gauge steel chassis & outer shell
        Finish: Durable powder coat
        Size:  (L x W x D) 4.5" x 1,85" x 1.35" (114mm x 47mm x 34mm)
        Weight:  0.55 lbs (250 grams)
        Shipping Size: (L x W x D): 8" x 5" x 3" (203mm x 127mm x 76mm)
        Shipping weight: 0.8 lbs (365 grams)
        Power:  48V phantom power
        Conditions: For use in dry locations only between 5°C and 40°C
        Warranty:  Radial 3-year, transferable
        Specifications are subject to change without notice.
    Need more info on the Radial SB-1? Click HERE for the Radial website >>>
