Radial Engineering

RA-Sixpack

Radial SixPack 6-Slot 500 Series Rack

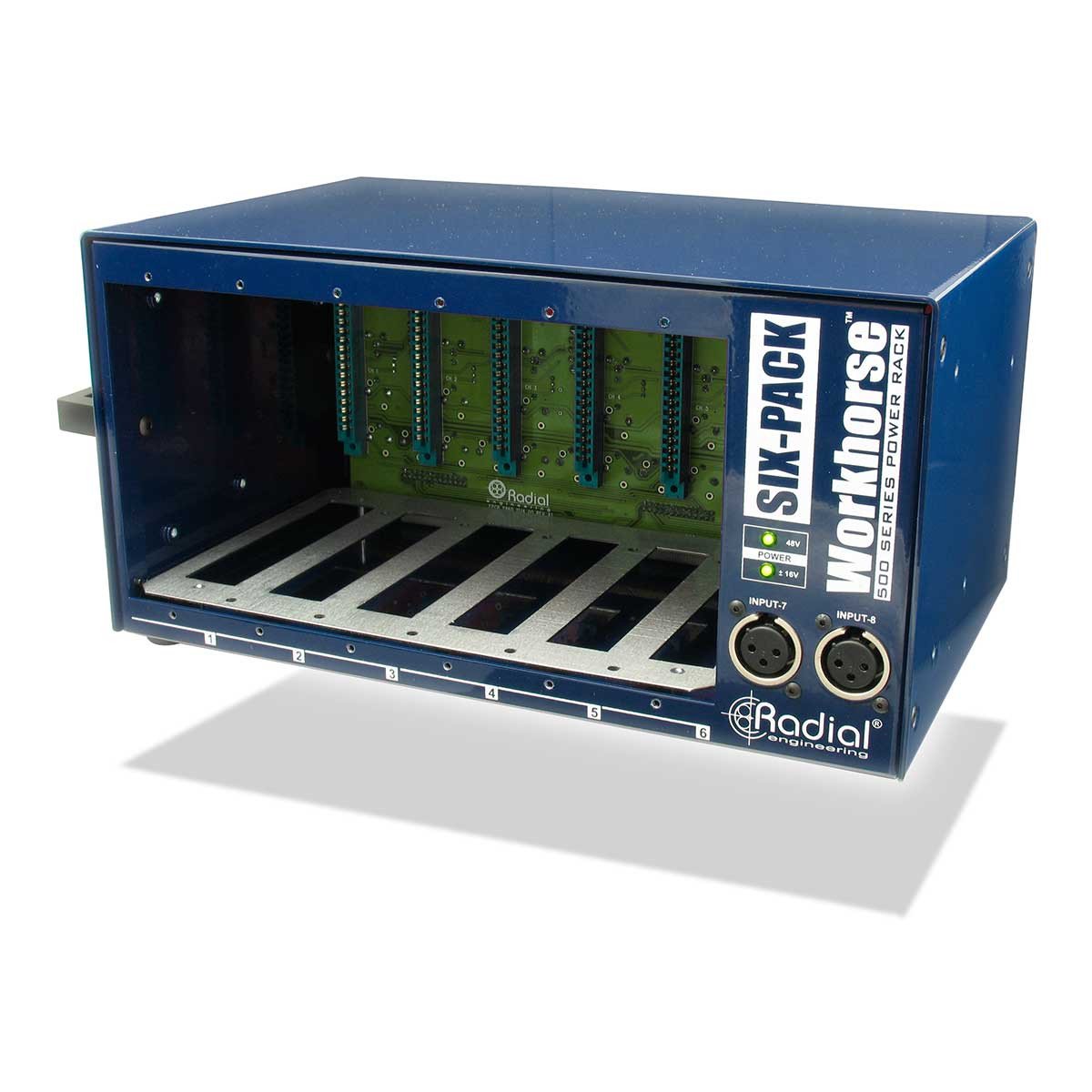

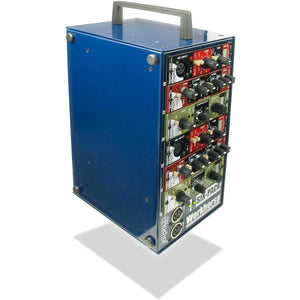

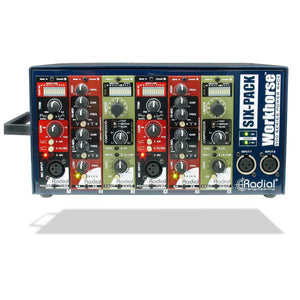

The SixPack is a desk-top power rack for 500 series modules that lets you mix and match up to six modules and safely power them to create a stereo channel strip or unique signal chain.


    • Radial SixPack PRODUCT FEATURES:

      The Radial SixPack is a 6 slot 500 series rack, intended to be used with all 500 series modules. The design follows the original specifications as developed by companies such as DBX and API while incorporating new features for added flexibility and connectivity. As the SixPack does not buffer or amplify the signal in any way, the specifications are essentially straight wire. Thus it does not introduce distortion or artifact, nor does it introduce any form of personality into the signal chain. As a power-rack, the SixPack is unmatched delivering more current per slot with more features than all others.

    • Radial SixPack TECHNICAL SPECIFICATIONS:

      Specifications
      Specifications are subject to change without notice.
      Circuit type: Connection buss from modules to connectors
      Format: Desk top
      Number of slots: 6

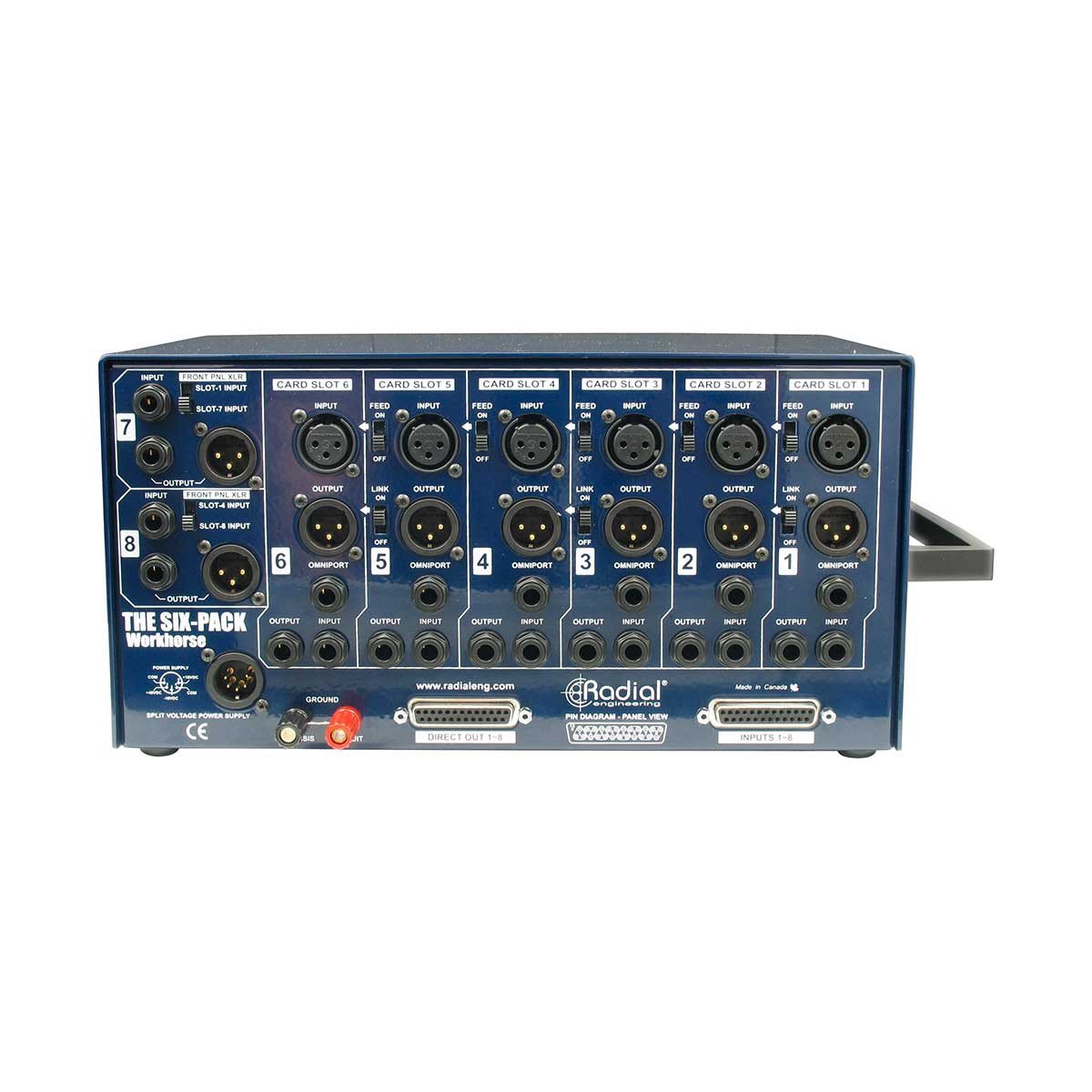

      Input connectors: 8 balanced XLR male, 8 ¼" TRS, 25-Pin D-Sub
      Output connectors: 8 balanced XLR female, 8 ¼" TRS, 25-Pin D-Sub
      Compatibility: Adheres to the Whos-Doc and VPR Alliance
      Functions
      Omniport: Yes
      Feed switch: Yes
      Stereo link: Yes
      48V phantom power: Yes on all channels
      Electrical
      Available current: 1600 milliamps
      Average current 266 mA per slot
      Card slot impedance: Module dependent
      Ground connections: Chassis
      XLR pin wiring: AES standard: pin-1 ground, pin-2 (+), pin-3 (-)
      D-Sub pin wiring: Follows Tascam D-Sub standard
      Power supply: External 100V - 240V AC with 48V Phantom
      PSU Connection: Locking 5 pin XLR female on cable
      Product Size (W x H x L) Coming soon
      Shipping Size (W x H x L) Coming soon
      Product Weight Coming soon
      Shipping Weight Coming soon
      Conditions: For use in dry locations only between 5°C and 40°C
      Warranty 3 Years, Transferable
    • Radial SixPack SYSTEM REQUIREMENTS:

      Modules are required to meet the API 500 series spec to ensure compatibility
