Radial Engineering

RA-SpaceHeater

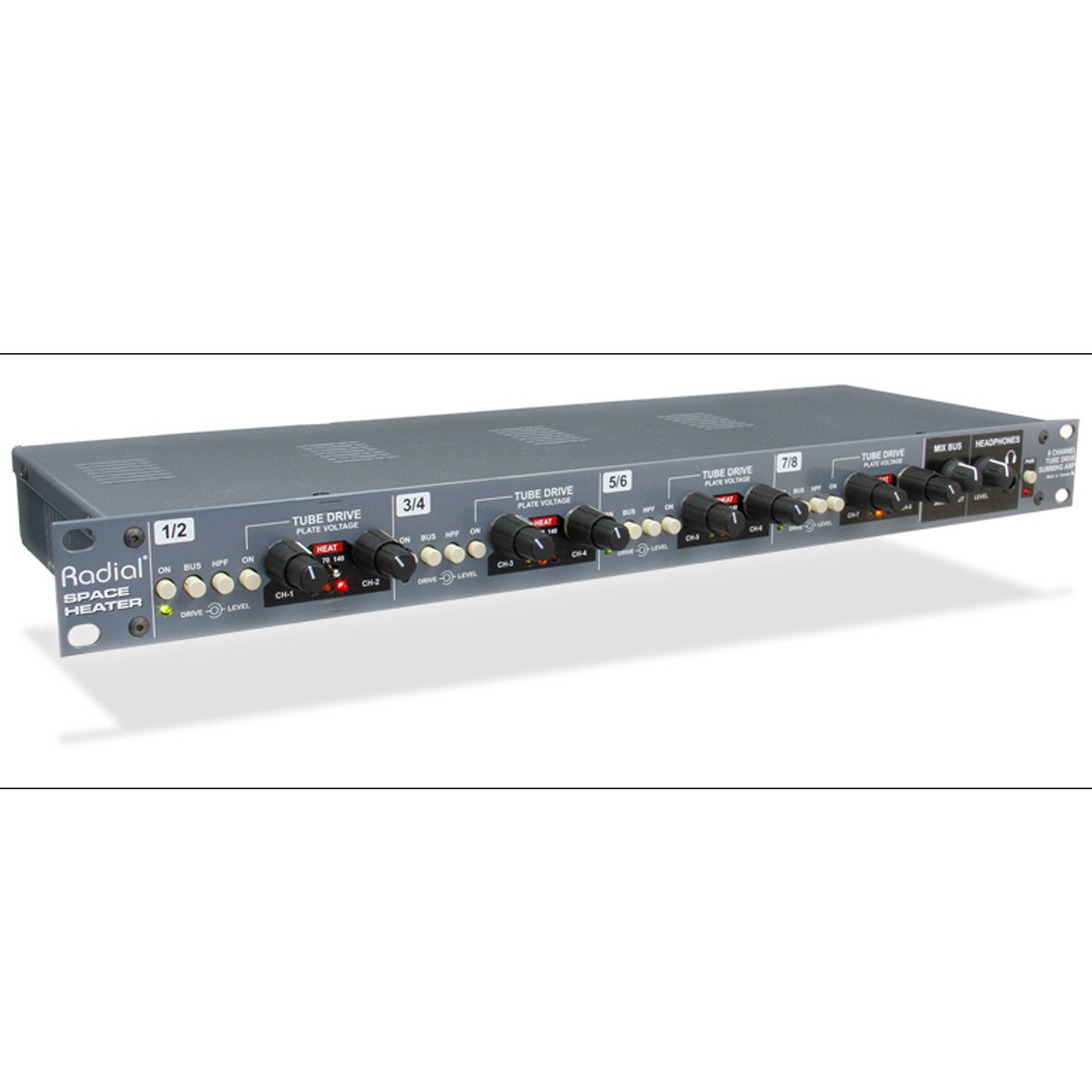

Radial Space Heater Analog Summing Mixer & Tube Drive

The Radial Space Heater is an analog summing mixer and studio grade 12AX7 tube overdrive can be run clean or dirty! The Space Heater is a versatile piece of kit, with features and routing capabilities that allow it to be used in a number of ways. For example, the Heat setting (plate voltage for the tube) as well as the position of the Drive and Level controls will all have an impact on the overall sonic outcome. Get ‘spaced out’ with the Radial Space Heater!


    • Radial Space Heater PRODUCT FEATURES:

      • 8-channel 12AX7 tube overdrive with summing mixer
      • 35, 70 and 140 volt Heat switch
      • Channel outputs allow for use on single tracks
      • Transformer coupled outputs for vintage tone

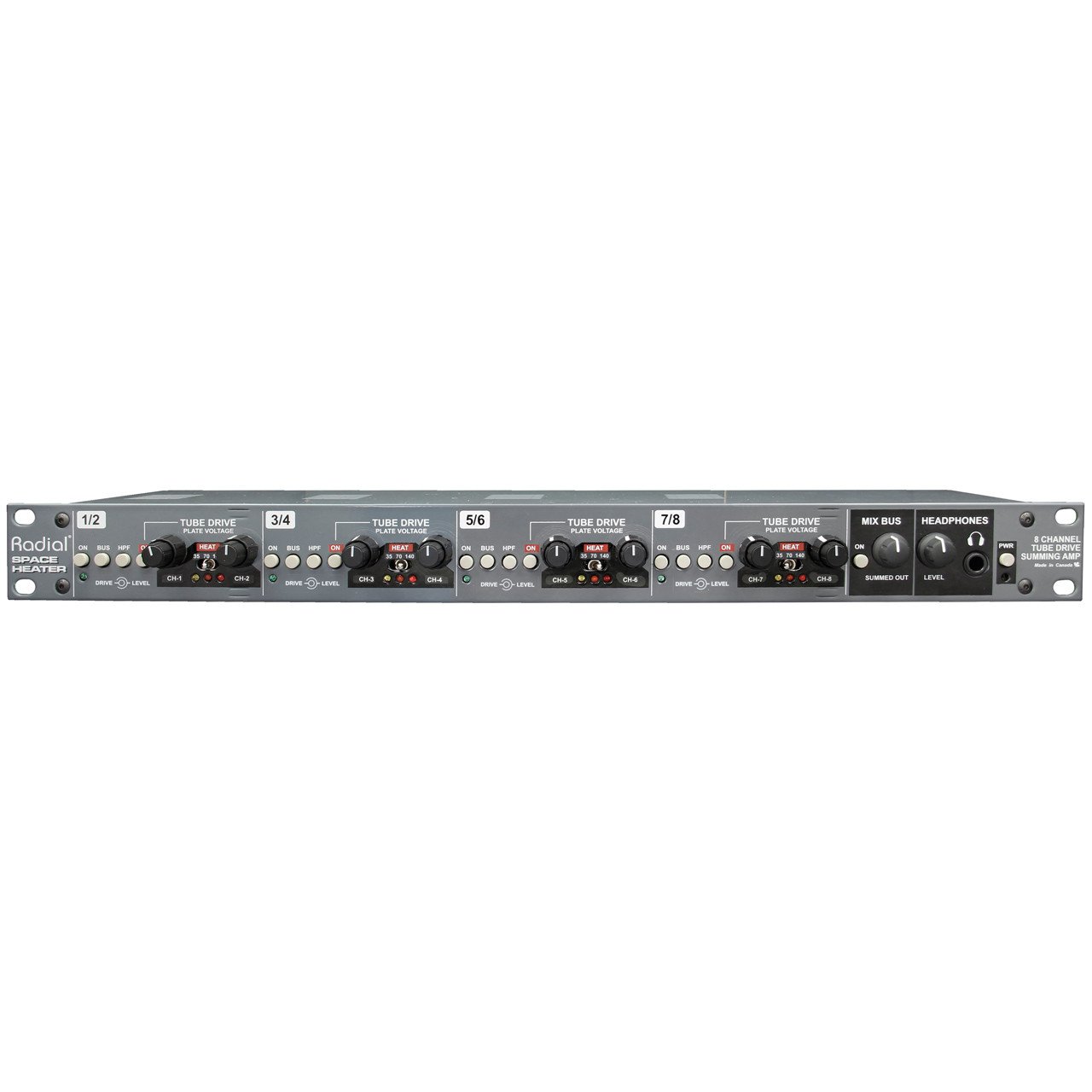

      The Radial Space Heater is a single space 8-channel tube overdrive that can be used as a stereo summing mixer or as multi-channel studio distortion. Connect it to your digital interface to sum tracks in the analog domain, or use it as a hardware insert to add character to individual channels. With complete control over each tube circuit, the Space Heater can provide everything from subtle transformer warmth to full on harmonic distortion.

      The design begins with eight +4dBu balanced line level inputs that feed four 12AX7 tubes wired in stereo. A heat switch on each channel lets you apply between 35, 70 or 140 volts to the tube to modify the performance. When set to a lower voltage; it starves the tube, increasing distortion producing filthy layers of grit. When the voltage is set to maximum; the signal cleans up resulting in natural tube warmth with wonderful harmonic overtones. Separate DRIVE and LEVEL controls let you fine-tune the settings on each channel to increase or decrease distortion to suit. Each of the eight outputs is equipped with an oversized output transformer for beefy character while providing galvanic isolation to eliminate noise. You can also bypass the tube circuit and drive the transformer on its own to produce a vintage feel that is reminiscent of the finest audio designs from yesteryears.

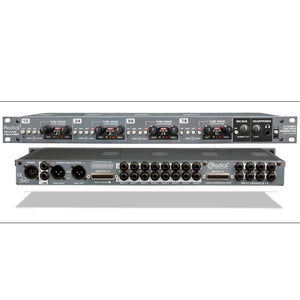

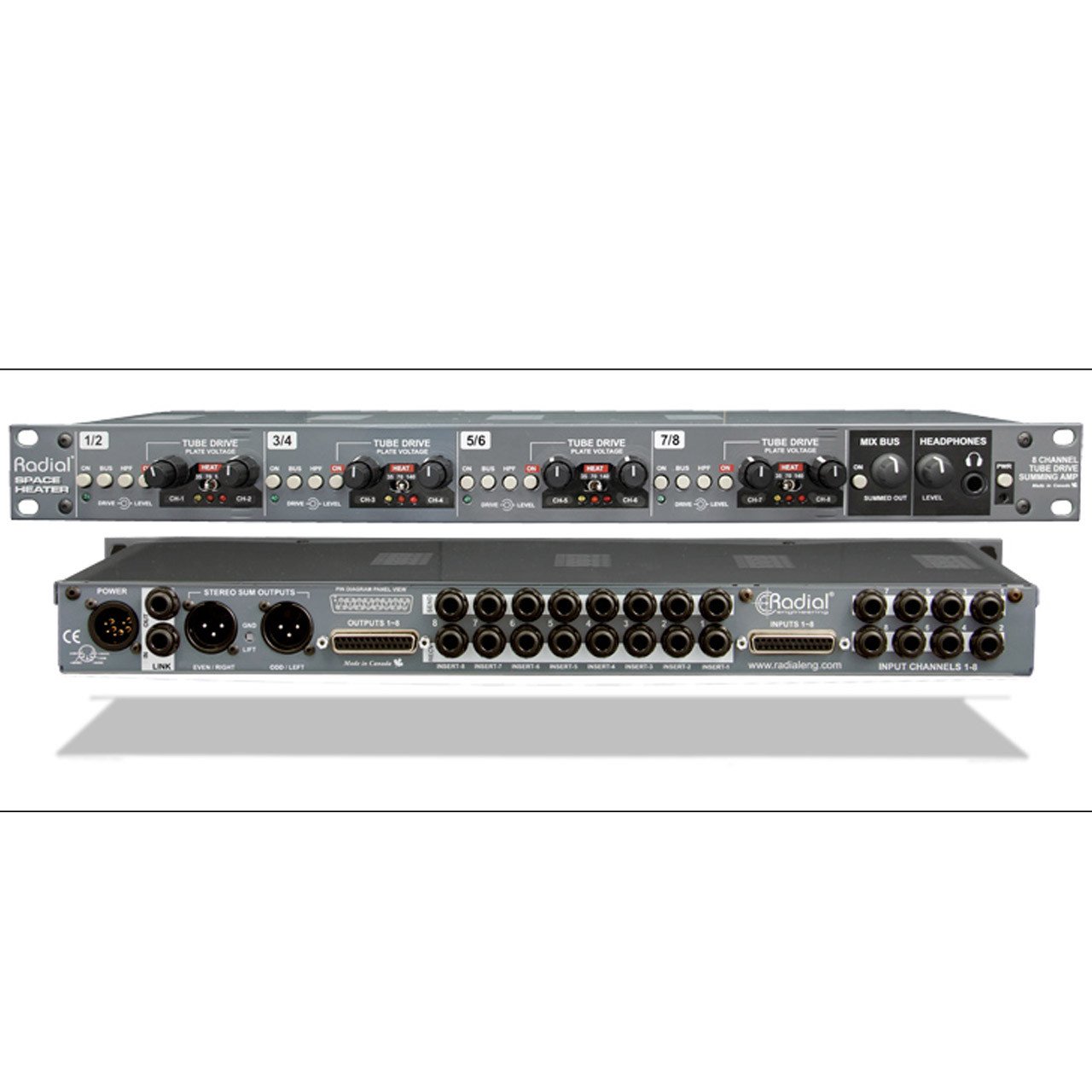

      Connections to and from the Space Heater include ¼" TRS and 25-pin D-Sub balanced inputs, balanced ¼" TRS send and receive insert points, and an 8-channel balanced D-Sub output. The send jacks or the D-subs can be used to process individual instruments, enhance a sterile vocal track, add 'grind' to a bass track or 'sparkle' to an acoustic guitar. Used as four stereo pairs, the Space Heater can be used to fatten stereo stems or with in-ear monitor systems to add natural tube compression to create a more enjoyable on-stage experience. All eight channels can be sent to the master left-right XLR outputs for stereo summing with odd channels routed left and even channels routed right. This set up is often used to add crunch to drum kits or for traditional analog (out-of-the-box) summing and can be expanded using the link connectors for 16, 24 or 32 x2 summing requirements. This is supplemented with high-pass filters on each channel that help clean up tracks by removing excessive low frequency resonance.

      The Space Heater… a character box with an attitude you will love!
    • Radial Space Heater TECHNICAL SPECIFICATIONS:

      Specifications

      Circuit type:

      Class A tube gain stage with IC buffers

      Frequency response:

      20Hz – 20Khz, +0/-3dB

      Total harmonic distortion:

      Variable

      Dynamic range:

      96dB

      Input impedance – bypassed:

      50kΩ in parallel with your load device

      Input impedance – active:

      100kΩ

      Maximum input:

      +22dBu

      Gain:

      +33dB@140V, +29db@70V, +27dB@35V

      Gain - mix bus:

      6dB above individual channel output

      Bypasss:

      Full bypass

      Clip level - output:

      +26dBu

      Output impedance - balanced outputs:

      180Ω

      Output impedance - headphone out:

      15Ω

      Output impedance - mix bus out:

      100Ω

      Common mode rejection:

      -70dBu @ 55Hz

      Equivalent input noise:

      103dBu

      Noise floor - maximum gain:

      -64dBu@140V, -66dBu@70V, -70dBu@35V

      Noise floor - controls at 50%:

      -70dBu@140Hz, -72dBu@70V, -76dBu@35V

      Intermodulation distortion:

      Variable

      Unity gain control setting:

      Drive and Gain at "11 o'clock"

      Features

      Number of channels:

      Eight channels

      Input connectors:

      ¼" TRS, DB-25

      Output connectors:

      DB-25

      Insert Connectors:

      8 x ¼" TRS Send, 8 x ¼" Receive

      Mix bus output:

      XLR

      Low pass filter:

      -5dB @ 40Hz, 6dB/Octave slope

      XLR configuration:

      Pin 2 +, Pin 3 -, Pin 1 GND

      General

      Power supply (included):

      External switching type 100V – 240V AC, 1600mA output with 5 pin XLR

      Construction:

      14 gauge steel chassis and outer shell

      Finish:

      Durable powder coat

      Size: (L x W x D)

      17.5" x 6" x 1.75" (44.5 x15.25 x 1.75cm)

      Weight:

      8.5 lbs (3.8kg)

      Shipping size: (L x W x D):

      22" x 11" x 5" (55.9 x 27.9 x 12.7cm)

      Shipping weight:

      9.5 lbs (4.3kg)

      Conditions:

      For use in dry locations only between 5°C and 40°C

      Warranty:

      Radial 3-year, transferable

      Specifications are subject to change without notice.
