Radial Engineering

RA-SB-6

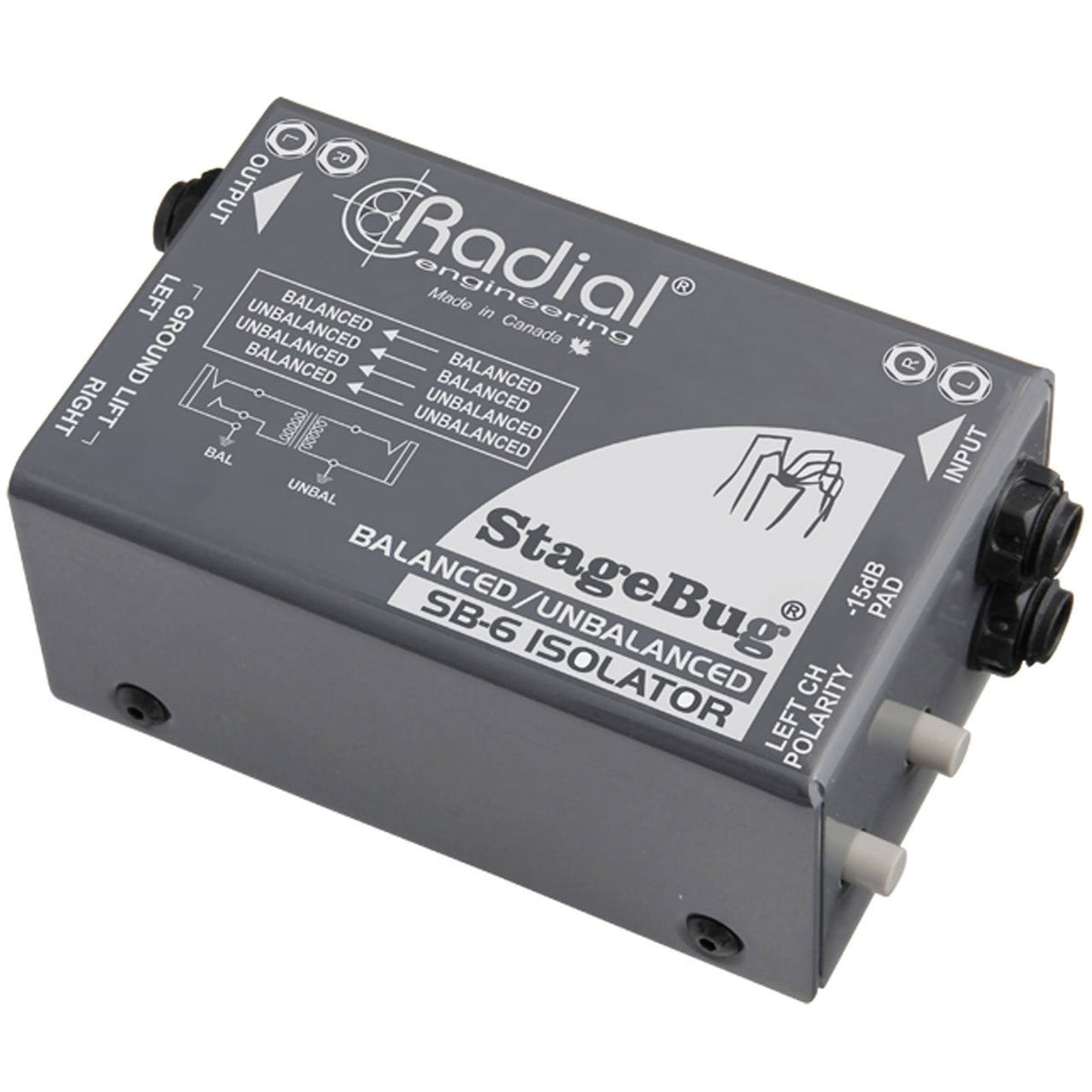

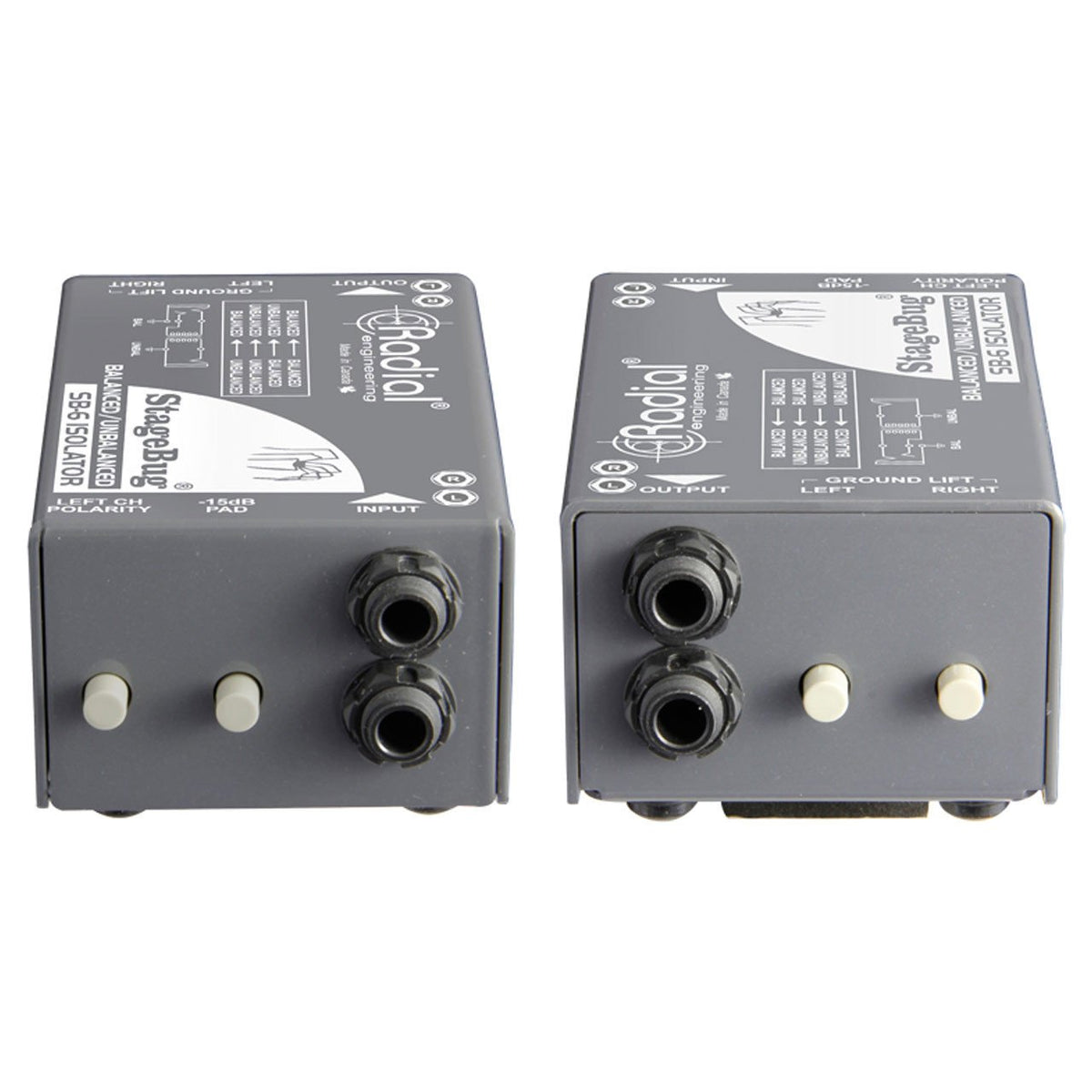

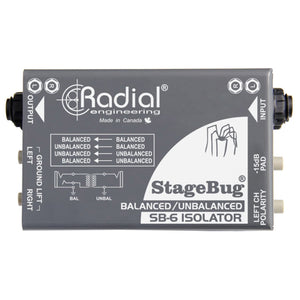

Radial StageBug SB-6 2-channel Passive Audio Isolator


Please contact me with information about availability and pricing for Radial StageBug SB-6 2-channel Passive Audio Isolator




The Radial StageBug SB-6 is a high-quality 2-channel passive audio isolator that effectively eliminates noise from both balanced and unbalanced signals.  The StageBug SB-6 can be used with instruments, consumer electronics and professional line-level devices.  The design of the SB-6 starts with ¼" TRS inputs and outputs to accommodate both TRS and mono connectors. The unique circuit retains the balanced signals or automatically converts them from hi-Z to lo-Z (¼" mono to TRS) or lo-Z to hi-Z (1/4"TRS to mono) depending on the connector in use. All you need to do is connect and the SB-6 does the hard work for you!


    • RADIAL STAGEBUG SB-6 PRODUCT FEATURES

      Inside are two ultra-linear Eclipse transformers that sound great as they deliver ruler flat performance from 20Hz to 20kHz. This is augmented with a -10dB input pad to handle extra loud source devices and a polarity reverse on output B for phase aligning stereo signals. As the circuit is passive, no power is required – simply plug in and play. As with all Radial products, the SB-6 is made in Canada and features 16 gauge steel construction for use on the road and finished in a durable powder coat finish.

      These features combine to make the SB-6 Isolator a wonderful solution to help rid system noise in two channel audio systems, stereo guitar racks and pedalboards.

      • Isolator for balanced and unbalanced signals
      • Eliminates hum and buzz caused by ground loops
      • Exceptionally linear from 20Hz to 20kHz
      • Automatically configures for hi-Z or lo-Z signal chains
    • RADIAL STAGEBUG SB-6 TECHNICAL SPECIFICATIONS

      Specifications

      Audio circuit type:

      Passive Transformers

      Frequency response:

      20Hz-20KHz +/-1db

      Dynamic range:

      >140db

      Maximum input:

      >+25dBu

      Gain:

      -2dB

      Total harmonic distortion:

      <0.0008% @ 1kHz

      Phase deviation:

      >5° @ 30Hz

      Input impedance:

      Varies with Load/47K

      Output impedance:

      600Ω

      Features

      Transformer:

      Eclipse Custom

      Input pad:

       -15dB

      Polarity:

      180deg reverse

      Ground lift:

       Disconnects TRS sleeve at output

      Input connector:

      1/4" TRS phone

      Output connectors:

      1/4" TRS phone

      General

      Construction:

      14 gauge steel chassis & outer shell

      Finish:

      Durable powder coat

      Size: (L x W x D)

      4.5" x 1,85" x 1.35" (114mm x 47mm x 34mm)

      Weight:

      0.9 lbs (408 grams)

      Shipping size: (L x W x D):

      8" x 5" x 3" (203mm x 127mm x 76mm)

      Shipping weight:

      1.0 lbs (453 grams)

      Power:

      Passive, no power required

      Conditions:

      For use in dry locations only between 5°C and 40°C

      Warranty:

      Radial 3-year, transferable

      Specifications are subject to change without notice.
