Radial Engineering

RA-X-Amp

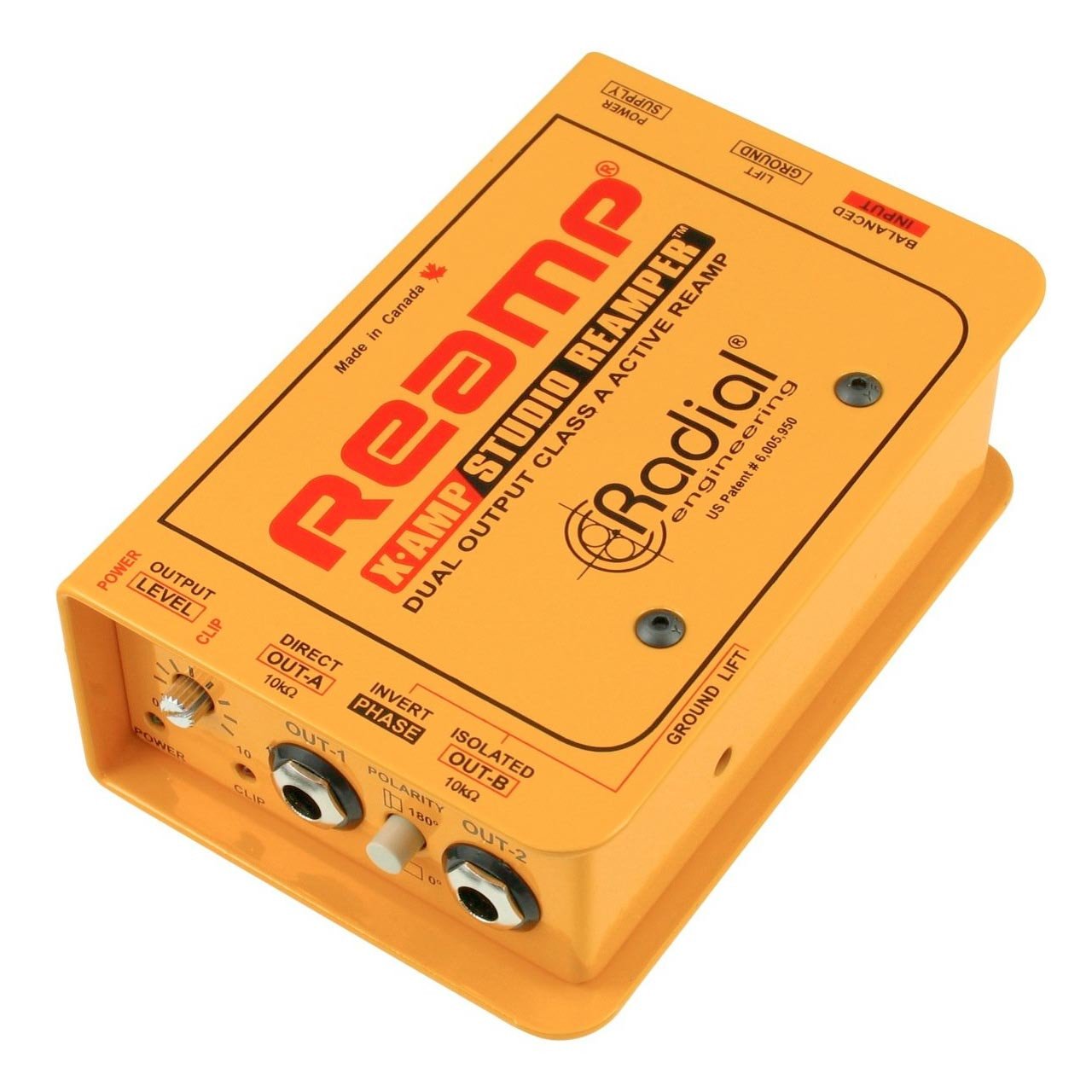

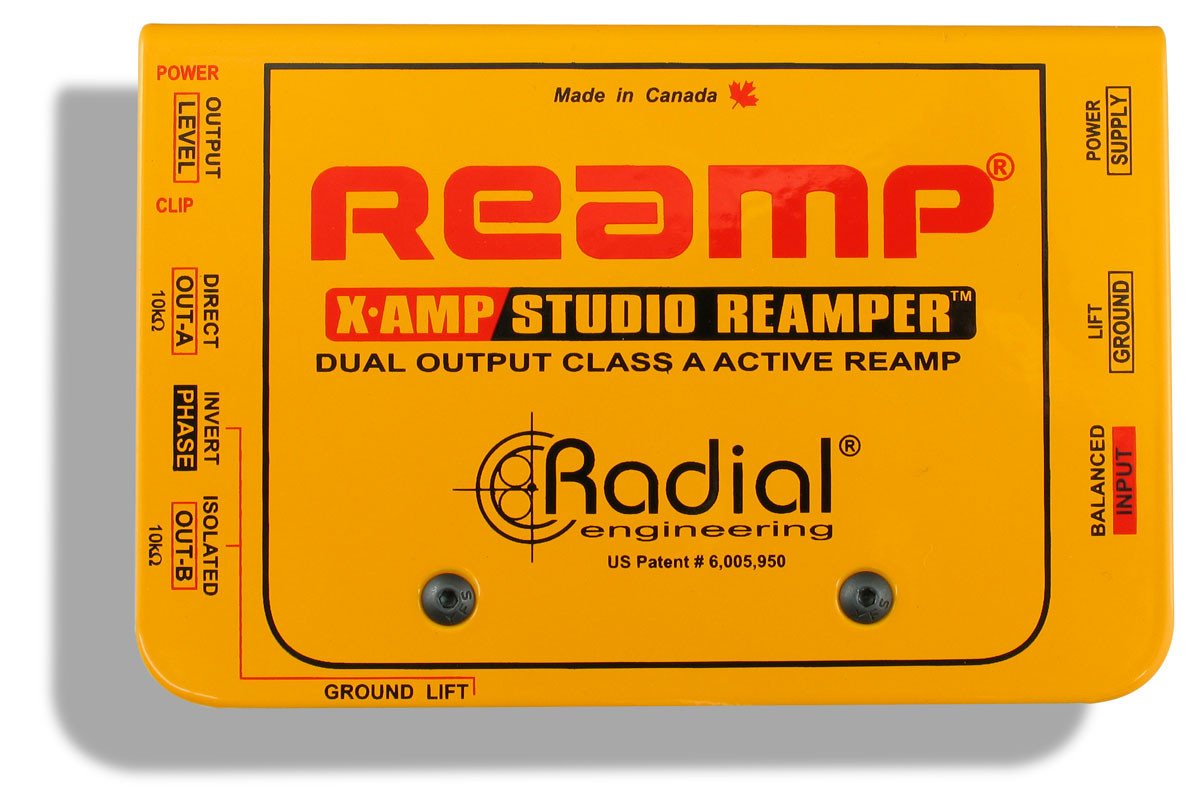

Radial X-Amp Active Reamper

The Radial X-Amp is an active Reamper™ that allows the engineer to play a pre-recorded track back through guitar amplifiers and pedals. This opens the door to explore new musical sounds and spur on the creative process so that your recording stands out.


    • Radial X-Amp PRODUCT FEATURES:

      • Active Reamp® device with two outputs
      • Uses a100% discrete class-A signal path
      • Transformer isolated to eliminate noise
      • Variable 'set & forget' level control

    • Radial X-Amp TECHNICAL SPECIFICATIONS:

      Specifications
      Specifications are subject to change without notice.
      Audio circuit type: 100% discrete class-A
      Frequency response: 20Hz ~ 15kHz (± 1.0dB)
      Signal to noise ratio: 88dB below instrument level (-20dBu)
      Dynamic range: 119dB
      Noise floor: OUT-1 -110dB; OUT-2 -108dBu
      Maximum input: +22dBu
      Total harmonic distortion: 0.02% @ -15dBu
      Inter-modulation distortion: 0.02% @ -20dBu
      Input impedance: 600Ω
      Features

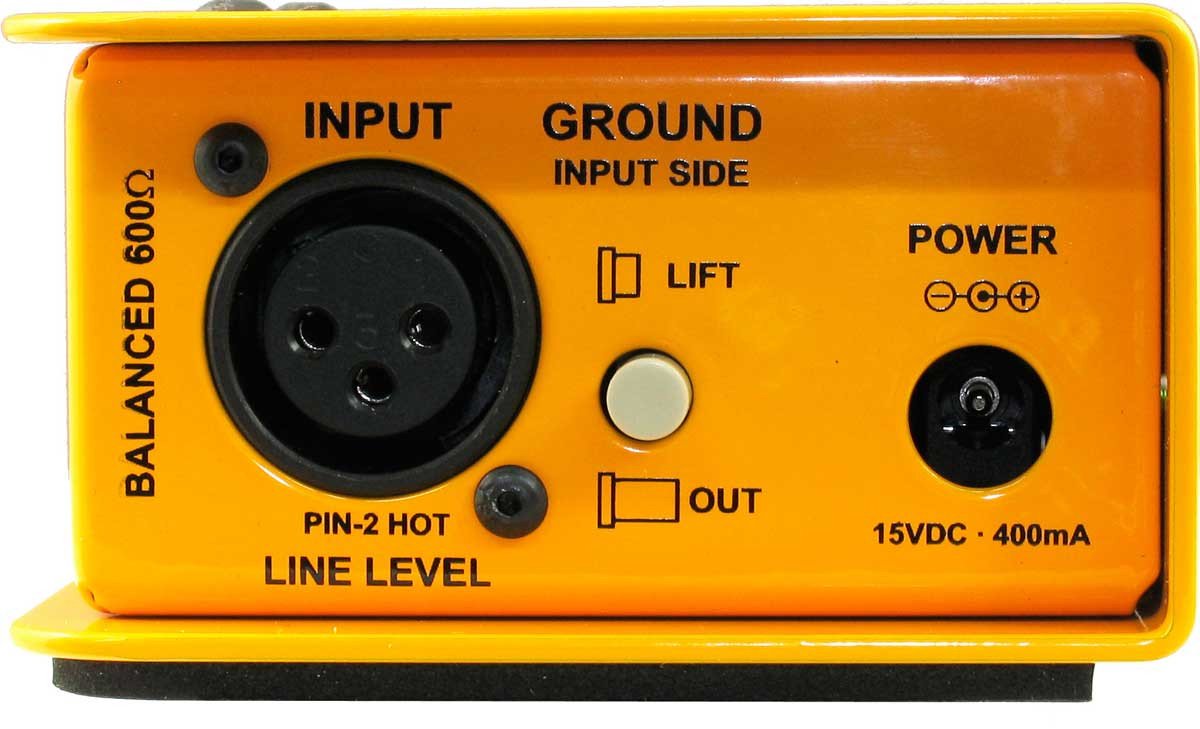

      XLR input: Balanced line-level, AES standard (pin-2 hot)
      Ground lift (input): Disconnects pin-1 at the XLR input

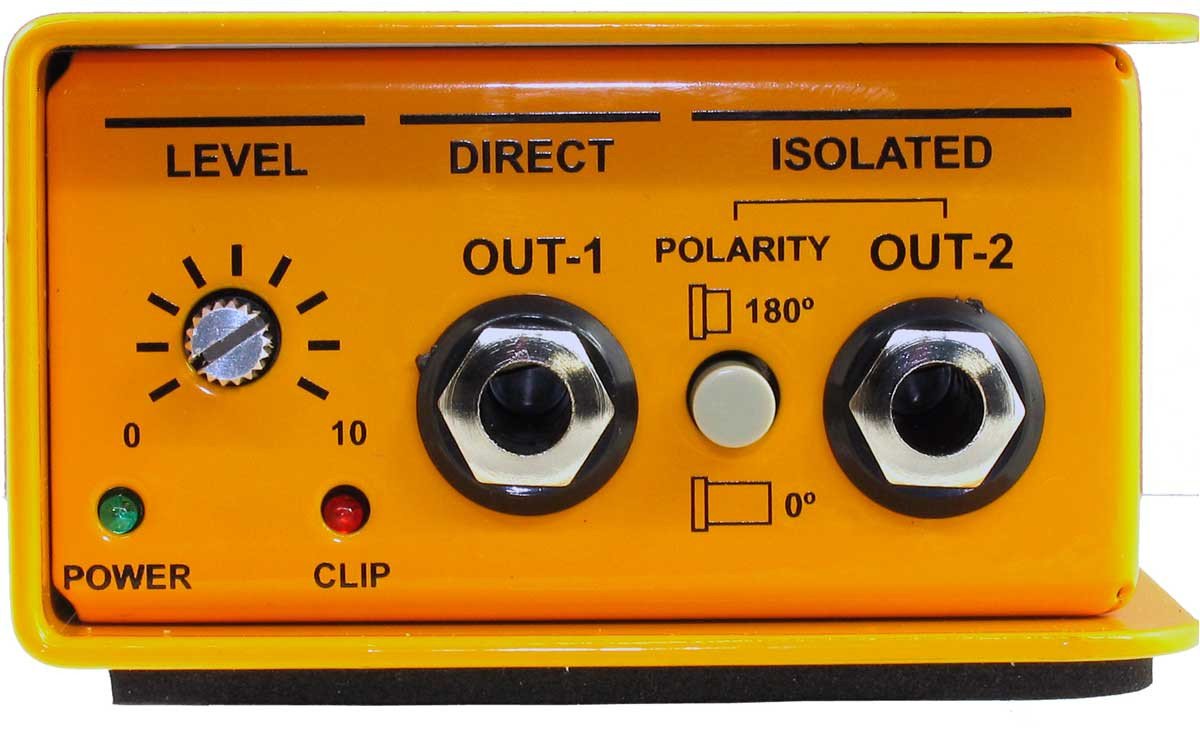

      Output level: Adjustable
      Output type: Out-1 direct, Out-2 isolated
      Polarity: 180º polarity reverse on output-2
      General
      Power: +15VDC/400mA adapter included
      Construction: 14 gauge steel chassis & outer shell
      Finish: Durable powder coat
      Size: 3.3" x 5.0" x 2" (84 x 127 x 48mm)
      Weight: 1.55lb (720g)
      Shipping Size: 5" x 2.75" x 10.75" (127 x 70 x 273mm)
      Shipping Weight:  2.6lb (1.18kg)
      Conditions: For use in dry locations only between 5°C and 40°C
      Warranty: Radial 3-year,transferable
Need more info on the Radial X-Amp? Click HERE for the manufacturer's website >>>
