Royer Labs

SF12

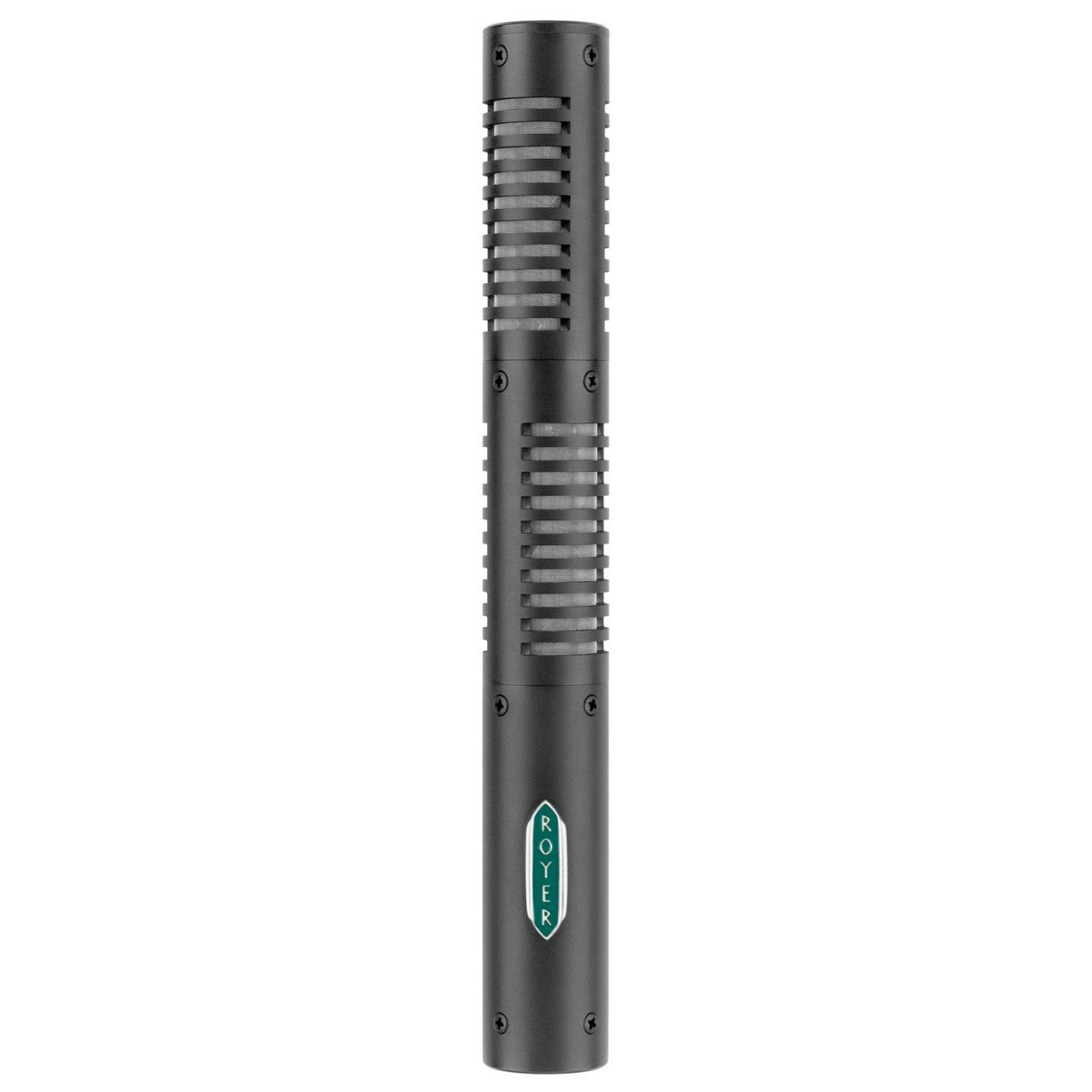

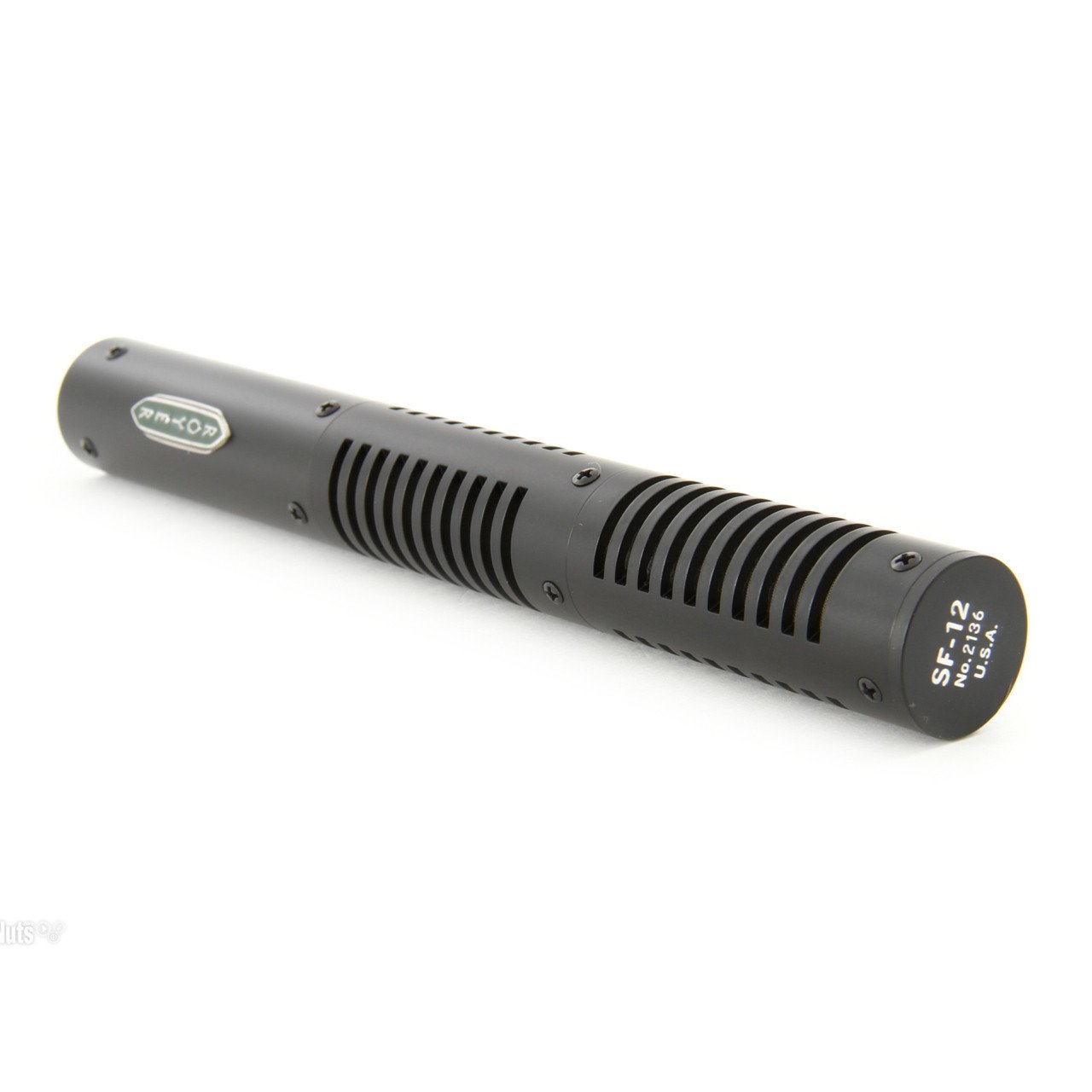

Royer Labs SF-12 Stereo Ribbon Microphone

The Royer SF-12 is a stereo ribbon microphone of the highest quality found in professional studios the world over. The SF-12 is commonly used for recording film scores and orchestral ensembles. Of key importance to the design of the SF-12, is that it incorporates 2 x matched ribbon microphones aligned on top of each other in a Blumlien stereo configuration. The SF-12 includes a Y cable, splitting into 2 x XLR three pin connectors for patching into a mic-preamp. The Royer SF-12 has an exceptionally detailed sound, with superb transient response. Be sure to check out some recordings on Royer Labs website.

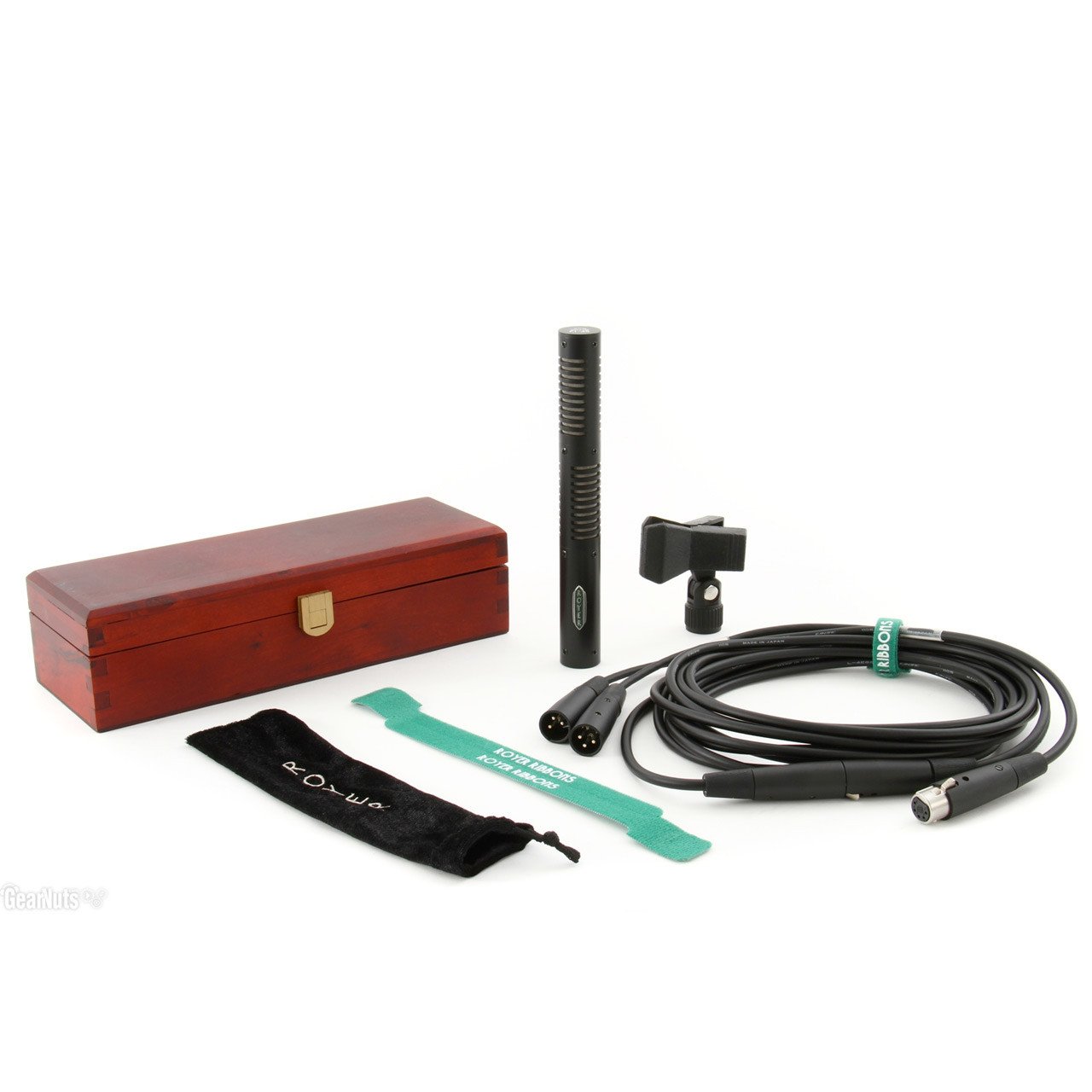

    • Royer Labs SF-12 Features:

      True stereophonic (Blumlein and M-S) recording from one microphone.
      High SPL capabilities.
      No internal active electronics to overload or produce distortion up to maximum SPL rating.
      Extremely low residual noise.
      Ribbon element not affected by heat or humidity.
      Absence of high frequency phase distortion.
      Equal sensitivity from front or back of elements.
      Consistent frequency response regardless of distance.
      High efficiency, matching toroidal transformers.
      Very low magnetic leakage.

      Applications:
      Drum Overheads
      Percussion Instruments
      Brass and Woodwinds
      Horn Sections
      Acoustic Piano
      Harp
      Choirs
      Solo Strings
      String Sections
      Orchestra
      Acoustic & Electric Guitars
      Background Vocals
      Ambiance
      Stereo to Mono

      Recording in Mono:
      Phase compatibility between the two sides of the SF-12 is excellent, allowing you to combine the two channels for mono recording without creating phase artifacts. This is particularly useful when capturing a wide sound field in mono; for instance, a singer who tends to move off the “sweet spot” of a mono microphone. Either side of the SF-12 can also be used individually as a mono microphone.
    • Royer Labs SF-12 Specifications:

      Acoustic Operating Principle: Electrodynamic pressure gradient
      Polar Pattern: Symmetrical figure-8
      Generating Element: 1.8-micron aluminum ribbon
      Frequency Response: 30-15,000 Hz +/- 3dB
      Sensitivity: > -52 dBv Re. 1v/pa
      Output Impedance: 300 Ohms @ 1K (nominal)
      Rated Load Impedance: >1500 Ohms @ 300 nominal impedance
      Maximum SPL: >130dB
      Output Connector: Male XLR 5 pin (stereo*)
      Dimensions: 206 mm L X 25 mm W (8" L X 1" W)
      Weight: 369 Grams (13 Oz)
      Finish: Matte Black Chrome, Dull Satin Nickel (optional)
Need more info on the Royer Labs SF-12?
