Royer Labs

SF24

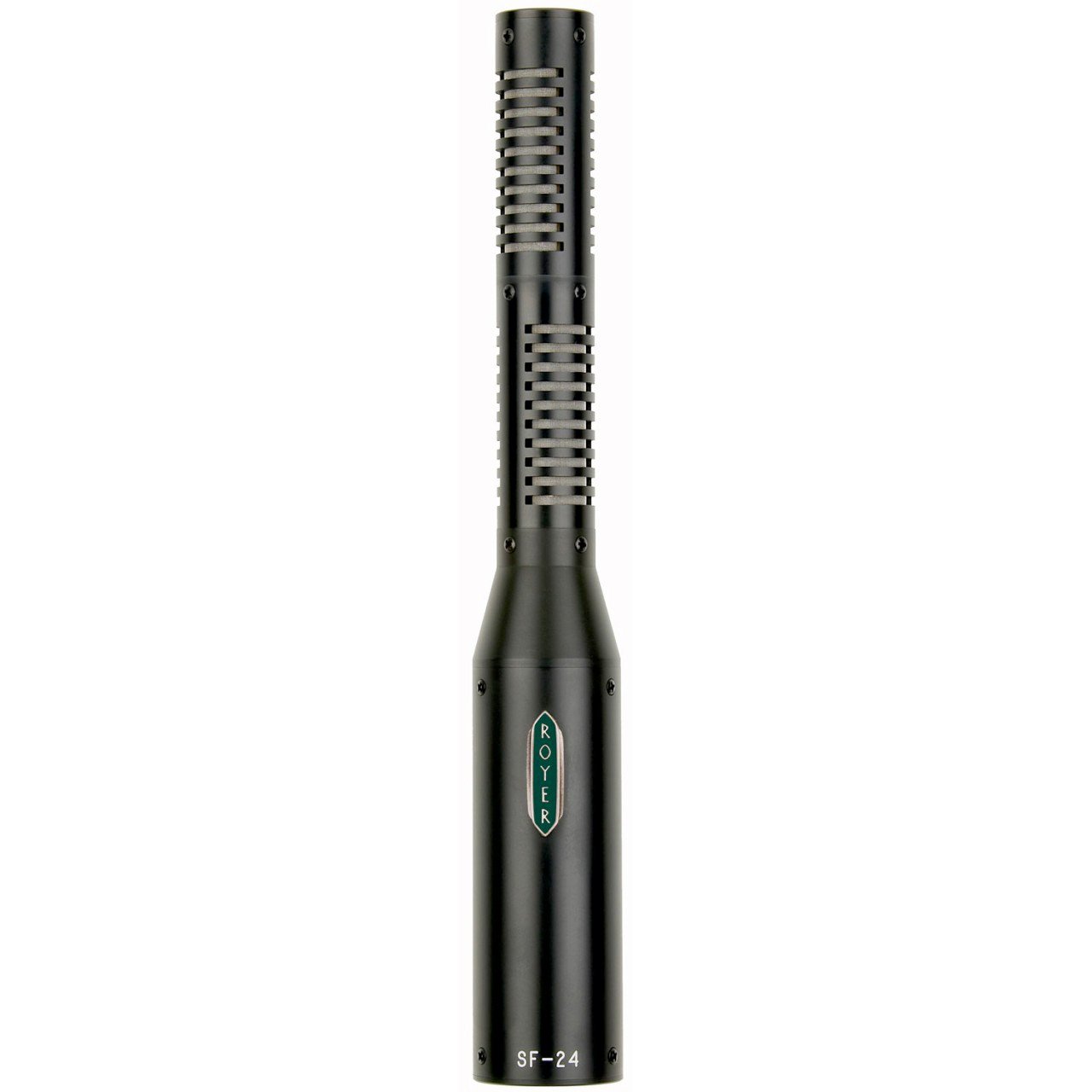

Royer Labs SF-24 Stereo Active Ribbon Microphone

The Royer SF-24 is a stereo active ribbon microphone. It is the powered version of the Royer Labs SF-12 - combining the brilliant stereo image and transient response of the SF-12 microphones, with Royer Labs’ exclusive powering system. The SF-24 has a 14dB better sensitivity as a result, making it on par with condenser microphones in terms of output. This opens up many more options for suitable microphone pre-amps. The Royer SF-24 has 2 x ribbon microphones that are aligned in a Blumlein stereo miking configuration.


    • Royer Labs SF-24 Features:

      Phantom powered circuitry provides high output and impedance matching
      True stereophonic (Blumlein and M-S) recording from one microphone
      High SPL capabilities
      No distortion up to maximum SPL rating<
      Extremely low residual noise
      Ribbon elements are not affected by heat or humidity
      Absence of high frequency phase distortion
      Equal sensitivity from front or back of elements
      Consistent frequency response regardless of distance
      High efficiency, matching toroidal transformers
      Very low magnetic leakage

      Applications:
      Drum Overheads
      Percussion Instruments
      Brass and Woodwinds
      Acoustic Piano
      Harp
      Choirs
      Solo Strings
      String Sections
      Orchestra
      Acoustic & Electric Guitars
      Vocal Groups
      Ambiance
      Stereo to Mono

      Recording in Mono:
      Phase compatibility between the two sides of the SF-24 is excellent, allowing you to combine the two channels for mono recording without creating phase artifacts. This is particularly useful when capturing a wide sound field in mono; for instance, a singer who tends to move off the “sweet spot” of a mono microphone. Either side of the SF-24 can also be used individually as a mono microphone.
    • Royer Labs SF-24 Specifications:

      Acoustic Operating Principle: Electrodynamic pressure gradient with active electronics
      Polar Pattern: Crossed figure-8's
      Generating Element: 1.8-micron aluminum ribbon
      Frequency Response: 40-15,000 Hz +/- 2dB
      Sensitivity: -38 dB (re. 1v/pa +/-1dB)
      Self-Noise: < 18 dB
      Output Impedance: 200 Ohms
      Rated Load Impedance: 1K-Ohm
      Maximum SPL: >130dB
      Output Connector: Male XLR 5 pin (stereo*)
      Power Requirements: 48-Volt Phantom Only
      Supply Current: 4 mA per channel
      Dimensions: 270mm X 39mm (base) X 25mm (top) (10 5/8" X 1.5" X 1")
      Weight: 583 grams (20.5 oz)
      Finish: Optical Black, 18K Gold (optional)
Need more info on the Royer Labs SF-24?
