  • 29/SM10

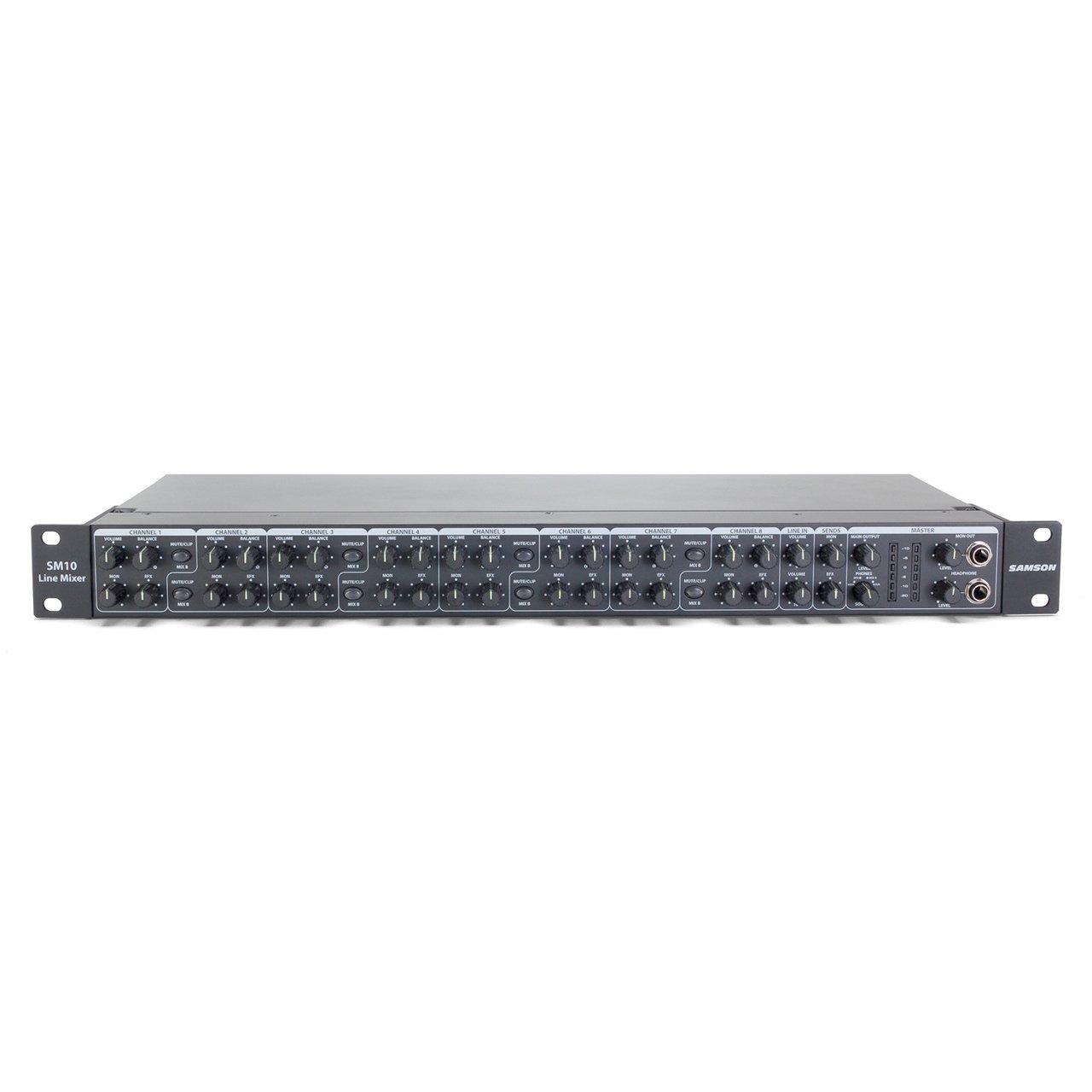

    Samson SM10 - 10-Channel Line Mixer

    5 In Stock

    The Samson SM10 is a versatile line-level mixer, offering 10 x stereo inputs. Channels 1 and 2 each have an XLR connector that can be used as a mic/line input, whilst channels 3-10 are over TRS jacks. Each channel can be set to +4 or -10 dBV. The SM10 also has a range of routing options. You can output your mix via the main outputs, mix B, monitor outputs and EFX bus outputs. The front panel has LED metering and a headphone amp too.


      • Samson SM10 PRODUCT FEATURES:

        The SM10 features ten channels with 1/4" stereo line inputs and a balance control for each channel. Two channels include XLR mic inputs. This allows you to blend the relative levels of stereo inputs to your liking. In addition, each channel includes a switch for +4 dBu or -10 dBV line level input.

        For output, the SM10 provides electronically balanced main stereo XLR and 1/4" line outputs. The SM10 provides versatile signal routing via Main Mix, Mix B, Monitor and EFX bus outputs, as well as low noise and discrete microphone pre-amplifiers with 48-volt phantom power.

        Two auxiliary sends can also be used to route signals to external effects, or create a separate mix for on-stage monitors. The SM10 features front panel headphone and monitor outputs with dedicated level controls. The mix may be audited with the SM10's 6-segment LED meter and a flexible meter/headphone source control.
      • Samson SM10 TECHNICAL SPECIFICATIONS:

        Ten channels (eight 1/4" stereo line inputs, two combination XLR-1/4" inputs)
        Balance control for each channel
        Switchable +4 dBu or -10 dBV line input level

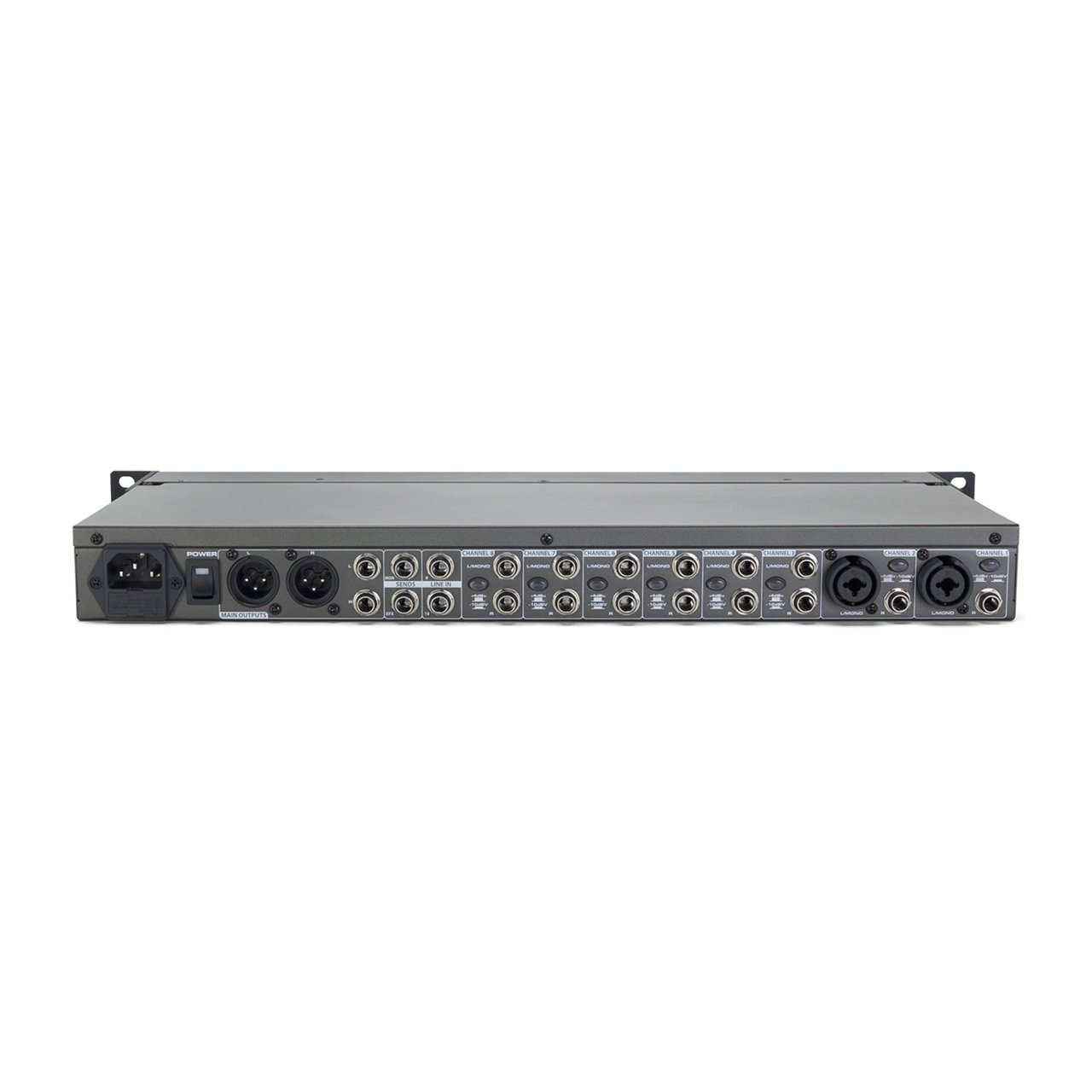

        Balanced main stereo XLR and 1/4" line outputs
        Versatile signal routing
        Low noise, discrete microphone pre-amplifiers with 48-volt phantom power
        Two auxiliary sends
        Front-panel headphone and monitor outputs with level controls
        Flexible 6-segment LED meter/headphone source control
        Center detents for all controls for use in low light situations
        Single 19" rackmount metal chassis with internal power supply
    Need more info on the Samson SM10? Click HERE for the manufacturer's website >>>
