New

sE Electronics

SEEL_DM1

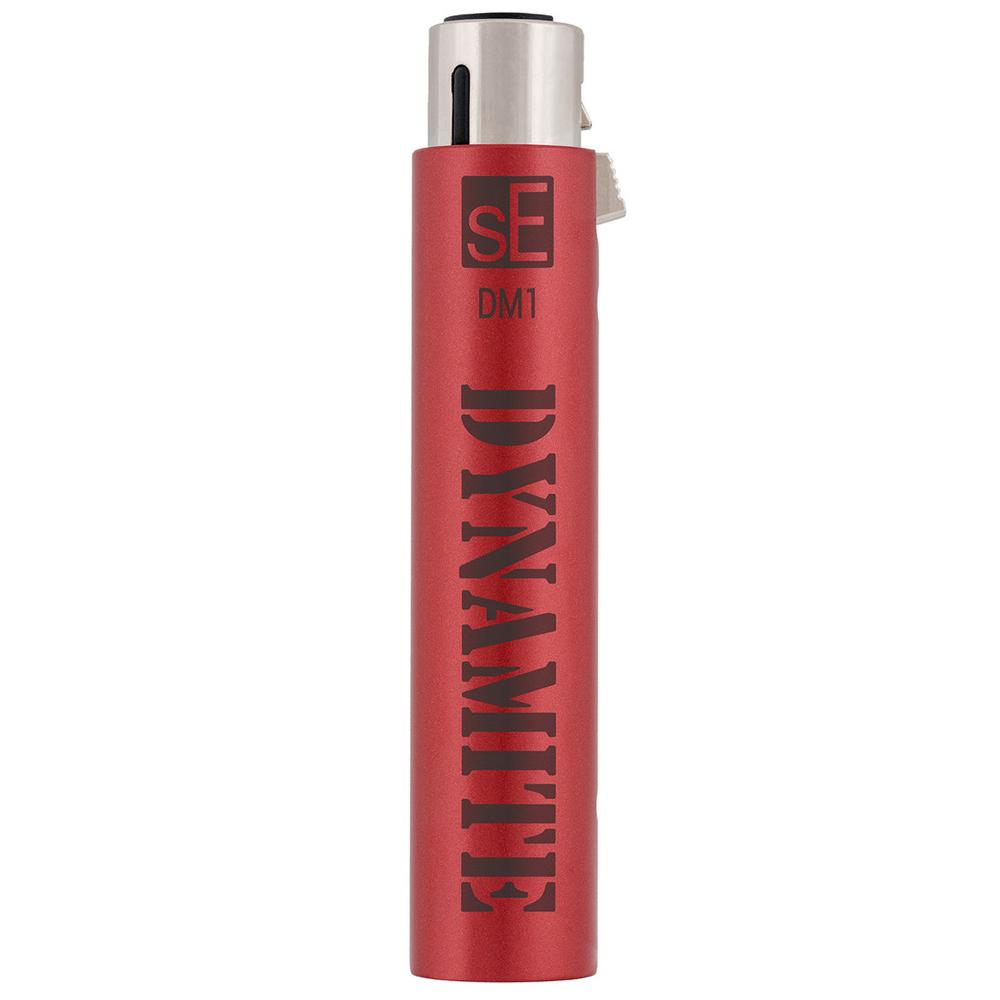

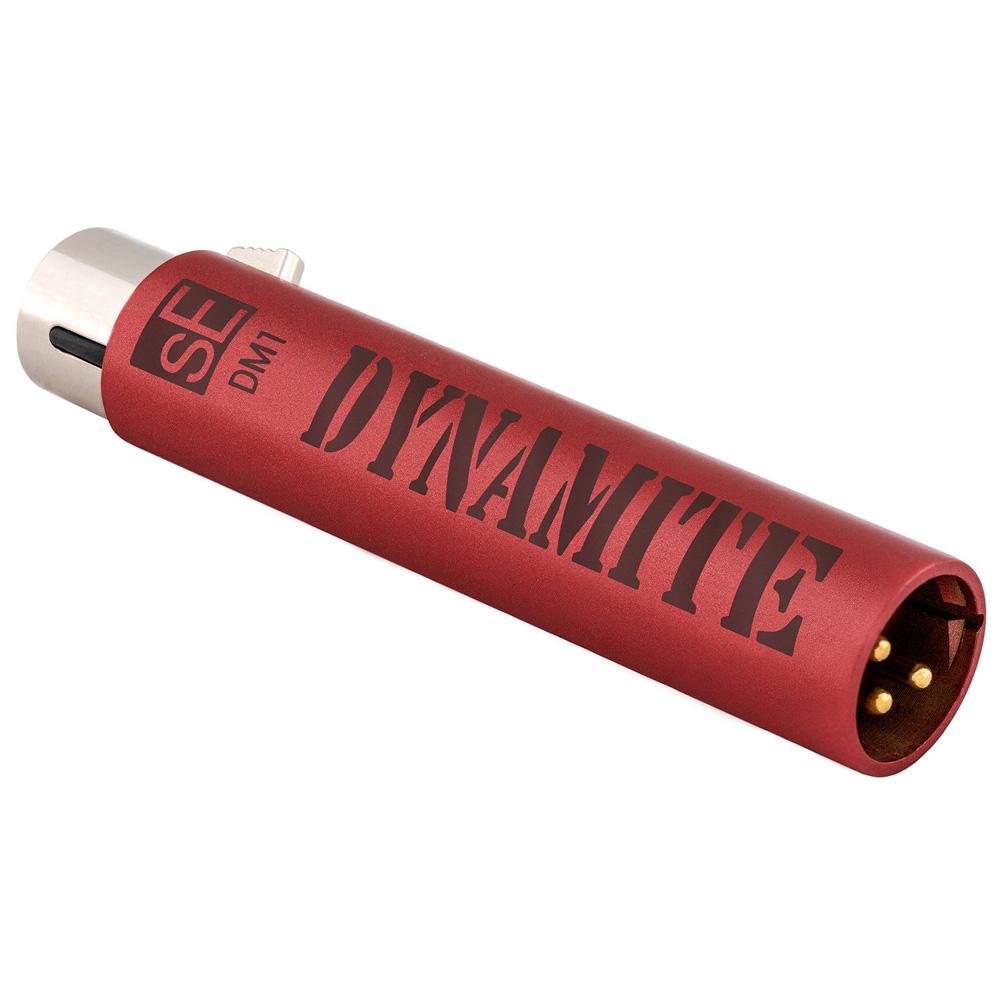

sE Electronics DM1 DYNAMITE Ultra-slim Active Inline Preamp

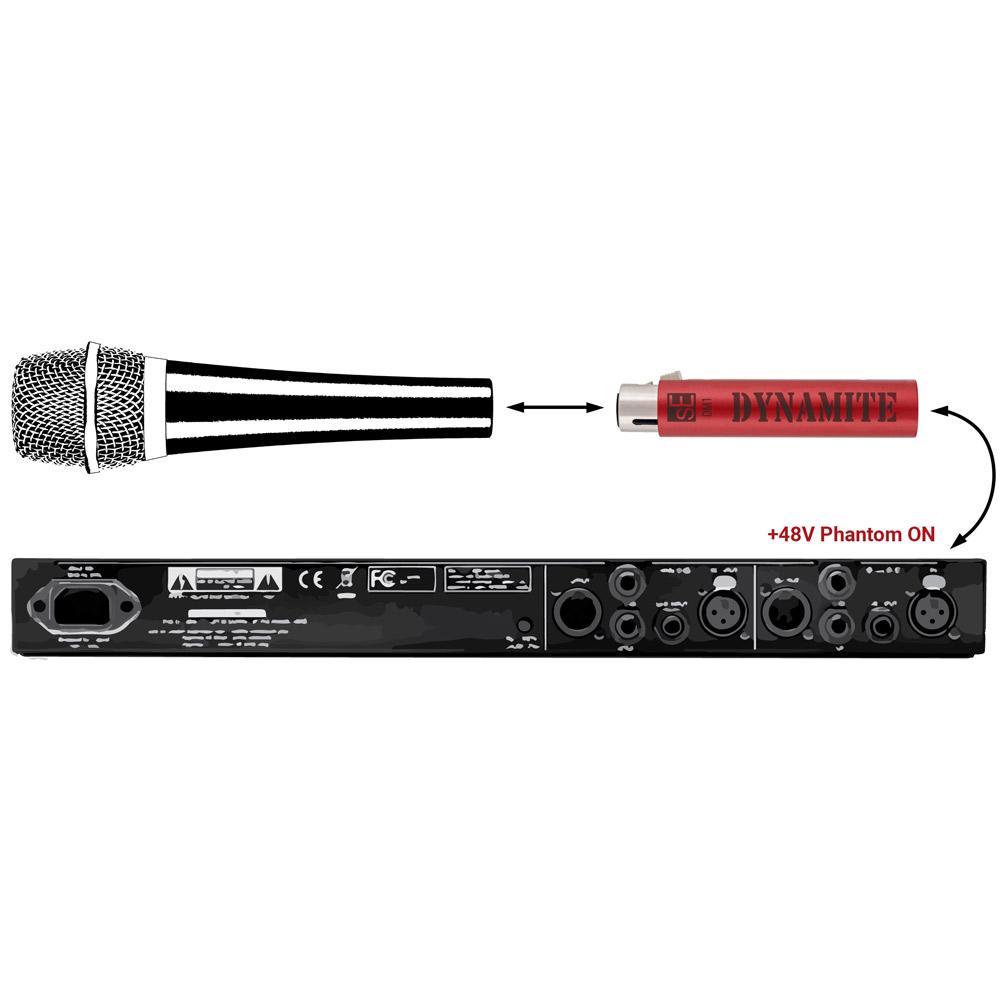

The sE Electronics DM1 DYNAMITE is an innovative, ultra-slim active inline preamp that fits seamlessly between your mic and mic pre, providing a massive +28dB of clean, transparent gain for all your passive microphones. The DM1 DYNAMITE - explosive level for all your passive mics!


    • sE Electronics DM1 DYNAMITE Product Features:

      With a sophisticated class-A design and specially-selected high-grade FETs, the DM1 has vastly lower output impedance and nearly half the noise of anything else on the market. Additionally, the gain it provides is always a consistent 28dB regardless of the connected load, thanks to its dedicated buffer amplifier.

      The DM1 is the perfect way to boost the signal from a passive mic, reduce the likelihood of interference, and provide significantly improved level to your preamp – all without adding noise or coloration. Its output impendence is also the lowest in its class, allowing it to drive long cable runs while reducing susceptibility to RF interference, buzz and hum.

      Reliable operation even in demanding on-stage applications in difficult environments is ensured by the roadworthy and slim all-metal design, robust construction, and high-quality manufacturing standards.

    • sE Electronics DM1 DYNAMITE Technical Specifications:

      Frequency Range:10 Hz - 120,000 Hz (-0.3 dB)

      Gain:28 dB (load 1kOhms)

      Max output level (0.5% THD):8.3 dBV (2.6 V)

      Output noise level:9 μV (JIS-A)

      Powering:48 Volts according toIEC 61938

      Electrical impedance:135 Ohms

      Recommended load impedance: >1k Ohms

      Current consumption:3.0 mA

      Connectivity:3-pin male/femaleXLR connector

      Dimensions:Diameter: 19 mm (0.75 in.) Length: 95.5 mm (3.76 in.)

      Weight:80 g (2.82 oz.)

      Requirements:

      • input: passive microphone (ribbon/dynamic)
      • output: preamp/mixer/audio interface providing 48V phantom power

      Limitations:

      • not suitable for phantom-powered microphones (condenser microphones, active ribbon microphones)
