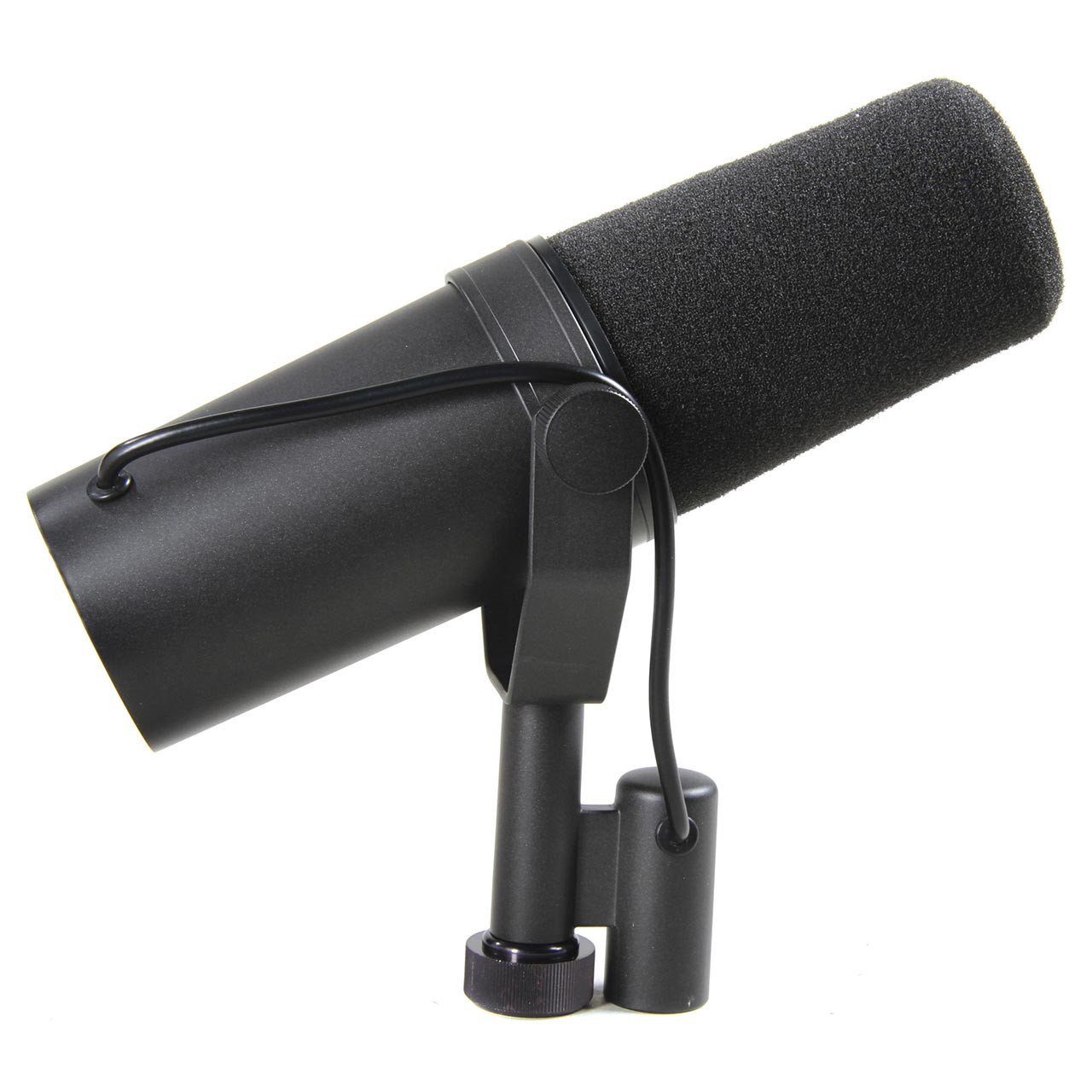

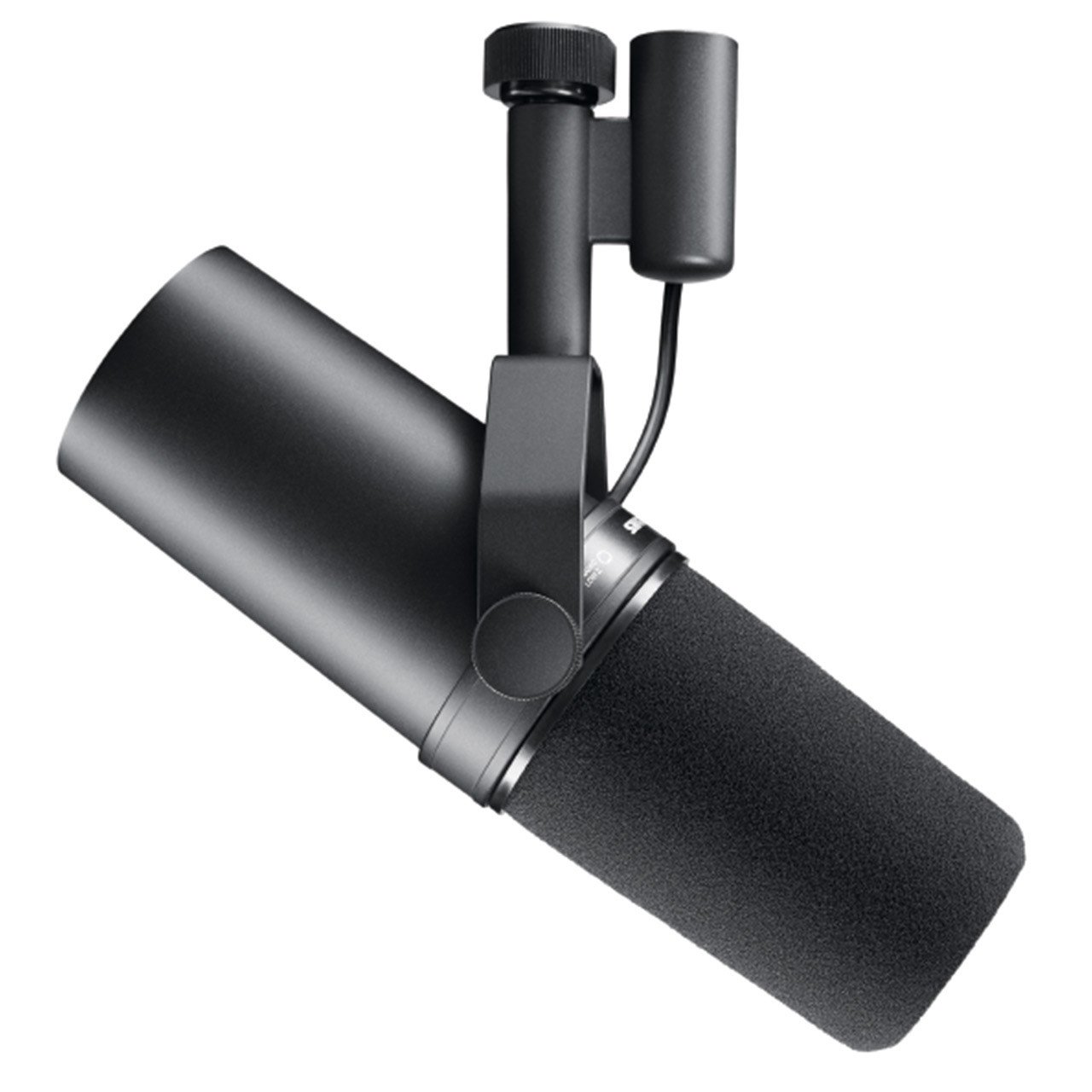

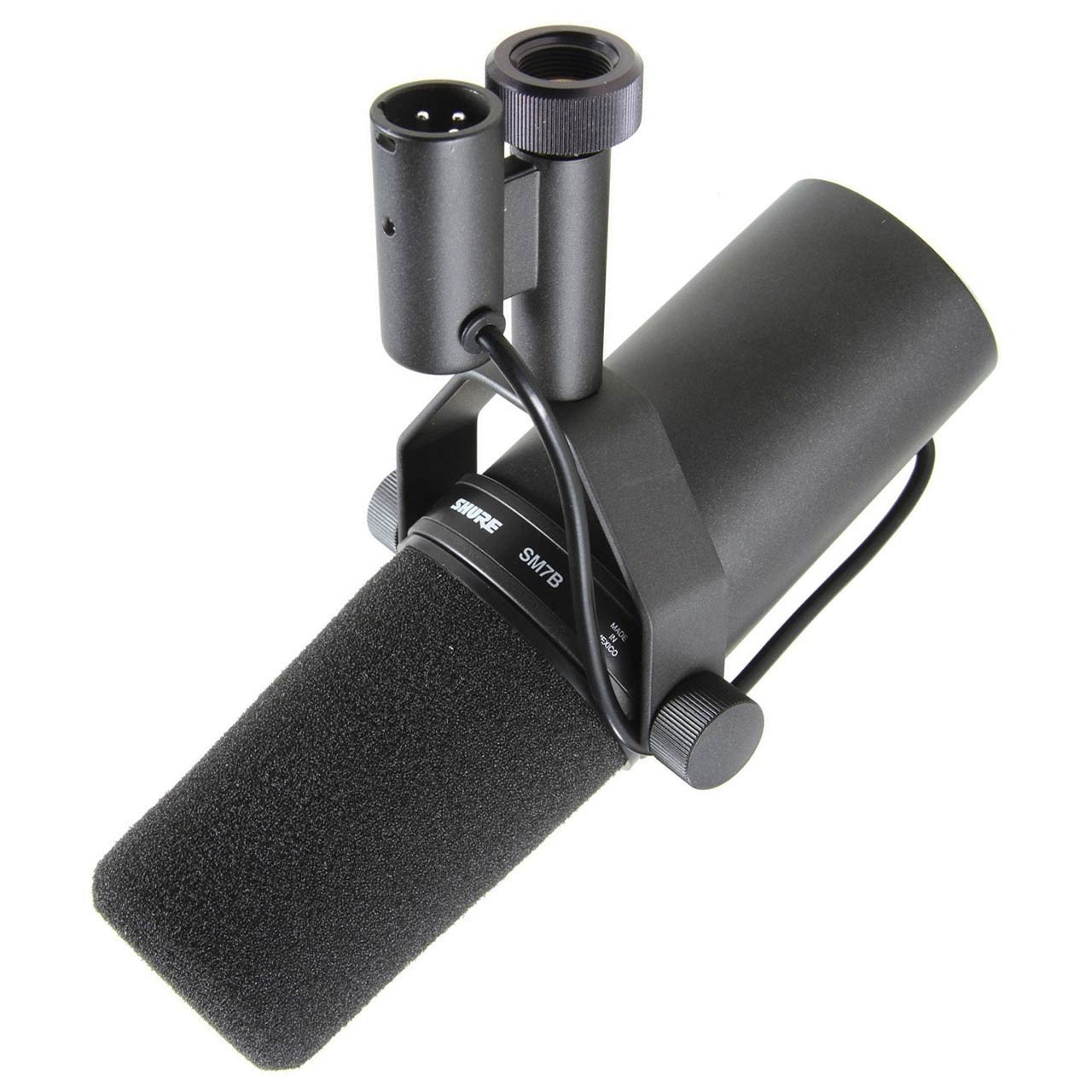

Shure SM7B Large Diaphragm Dynamic Microphone

Simply the first choice for Voice

Cardioid studio microphone delivers warm and smooth audio reproduction in close-proximity studio and vocal applications. Features include wide-range frequency response, bass roll-off and mid-range control, and internal air suspension shock isolation.

The SM7B is a selectable frequency response microphone that delivers warm and smooth audio in close-proximity studio and vocal applications. Optimized shielding from external electromagnetic hum, along with internal shock mounting, external windscreens and adjustable bass roll-off and midrange emphasis response settings provide clean, consistent reproduction.

Features

• Flat, wide-range frequency response for exceptionally clean and natural reproduction of both music and speech

• Bass roll-off and mid-range emphasis (presence boost) controls with graphic display of response setting

• Improved rejection of electromagnetic hum, optimized for shielding against broadband interference emitted by computer monitors

• Internal “air suspension” shock isolation virtually eliminates mechanical noise transmission

• Highly effective pop filter eliminates the need for any add-on protection against explosive breath sounds, even for close-up vocals or narration

• Now shipping with the A7WS detachable windscreen, designed to reduce plosive sounds and gives a warmer tone for close-talk vocals

• Yoke mounting with captive stand nut for easy mounting and dismounting provides precise control of microphone position

• Classic cardioid polar pattern, uniform with frequency and symmetrical about axis, to provide maximum rejection and minimum coloration of off-axis sound

• Rugged construction and excellent cartridge protection for outstanding reliability

How It Works

The wide-range frequency response of the SM7B preserves the natural beauty of the sound it captures. With its detailed audio profile, words may travel far, but they always arrive at their destination with quality and clarity intact.

Why It's Better

Only good air gets through

The air suspension shock isolation and the pop filter eliminate both mechanical noise and breathiness. So words get through and the rest stays out of the mix.

Uniform capture

The classic cardioid pattern is designed to reject off-axis audio. So you can sing or speak at a comfortable angle and it captures the sound, just as you want it, with minimum colouration.

Shield your sound

We added advanced electromagnetic shielding to defeat hum from computer monitors and other studio equipment.

Specifications

• Type Dynamic

• Frequency Response 50 to 20,000 Hz

• Polar Pattern Cardioid Electromagnetic

• Hum Sensitivity (Typical, Equivalent SPL/milliOersted) 60 Hz: 11 dB 500 Hz: 24 dB 1 kHz: 33 dB

• Impedance 150 ohms for connection to microphone inputs rated at 19 to 300 ohms. Output Level (at 1,000 Hz)

• Open Circuit Voltage: – 59.0 dB (1.12 mV) 0 dB = 1 volt per Pascal Switches Bass roll-off and mid-range emphasis: Slotted response selector switches.

• Cartridge Shock Mount Internal air-suspension shock and vibration isolator.

• Microphone Connector Three-pin professional audio (XLR) Swivel Assembly Integrated, captive nut for ease of attachment to stand, fits 5/8 in.–27 thread.

• Polarity Positive pressure on the diaphragm produces positive voltage on pin 2 relative to pin 3.

• Case Dark grey enamel aluminium and steel case with a dark grey foam windscreen.

• Net Weight 765.4 grams (1 lb, 11 oz)
