Signex Isopatch Bantam Pro-Series - PST96 - Bantam Patch Bay
The Isopatch PST96, from Signex has an impeccable reputation of reliability across the world. Easy to set up use, with 2 x 48 rows of Bantam sockets on the front and the option of D-Sub connectors or direct solder terminations on the rear.
The Isopatch Bantam was introduced in 1991 as an alternative to the standard long-frame patch panel.
Although designed primarily for the semi-pro audio market, the Isopatch Bantam was found to be extremely reliable and became popular in more demanding applications including sound reinforcement and broadcast. Installation contractors love the Isopatch Bantam because the normalising is so easy to program and the rear 25 pin D-sub connectors mean that they can use pre-made cables and just plug in on-site saving hours of tedious wiring.

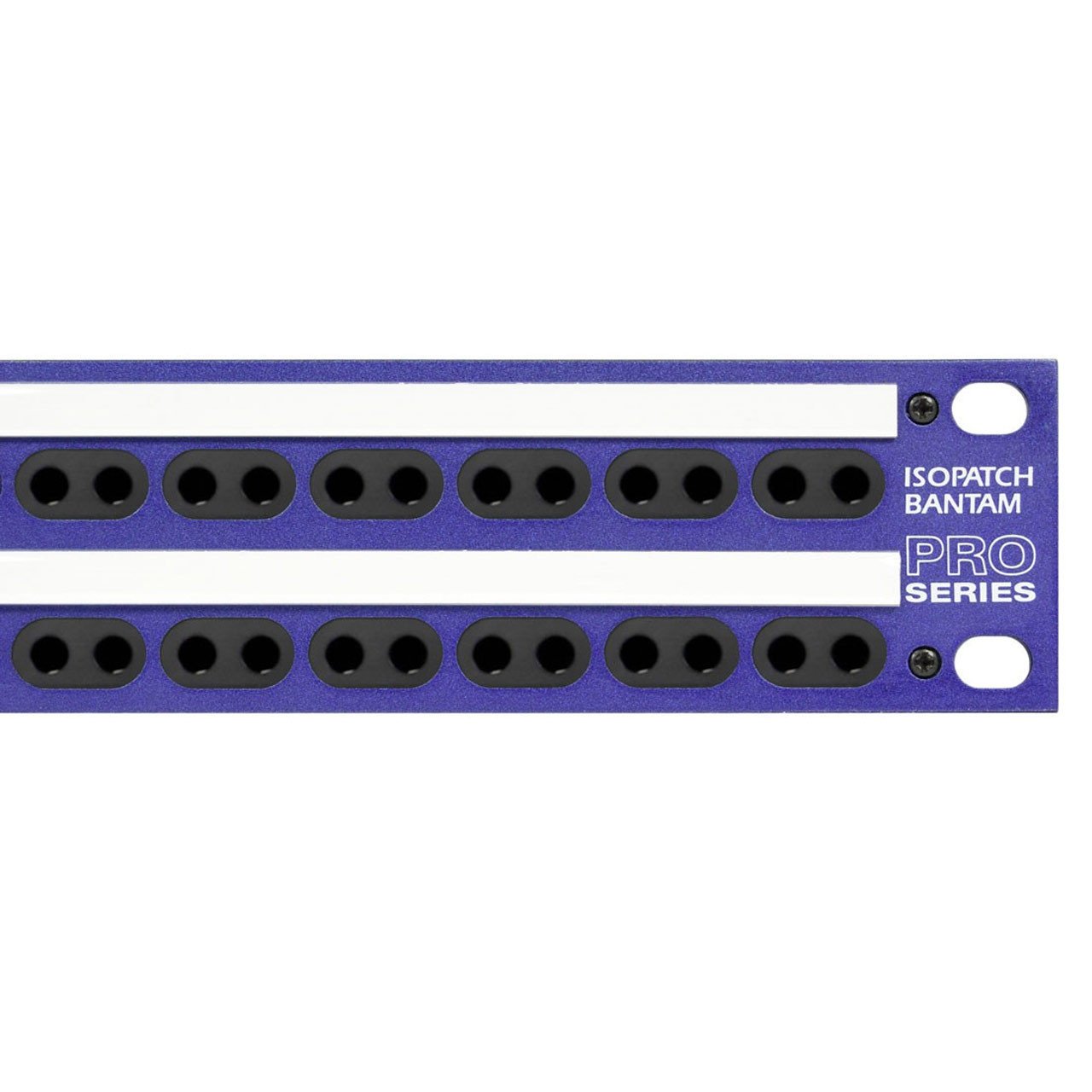

Over the past ten years, the Isopatch Bantam has gained a firm reputation for reliability value and we now introduce the Isopatch Bantam PRO Series. We couldn't find a way to improve on the design of the PCB assembly, but we have given the PRO Series a striking new metallic-blue front panel. The PRO Series adds beauty to the well-established Isopatch attributes of excellent value and proven reliability.

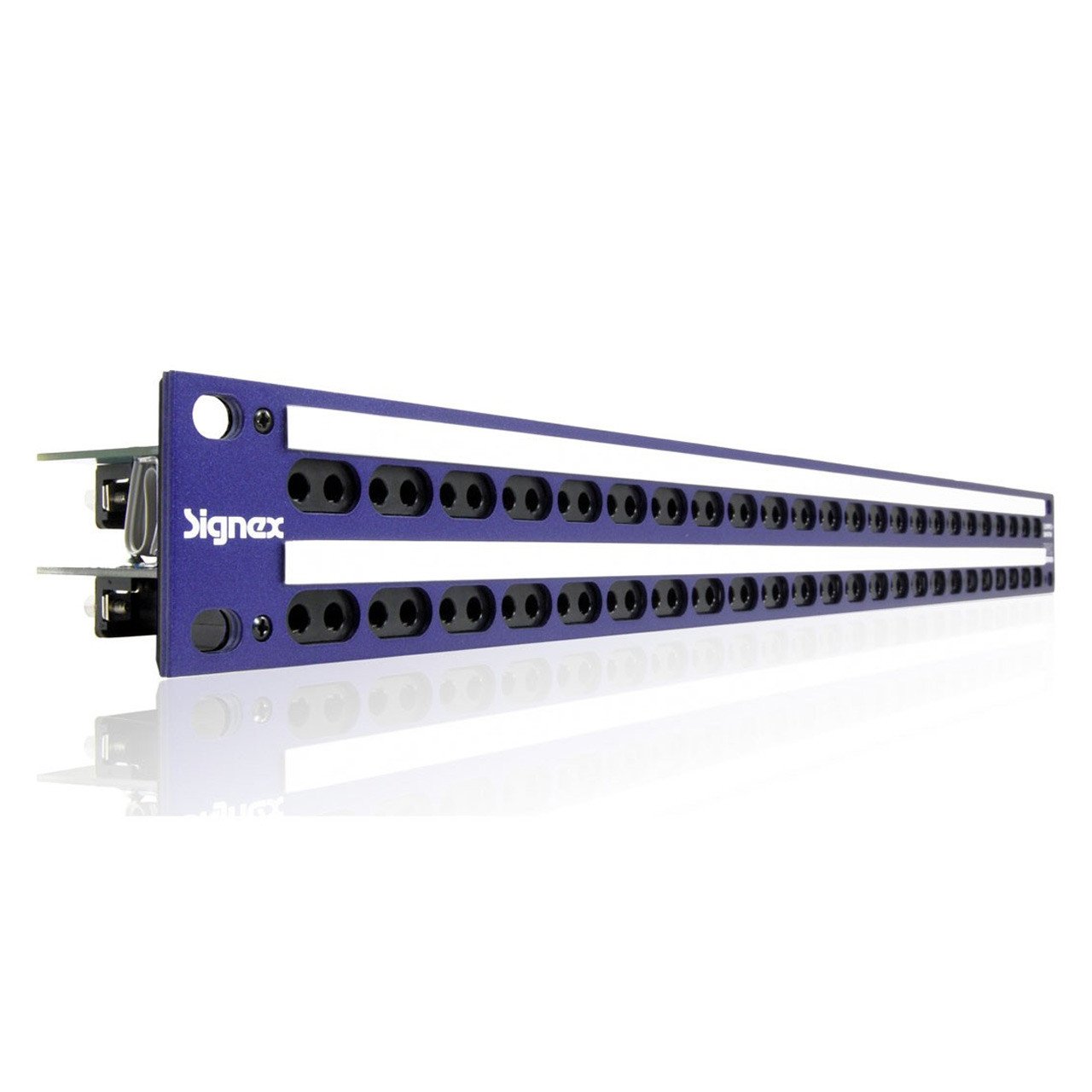

Two rows of 48 Bantam Jacks in 1U of rack space
Enclosed Jack design keeps out dust and dirt
Solid palladium cross-point switch contacts
Direct solder or 25 way D-sub rear termination
Half and full normalling available on all channels
Suitable for balanced/unbalanced and stereo signals
Lacing Bar Kit available for extra rear cable support
Neat slide-in strips for socket designation
Suitable for insert points without special leads
PCB parallel wiring points for every Jack
Signex Isopatch TECHNICAL SPECIFICATIONS:
Front sockets 4.4mm Bantam Jack sockets

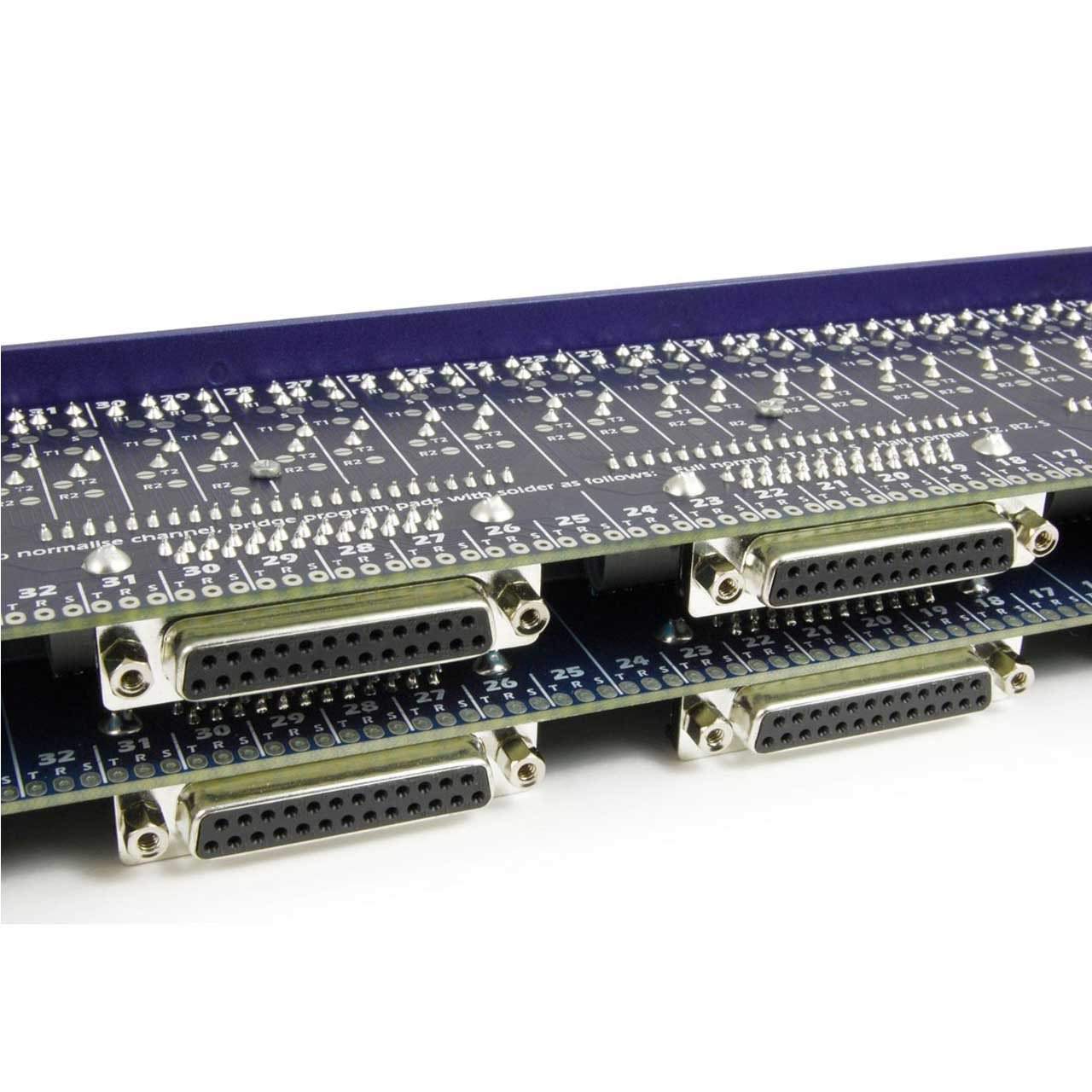

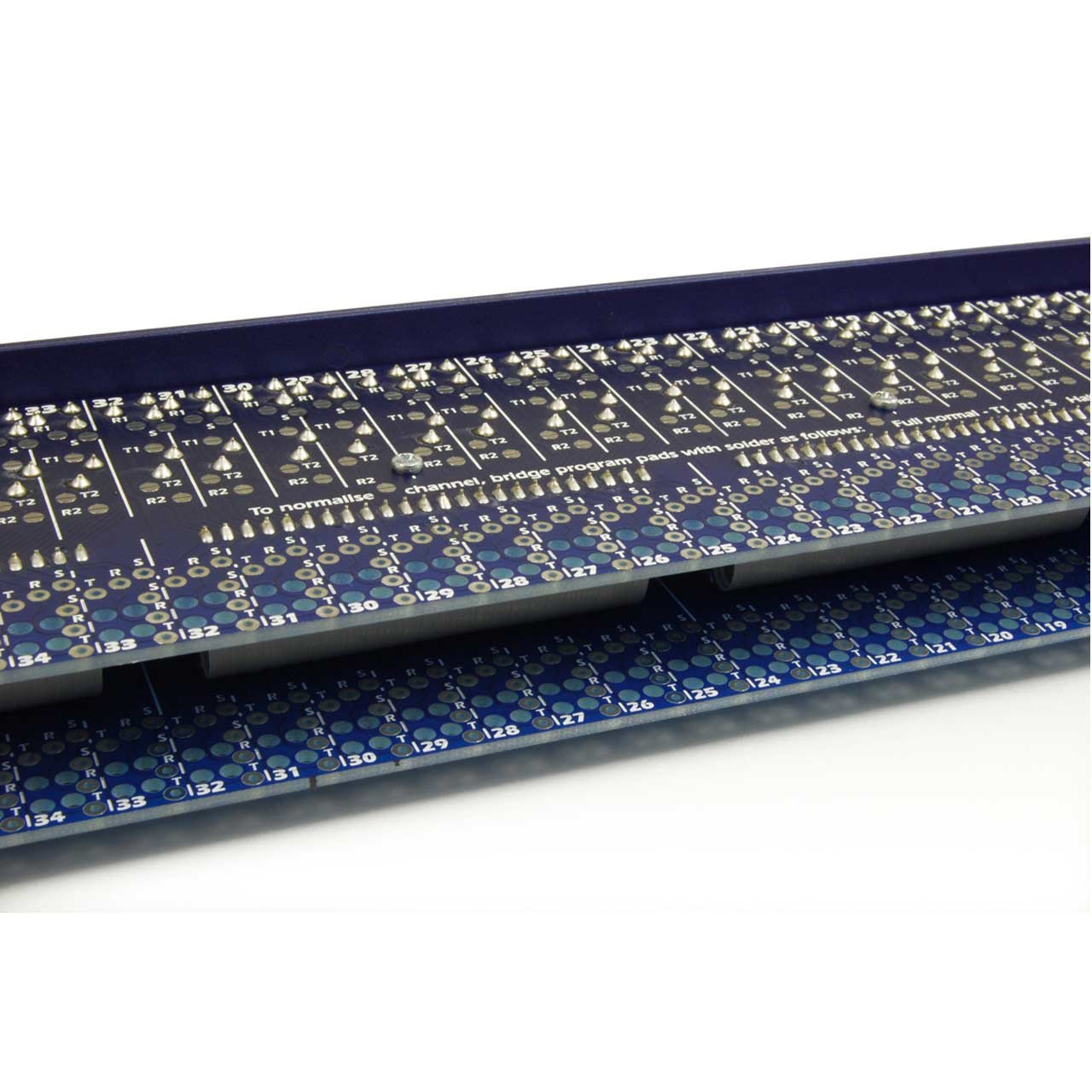

Rear termination D25P - Rear 25 way D-sub female TP - Direct solder terminations
Dimensions (W x H x D)(mm) PST96D25P - 483 x 45 x 71 PST96TP - 483 x 45 x 69
Net weight PST96D25P - 1085g PST96TP - 930g
General Half and Full normalising programmable on every channel Switch contact resistance <0.03 Ohm Switch contact life >10,000 operations Min. rack opening required: 442m
