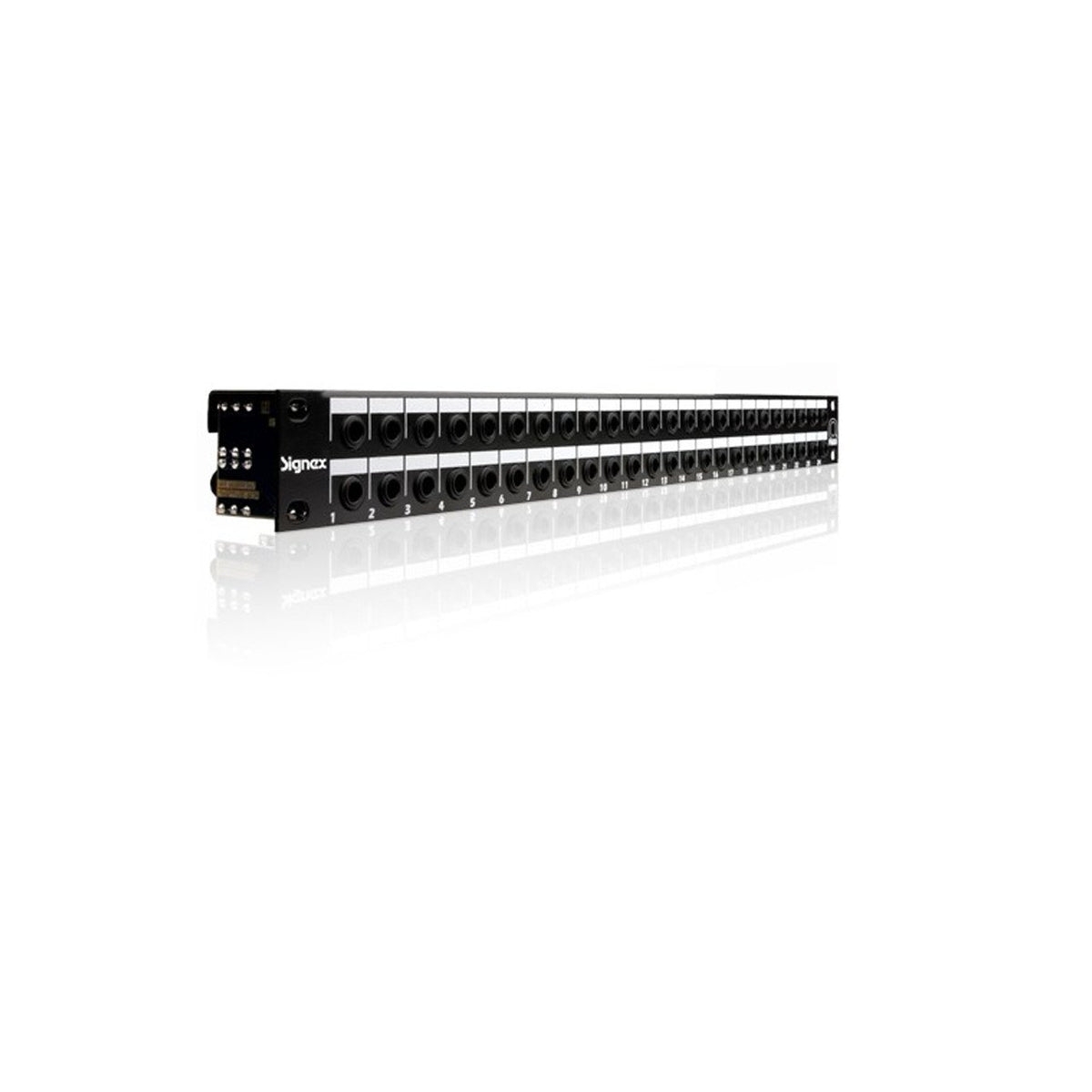

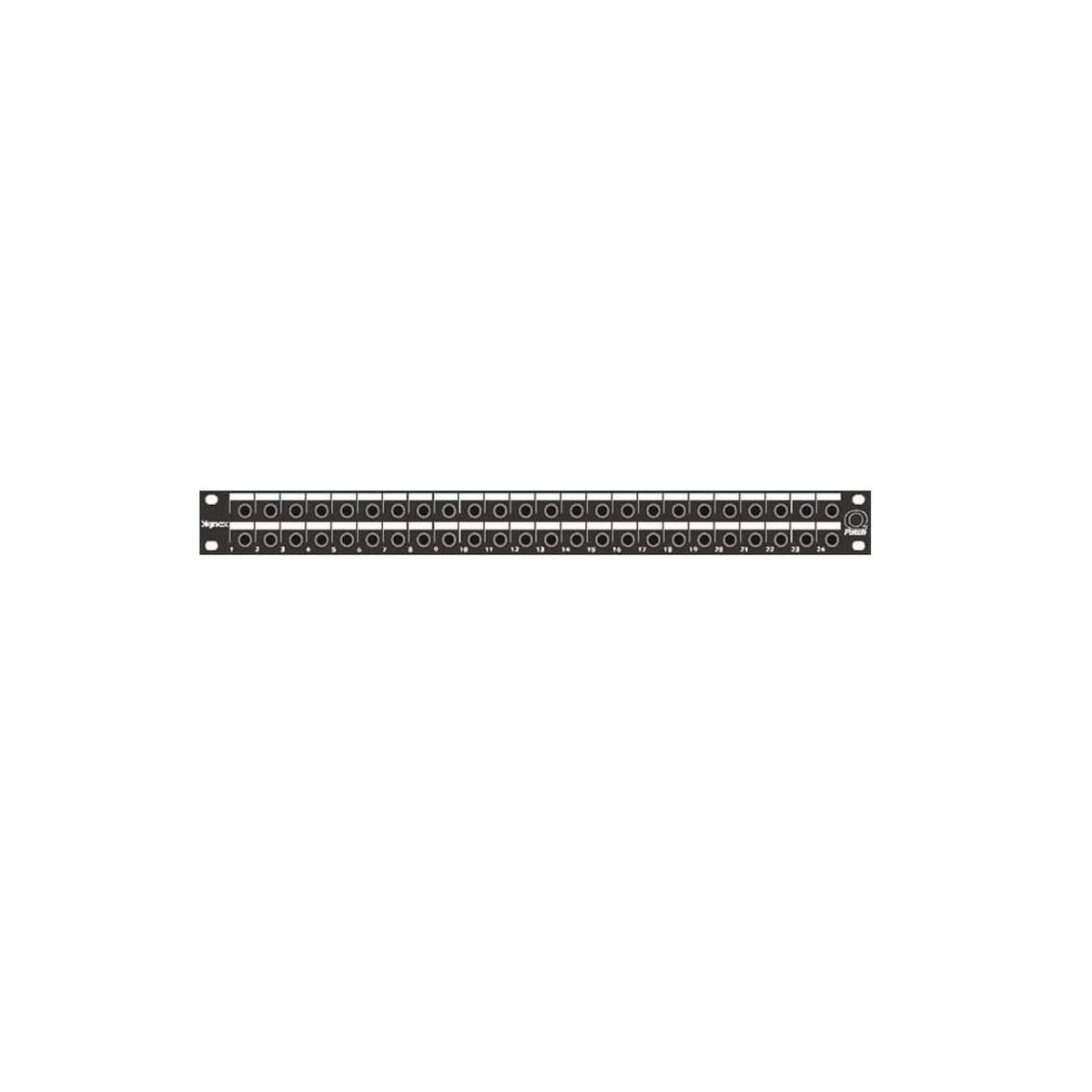

    Signex Q Patch Panel - QPP48 - 1/4 Inch TRS Patch Bay

    Notify me when this product is available:

    Signex have been around since the 80’s and have been innovators when it comes to designing and building patch bay systems. The QPP48 is a cost-effective solution with 48 X TRS 1/4 inch sockets front and rear.



        The Signex Q Patch is an entry-level patch panel offering a compact, quality design and exceptional value for money. Using standard 1/4" Jacks for both front and rear connections, instruments may be plugged directly into the front of the Q Patch, while rear connections can be easily made using low cost moulded leads.

        The sockets for each channel are mounted on individual cards which are held in the panel by the fixing nuts of the rear sockets. The Q Patch is supplied with all channels isolated, but any channel can be easily normalised by removing the card and refitting it the other way around. The cards have a status indicator mark so that normalised channels can be seen at a glance before it is fitted into the rack.

        The Q Patch is available in 2 and 3 pole versions for use with mono, stereo, balanced and unbalanced signals. Panel and modules can be purchased separately so you don't have to buy a whole panel if you only need a few sockets.


        48 Jacks in only 1U of rack space

        For mono/stereo/balanced/unbalanced signals

        Can be used for MIDI in, thru or out

        Status indicator shows normalised cards at a glance

        Identification label sheet supplied

        Panel & modules available separately

        Unbeatable value


        Front sockets
        1/4" Jacks

        Rear termination
        1/4" Jacks

        Dimensions (W x H x D)(mm)
        483 x 43 x 44mm
        Min. rack aperture = 442mm

        Net weight
        QPP48S - 1100g

        Accessories Included:
        1 pk Q Patch ident labels
