  • SCF-SIG22MTK

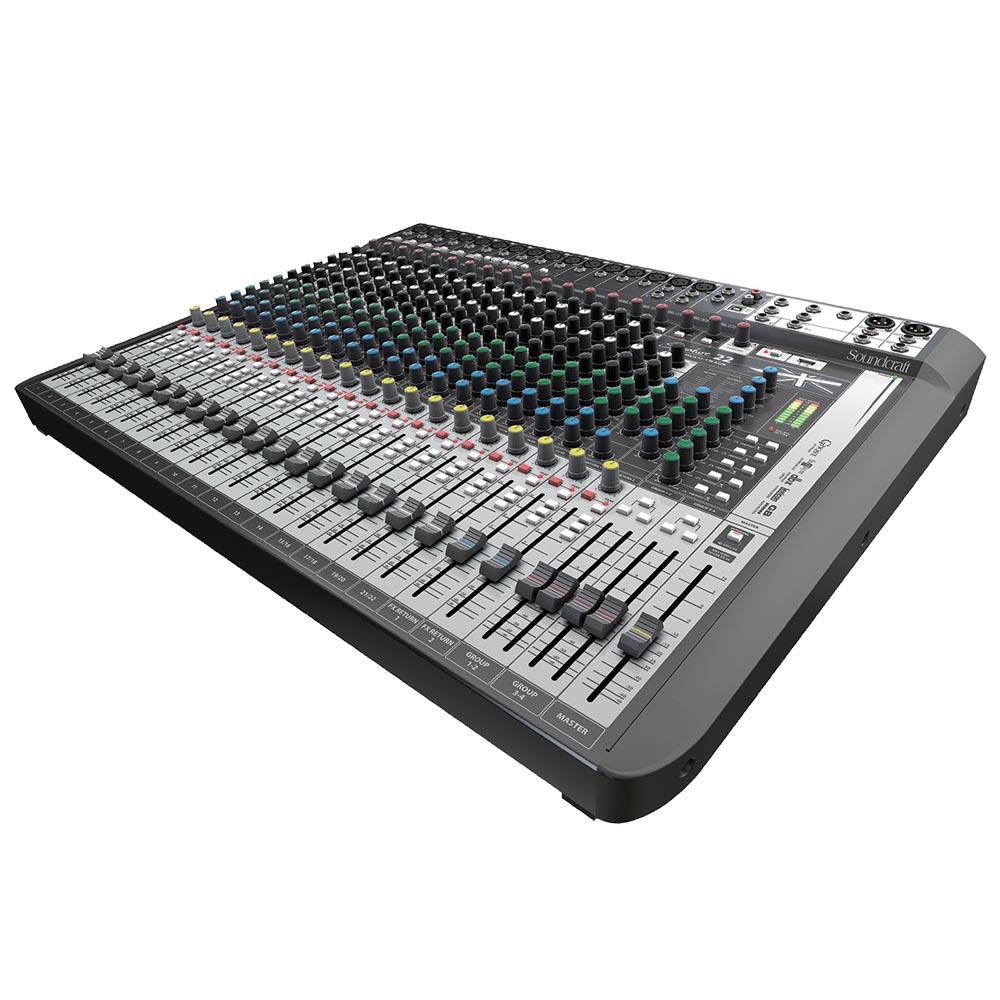

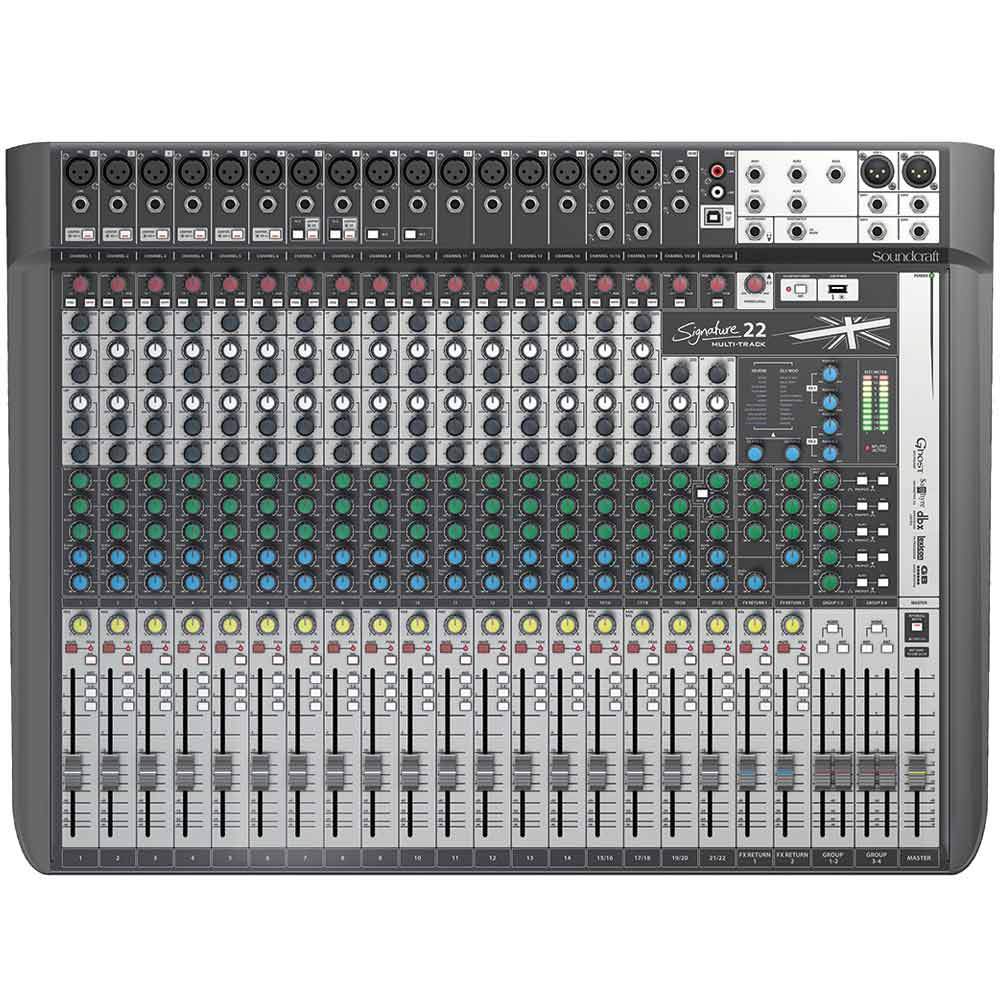

    Soundcraft Signature 22 MTK Analogue Mixer

    Notify me when this product is available:

    The Soundcraft Signature 22 MTK is a 22-input small-format analog mixer with onboard effects and multi-track USB recording and playback. The 22MTK features smooth, premium-quality faders with GB® Series audio routing with flexible pre/post switching on each Aux, and subgroups with powerful routing and switching options as well as dedicated outputs.


      • Soundcraft Signature 22 MTK PRODUCT FEATURES:

        The Soundcraft Signature 22MTK incorporate Soundcraft’s iconic Ghost mic preamps, directly drawn from the company’s top-of-the-line professional consoles, to deliver extraordinary audio quality with high headroom, wide dynamic range and exceptional resolution and clarity with a superb signal to noise ratio. They employ Soundcraft’s Sapphyre Assymetric EQ for perfectly equalizing every vocal and instrumental element in a mix with the unmistakable musicality inherent in every Soundcraft console, plus the GB Series audio routing technology famous in thousands of live venues worldwide.

        It includes a wide variety of built-in Lexicon studio-grade reverb, chorus, modulation and other effects and dbx limiters on the input channels. In addition, the console’s multi-track USB audio interface allows any VST/AU/AAX/TDM/RTAS plug-ins to be inserted on any input channel, enabling studio plug-ins to be seamlessly integrated with live performances. Accompanying the consoles are free downloads of the Lexicon MPXL native plug-in and Ableton Live Lite.

        The console is designed to deliver pristine recordings. Both have an ultra-low-latency USB interface that flawlessly captures every channel, which can then be mixed or transferred to a DAW for further mixdown and production. The consoles offer XLR and switchable Hi-Z inputs that enable guitars, basses and other instruments to be directly connected.

        Both the Soundcraft Signature 12MTK and Soundcraft Signature 22MTK are built using tour-grade robust metal construction and top-quality components. Both have an internal universal power supply.

        Key Features

        • High-Performance 22-input small format analogue mixer with onboard effects and multi-track USB recording and playback
        • 24-in/22-out ultra-low latency USB playback and recording interface*
        • Iconic Soundcraft® Ghost mic preamps with ultra-low noise performance
        • Renowned Soundcraft® Sapphyre British EQ with sweepable mid-bands per channel
        • Lexicon® Effects Engine featuring award-winning Reverbs, Delays, Choruses and Modulations
        • dbx® Limiters (High-ratio Compressors) on input channels
        • Switchable Hi-Z inputs for guitars, basses and other instruments
        • Hi-Pass Filters (low-cut) and 48V Phantom Power on all mic channels
        • Comprehensive Soundcraft® GB series audio routing with Auxes (flexible pre/post switching) and subgroups with switching and dedicated outputs
        • Smooth premium-quality 100mm faders
        • Robust metal construction for tour-grade build quality and reliability
        • Internal universal power supply
      • Soundcraft Signature 22 MTK TECHNICAL SPECIFICATIONS:

        Height

        109mm (4.3")

        Width

        490mm (19.3")

        Length

        660mm (26.0")

        Weight

        11.36kg (25.1lb)


        Signature 22 / 22 MTK

        Channels

        22

        Soundcraft® Ghost Preamps

        16

        Soundcraft® Sapphyre EQ

        4-band (2 bands of swept mids)

        dbx® Limiters on inputs

        8

        Lexicon® Effects

        Dual Engine

        USB Interface

        2-in/2-out (24-in/22-out on 22 MTK)

        Auxes

        5

        Subgroups

        4 mono/2 stereo

        Faders

        100mm

      • Soundcraft Signature 22 MTK SYSTEM REQUIREMENTS:

        * USB Interface Compatibility:

        PC: Supports Windows 7, Windows 8 and Windows 10.

        Mac: Supports Mac OS 10.7.x Lion through 10.11.x El Capitan

        ** Please note, system requirements may change. For the most recent system requirements please visit the manufacturer's official product listing **
