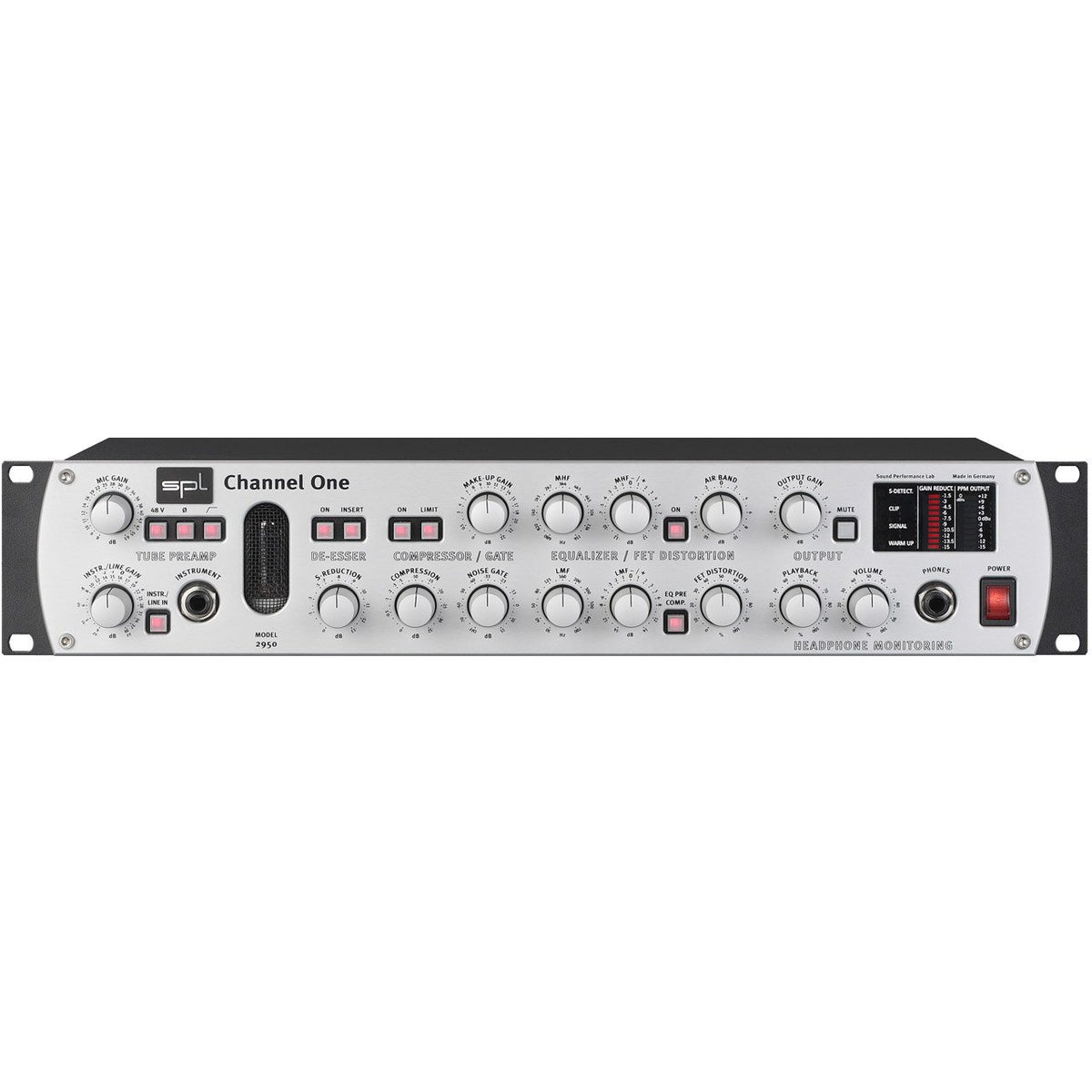

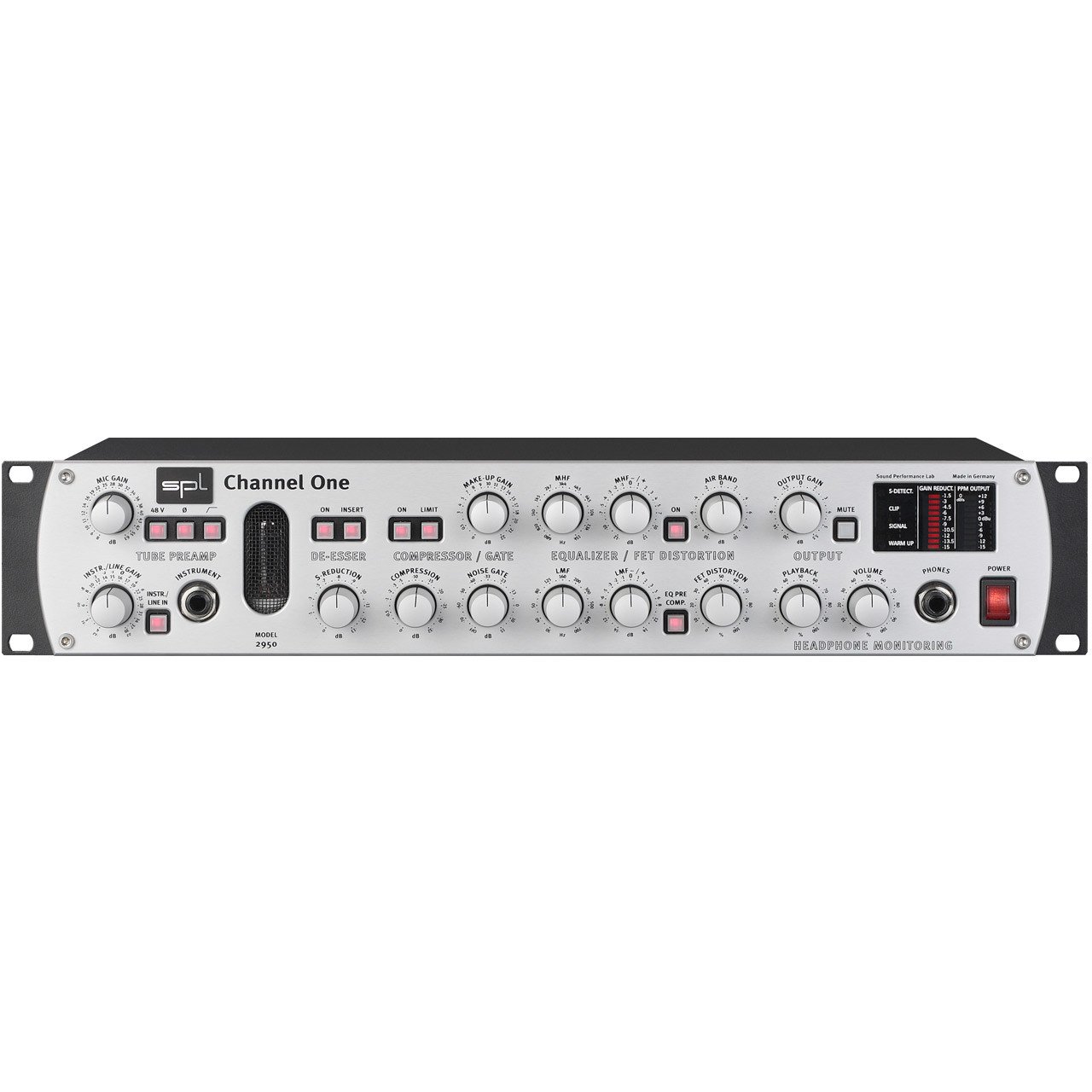

    SPL Channel One Recording Channel

    1 In Stock

    The SPL Channel One is a high end recording channel strip, offering a range of practical dynamics processing. These include: Compressor / limiter, de-esser, noise gate and a three band EQ sections. The circuitry in the actual pre-amplifier in the SPL Channel One, is a hybrid solid-state / tube design. There is also an optional analog-digital convertor card for the Channel One, making it one of the most versatile and cost-effective boutique channel strip on the market.

      • SPL Channel One Features:

        The new model 2950 brought a facelift to one of our best-selling products. Now the new SPL design represents the common origin of our channel strips Frontliner, Channel One and Track One.
        However, technically we did not change anything to continue the success of the Channel One with tried and tested quality.

        The Channel One comes with all tools onboard for recording voices, instruments and digital or analog audio sources with the highest sound quality:
        Hybrid Transistor/tube preamplifier
        Noise gate
        3-band EQ
        Headphone monitor
        Options: AD converter, I/O transformers
        Made in Germany

        Each stage contributes to the concept as the ideal recording front-end for world-class sounds the easy way: intelligent automation ensures both intuitive and fast as well as musical operation for the finest recording results.

        Sound On Sound (UK), Paul White
        "Until you've tried something that works this well, the words 'smooth' and 'detailed' won't have nearly as much meaning as after playing with the Channel One. If you're wondering where that elusive 'produced' vocal sound is hiding, look no further – it's in here!"
      • SPL Channel One Specifications:

        Frequency response
        Mic Preamp: 10 Hz-100 kHz (100 kHz = -3 dB)
        Line/Instrument preamp: 10 Hz-180 kHz (100 kHz = -3 dB)
        Common mode rejection (@ -20 dBu)
        1 kHz: -80 dB
        10 kHz: -78 dB
        THD & N (mic preamp): A-weighted
        20 dB -97.1 dBu
        40 dB -91.1 dBu
        65 dB -69.4 dBu
        THD & N (line/instru preamp): A-weighted
        5 dB -99.4 dBu
        20 dB -97.2 dBu
        42 dB -79 dBu
        Input impedance:
        Line: 20 kOhm
        Instr.: 1 MOhm
        Max. input level:
        Line: +22 dBu
        Instr.: +14 dBu

        Dynamic range: 119 dB
        Max. output level XLR/jack: +20 dBu
        Output impedance: 50 Ohm
        Headphone Amplifier Gain (mic input and 0dBu output level)
        -20dBu at 25%
        -10dBu at 40%
        -5dBu at 55%
        0dBu at 70%
        +5dBu at 75%
        +10dBu at 90%
        +14dBu at 100%

        Power Supply
        Toroidal transformer 20 VA
        Fuses 315 mA (230 V / 50 Hz)
        Fuses 630 mA (115 V / 60 Hz)
        Voltage Selector 230V / 115V
        Ground Lift switch
        Dimensions & Weight
        WxHxD: 482x88x210 mm; 19"x3.46"x8.27"
        Weight 4.15kg;9.15lbs

        0dBu = 0.775V. Subject to change without notice.
    Need more info on the SPL Channel One?
