  • SPL-EXPRACK-BK

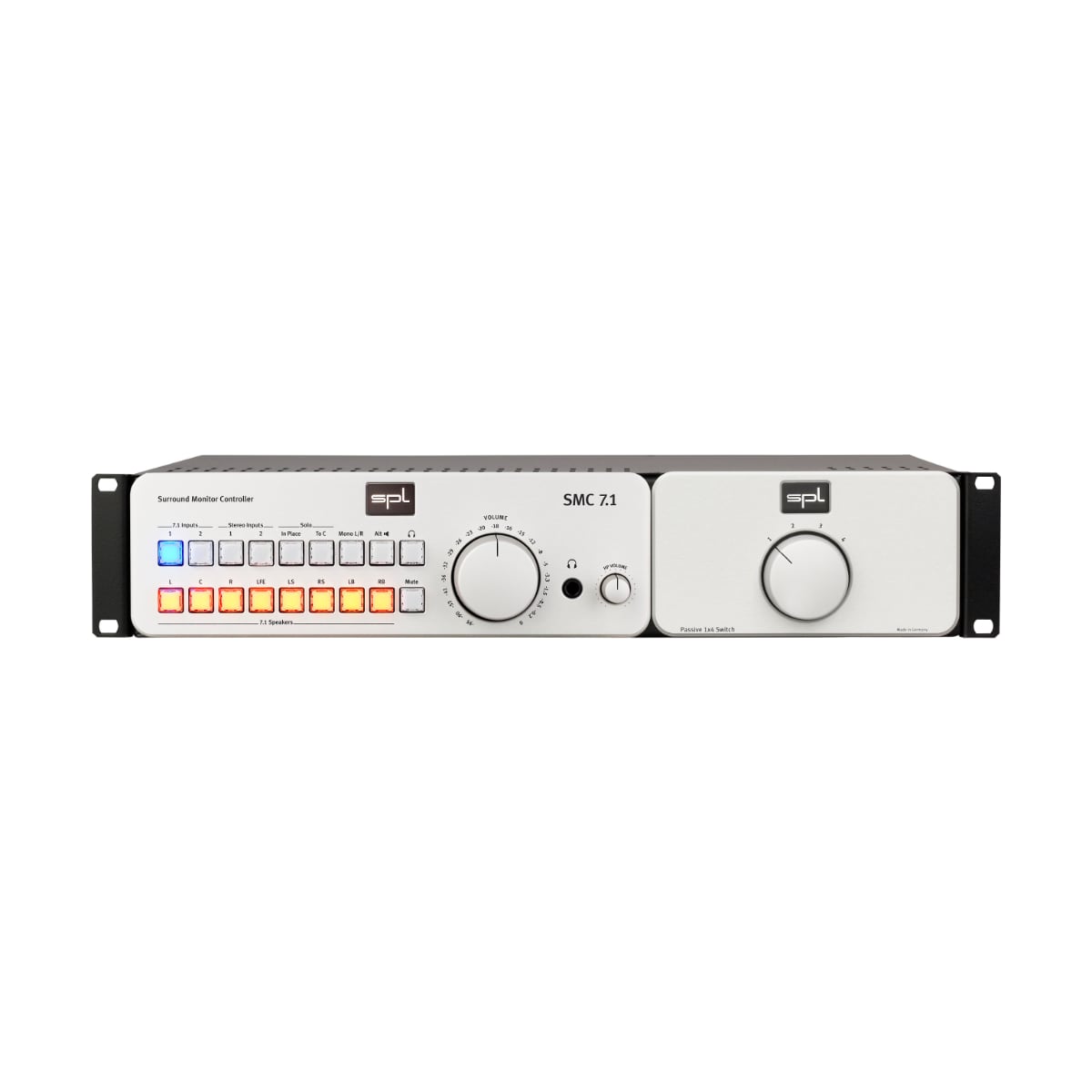

    SPL Expansion Rack Rackmount for Phonitor 2 and SMC 7.1

    1 In Stock

    19-inch rack Expansion Rack for a Phonitor 2 or an SMC 7.1

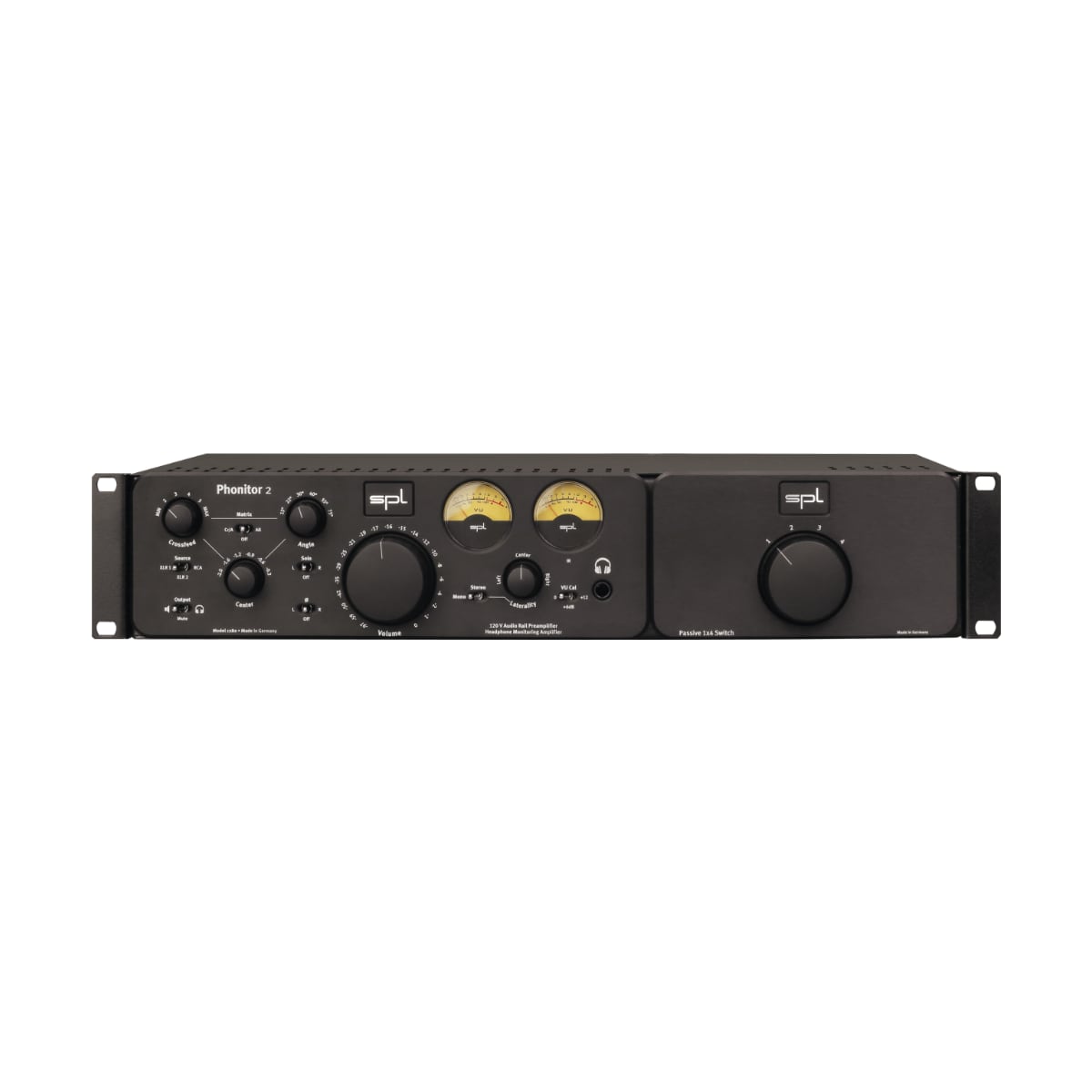

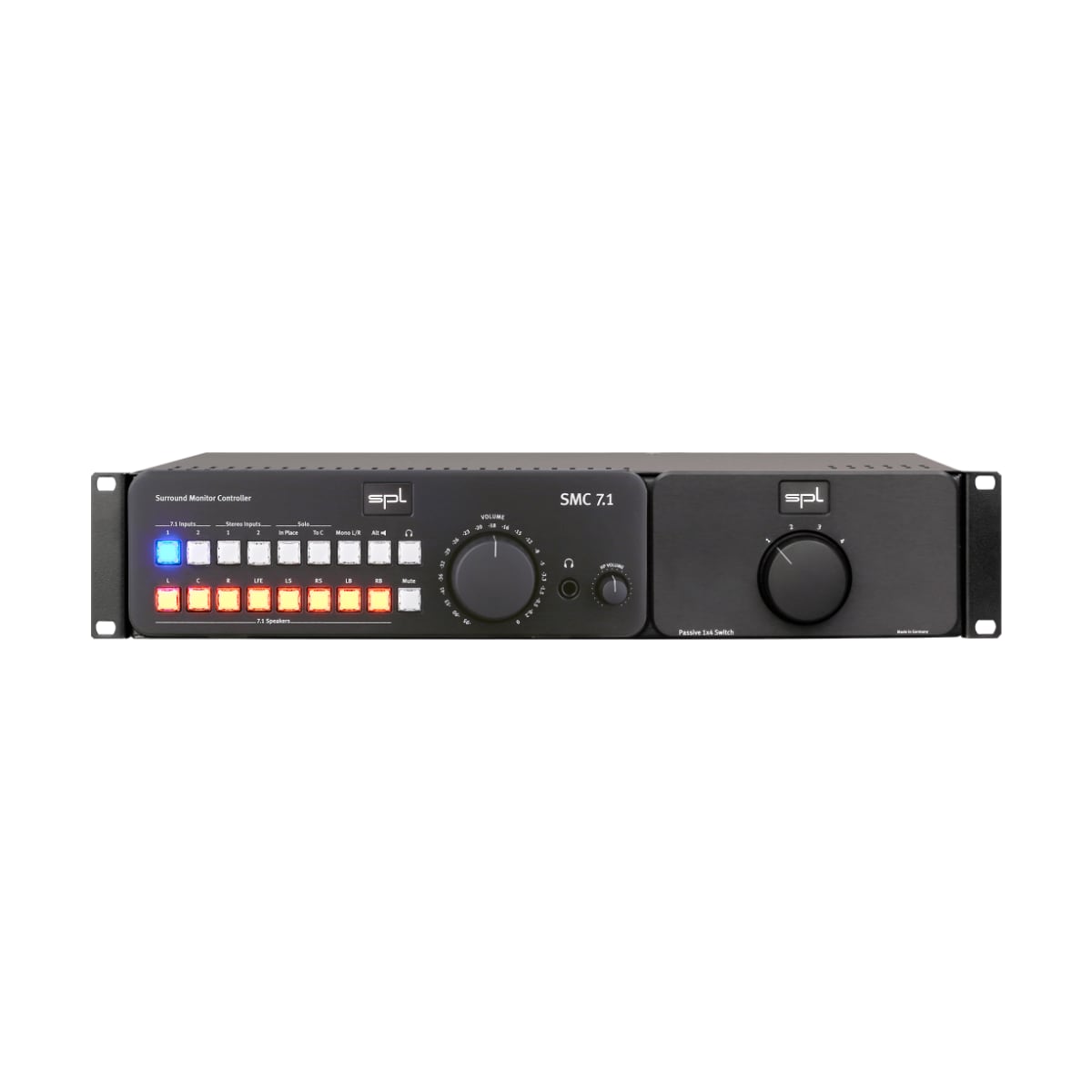

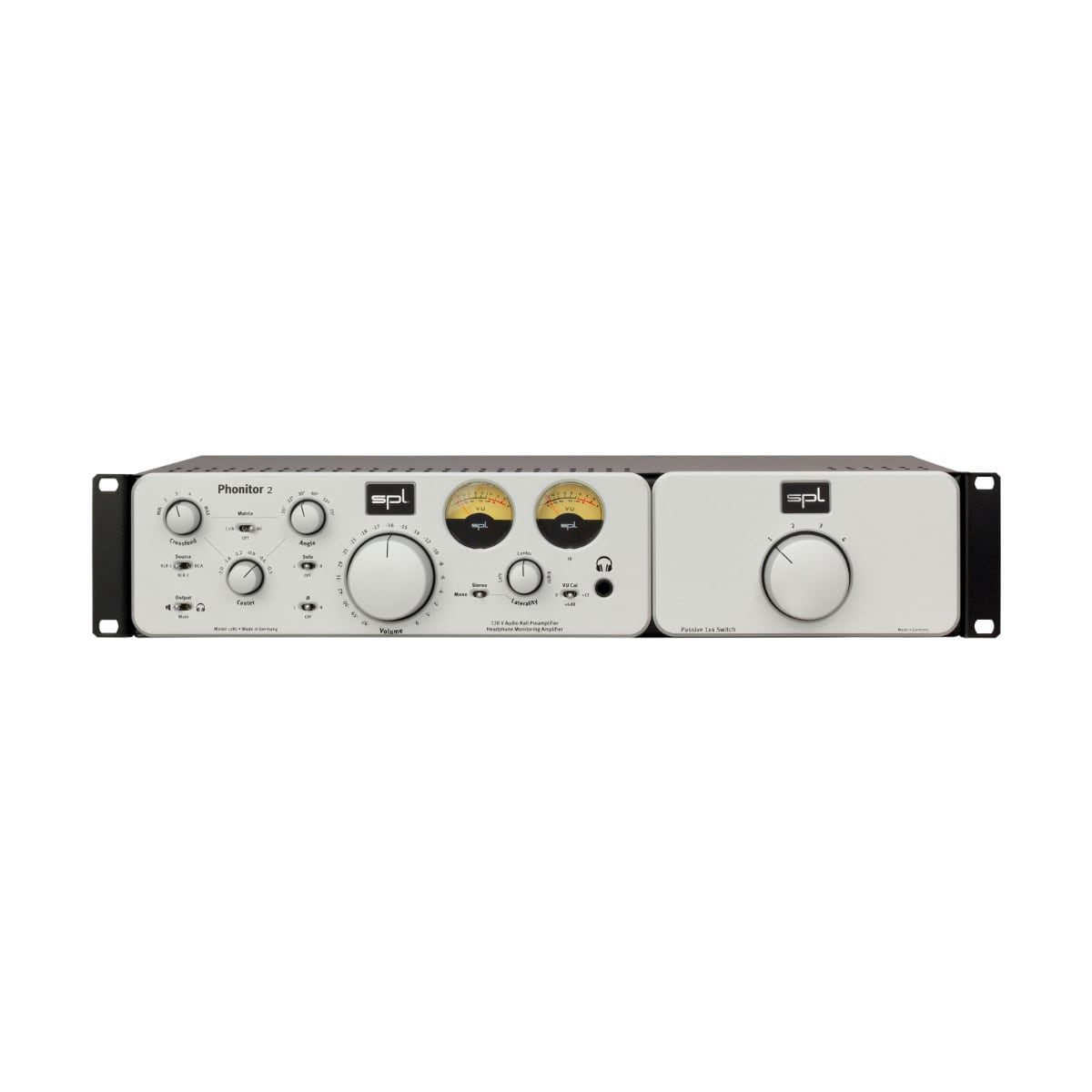

    Installed in the Expansion Rack, a Phonitor 2 or an SMC 7.1 can be mounted into a 19-inch rack.

    The installation is the same for both devices. A detailed illustrated installation guide can be downloaded below.

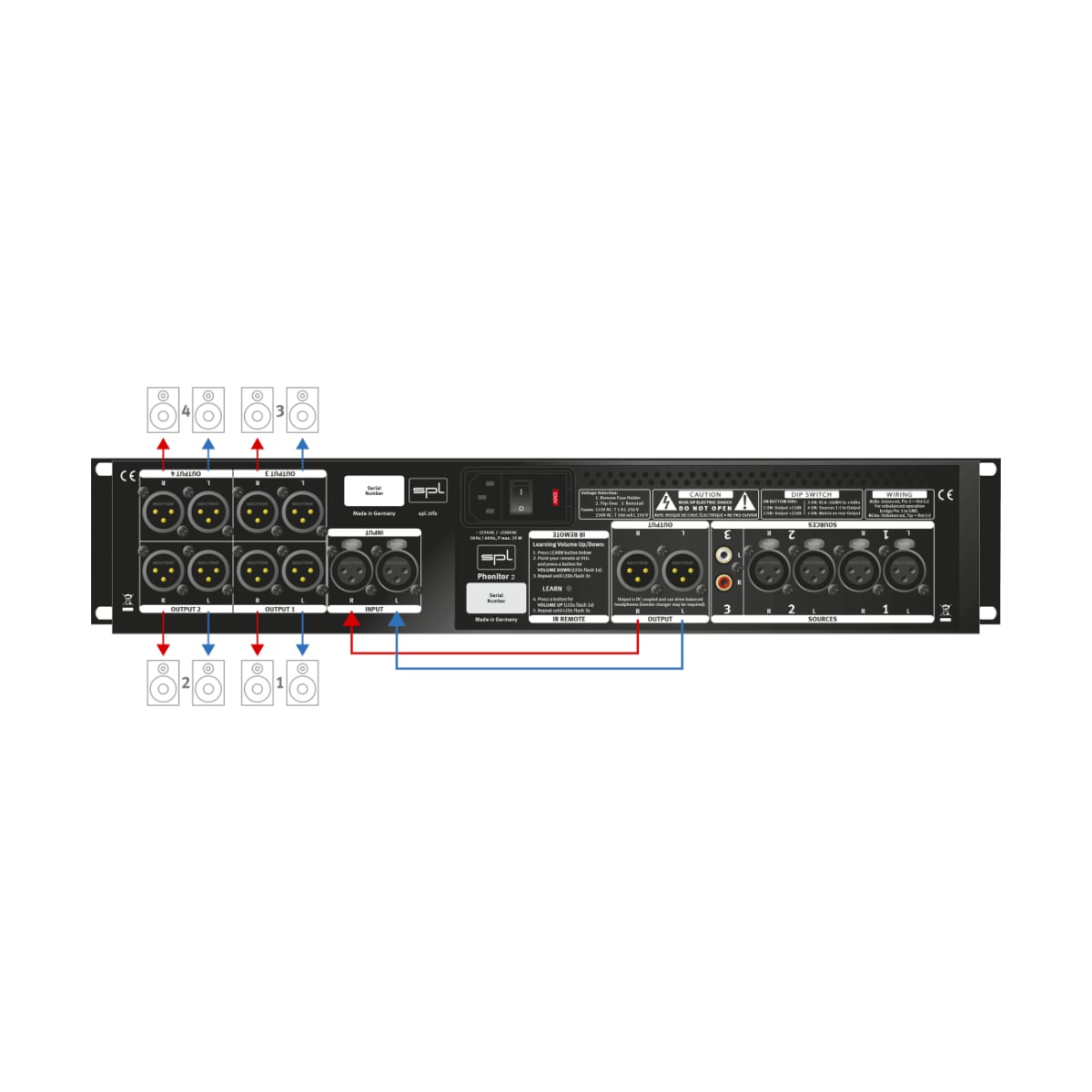

    The Expansion Rack is equipped with a rotary switch that passively routes the stereo output signal of Phonitor 2 or the SMC 7.1 to four stereo outputs.

    Switching is passive, i.e. without active electronics in the signal path and without power supply.

    Phonitor 2 or SMC 7.1 are expanded by three additional stereo outputs, so that for example full range, midfield, and nearfield monitors can be connected.

    • The two rack ears can be removed from the Expansion Rack to set it up freely.
    • The feet of Phonitor 2 can also be screwed under the Expansion Rack.

    Specifications

    Passive 1 to 4 Splitter

    • Input, 1x stereo
    • XLR (balanced)
    • Outputs, 4x stereo
    • XLR (balanced)

    Dimensions & Weight

    W x H x D (Width x Height x Depth)
    • 482 x 88 x 303 mm
    • 19 x 3.46 x 11.93 inch
    Weight
    • 2.7 kg
    • 5.95 lbs
