SPL

SPL-GOLDMIKEMK2-AD

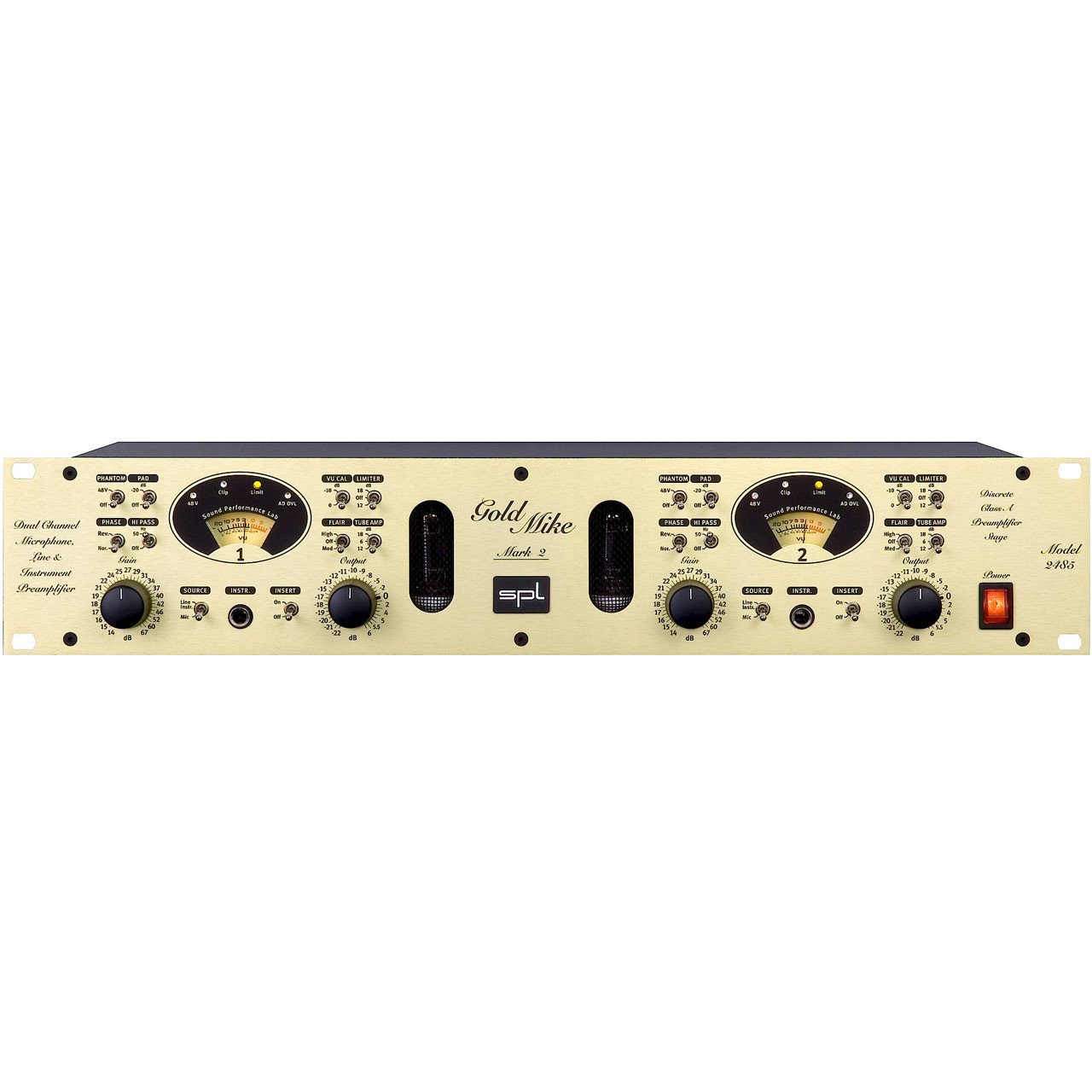

SPL GoldMike Mk2 Dual-Channel Microphone and Instrument Preamplifier with ADC card

The spL GoldMike Mk2 is a dual channel Class-A microphone preamp. It features a hybrid design, with solid state and tube gain stages. The circuitry is completely discrete, with each transistor tailored for its specific function. The GoldMike Mk2 has a very convenient layout, boasting lots of parameter adjustments enabling you to pull a unique sound each tracking session. There are also front panel instrument inputs, and the rear panel includes mic inputs, inserts, analog and digital outputs. There are blank panels for an optional A-D convertor expansion card.


    • SPL GoldMike Mk2 Features:

      Discrete Class A solid stage
      Tube drive in three different intensity levels
      Flair presence enhancement in two switchable settings
      Switching inserts
      Pre-output limiter stage (extremely fast diode-based operation, perfect for A/D converter protection)
      VU metering with three different, switchable display ranges

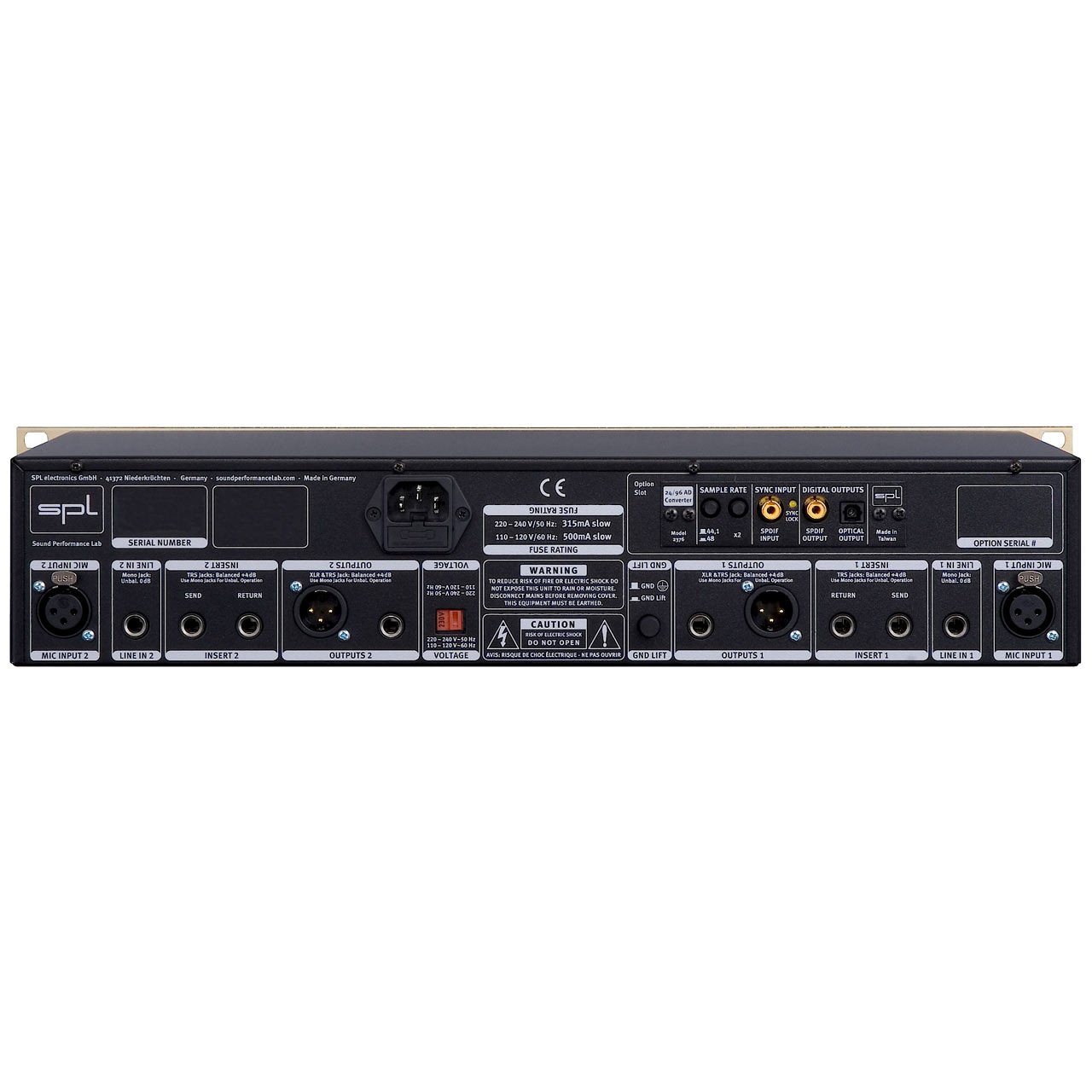

      Front panel instrument input, separate rear-side microphone and line inputs
      Phantom power, phase reverse, pad and high-pass filter (50Hz)
      Frequency response ‹10Hz bis 90kHz (-3dB)
      THD+N (Input level -30dBu, 30dB Gain) 0,016%
      Noise (A-w., R=40Ohm, 30dB Gain) -91,2dBu
      Dynamic range (30dB Gain) 110dB
      E.I.N. 128dBu
      Max. output level (sym., XLR+Jack) +26,8dBu
      Options include 24/192 AD converter and in/output transformers by Lundahl
      Made in Germany
    • SPL GoldMike Mk2 Specifications:

      Frequency response: ‹10Hz bis 90kHz (-3dB)

      Input impedance:
      Microphone, XLR: 2.8kOhm
      Line In, TRS: 10kOhm
      Instr. In TRS: 1mOhm
      Output impedance (XLR and TRS): 50Ohm

      THD+N:
      Input level -30dBu, Gain 30dBu: 0.016 %
      Input level -40dBu, Gain 40dBu: 0.017 %
      Input level -50dBu, Gain 50dBu: 0.022 %
      Input level -60dBu, Gain 60dBu: 0.048 %

      Noise (A-weighted, R=40Ohm):
      Gain 30dB: -91.2dBu
      Gain 40dB: -86.6dBu
      Gain 50dB: -78.7dBu
      Gain 60dB: -69.3dBu

      Dynamic range (Gain 30dB): 110dB
      E.I.N.: 128dBu

      Max. input level:
      Microphone, XLR: +7dBu
      Microphone, XLR +PAD: +28dBu
      Line In, TRS: +23dBu
      Instr. In TRS: +7dBu
      Instr. In TRS +PAD: +14dBu

      Max. output level:
      Balanced, XLR+ TRS +26.8dBu
      Unbalanced, XLR+ TRS +21.5dBu

      CMRR:
      1 kHz, Gain 30dB: ›75dB
      10 kHz, Gain 30dB: ›75dB

      Power consumption: 25W

      Physical:
      WxHxD: 482 x 88 x 210mm; 19" x 3.46" x 8.27"
      Weight: 4.1kg/9lbs

      0dBu = 0.775V. Subject to change without notice.
