    SPL Volume 8 - 8-channel Volume Controller

    5 In Stock

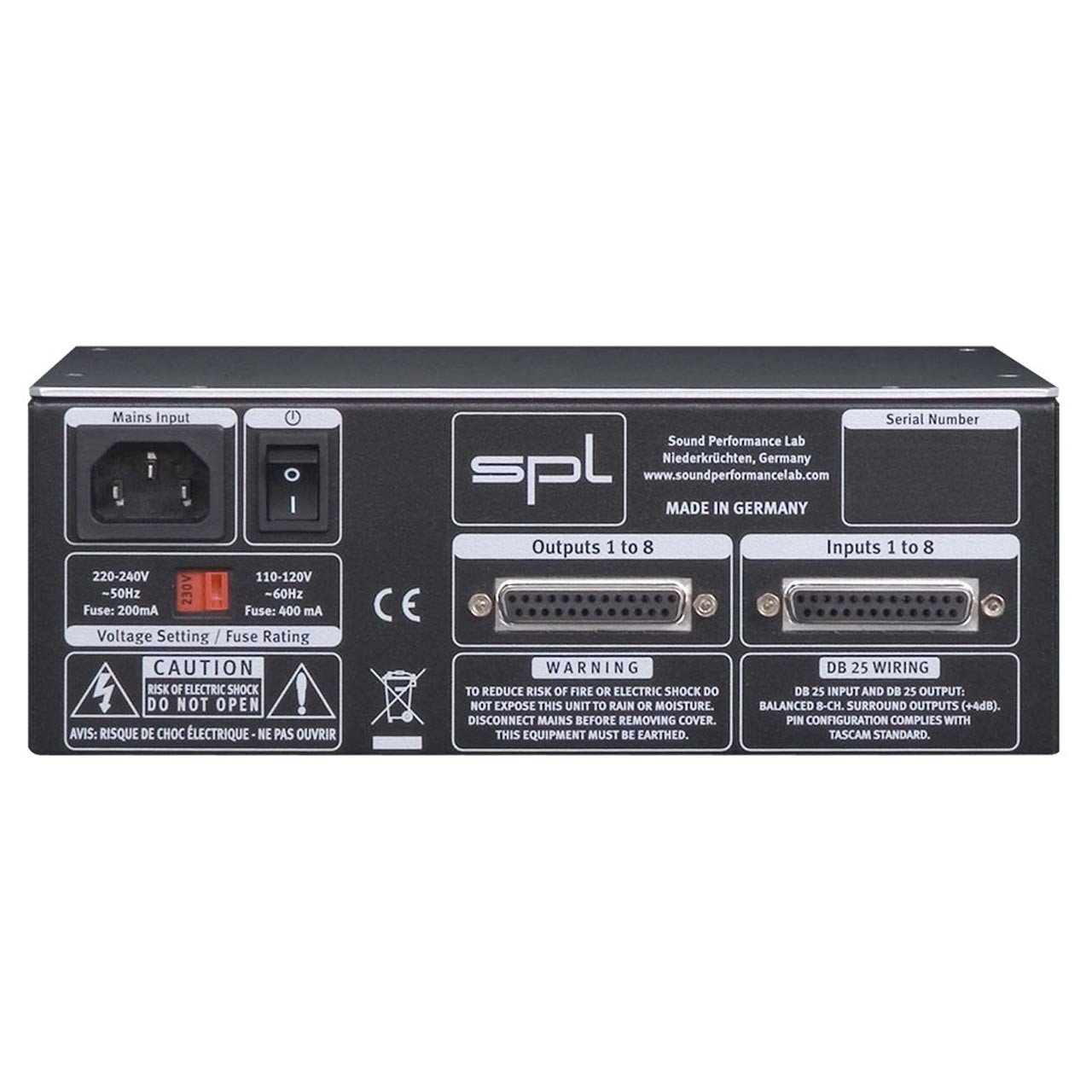

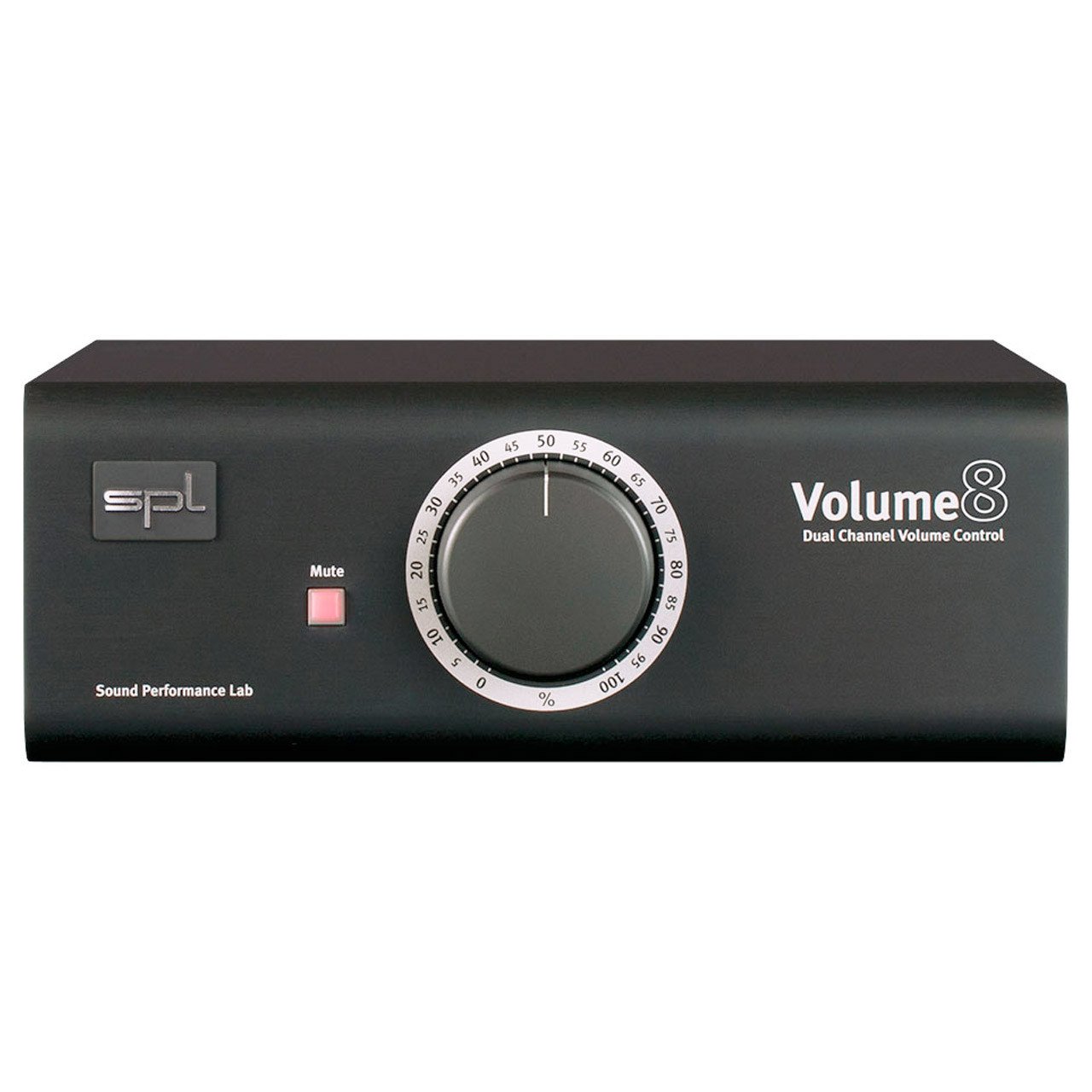

    The SPL Volume 8 is an active monitor controller, with a very simple and elegant design. The Volume 8 features 2 x DB-25 connectors on the rear panel. This gives you 8 analog in and out, making it possible to use in a surround sound monitoring system.

      • SPL Volume 8 Features:

        As a cost-effective alternative to our full-featured Stereo and Surround Monitoring Controllers MTC and SMC,  the Volume 8 focuses on high quality active volume control. Users who do not need additional monitoring functionality provided by the SMC will find the Volume 8 an cost-effective solution without compromises. The Volume 8‘s design is based on active circuitries to avoid nonlinear frequency response introduced by impedance changes with passive designs when changing levels.

        The Volume 8 serves as a system-independent analog volume regulator in all areas of audio processing and playback, including

        Stereo- and Surround Music production
        Multichannel movie and video post production
        Multichannel video computer games production
        Multichannel Hi-fidelity applications
      • SPL Volume 8 Specifications:

        Inputs & Outputs
        Instrumentation amplifier, electronically balanced (differential), transformerless
        Nominal input level: +4dBu
        Input impedance: =22kOhm
        Output impedance: ‹600Ohm
        Max. input level: ›+20dBu
        Volume control range: -80dB bis -4dB

        Frequency range: 10Hz-100kHz (100kHz = -3dB)
        CMRR: ›60dBu@1kHz
        THD & N (at +15dBu input level): ›-100dBu
        S/N (A-weighted): -102dBu
        Crosstalk L/R (at 1kHz): ›-80dBu
        Dynamic range: 120dB
        Power supply
        Toroidal transformer: 15VA
        Fuses: 250mA (230V), 500mA (115V)
        Voltage selector: 230V/50Hz; 115V/60Hz
        Power consumption: 15W
        Dimensions & Weight
        (W x H x D): 215 x 80 x 220mm
        Depth incl. Potentiometer, Sockets: 245mm
        Weight: 1.6kg

        0dBu = 0.775V. Subject to change without notice.
    Need more info on the SPL Volume 8?
