Strymon

SN-OJAI

Strymon Ojai - Compact High Current DC Pedal Power Supply

HUGE HORSEPOWER, SMALL SIZE.

Power your pedals with Ojai—the highest horsepower, most technologically advanced effects pedal power supply of its size. Ojai delivers clean, rock-steady power to your effects pedals in a lightweight and expandable package, giving you flexibility and room to grow.

You get five high-current, individually isolated, ultra-low-noise outputs—each with its own dedicated regulator and custom transformer. Each output provides a massive 500mA of current.

Ojai’s dual-stage topology, pre-regulated outputs, optically isolated feedback, and advanced multistage filtering result in a power supply that allows your pedals to achieve their highest possible dynamic range.

DUAL ISOLATION.

Ojai’s all analog circuitry offers two stages of isolation, completely eliminating ground loop and AC line noise issues, allowing your pedals to sound like they were designed to sound.

WORLD TOUR READY.

With automatic international power compatibility built-in, Ojai delivers clean, reliable power to all your pedals, on any stage anywhere you play in the world.

NEVER RUN OUT OF OUTPUTS.

Have a growing rig? Ojai is part of an expandable system. Gain more outputs by connecting additional Ojai units to the 24V Thru jack. Or use Ojai to add five more outputs to our Zuma power supply (sold separately).

FEATURES

NEVER RUN OUT OF OUTPUTS.

Expandable, Modular Power System

Is your pedalboard growing?

Gain more outputs by connecting additional Ojai units to the 24V Thru jack. Or use Ojai to add five more outputs to our Zuma power supply (sold separately).

Ojai is part of a truly expandable, modular power distribution system that can grow with your pedalboard.

INS & OUTS

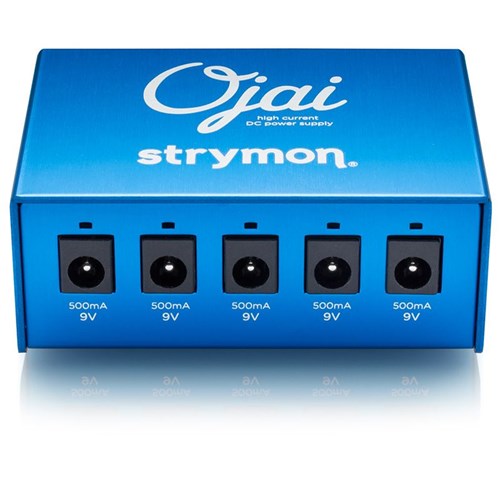

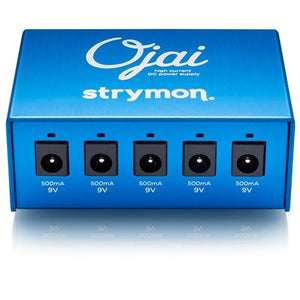

FRONT PANEL

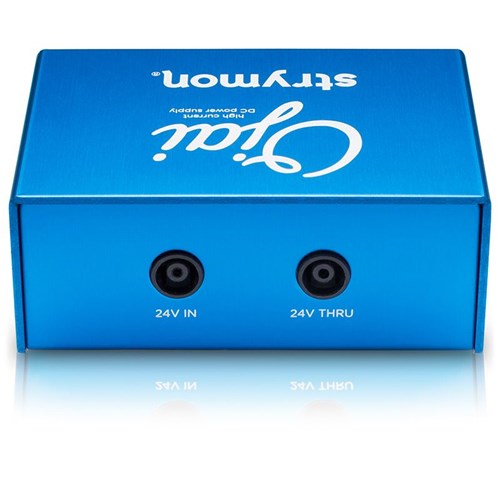

REAR PANEL

POWER ADAPTER

DESIGN

Our power design team has over 25 years of experience in power system design, from developing mission-critical power systems for the aerospace industry, to developing best-in-class power supplies for top-selling power amplifiers, studio monitors, guitar amplifiers, and more. We’re using this vast experience to provide clean, dependable power to all of your effects pedals.

SPECS

  • 5 high-current, fully isolated 9V outputs with center-negative polarity
  • 500mA per output powers nearly any pedal
  • 5 pedal cables included (5.5mm x 2.1mm barrel connectors, right angle to straight)
  • 24V power adapter (PS-124), EIAJ-05 power adapter cable, and IEC cable included
  • 24V Thru jack allows connection to additional Strymon Ojai (sold separately)

FREQUENTLY ASKED QUESTIONS

What are the dimensions and weight of Ojai?

Ojai dimensions: 3.2″ x 2.3″ x 1.3” (81mm x 58mm x 33mm)

Ojai weight: 4.7 oz. (133g)

Ojai power adapter dimensions: 4.2″ x 2.15″ x 1.25” (107mm x 55mm x 32mm)

Ojai power adapter weight: 4.7 oz. (133g)
