Strymon

SN-OJAI-R30

Strymon Ojai R30 - Low Profile High Current DC Pedal Power Supply

1 IN STOCK

FORMIDABLY FLEXIBLE.

Power your pedals with Ojai R30—the highest horsepower, most technologically advanced effects pedal power supply of its size. You get clean, rock-steady power for your 9V, 12V and 18V effects pedals in a low profile, expandable package, giving you room to grow.

Ojai R30’s dual-stage topology, pre-regulated outputs, optically isolated feedback, and advanced multistage filtering allow your pedals to achieve their highest possible dynamic range.


Strymon Ojai R30 Pedal Power Supply

DUAL ISOLATION.

Ojai R30’s all analog circuitry offers two stages of isolation, completely eliminating ground loop and AC line noise issues, allowing your pedals to sound like they were designed to sound.

WORLD TOUR READY.

With automatic international power compatibility built-in, Ojai R30 delivers clean, reliable power to all your pedals, on any stage anywhere you play in the world.

NEVER RUN OUT OF OUTPUTS.

Have a growing rig? Ojai R30 is part of an expandable system. Gain more outputs by connecting additional Ojai units to the 24V Thru jack. Or use Ojai R30 to add five more outputs to our Zuma power supply (sold separately).

FEATURES

NEVER RUN OUT OF OUTPUTS.

Ojai R30 expandable system

Is your pedalboard growing? Gain more outputs by connecting additional Ojai units to the 24V Thru jack.

Or use Ojai R30 to add five more outputs to our Zuma power supply (sold separately).

Ojai R30 is part of a truly expandable, modular power distribution system that can grow with your pedalboard.

INS & OUTS

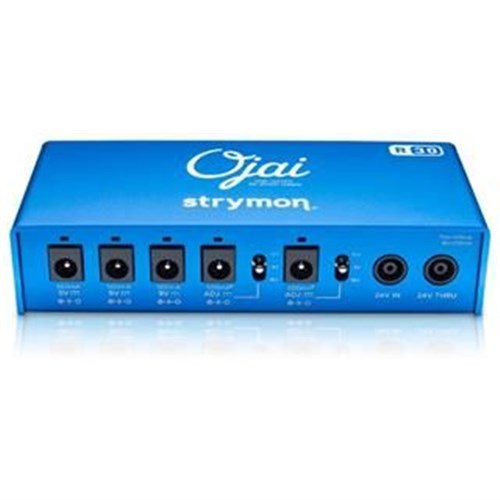

FRONT PANEL

Strymon Ojai R30 Pedal Power Supply

REAR PANEL

Strymon Ojai R30 Pedal Power Supply

POWER ADAPTER

Strymon Ojai R30 Pedal Power Supply

DESIGN

Our power design team has over 25 years of experience in power system design, from developing mission-critical power systems for the aerospace industry, to developing best-in-class power supplies for top-selling power amplifiers, studio monitors, guitar amplifiers, and more. We’re using this vast experience to provide clean, dependable power to all of your effects pedals.

SPECS

  • 5 high-current, fully isolated 9V outputs with center-negative polarity
    • 3 dedicated 9V outputs (500mA)
    • 2 adjustable outputs offer 9V (500mA), 12V (375mA), or 18V (250mA) DC options
  • 500mA per output powers nearly any pedal
  • 5 pedal cables included (5.5mm x 2.1mm barrel connectors, right angle to right angle, 18″ length)
  • 24V power adapter (PS-124), EIAJ-05 power adapter cable, and IEC cable included
  • 24V Thru jack allows connection to additional Strymon Ojai (sold separately)

FREQUENTLY ASKED QUESTIONS

What are the dimensions and weight of Ojai R30?

Ojai R30 dimensions: 5.1″ x 2.3″ x 1.15” (130mm x 58mm x 29mm)

Ojai R30 weight: 6 oz. (171g)

PS-124 power adapter dimensions: 4.2″ x 2.15″ x 1.25” (107mm x 55mm x 32mm)

PS-124 power adapter weight: 4.7 oz. (133g)


STRYMON POWER SUPPLY FAMILY

  • Zuma - High Current DC Pedal Power Supply

    ZUMA – HIGH CURRENT DC PEDAL POWER SUPPLY

  • Zuma R300 - Low Profile High Current DC Pedal Power Supply

    ZUMA R300 – ULTRA LOW PROFILE DC PEDAL POWER SUPPLY

  • Ojai R30 - High Current DC Pedal Power Supply

    OJAI R30 – LOW PROFILE HIGH CURRENT DC PEDAL POWER SUPPLY

  • Ojai - Compact High Current DC Pedal Power Supply

    OJAI – COMPACT HIGH CURRENT DC PEDAL POWER SUPPLY

EXPAND YOUR EXISTING SYSTEM

  • OJAI EXPANSION KITS

All Strymon pedals are Designed and Built in the USA.

What are the dimensions and weight of Ojai R30?

Ojai R30 dimensions: 5.1″ x 2.3″ x 1.15” (130mm x 58mm x 29mm)

Ojai R30 weight: 6 oz. (171g)

PS-124 power adapter dimensions: 4.2″ x 2.15″ x 1.25” (107mm x 55mm x 32mm)

PS-124 power adapter weight: 4.7 oz. (133g)

When Ojai R30 units are linked together, how many pedals can I power?

Ojai R30 provides a huge amount of power.

You can link together as many as 7 Ojai units powered from one 24V power adapter, powering up to 35 effects pedals (depending on the total current requirement for the pedals).

While it’s unlikely that anyone would go to such extremes, we wanted to ensure that the Ojai product family delivers maximum flexibility and expandability.

A much more likely scenario would be to link 2 or 3 Ojai units together, powering a combination of up to 15 high and low current draw pedals.

How can I mount Ojai R30 to my pedalboard?

Ojai R30 features built in threaded hardware for easy mounting to the top or bottom of most pedalboards. A drill template and mounting screws are included in the box.

Don’t want to drill? Ojai R30 is incredibly lightweight, and can also be mounted to the top or bottom of most pedalboards using VELCRO® or Dual Lock™.  You may also choose to mount the included 24V power adapter using VELCRO or Dual Lock.
