Tascam

DA-6400

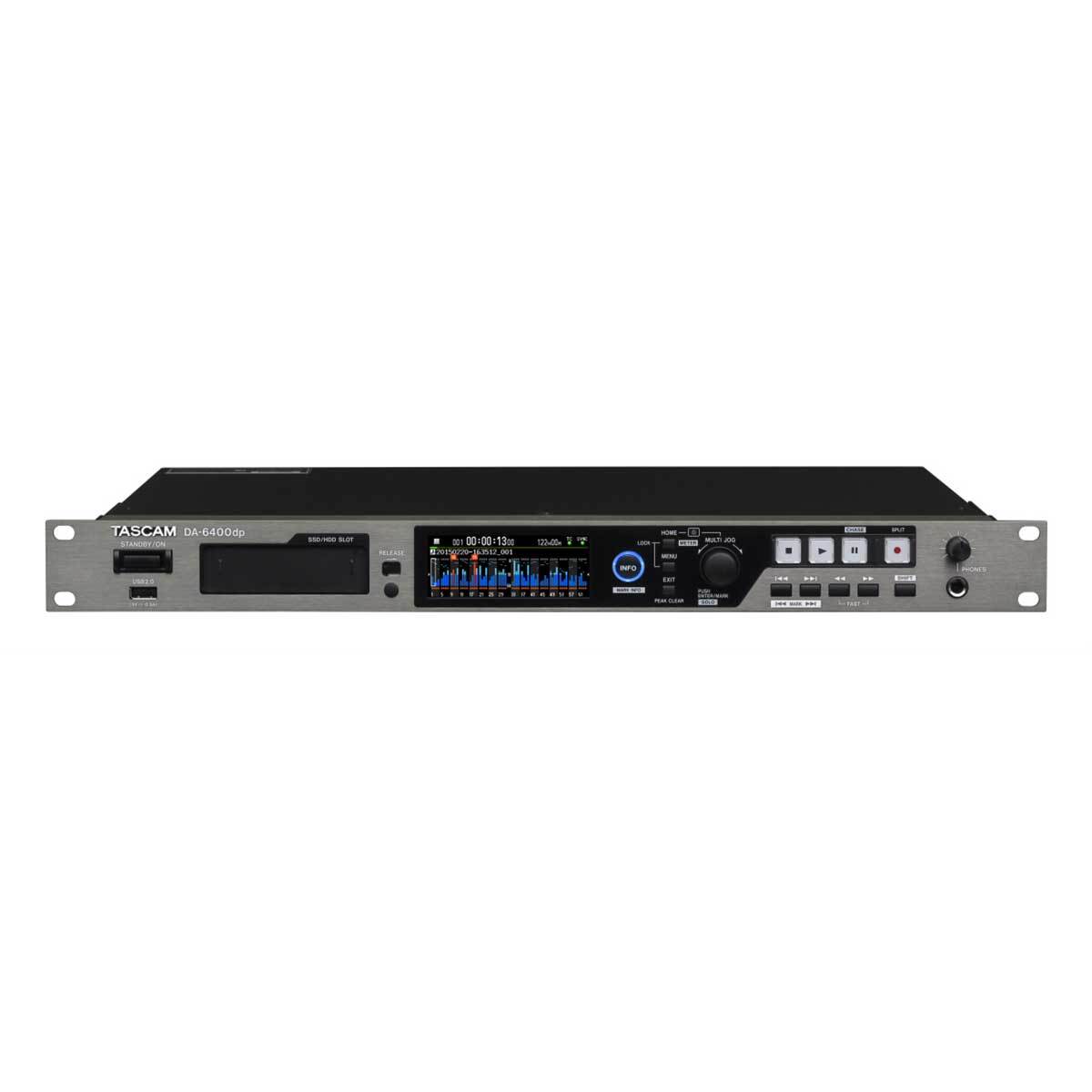

TASCAM DA-6400 Compact 64-channel digital multitrack recorder/player for Live and Broadcast applications

TASCAM’s DA-6400 is an all-new 64-track recorder that records to an internal SSD drive caddy for live and event recording. Professional I/O options like MADI and DANTE make it ideal for live recording, event capture, or as a backup for critical DAW sessions. Available with a single or dual/redundant power supply, the DA-6400 is an unbeatable option for professional remote recording.


    • Product Features:

      Supports recording/playback of 64 channels at 48kHz/24-bit or 32 channels at 96kHz/24-bit PCM
      The perfect backup recording system for synchronized capture with Pro Tools systems
      2.5-inch SSD recording media with excellent vibration and environmental resistance as well as maintenance-free operation.
      (Note: HDD support currently under development)
      Includes TASCAM SSD – designed with custom controller parts and thoroughly tested using DA-6400 units
      Hot swappable AK-CC25 case loads into front-loaded storage bay with USB 3 I/O port for transfer to DAW computer
      AK-CC25 with TASCAM 240GB SSD drive included with unit
      Hi-visibility Color LCD  (320×120 pixels)
      BWF support for storing time information with files
      Two I/O slots for optional audio interface cards:
      IF-MA64/EX 64-channel redundant (in/out/thru) MADI optical/coaxial interface card
      IF-MA64/BN 64-channel MADI coaxial interface card
      IF-DA64 64-channel Dante interface card
      IF-AE16 16-channel AES/EBU interface card
      SMPTE LTC timecode input and output for location synchronization
      Firmware upload over USB port
      Parallel remote control input
      RS-422 serial remote control (9-pin serial protocol compliant)
      Gigabit LAN (1000BASE-T Ethernet) for file transfer, remote control and monitoring over a network
      SNTP server support for automatic adjustment of the internal clock over a network
      Video reference (NTSC/PAL blackburst signals and HDTV Tri-level signals) and word clock input and output/thru
      EIA 1U rackmount size
      IEC 3-pin inlet
      iPad and computer applications for remote control
      AC power redundancy built in (DA-6400dp only)
    • Technical Specifications:

      Recording media SSD
      Note: HDD support also planned in addition to the SSD.
      File system FAT32
      File formats BWF (.wav)

      Number of channels 64 (1×Fs), 32 (2×Fs)
      Sampling frequencies 44.1k / 48k / 88.2k / 96k Hz
      Quantization bit rate 16 / 24-bit
      Clock reference INTERNAL, WORD IN, VIDEO IN
      Timecode frame 23.976 / 24 / 25 / 29.97DF / 29.97NDF / 30DF / 30NDF
      TIME CODE IN
      Connector BNC
      Signal voltage amplitude 0.5V to 5Vp-p
      Input impedance 10kΩ
      Format SMPTE 12M-1999 compliant
      TIME CODE OUT
      Connector BNC
      Signal voltage amplitude 2Vp-p
      Output impedance 600Ω
      Format SMPTE 12M-1999 compliant
      WORD/VIDEO IN
      Connector BNC
      Input voltage amplitude (WORD) 0.5V to 5Vp-p TTL equivalent
      Signal voltage amplitude (VIDEO) 1Vp-p
      Input impedance 75Ω ±10%
      Input frequency (WORD) 48kHz
      Input signal (VIDEO) 23.976 / 24 / 25 / 29.97 / 30 Frame (NTSC/PAL Black burst, HDTV Tri-Level)
      WORD/VIDEO THRU/OUT
      Connector BNC
      Output voltage amplitude 5V TTL equivalent
      Output frequency (WORD) 48kHz
      ETHERNET
      Connector RJ-45
      Protocol 100BASE-TX, 1000BASE-T
      RS-422
      Connector D-sub 9 pin (female, inch-standard)
      PARALLEL
      Connector D-sub 15 pin (female, inch-standard)
      USB
      Connector USB2.0 A-type
      Protocol USB 2.0 HIGH SPEED (480Mbps)
      PHONES
      Connector 1/4" (6.3mm) Stereo Phone jack × 1
      Maximum output level 45mW + 45mW or higher
      Power AC 100 - 240V, 50/60Hz
      *DA-6400dp has 2 power supply inlets
      Power consumption 21W (At the time of IF-MA64/EX use)
      Dimensions (W×H×D) 19.0" × 1.766" × 12.0" / 482.6 × 44.7 × 304.8 mm
      Weight
      DA-6400 8.6 lbs. / 3.9 kg
      DA-6400dp 8.8 lbs. / 4.0 kg
      Operating temperature 32˚F to 104˚F / 0˚C to 40˚C
      Standard accessories TASCAM SSD, SSD media case, Power cable×1 (DA-6400), Power cable×2 (DA-6400dp), USB cable, Rack mount screw kit, Security screw kit, Owner’s manual (with warranty)
